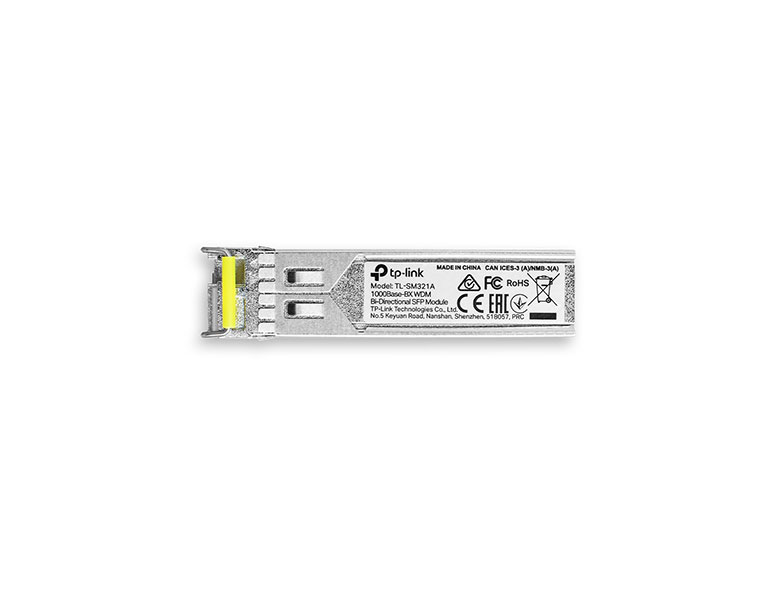

TP-LINK SM321A 1000Base-BX WDM Bi-Directional SFP Module
Κωδικός προϊόντος:
SM321A
01.jpg "TP-LINK SM321A 1000Base-BX WDM Bi-Directional SFP Module")
02.jpg "TP-LINK SM321A 1000Base-BX WDM Bi-Directional SFP Module")
17,80 €
(Περιλαμβάνει ΦΠΑ 24%)
Τιμή χωρίς ΦΠΑ:
14,35 €
Άμεσα διαθέσιμο
TP-LINK TL-SM321A 1000Base-BX WDM Bi-Directional SFP Module
Υπολογισμός κόστους μεταφορικών:
Ποσότητα
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
|
• Up to 20 km transmission distance with 9/125 μm SMF (Single-Mode Fiber) |
What This Product Does
TP-Link´s SM321A adopts the latest standard 1000Base-BX, transmitting over one single-mode fiber with one different wavelength going in each direction. Paired with TL-SM321B, You can extend the network distance up to 20Km with TP-Link´s routers, switches and media converters for reliable high-speed long-distance communication.
Χαρακτηριστικά
| SPECIFICATIONS | |
| Wave Length | Tx: 1550 nm Rx: 1310 nm |
| Standards and Protocols | IEEE 802.3z, TCP/IP |
| Cable | Single-mode Fiber |
| Fiber Type | 9/125 um Single-mode |
| Max. Cable Length | 20 km |
| Power Support | 3.3V |
| Safety & Emission | FCC, CE |
| Data Rate | 1.25 Gbps |
| Port Type | LC Simplex |
| Safety & Emission | FCC, CE |
| DDM | Yes |
| SFP-MSA | Yes |
| Hot Swappable | Yes |
| Environment | Operating Temperature: 0–70 °C Storage Temperature: -40–85 °C Operating Humidity: 10–90% RH, Non-Condensing Storage Humidity: 5–90% RH, Non-Condensing |
