MaxLink MAXPIDIN30 PoE injector, 12-48VDC, 802.3af/at, 55V, 0.55A, 30W, 1Gbit
Κωδικός προϊόντος:
MAXPIDIN30
62,00 €
(Περιλαμβάνει ΦΠΑ 24%)
Τιμή χωρίς ΦΠΑ:
50,00 €
Άμεσα διαθέσιμο
MaxLink MAXPIDIN30 PoE injector, 12-48VDC, 802.3af/at, 55V, 0.55A, 30W, 1Gbit
Υπολογισμός κόστους μεταφορικών:
Ποσότητα
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή

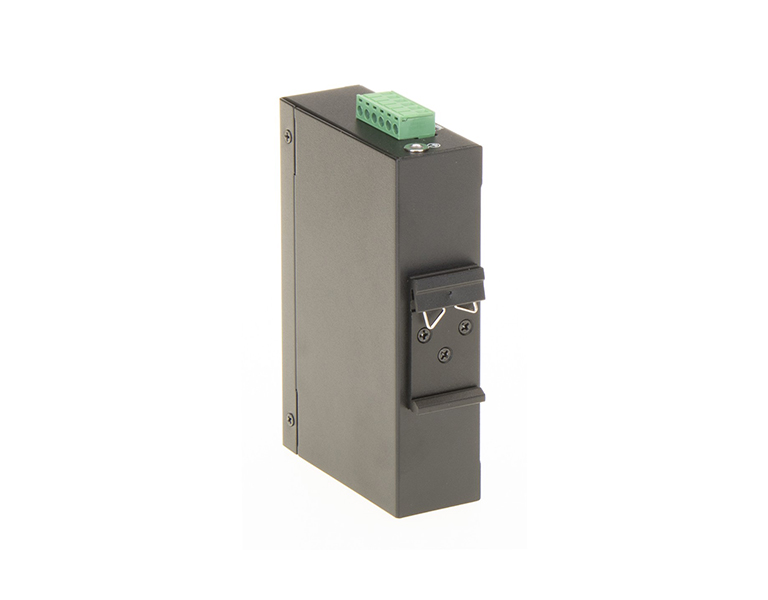

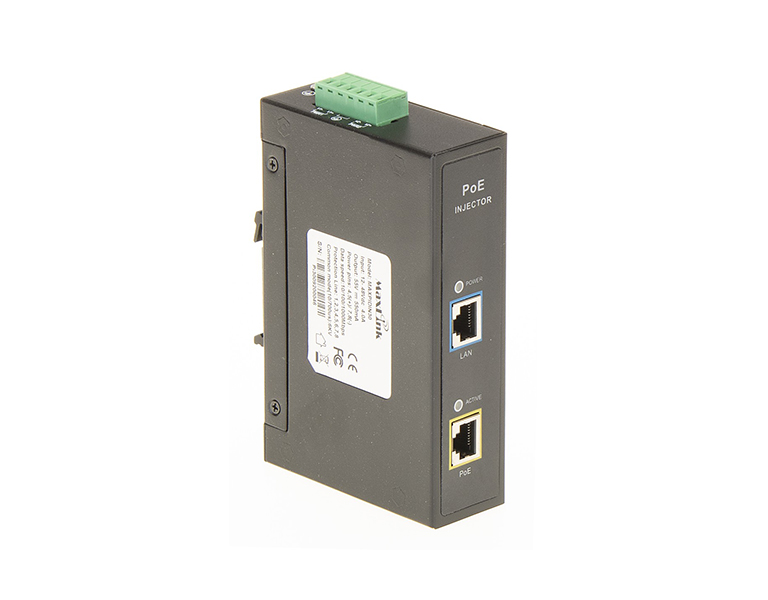

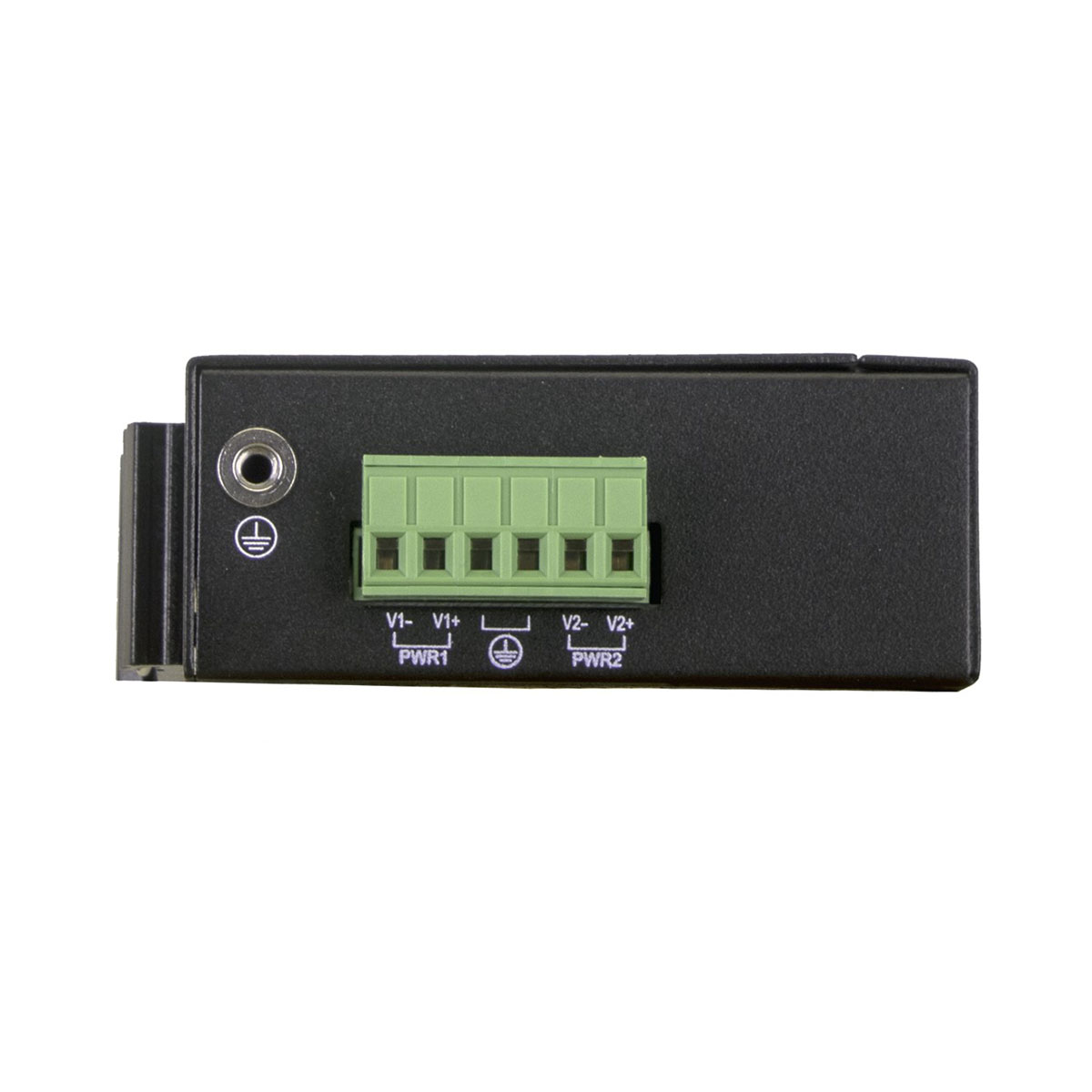

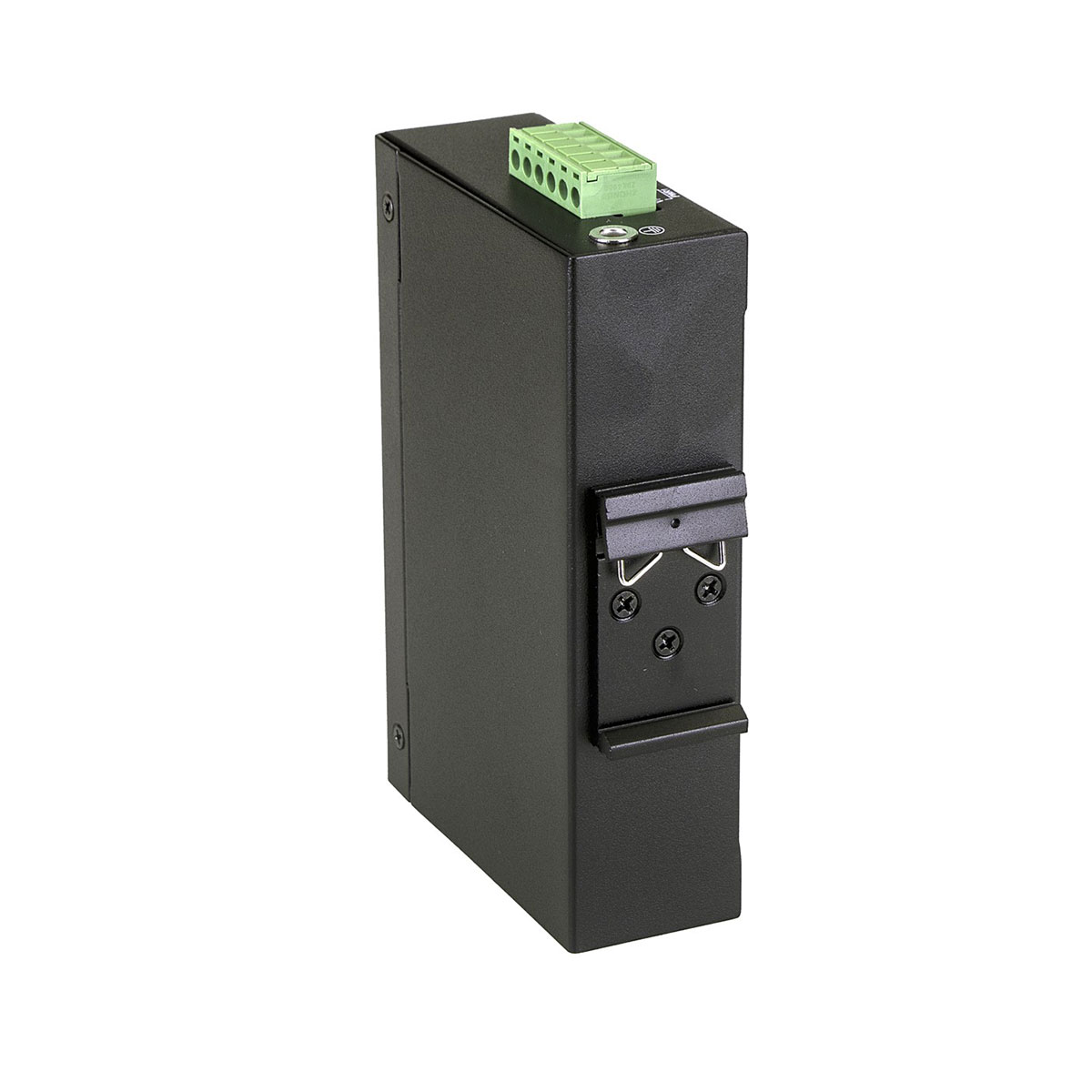

MAXPIDIN30 is an active PoE injector with DIN rail mounting with input DC power supply 12 to 48V. The output of this power source is a Gigabit port with 802.3af/at PoE (55V) designed for WiFi, VoIP or wireless links. PoE is distributed over pins 4.5 (+) and 7.8 (-). The second Gigabit LAN serves as a data input. The total power of the power supply is 30W. The advantage of the source is 6kV (10 / 700us) surge protection.
This PoE injector is suitable for places where you already have a central power supply - whether a solar panel or a strong power supply.
Χαρακτηριστικά
| Specifications | |
| PoE Out standards | 802.3af, 802.3at |
| PoE Out ports | 1 |
| LED indication | Yes |
| Pin powering | 4,5 (+), 7,8 (-) |
| Output Voltage | 55V |
| Output Power / 1port | 30W |
| Ethernet speed | 10/100/1000 Mbps |
| Gigabit LAN | Yes |
| Operating temperature | -40 up to 65°C |
| Weight | 400g |
| Depth | 75mm |
| Width | 32mm |
| Height | 115mm |
| Package Contents | MAXPIDIN30 1x User Manual Ground lug Wire: 16AWG |
