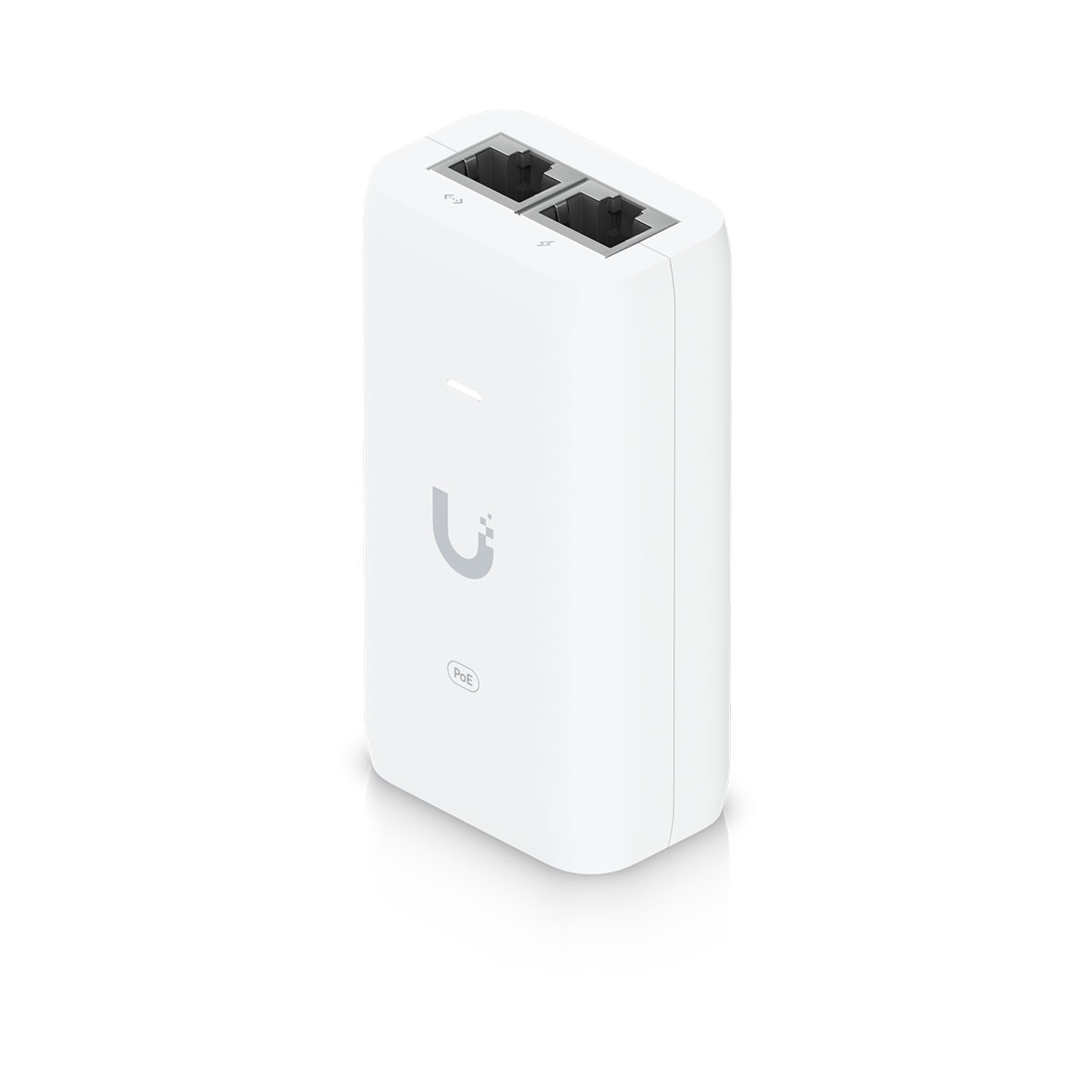

Ubiquiti U-POE Gigabit PoE Adapter, 48V/0.32A, 15W
Κωδικός προϊόντος:
U-POE
10,00 €
(Περιλαμβάνει ΦΠΑ 24%)
Τιμή χωρίς ΦΠΑ:
8,06 €
Άμεσα διαθέσιμο
Ubiquiti U-POE Gigabit PoE Adapter, 48V/0.32A, 15W
Υπολογισμός κόστους μεταφορικών:
Ποσότητα
Κατηγορία:
Κατασκευαστής:
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
High-quality, stabilized white Gigabit PoE power adapter with earthing, LED indication and output voltage 48V and max. current 0.32A. The maximum output power is 15,4W.
| Εγγυήσεις - Επιστροφές: | |
| Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
| 20 ημέρες | 24 μήνες |
Χαρακτηριστικά
| Specifications | |
| Dimensions | 86 x 46 x 33 mm |
| Weight | 100 g (3.53 oz) |
| Output Voltage | 48VDC @ 0.32A |
| Gigabit LAN Port | Yes |
| Rated Voltage | 100-240VAC @ 50/60Hz |
| 2-pair Powering | Pins 4, 5 (+) and 7, 8 (-) |
| AC Connector | IEC-320 C6 |
| Clamping Protection | 11V Data, 60V Power |
| Data In / PoE | RJ45 Shielded Socket |
| Input Current | 500mA Max. |
| Inrush Current | <100A peak at 25°C |
| Efficiency | 84.25+% |
| Switching Frequency | 65 kHz |
| Output Ripple | 200mV p-p |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| Max. Surge Discharge | 1500A (8/20 μs) power |
| Peak Pulse Current | 36A (10/1000 μs) data |
| Response Time | <1 ns |
| Shunt Capacitance | <5 pF data |
| Surge Protection | Difference and Common Mode |
| Storage Temperature | 30 to 70°C |
| Ambient Operating Temperature | 0 to 40° C |
| Ambient Operating Humidity | 10 to 95% Falsencondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, UL |
