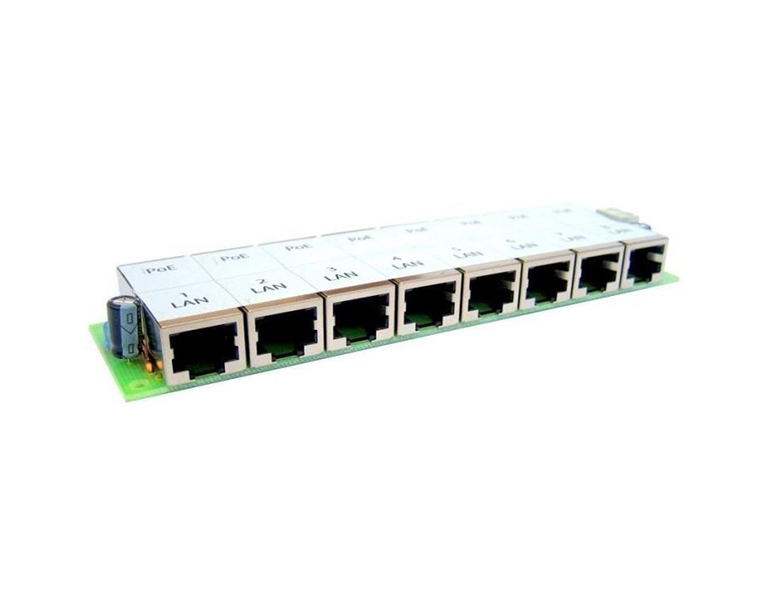

MaxLink POE-PAN8-S Passive POE panel, 8 ports, terminal block, no case
Κωδικός προϊόντος:
POE-PAN8-S
7,50 €
(Περιλαμβάνει ΦΠΑ 24%)
Τιμή χωρίς ΦΠΑ:
6,05 €
7 Ημέρες
MaxLink POE-PAN8-S Passive POE panel, 8 ports, terminal block, no case
Υπολογισμός κόστους μεταφορικών:
Ποσότητα
Περιγραφή
Χαρακτηριστικά
Περιγραφή
The PoE injector is suitable for powering up to eight devices supporting passive PoE. To LAN ports on one side connect device without power supply eg switch, on the other side connect devices using passive PoE - WiFi, VoIP or other devices supporting passive PoE. The power supply uses two unused pairs of ethernet cable: 4,5 (positive pole) and 7,8 (negative pole). Power supply is connecting via terminal block. The hole pitch is for attach 140 x 30mm.
Χαρακτηριστικά
| Specifications | |
| Ethernet speed | 10/100Mbps |
| Depth | 37mm |
| Width | 147mm |
| Height | 15mm |
| Operating temperature | 0°C up to 40°C |
| LED indication: | Yes |
| Pin powering: | 4,5 (+), 7,8 (-) |
| PoE Outs ports: | 8 |
| The input voltage: | 9 .. 48V DC |
