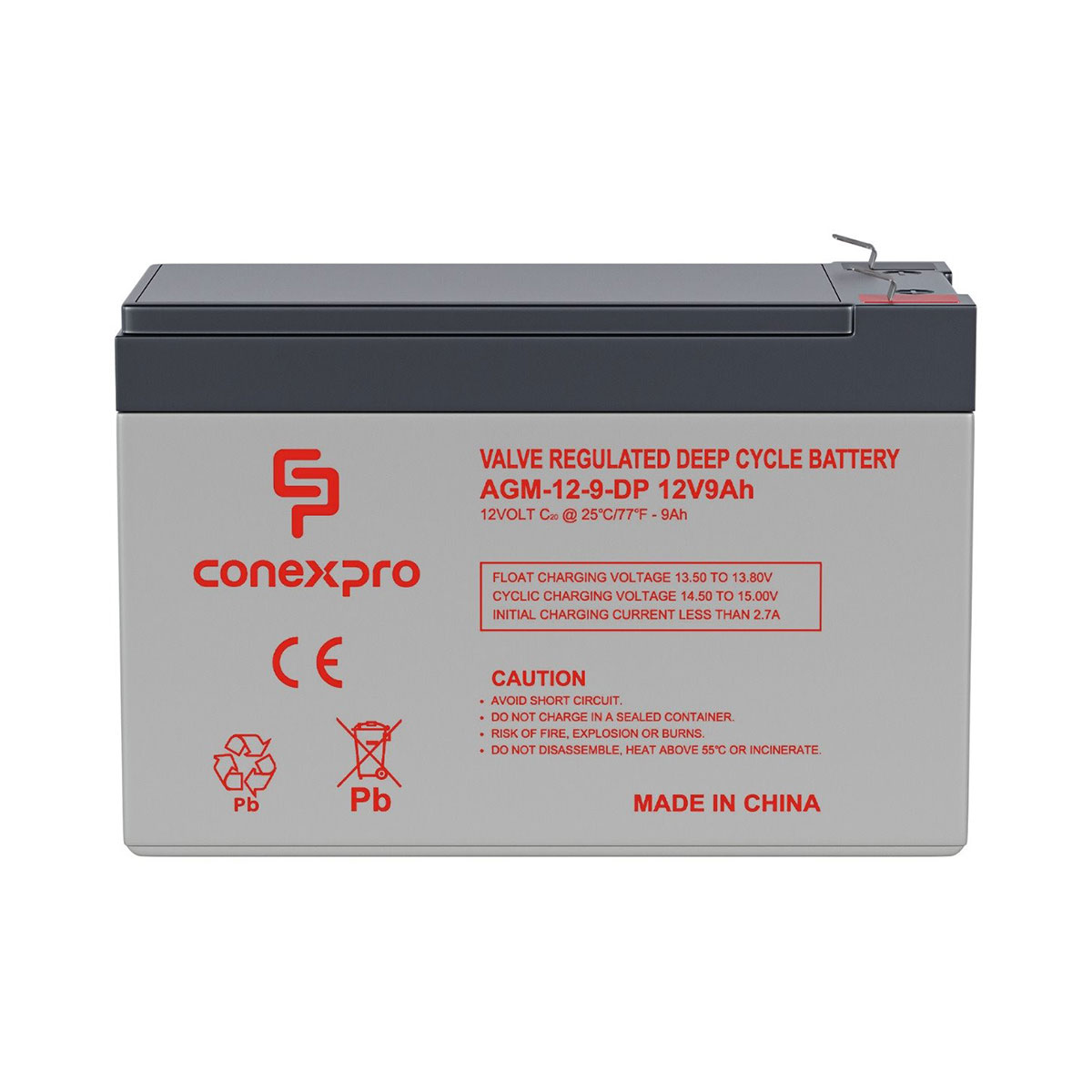

Conexpro BATTERY AGM 12V, 9AH, Lifetime 10 Years, Faston 6,3mm, Deep Cycle
The Conexpro lead-acid AGM Deep Cycle battery features an output voltage of 12 V, a capacity of 9 Ah, and a lifespan of 10–12 years. It is equipped with two Faston 6.3 mm connectors for easy device integration. Designed as a Deep Cycle unit, this battery is ideal for cyclic applications requiring frequent deep discharging and recharging, such as solar systems, RVs, boats, backup power supplies (UPS), security technologies, IT systems, and certain types of medical equipment.
The modern Deep Cycle battery series utilizes advanced AGM technology (Absorbent Glass Mat), where the electrolyte is securely held in a porous fiberglass mat. This design ensures excellent cycle durability, reliable performance, and a long operational life even under repeated deep discharges.
Key Features
• Operable in various orientations
• Suitable for cyclic operation – hundreds to thousands of cycles
• Long service life when used correctly (especially when not discharged below recommended levels, typically around 50% of capacity)
• Maintenance-free cell
• Leak-resistant electrolyte
• Delivers high performance
• Low self-discharge
• Wide range of applications
| Characteristics | |
| Nominal Voltage | 12V (6 cell per unit) |
| Nominal power at 15 min. rate 1.67V/cell (25°C) | 35W |
| Capacity (25°C) | 20 Hours rate/10.5V 9Ah 5 Hours rate/10.5V 7.95Ah |
| Terminal type | T1/T2 |
| Approx. internal resistance (25°C) | 17.0 mΩ |
| Dimensions | Length 151±1.5mm Width 65±1mm Height 94±1mm Total height 100±1mm |
| Design Life (stand-by) |
JIS at 25°C 10 years Eurobat at 20°C 10-12 years |
| Weight | 2.73kg±4% |
| Nominal operating temperature | 25±3°C |
| Operating temperature range |
Discharge -15°C~50°C Charge -10°C~50°C Storage -20°C~50°C |
| Float charging voltage at 25°C | 13.6V~13.8V |
| Cyclic charging voltage at 25°C | 14.5V~15.0V |
| Temperature compensation |
Float charge -18 (mV/°C/Block) Cycle charge -30 (mV/°C/Block) |
| Max. charging current (A) | 2.80A |
| Max. discharge current for 5 seconds | 135A |
| Self discharge rate (25°C) | ≤3%/month |
| Battery container ABS UL94-HB | V-0 optional |
