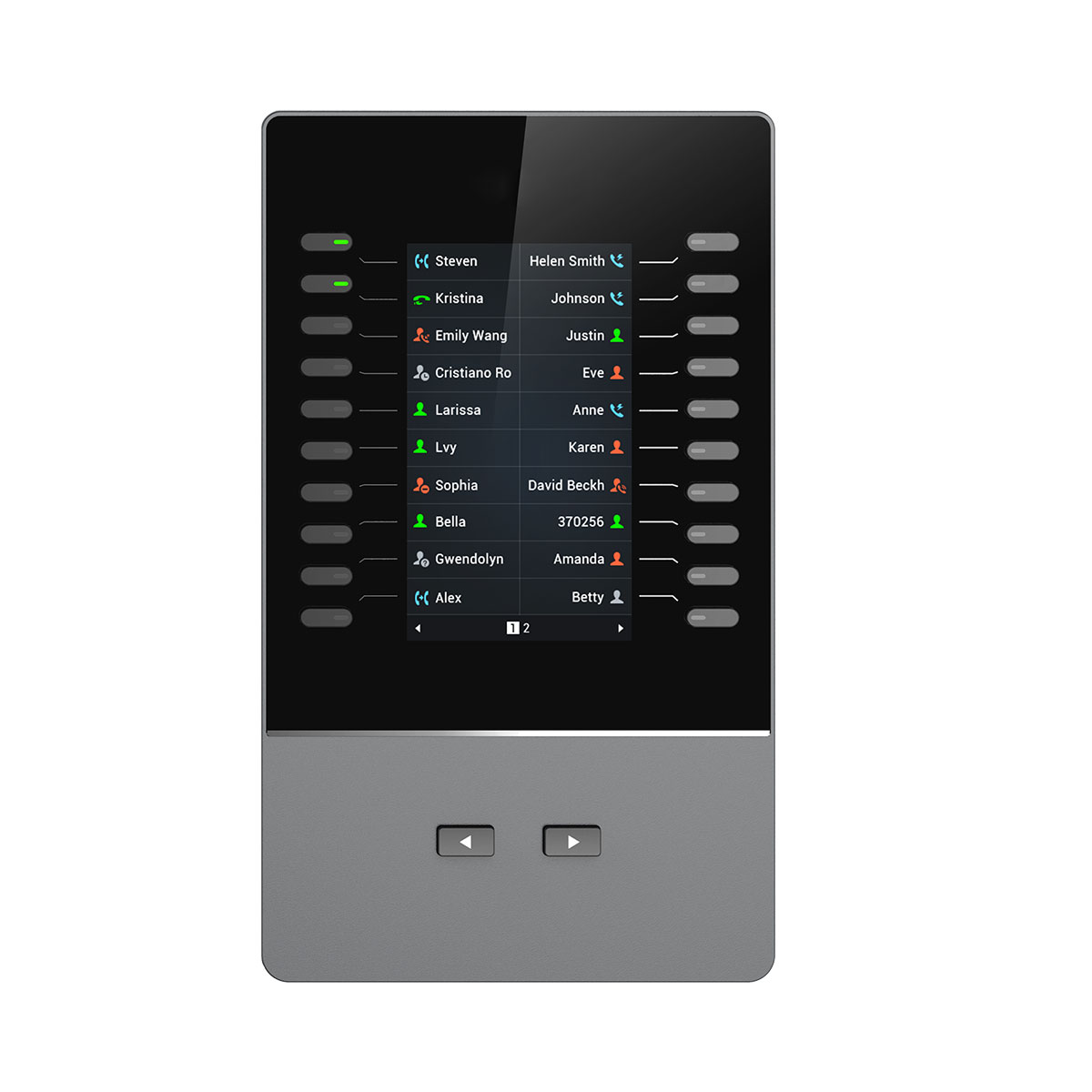

Grandstream GBX20 Backlit LCD Extension Module

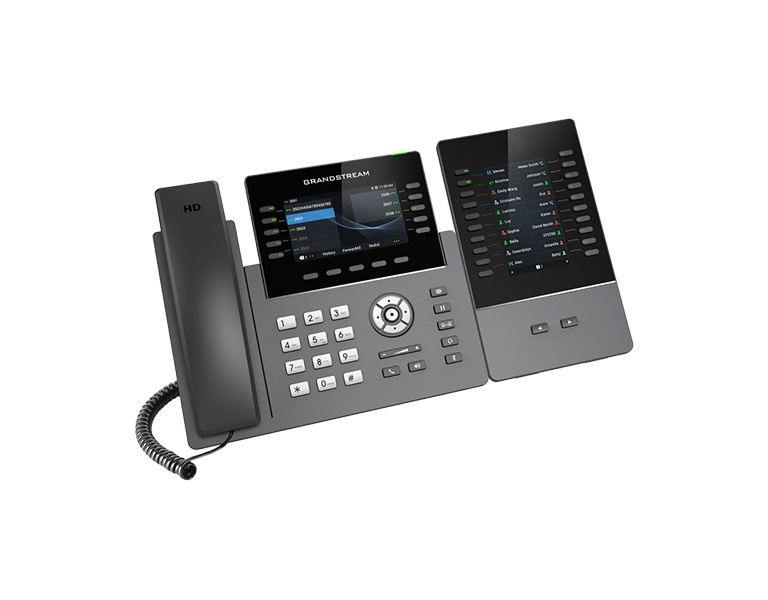

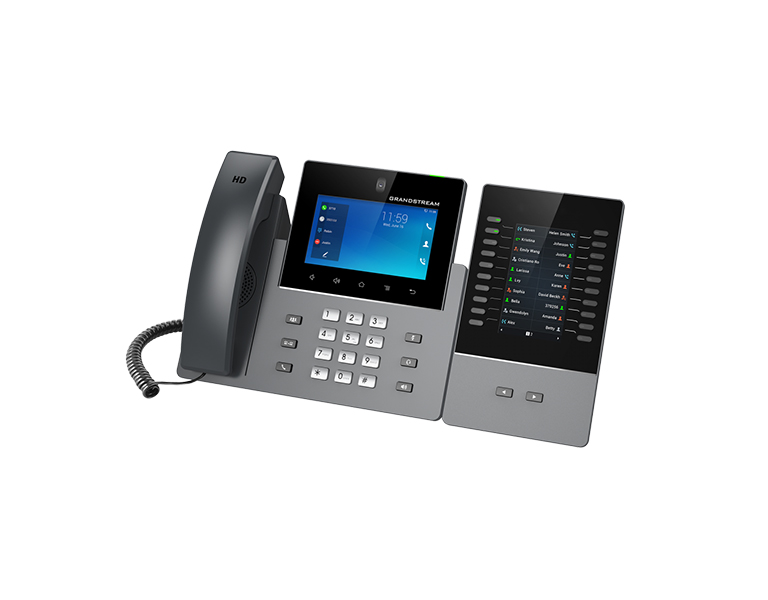

The GBX20 is an Extension Module that adds functionality, versatility and flexibility to Grandstream’s GRP2615 Carrier-Grade IP Phone and GXV3350 IP Video Phone. It features a 272x480 LCD display that offers up to 40 contacts per module with support for up to 160 contacts by using 4 modules. The GBX20 supports a wide-range of advanced call features including BLF, call park/pick-up, speed-dial, presence, intercom, voice conferencing transfer/forward and much more. An ideal solution for businesses and receptionists managing high call volumes, the GBX20 ensures maximum productivity by efficiently monitoring and dispatching incoming calls.
Features:
• 4.3 inch (272x480) TFT color LCD
• 20 per page (each module contains 2 pages, for up to 40 lines per module
• Combine up 4 daisy-chained modules for 160 contacts/extensions
• BLF, call park/pick-up, speed-dial, presence, intercom, voice conferencing transfer/forward and more
| Specifications | |
| Lines | 220 per page (each module contains 2 pages, for up to 40 lines per module Up to 160 with 4 daisy-chained modules |
| Compatible Grandstream IP Phones | GRP2615 and GXV3350 |
| Graphic Display | 4.3 inch (272x480) TFT color LCD |
| Feature Support | Local GUI: Multiple line/call appearances |
| Power | A single GBX20 can be powered by host phone (GRP2615 or GXV3350); when 2 or more GBX20 are connected the included 12V/1A PSU will power the GBX20s. |
| Firmware Upgrades | GBX20 firmware is upgraded by direct network download through host phone (GRP2615 or GXV3350)’s network connection and firmware upgrade setup. |
| Physical | Dimension: 210mm*124mm*33.5mm Unit weight: 360g Package weight: 700g |
| Temperature and Humidity | Operation: 0°C to 40°C Storage: -10°C to 60°C Humidity: 10% to 90% Non-condensing |
| Package Content | GBX20 Extension Board Base stand Extension Board Connector Plate Screws USB cable Quick Installation Guide 12V/1A Power Adapter |
| Compliance | FCC: Part 15 Class B IC: ICES-003 CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1 RCM: AS/NZS CISPR32; AS/NZS 62368.1 |
