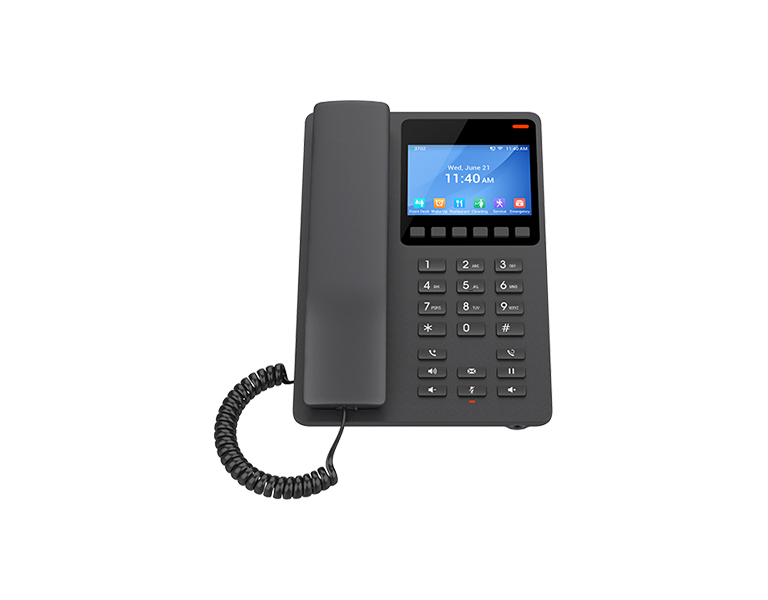

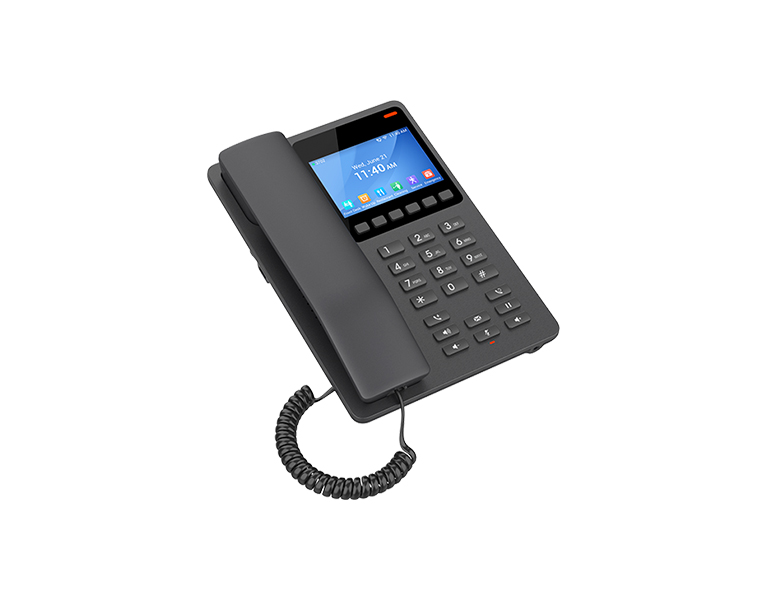

Grandstream GHP631W Compact Hotel Phone with color LCD - Black
The GHP Series of hotel phones feature the GHP631W easy-to-use IP phone for any hotel room that can be programmed and customized based on the needs of hotels and their guests. The GHP631W models are equipped with integrated dual-band 802.11ax Wi-Fi 6 to support wireless deployments. This series features an HD speaker, 2 SIP accounts/lines, 6 context-sensitive soft keys, 10 speed-dial keys, 3-way voice conferencing, supports the full-band OPUS voice codec and provides an advanced jitter-resilience algorithm that tolerates up to 30% packet loss without impacting voice quality. The GHP Series is supported by Grandstream Device Management System (GDMS), which provides a centralized interface to configure, provision, manage and monitor deployments of Grandstream endpoints. GHP series IP phones can be installed on desktop or wall-mounted and can be powered by PoE and USB Type-C charging port. Thanks to a sleek and compact design, the GHP631W is the ideal fit for hotels, apartments, dormitories, hospitals, retail stores, and much more.
Features:
• 2 SIP accounts, 2 lines
• GDMS online device management and provisioning
• 3-way audio conferencing for easy conference calls
• Integrated dual-band 2.4G/5G 802.11a/b/g/n/ ac/ax Wi-Fi 6
• Includes one 100Mbps network port with PoE
• USB Type-C charging port for modern smart phone charging
• Hearing Aid Compatibility (HAC)
• Enterprise-level protection including secure boot
| Εγγυήσεις - Επιστροφές: | |
| Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
| 20 ημέρες | 24 μήνες |
| Specifications | |
| Protocols/Standards | SIP: SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR, TLS, SRTP Network: IPv4, IPv6, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, SSH, TFTP, NTP, STUN, LLDP, TR-069, 802.1x |
| Graphic Display | 3.5” High-Resolution (480x320) Color LCD |
| Network Interfaces | One auto-negotiation 10/100 Mbps ethernet port integrated PoE Class 2 |
| Wi-Fi | integrated dual-band 2.4GHz & 5GHz 802.11 a/b/g/n/ac/ax |
| Feature Keys | 26 keys, including: 6 Context-Sensitive Soft keys 12 Standard Phone Digits keys (0-9: speed dial keys configuration on web page, * , #) 5 Function keys (Flash, Redial, Hands-free, Voice Mail, Hold) 3 Volume Control keys, Up/Down/Mute (with red color LED) |
| HD Audio | One HD handset support for wide band audio |
| Voice Conferencing | 2 SIP accounts and lines, up to 3-way conference |
| Voice Codecs and Capabilities | Support for G.729A/B, G.711µ/a-law, G.726, G.722 (wide-band), G.723, iLBC, full band Opus, Inband and out-of-band DTMF (in audio, RFC2833, SIP INFO), VAD, AEC, CNG, PLC, AGC, AJB |
| Telephony Features | Dial, Answer, Redial, Flash ,Hands-free, Voice Mail(with the server), Transfer, Conference, Hold /Unhold, Mute /Unmute, flexible dial plan, Speed dial server redundancy & fail-over Call out |
| Advanced Features | Support for multicast paging and E911 service. Support GDS Door opening. Support for advanced jitter-resilience algorithm |
| USB | USB Type-C port for charging external devices (500mA MAX) |
| Wall Installation | 1 Wall Mountable Base |
| QoS | Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS |
| Security | Secure boot, random default password, unique security certificate per device, administrator level passwords, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control |
| Multi-language | English, Spanish, French, Chinese (pending) |
| Upgrade/Provisioning | Firmware upgrade via FTP / TFTP / HTTP / HTTPS, fast boot in 15 seconds, mass provisioning using GDMS/TR-069 or AES encrypted XML configuration file |
| Power & Green Energy Efficiency | Universal power adapter Input: 100~240Vac 50~60Hz Output: 12V/0.5A(6W) |
| Temperature and Humidity | Operation: 0°C to 40°C Storage: -10°C to 60°C Humidity: 10% to 90% (Non-condensing) |
| Package Content | GHP phone, handset with cord, Base Stand, faceplate, Quick Installation Guide |
| Color | Black |
| Physical | Unit size:210mm(L) x 147mm(W) x 89.8mm(H) (with handset and base stand) Unit weight: 668g Package weight: 891g |
| GHP631W Compliance | FCC: Part 15 Subpart B, Class B; Part 15 Subpart C,15.247; Part 15 Subpart E,15.407; Part 68. 316/317. CE: EN 55032; EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN IEC 62368-1; ETSI EN 301489-1\- 17; ETSI EN 300 328; ETSI EN 301 893; EN IEC 62311. UKCA: BS EN 55032; BS EN 55035; BS EN IEC 61000-3-2; BS EN 61000-3-3; BS EN 62368-1; ETSI EN 301489-1\-17; ETSI EN 300 328; ETSI EN 301 893; BS EN IEC 62311. RCM: AS/NZS CISPR32; AS/NZS 4268; AS/NZS 2772.2; AS/NZS 62368.1; AS/CA S004. IC: RSS-247; RSS-Gen; RSS-102; ICES-003; CS-03 Part V. |
