Description

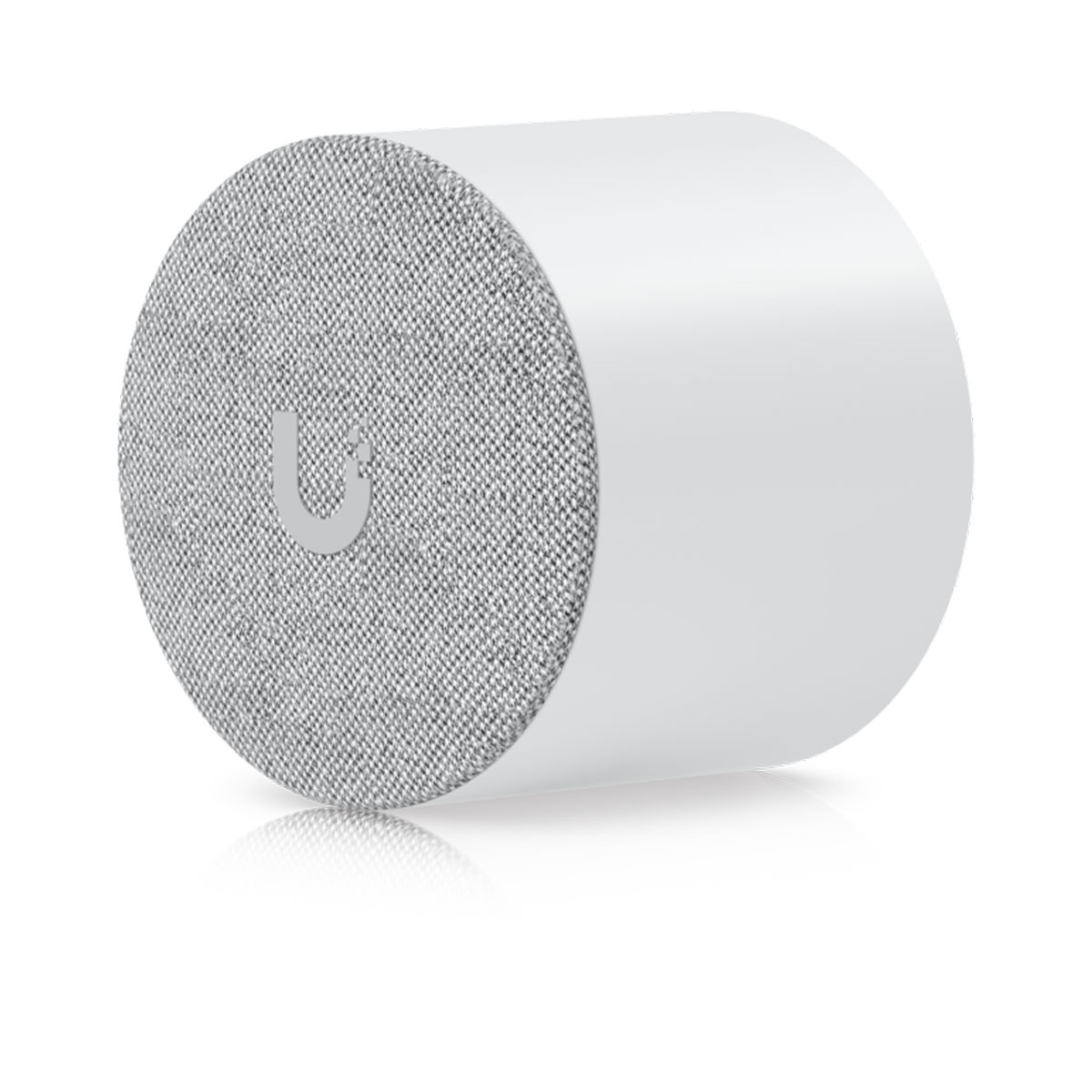

Ubiquiti UACC-Chime-PoE is a speaker, as the name implies, the power supply is via PoE (44-57 V DC). It needs no setup, just connect to the appropriate supported device. The volume of the speaker reaches up to 80 dB.
Compatible devices:

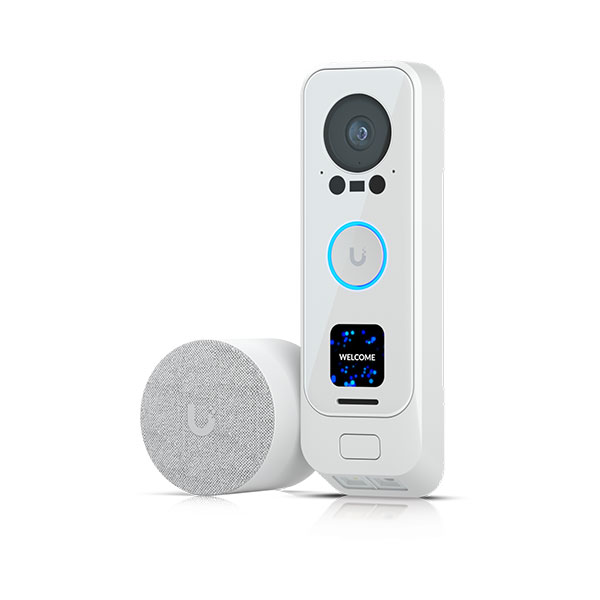

• Ubiquiti UVC-G4 Doorbell Pro PoE Kit (this product already includes the speaker)
• Ubiquiti UVC-G4 Doorbell Pro
• Ubiquiti UVC-G4-DoorBell Pro
• Ubiquiti UA-G2-Pro

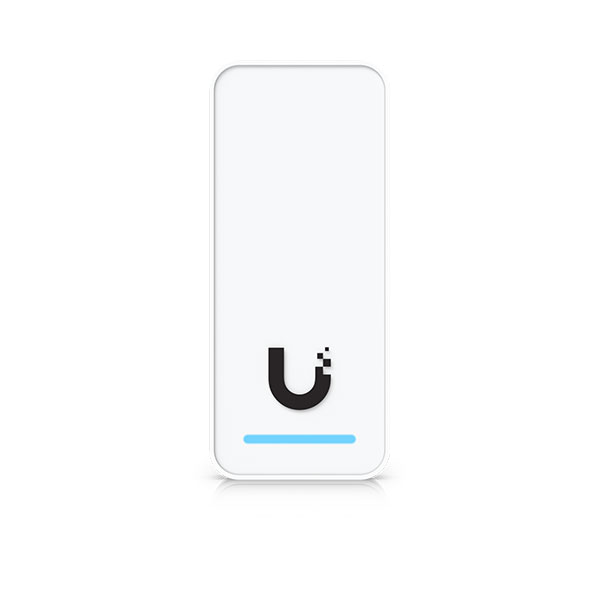

• Ubiquiti UA-G2
• Ubiquiti UA-G2-SK-Pro
• Ubiquiti UA-G2-SK
• Ubiquiti UA-Hub
• Ubiquiti UA-Intercom

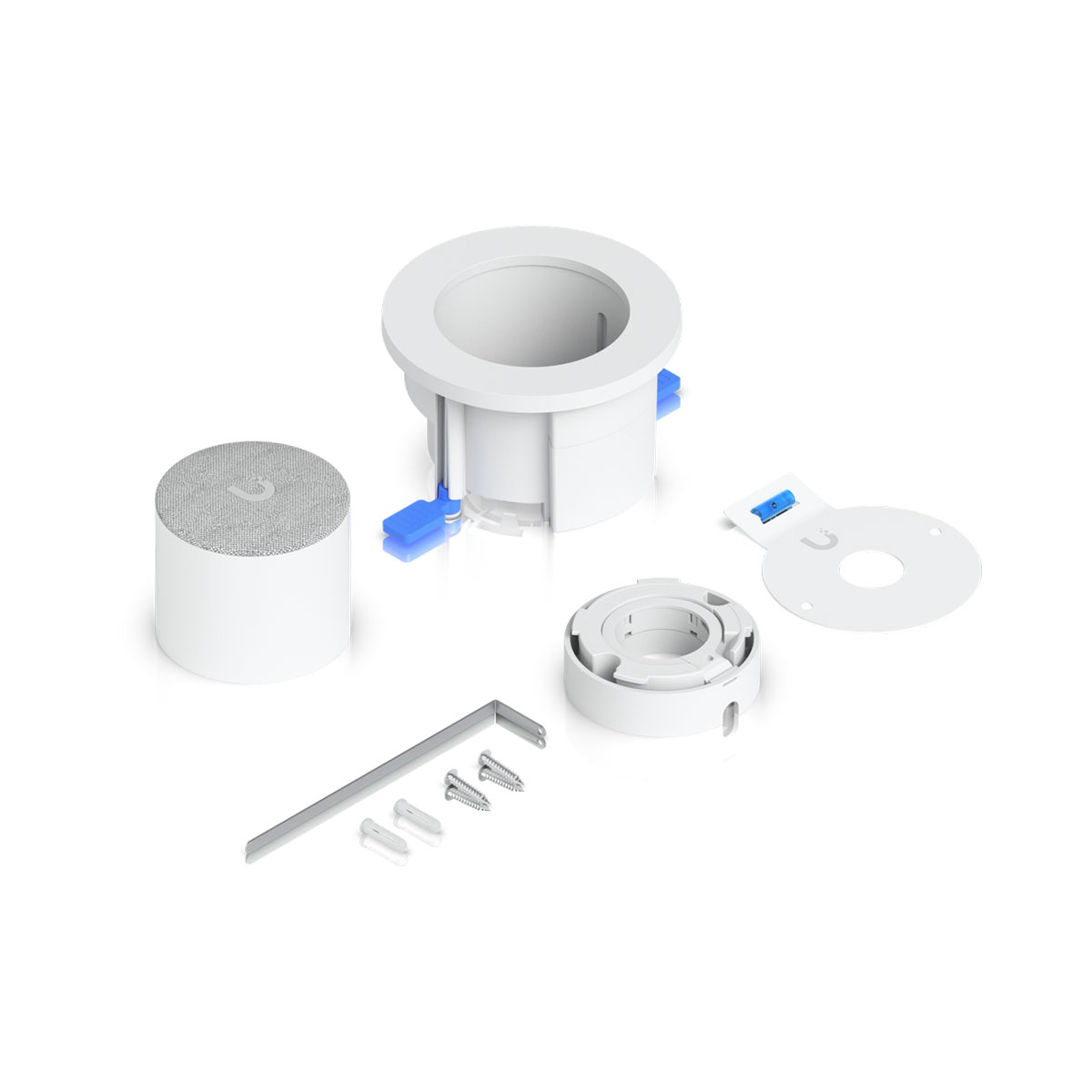

Package contents:
• Device
• Mounting box designed to be built into the wall
• Wall mounting box
• Screws, dowels
• Iron rail
Characteristics
| Mechanical | |

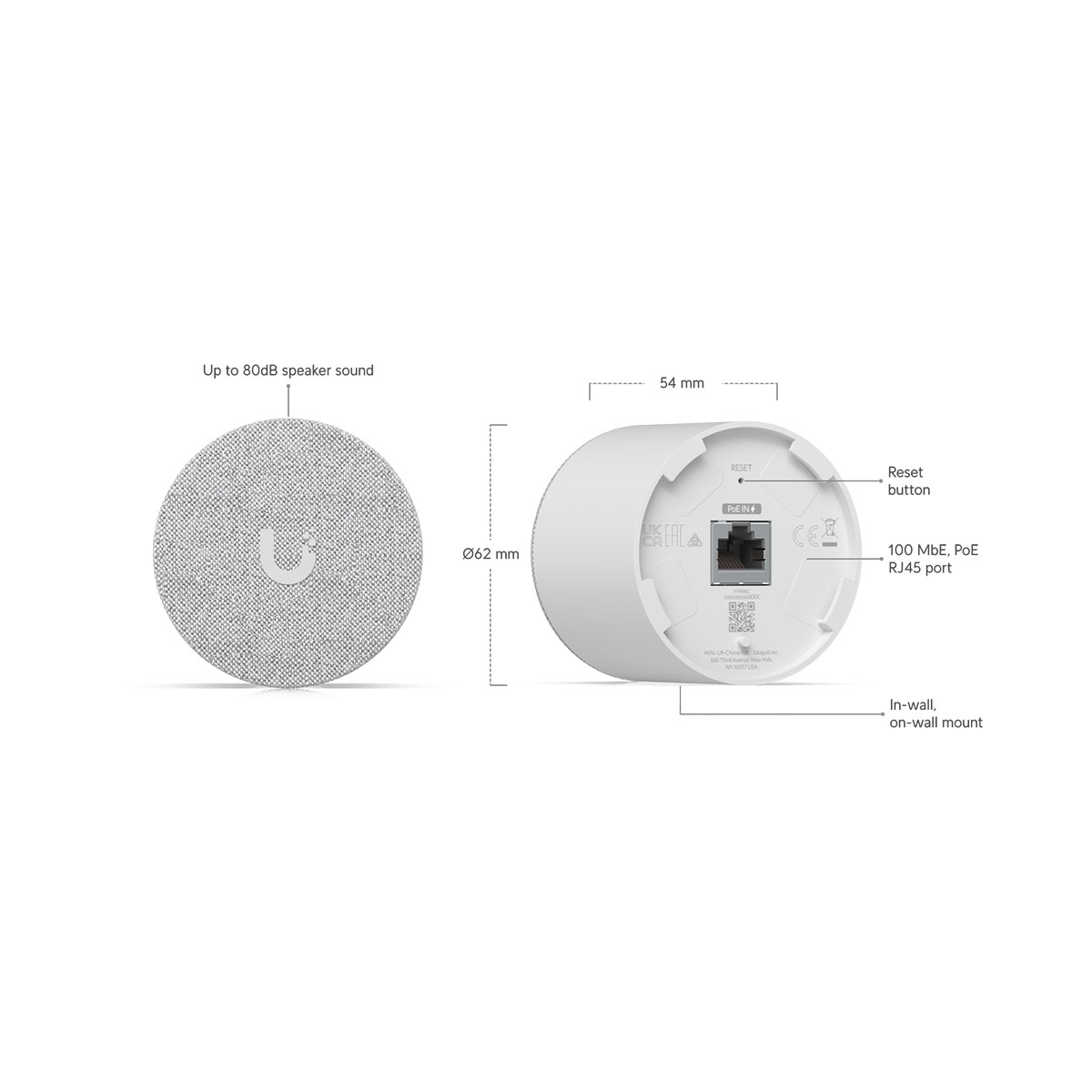

| Dimensions | Device: Ø62 x 54 mm In-wall mount: Ø89 x 63.1 mm On-wall Mount: Ø62 x 20.2 mm |
| Weight | Device: 158 g In-wall mount: 91 g On-wall mount: 28 g |
| Enclosure materials | Polycarbonate, aluminum alloy |
| Mount material | Polycarbonate, zinc alloy |
| System | |
| Networking interface | 10/100 MbE port |
| Power method | PoE |
| Supported voltage range | 44—57V DC |
| Max. power consumption | 3W |
| ESD/EMP protection | Air: ± 8kV, contact: ± 4kV |
| LED | R/G/B/W |
| Button | Factory reset |
| Ambient operating temperature | 0 to 40° C |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
| Audio | |
| Speaker | Yes |
| Buzzer | Yes |
| Software | |
| Web application | UniFi Protect UniFi Access |
| Mobile app | UniFi Protect iOS™ and Android™ |
