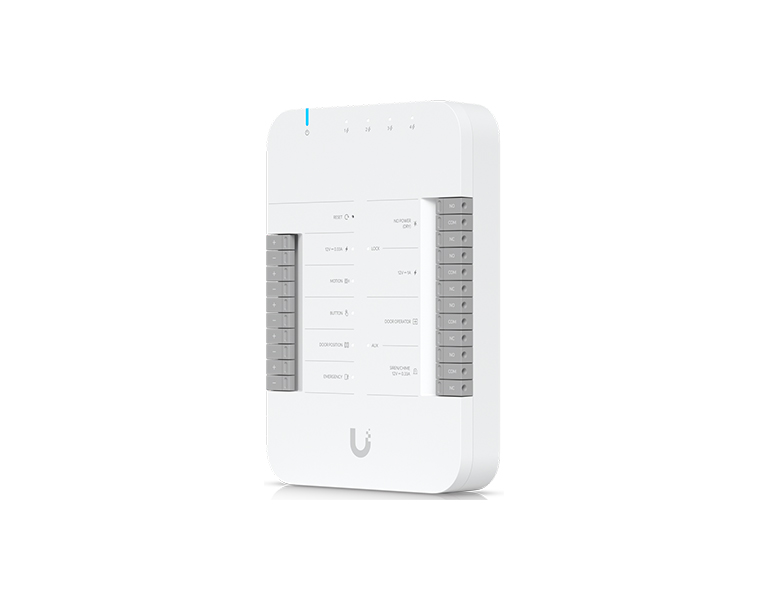

Ubiquiti UA-HUB-DOOR UniFi Access Door Hub
CAUTION PACKAGE DOES NOT INCLUDE POE ADAPTER
The UniFi Access Hub is an intelligent single-door IP controller that is part of the UniFi Access solution. The universal interface supports most electronic and magnetic locks and is compatible with 12V accessories (buttons, alarms, motion sensors, etc.).
Features
• Integration with UniFi Access Controller
• Complete user management, role settings, NFC card assignments, statistics, control logs, etc.
• Setting access permissions
• Remote management of UniFi Access devices via a single, simple interface
Inputs and Outputs
• (1) Input port for powering via 802.3bt (PoE++) switch

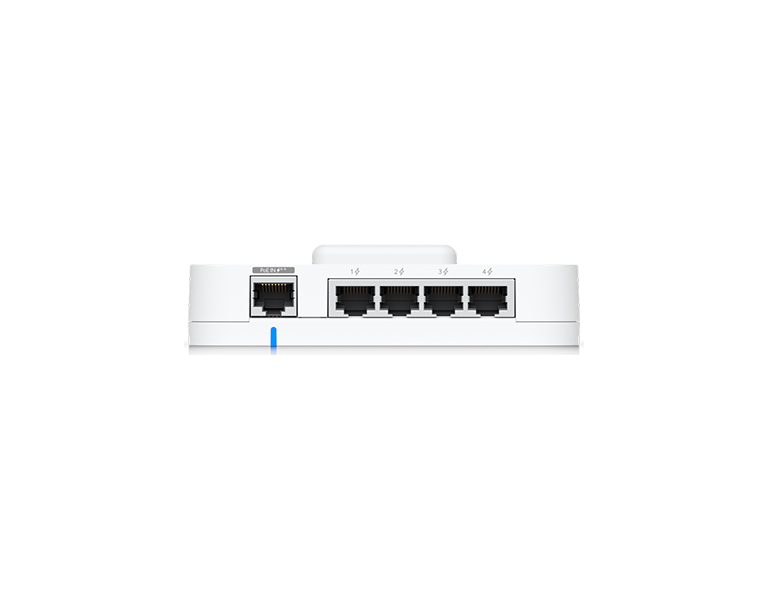

• (4) RJ-45 PoE+ 802.3af ports for connecting two UniFi Access readers and two UniFi Protect cameras or UniFi Protect doorbells

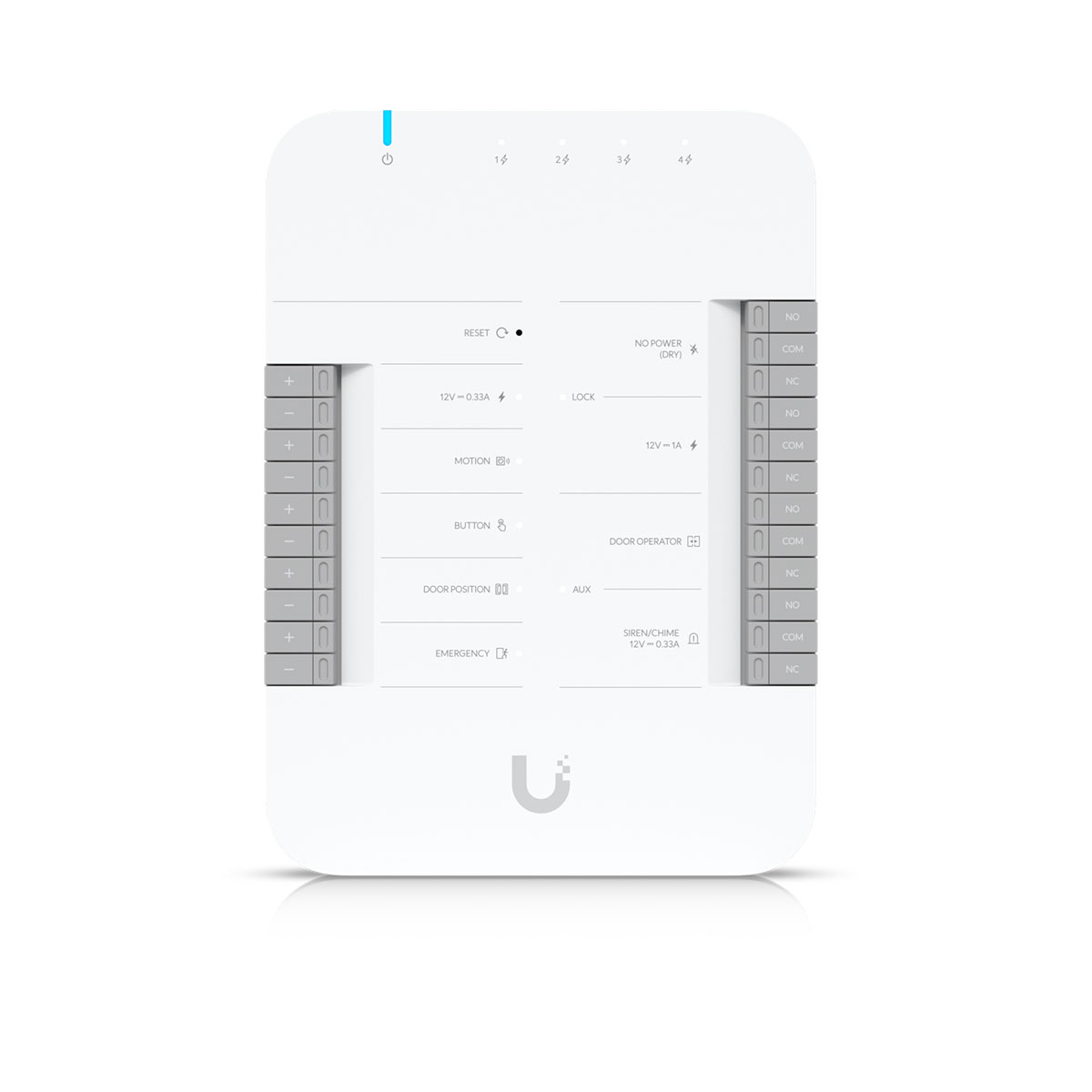

• (2) Dry contact and (2) powered relays for locks and auxiliary devices (30V DC)
• (4) Input relays for door control (entry, exit, remote opening, and position)
• (1) Power supply (12V DC / 0.33 A) for external devices

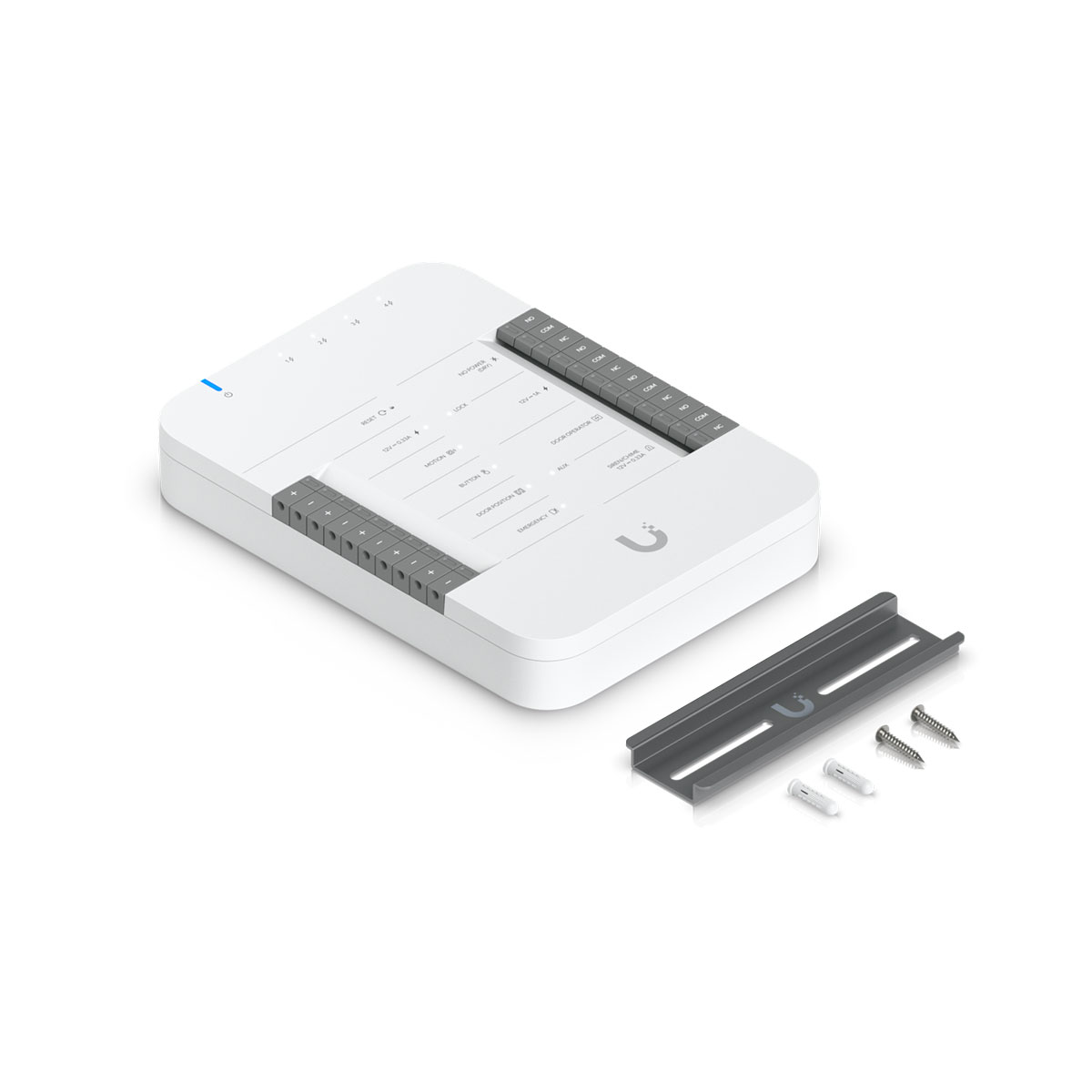

Package Contents
• Device
• Mounting accessories for wall installation
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 24 months |
| Specifications | |
| Dimensions | 174.9 x 126 x 32.9 mm |
| Supported Doors | 1 |
| Input Terminals | (2) Door exit request (1) Door position (1) Emergency |
| Power Method | PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| Mechanical | |
| Weight | 363 g |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |

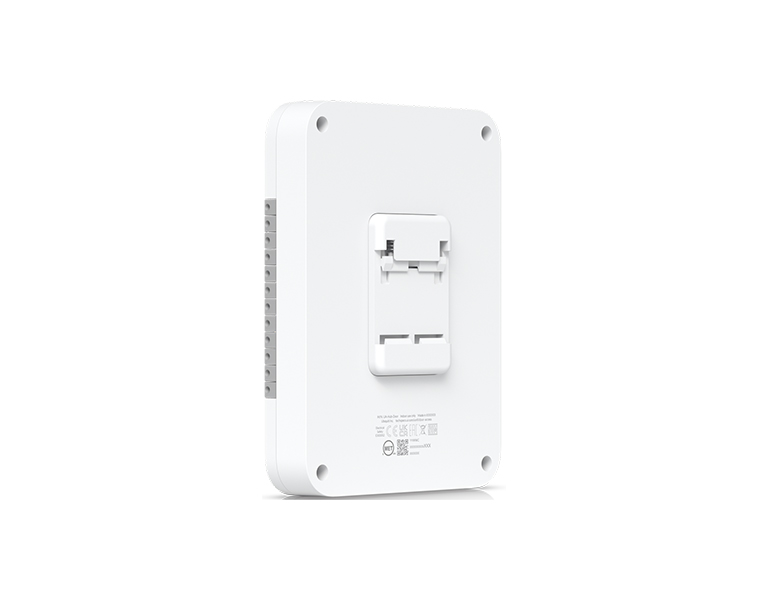

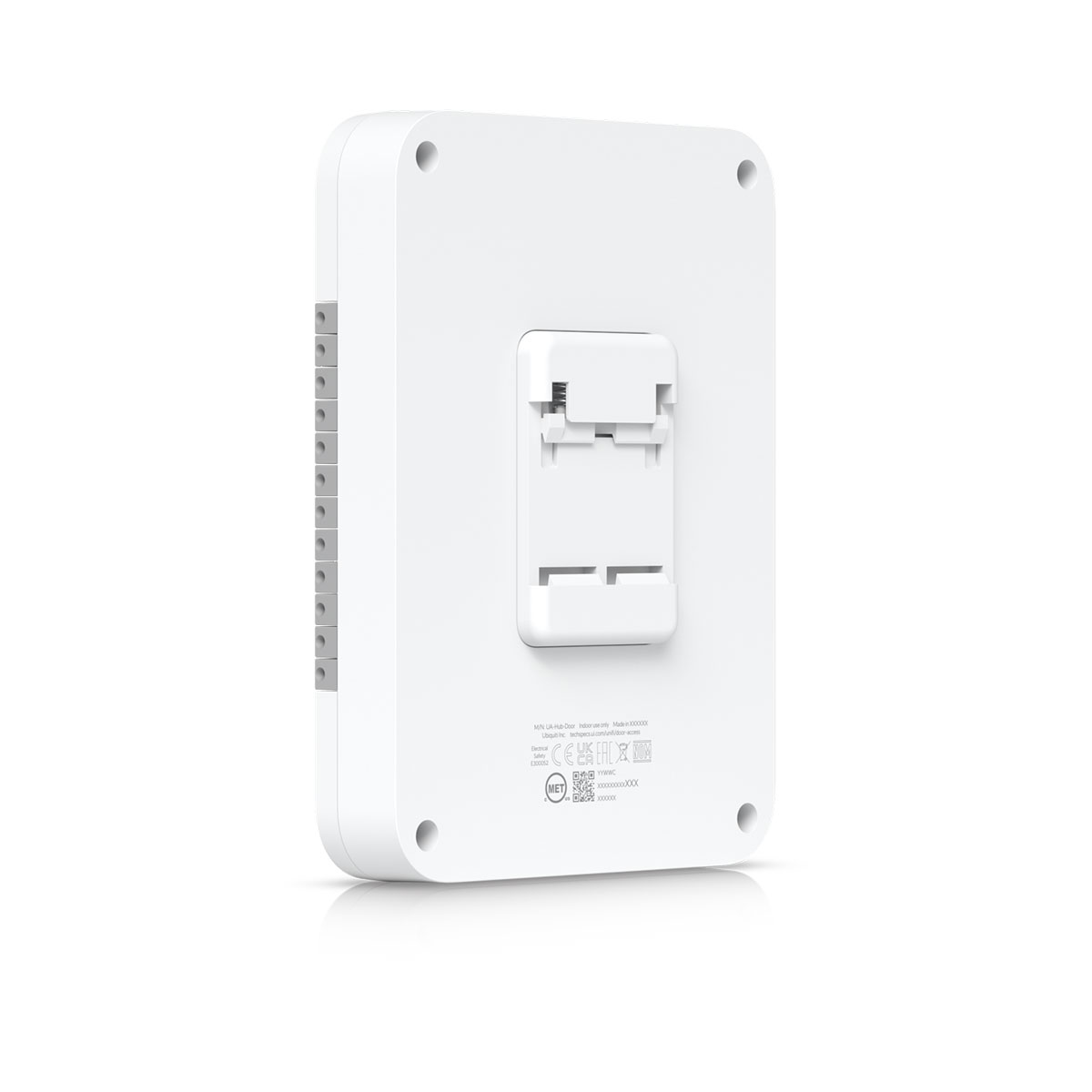

| Mounting | DIN-rail (Included) |
| Hardware | |
| Indoor and Outdoor Use | Indoor only |
| Ambient Operating Temperature | 0 to 40° C |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Networking Interface | (5) 10/100/1000 Base-T |
| PoE Interface | (1) PoE++ input, 50V DC, 1A (4) PoE outputs, 50V DC, 15.4W per port (Max. 28W aggregated) |
| Max. Power Consumption | 30W (Without PoE output) 50W (With PoE output) |
| Digital Input | Request to exit, request to enter, remote release, door position sensor |
| Dry Output Relay | Lock: 30V DC, 1A Aux: 30V DC, 1A |
| Powered Output Relay | Lock: 12V DC, 1A Aux: 12V DC, 0.33A 12V DC, 0.33A |
| LEDs | W/B |
| Buttons | (1) Factory-reset |
