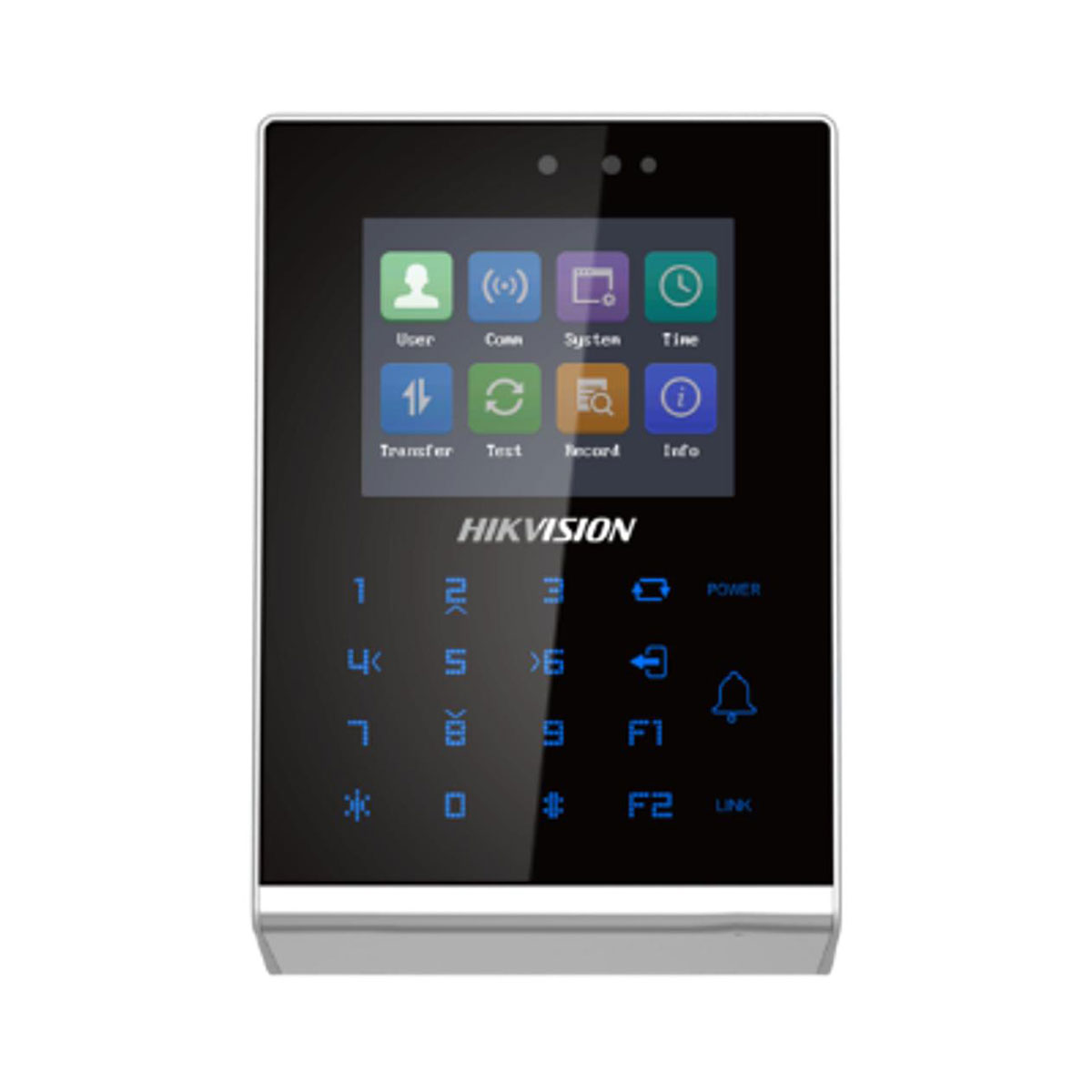

Hikvision DS-K1T105AM Pro Series Card Terminal

Product Code:
DS-K1T105AM
Available
Hikvision DS-K1T105AM Pro Series Card Terminal
Shipping cost calculation:
Call for pricing
Description
Characteristics
Downloads
Description

• IP addresses conflicted alarm
• Supports communicating with 4 control clients simultaneously; Supports uploading real-time events
• Gets offline events: Avoids events losing
• Touch mode and blue light display technique for keypad
• Stand-alone settings for the terminal
• 2.8-inch LCD display screen to display the time, the date, etc.
• Max. 100,000 valid card capacity, and Max. 300,000 access control events capacity
• Communication via wired network (TCP/TP) and Wi-Fi
• Supports ISUP protocol for public network communication
• Supports multiple door opening modes (card, card + password, exit button, etc.)
• Supports RS-485 and Wiegand (26/34) communication for connecting the external card reader
• Applies authentications from the client to the device
• Supports working as a card reader, and supports Wiegand (26/34) interface and RS-485 interface for accessing the controller
• Supports Mifare card reading
• M1 card encryption
• Tampering detection, unlocking overtime alarm, invalid card presenting over times alarm, forced opening door alarm, and duress card alarm
• Creates dismiss code for dismiss alarm
• Accurate data and time display provided by built-in electronic clock and watchdog program to ensure the basic function of the terminal
• Data can be permanently saved after power-off



Warranties - Returns:
Money Return: Repair - Replacement:
20 days 36 months
Characteristics
Specifications
Operating System Linux
Screen
Size 2.8-inch
Resolution 320 × 240
Type Display screen
Audio
Audio output Loudspeaker
Network
Wired network 100 M/1000 M self-adaptive
Wi-Fi Support
Communication protocol TCP/IP
Interface
Network interface 1
RS-485 1
Wiegand 1
Lock output 1
Exit button 1
Door contact input 1
IO input 2
IO output 1
TAMPER 1
USB 1
Capacity
Card capacity  100,000
Event capacity 300,000
Authentication
Card reading distance < 1 s
Card reading duration 0 to 5 cm
Others
Power supply 12 VDC/2 A
Working temperature -30 °C to 60 °C
Working humidity 10% to 90%
Dimensions 137 mm x 142 mm x 35 mm
