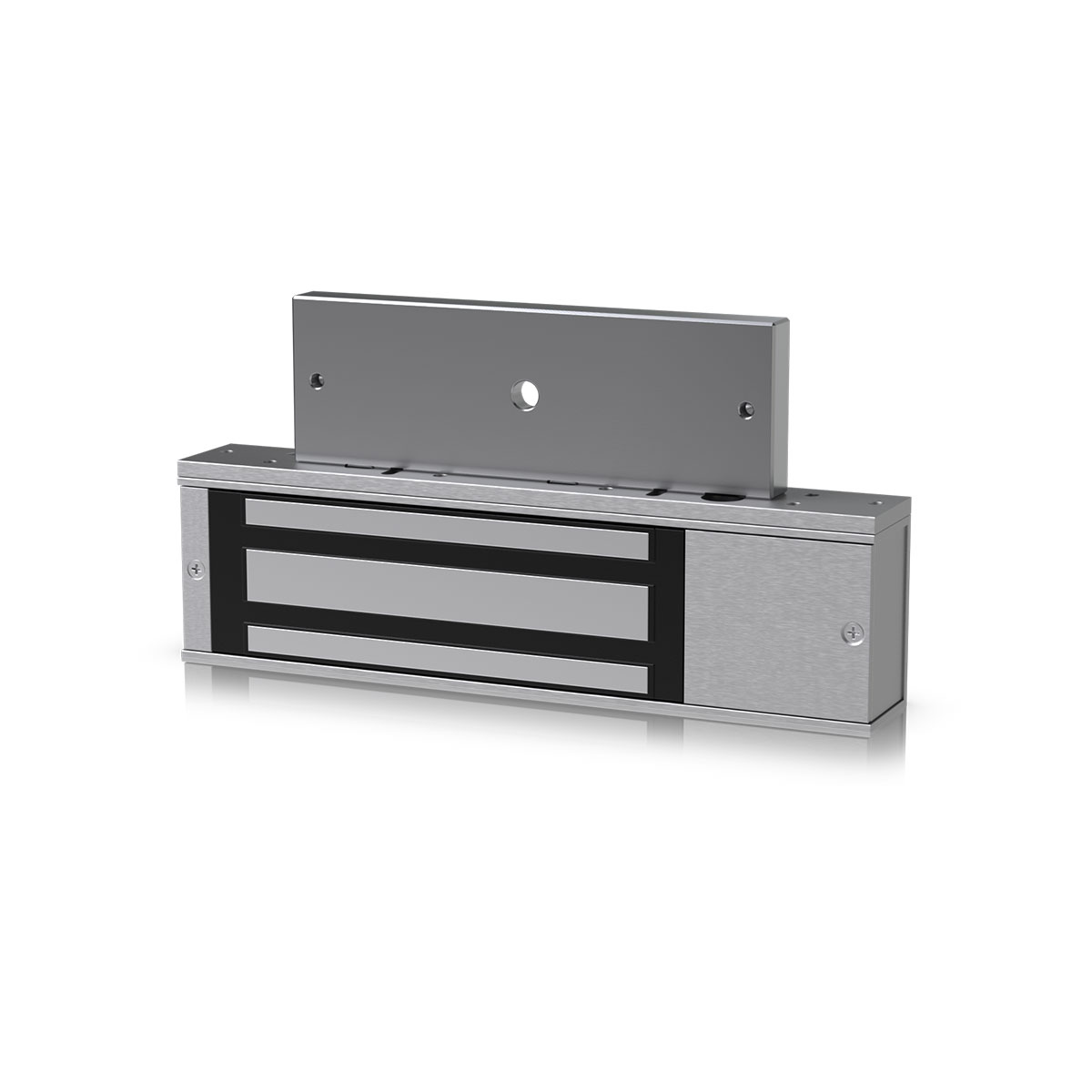

Ubiquiti UA-LOCK-MAGNETIC-540KG Access Lock Magnetic 540KG
Product Code:
UA-LOCK-MAGNETIC-540KG
260,00 €
(Includes VAT 24%)
Sales price without VAT:
209,68 €
7 Days
Ubiquiti UA-LOCK-MAGNETIC-540KG Access Lock Magnetic 540KG
Shipping cost calculation:
Quantity
Description
Characteristics
Downloads
Description
The UniFi Access Lock Magnetic is a fail-secure magnetic lock that connects to the UniFi Access Hub (UA-Hub) of a device containing terminals for power Lock Relay (COM and NC) and input control DPS (+ and -). The lock ensures the safety of the door with a resistance of up to 540 kg. Can be installed on wooden, iron or glass doors. For optimal security and an integrated access system, combine the UniFi Access Lock Magnetic with the UniFi Access Hub and enjoy simple management and control.
Compatible lock control device
• UA-Hub
• UA-G2-SK
• UA-G2-SK-Pro
• EAH-8
Characteristics
| Mechanical | |

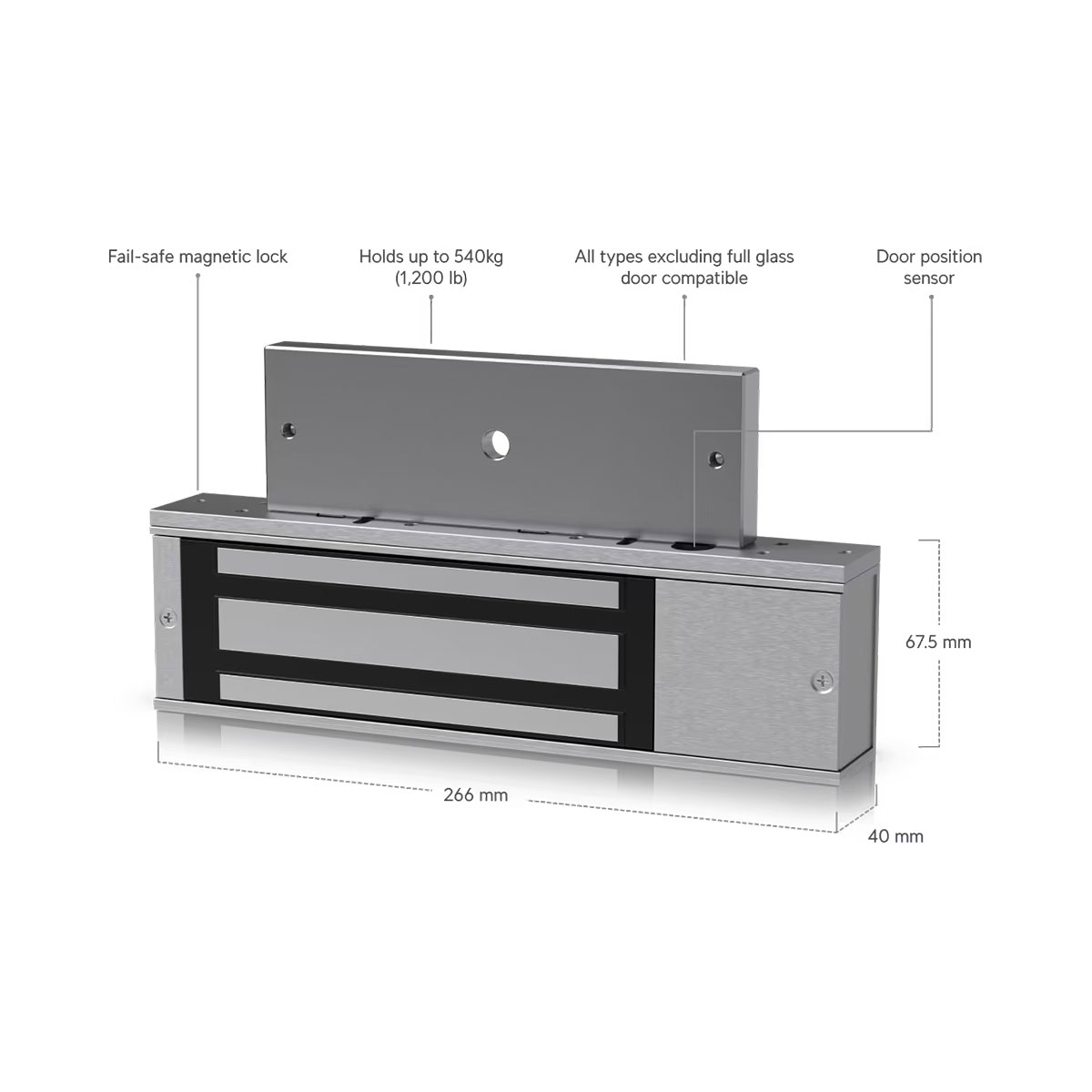

| Dimensions | Lock body: 266 x 67.5 x 40 mm Install plate: 266 x 40 x 6 mm Armature: 185 x 61 x 16 mm |
| Weight | Lock body: 2.9 kg Install plate: 145 g Armature: 1.4 kg |
| Enclosure materials | Device/brackets: aluminum Armature: steel |
| Lock type | Fail safe |
| Support Door Type | Single door (Wooden/metal) |
| DPS | Embedded |
| Holding force | Embedded |
| Current Power | 500mA ±10% |
| Support Voltage Range | 12V DC ±10% |
| Wiring | (1) Lock 12V/NC (red) (1) Lock 12V/COM (black) (1) DPS/+ (white) (1) DPS/- (yellow) |
| Mounting | L bracket: for outward opening door thickness < 42 mm (< 1.7") Z bracket: for inward opening door, used with L bracket |
| LED | Green: unlocked Red: locked |
| Ambient Storage Temperature | -20 to 70° C |
| Ambient Operating Temperature | -10 to 60° C |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| NDAA Compliant | ✓ |
| Certications | FCC, IC, CE |
