Ubiquiti UA-G3-SK-Gate, UniFi Door Access Starter Kit Gate Hub, G3 Intercom, PoE++
Ubiquiti UA-G3-SK-Gate, UniFi Door Access Starter Kit Gate Hub, G3 Intercom, PoE++

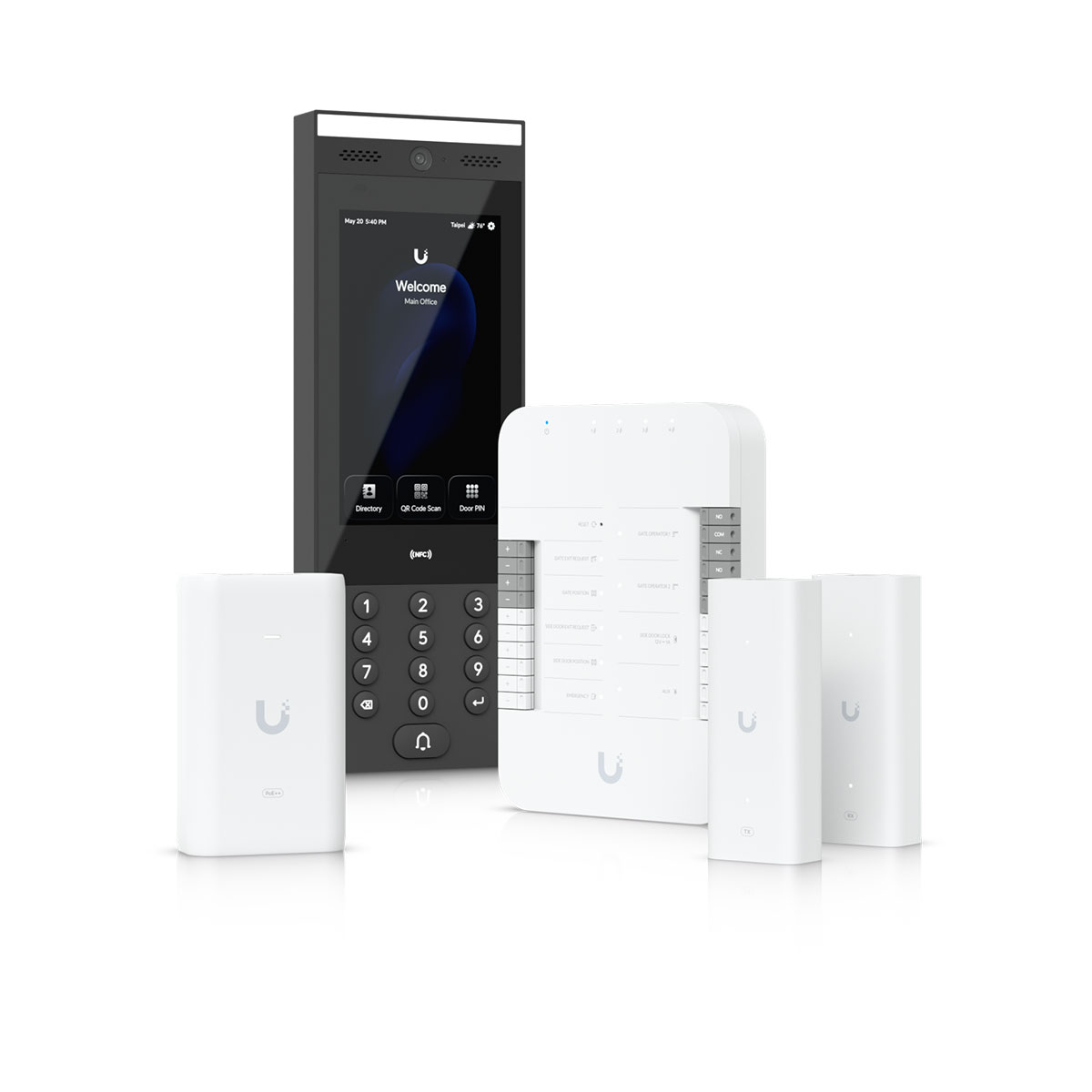

The starter kit includes a smart controller UA-Hub-Gate, a modern intercom UA-G3 with a camera, and power accessories for easy installation without the need for new cabling. Thanks to the PoE++ adapter and 2-Wire extenders, existing infrastructure can be easily utilized. The entire system supports access via the Touch Pass function, ensuring secure and convenient control of a single gate entry in both residential and commercial environments.
Advanced Control Unit for Entry Systems

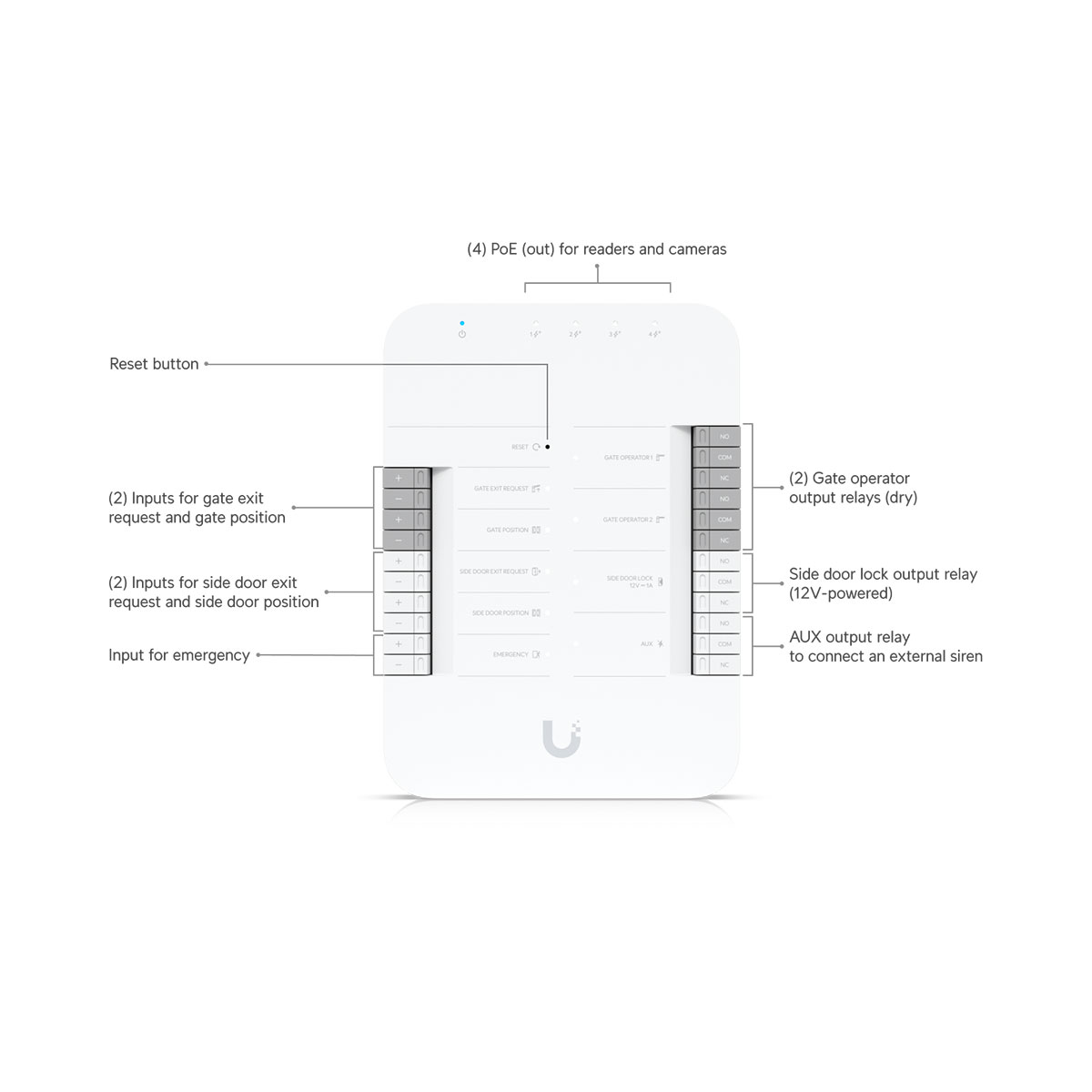

The DIN rail-mounted controller offers comprehensive management of entry points with support for PoE++ power and up to four PoE outputs for connecting readers or cameras. There are inputs for gate and door open requests, position detection, and emergency states. Two output relays for gates and an AUX relay for an external siren provide flexibility for various installation types in secured premises.

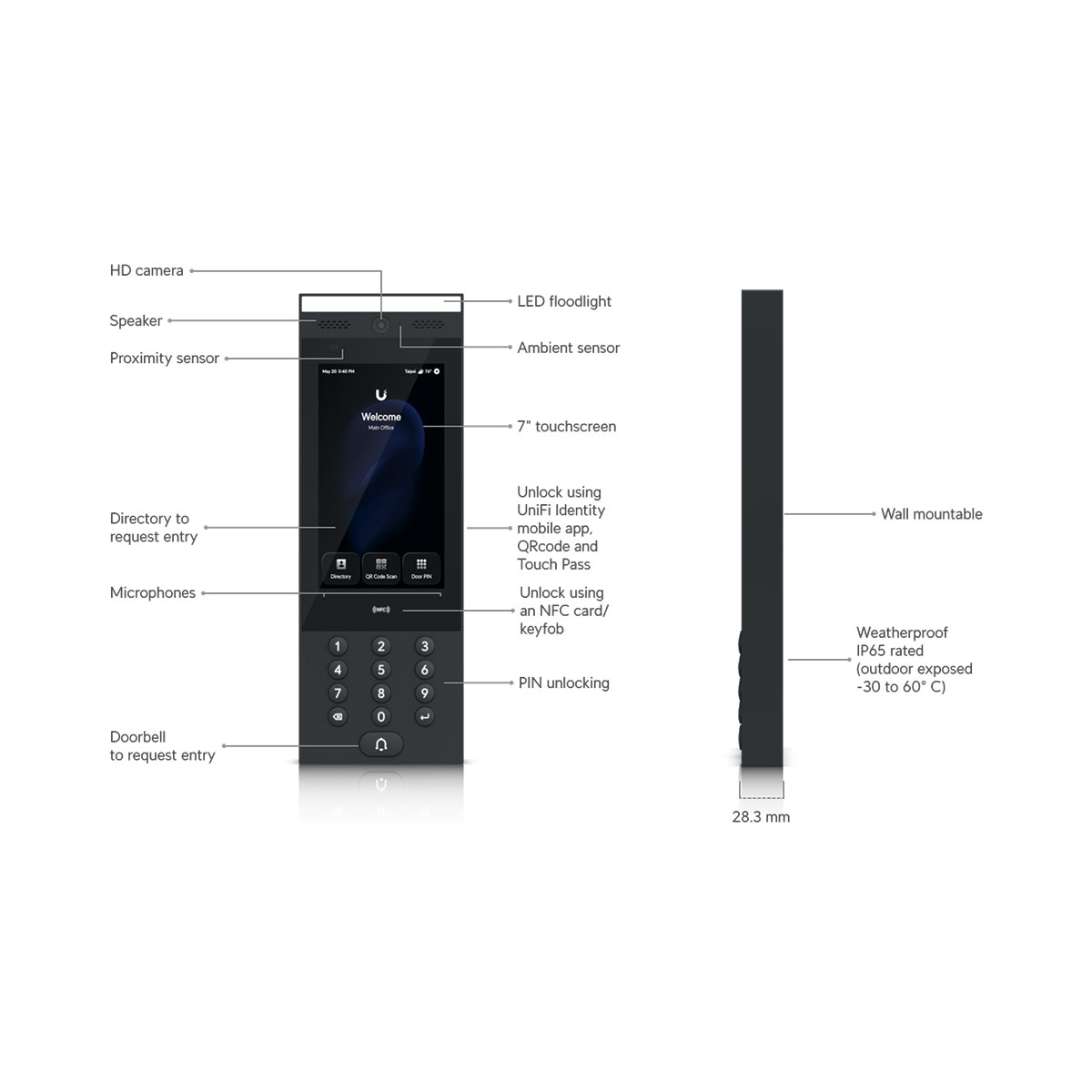

Modern Intercom with Camera and Touch Control
This stylish entry device features a 7" color touchscreen offering intuitive control and easy communication with the system. Thanks to the integrated 2Mpx camera and Mifare card reader, secure and convenient access is ensured. The backlit keypad, Bluetooth connectivity, and IP65 rating allow for use in outdoor environments. Powering via PoE simplifies installation, while the GbE network port ensures reliable operation in any UniFi Access system.
Power and Connectivity without New Cables
The powerful PoE++ adapter with 60 W output ensures reliable power for more demanding devices. When combined with the Retrofit kit for 2-wire cabling, it allows for easy deployment of modern PoE infrastructure without the need for new cabling. Transmission over standard twisted pairs or coaxial cables using BNC adapters simplifies the reconstruction and expansion of existing systems. Compatibility with PoE and PoE+ outputs brings flexibility for connecting a wide range of devices within the UniFi solution.
Package Contents
1× Ubiquiti UniFi Access Gate Hub (UA-Hub-Gate)
1× Ubiquiti UniFi Access G3 Intercom (UA-G3-Intercom)
1× Ubiquiti UniFi PoE++ Adapter (U-PoE++)
2× Ubiquiti PoE Over 2-Wire Retrofit Extender (UACC-Retrofit-PoE-2Wire)
| Overview | |
| In the Box | (1) Gate Hub (1) G3 Intercom (1) PoE++ adapter (2) 2-wire Retrofit Extenders |
| Touch Pass | 10 free 1-year Touch Passes included |
| Gate Hub | |

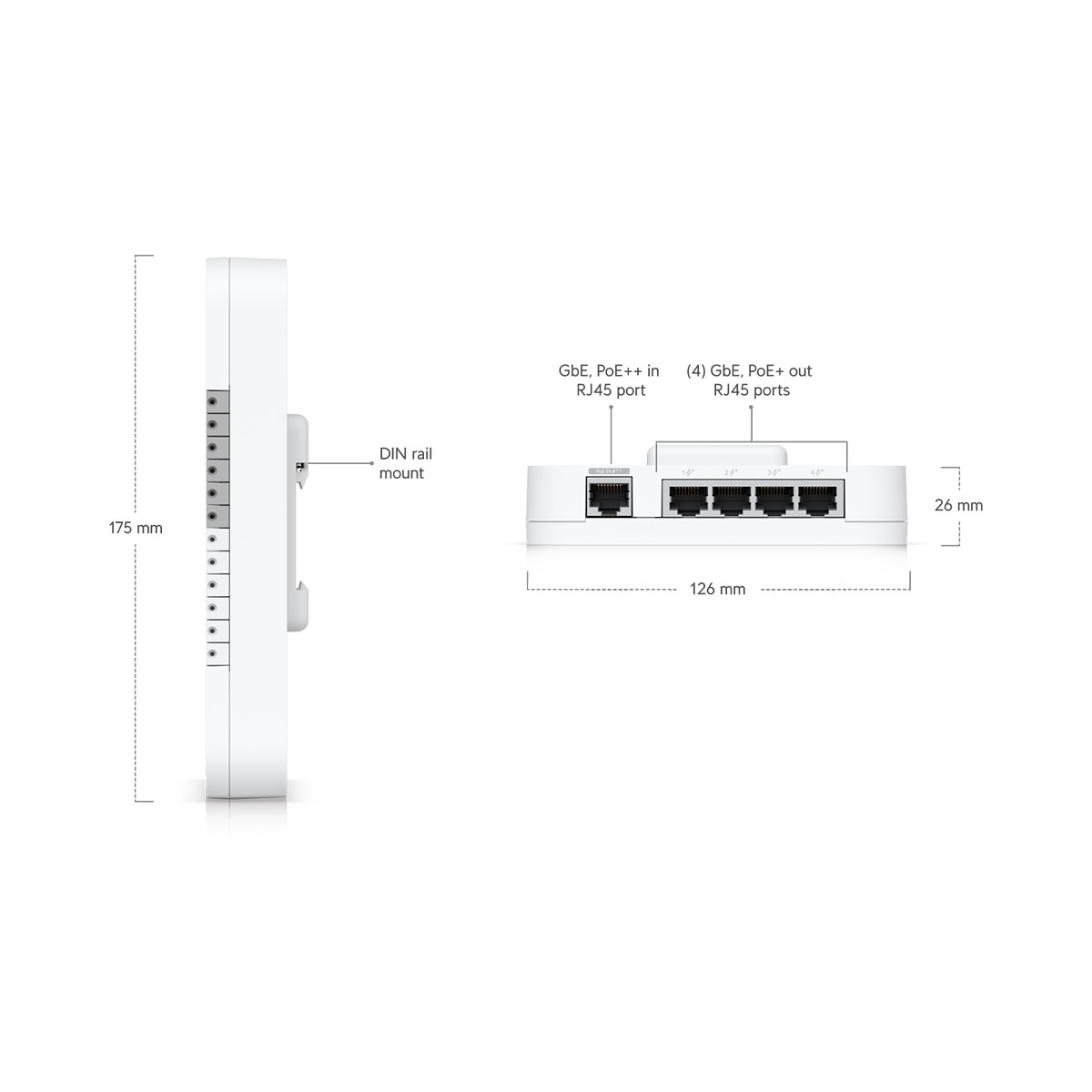

| Dimensions | 175 x 126 x 26 mm |
| Supported Doors | 1 gate, 1 side door |
| Maximum User Count | 6,000 |
| Input Terminals | (1) Gate exit request (1) Gate position (1) Side door exit (1) Side door position (1) Emergency |
| Power Method | PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| Enclosure Material | Polycarbonate |
| Mounting | DIN-rail (Included) |
| Weight | 460 g |
| Indoor and Outdoor Use | Indoor only: device itself Outdoor: with waterproof junction box |
| NDAA Compliant | ✓ |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| Ambient Operating Temperature | -30 to 60° C |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Networking Interface | (5) 10/100/1000 Base-T |
| PoE Interface | (1) PoE++ input, 50V DC, 1A (4) PoE outputs, 50V DC, 30W per port (Max 55W aggregated) |
| Max. Power Consumption | 22W (Without PoE output) 60W (With PoE output) |
| Digital Input | Gate exit request, gate position, side door exit request, side door position, emergency |
| Dry Output Relay | (2) Operator: rated 30V DC, up to 1A (1) Aux: rated 30V DC, up to 1A |
| Powered Output Relay | Side door lock: 12V DC, up to 1A |
| LEDs | W/B |
| Button | (1) Factory-reset |
| Recommend Max. Cable Length | |
| UA-Lock-Electric (400mA) | 24 AWG length: 25 m 22 AWG length: 42 m 20 AWG length: 66 m 18 UACC-Cable-DoorLockRelay length: 100 m |
| UA-Lock-Magnetic-540kg (500mA) | 24 AWG length: 20 m 22 AWG length: 32 m 20 AWG length: 51 m 18 UACC-Cable-DoorLockRelay length: 80 m |
| UA-Lock-Magnetic-270kg (800mA) | 24 AWG length: 9 m 22 AWG length: 15 m 20 AWG length: 24 m 18 UACC-Cable-DoorLockRelay length: 36 m |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UA-Hub-Gate, V01 |
| Software Information | The software version can be checked at https://unifi.ui.com |
| G3 Intercom | |

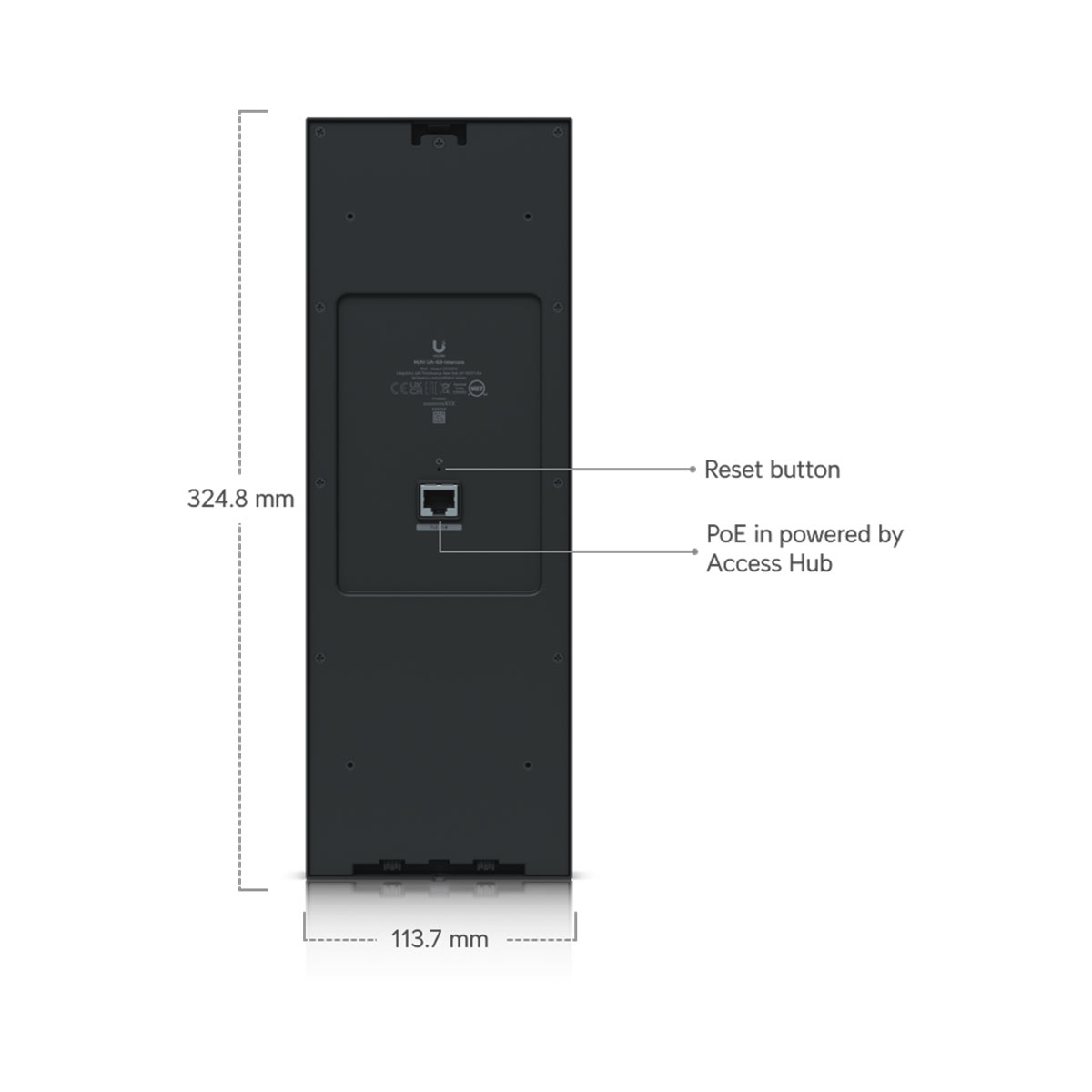

| Dimensions | 324.8 x 113.7 x 28.3 mm |
| Integrated Camera | ✓ |
| NFC Card & Keyfob Access | ✓ |
| PIN Access | ✓ |
| Apple/Google Wallet | ✓ |
| Mobile Unlock | ✓ |
| Two-Way Intercom & Doorbell Access | ✓ |
| Weatherproofing | IP65 |
| NDAA Compliant | ✓ |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| Weight | Device: 965 g Bracket: 445 g |
| Enclosure Material | Aluminum alloy, UV-stabilized polycarbonate, glass |
| Mount Material | Powder-coated stainless steel |
| Mounting | Wall mount, adapter to the gooseneck pedestal (Included) Surface angle, flush mount, sunshield kit (Optional) |
| Indoor and Outdoor Use | ✓ |
| Ambient Operating Temperature | Device: -30 to 60° C Display: -25 to 60° C |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Networking Interface | (1) GbE RJ45 port |
| Connectivity | BLE 4.2 NFC |
| Power Method | PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption | 13W |
| Supported Voltage Range | 48V DC |
| Sensors | Proximity sensor ALS sensor |
| Display | 177 mm diagonal |
| Touch Screen Technology | Capacitive multi-touch |
| Display Luminance | Max. 1000 nits (Typical) |
| Resolution | 1024 x 600 px |
| Microphone | ✓ |
| Speaker | (1) Yes, 2W |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm |
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0 |
| LEDs | Amber |
| Buttons | (1) Factory-reset |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UA-G3-Intercom, V01 |
| Retrofit Extender | |
| Dimensions | PoE in/out: 40 x 105 x 25 mm Adapter: 43.5 x 138 x 30 mm |
| Weight | PoE in: 77 g PoE out: 79 g Adapter: 140 g |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Coaxial Connector | BNC female |
| Networking Interface | (1) 10/100 MbE (1) Homeplug AV |
| Power Method | PoE++ |
| PoE Interface | PoE in: (1) PoE++, 50V DC, 1.2A PoE out: (1) PoE+, 48V DC, 0.6A |
| Max. Power Consumption | 3W (Without PoE output) |
| ESD/EMP Protection | Air: ±8kV, contact: ±4kV |
| LEDs | White |
| Ambient Operating Temperature | -10 to 40° C |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
| PoE++ Adapter | |
| Model | U-PoE++ |

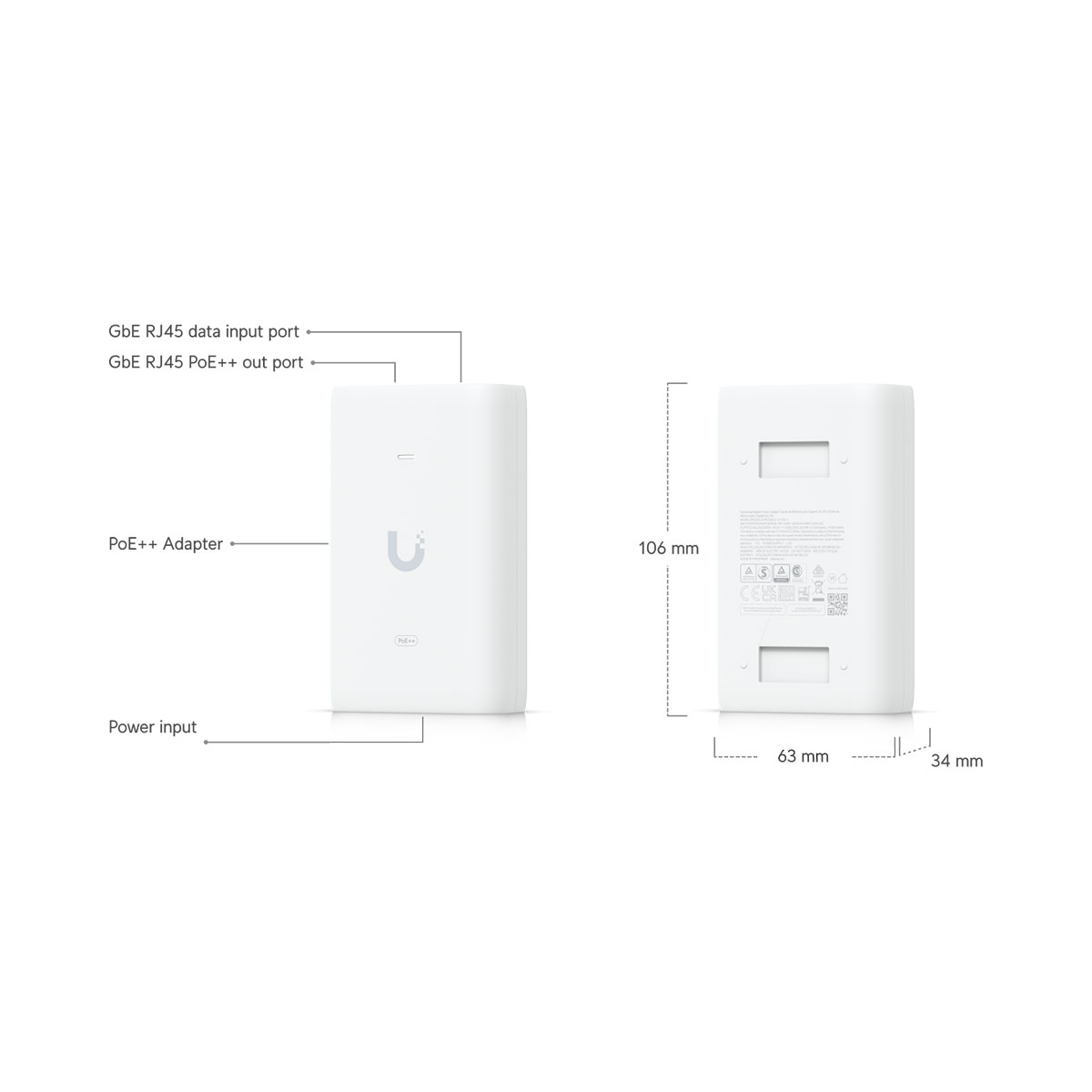

| Dimensions | 106 x 63 x 34 mm |
| Weight | 210 g |
| Output Voltage | 48V DC @ 1.25A |
| Gigabit LAN Port | ✓ |
| Rated Voltage | 100—240V AC @ 50/60Hz |
| Input Current | 1.3A @ 120V AC 0.75A @ 230V AC |
| Inrush Current | <100A peak @ 120V AC <200A peak @ 230V AC |
| Efficiency | 85+% |
| Output Ripple | 1% max. |
| Switching Frequency | 65 kHz |
| Line Regulation | ≤ 1% |
| Load Regulation | ≤ 3% |
| 4-pair Powering | Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |
| AC Connector | IEC-320 C6 |
| Data In / PoE | RJ45 shielded socket |
| Surge Protection | Difference and common mode |
| Clamping Protection | 11V data, 60V power |
| Max. Surge Discharge | 1500A (8/20 μs) power |
| Peak Pulse Current | 36A (10/1000 μs) data |
| Shunt Capacitance | <5 pF data |
| Response Time | <1 ns |
| Power Method | Universal AC input, 100—240V AC, 50/60 Hz |
| Power Supply | AC/DC |
| Supported Voltage Range | 100—240V AC |
| Max. PoE+ Wattage per Port by PSE | 60W |
| Ambient Storage Temperature | -30 to 70°C |
| Ambient Operating Temperature | 0 to 40° C |
| Ambient Operating Humidity | 10 to 95% noncondensing |
| Certifications | CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS |
| NDAA Compliant | ✓ |
