Ubiquiti UACC-CABLE-DOORLOCKRELAY-2P-M, UniFi Access Connecting Cable, 2 pair, 2X 18AWG, 2X 22AWG, by Meter
Ubiquiti UACC-CABLE-DOORLOCKRELAY-2P-M, UniFi Access Connecting Cable, 2 pair, 2X 18AWG, 2X 22AWG, by Meter

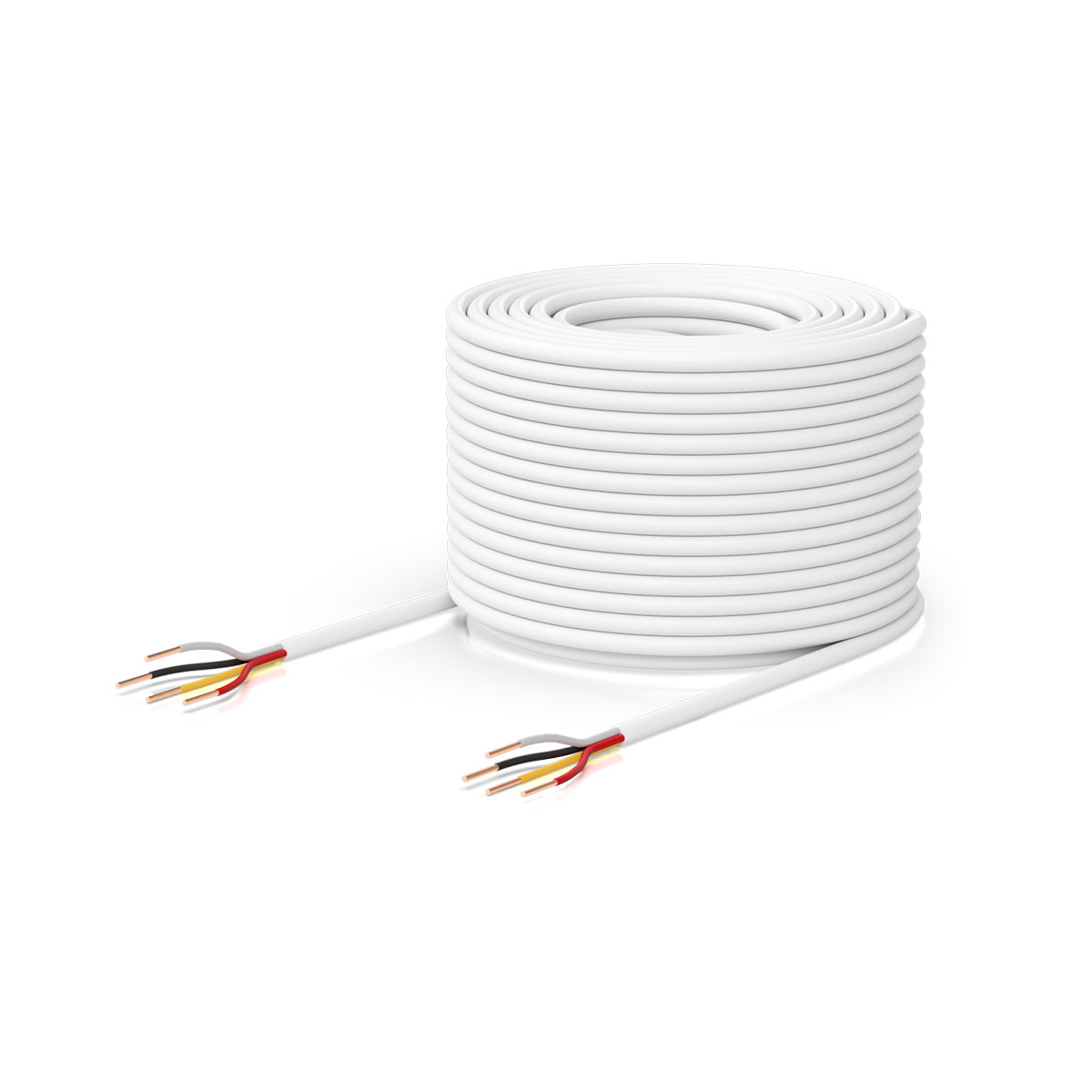

A specially designed 4-core cable for the UniFi Access system from Ubiquiti Networks and is used to connect an electric or magnetic lock as well as a manual switch (UA-Rescue) to the UniFi Access Hub. The cable is sold by the meter, composed of two pairs of conductors and its white sheath is made of thermoplastic elastomer, which is flexible, soft and pleasant to the touch. Thicker wires have a cross-section of 18AWG and are capable of carrying up to 2A at 36V DC. For a smaller pair it is only 1A at the same voltage.
Key Features
• Cable length: by meter

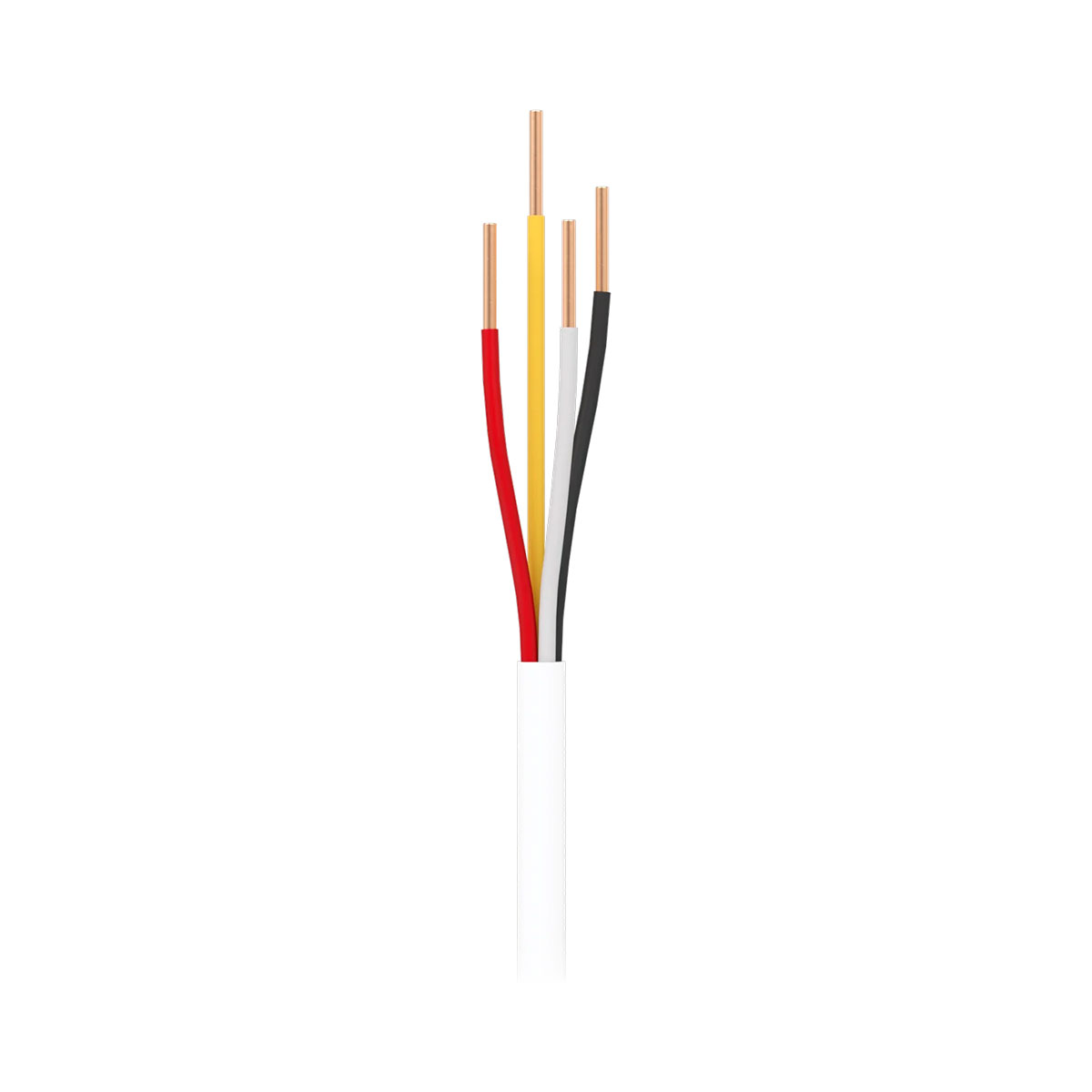

• Wire cross-section: 18 AWG (black, red) and 22 AWG (yellow, white)
• Sheath: TPE - thermoplastic elastomer, white color
| Overview | |
| Length | by meter |
| Material | Conductor: Solid bare copper Jacket: Thermoplastic elastomer (TPE) Insulation: Semi-rigid polyvinyl chloride (SR-PVC) |
| Insulation | UACC-Cable-DoorLockRelay-2P: black/red (18AWG), amber/white (22AWG) |
| Current Rating | 18AWG: 2A for 500 ft length 22AWG: 1A for 500 ft length |
| Flame Rating | VW-1 |
| Conductor Wire Gauge | UACC-Cable-DoorLockRelay-2P: 18/22 AWG |
| Weight | UACC-Cable-DoorLockRelay-2P: 5.6 kg* *The 5.6 kg weight refers to the full 152.4 m cable reel, not to 1 meter. |
| Cable | • Jacket Outer Diameter: UACC-Cable-DoorLockRelay-2P: 4.5 mm • Jacket Color: White • Bend Radius: UACC-Cable-DoorLockRelay-2P: 56 mm (min. bend radius) |
| Pulling Tension | UACC-Cable-DoorLockRelay-2P: 24.2 kgf (max pull tension) |
| Conductor DCR | UACC-Cable-DoorLockRelay-2P: 23.2 ohm/km (18AWG), 59.4 ohm/km (22AWG) |
| Supported Voltage Range | 36V DC |
| Number of Conductors | UACC-Cable-DoorLockRelay-2P: 4 |
| Ambient Storage Temperature | -45 to 65° C |
| Ambient Operating Temperature | -45 to 65° C |
