Description

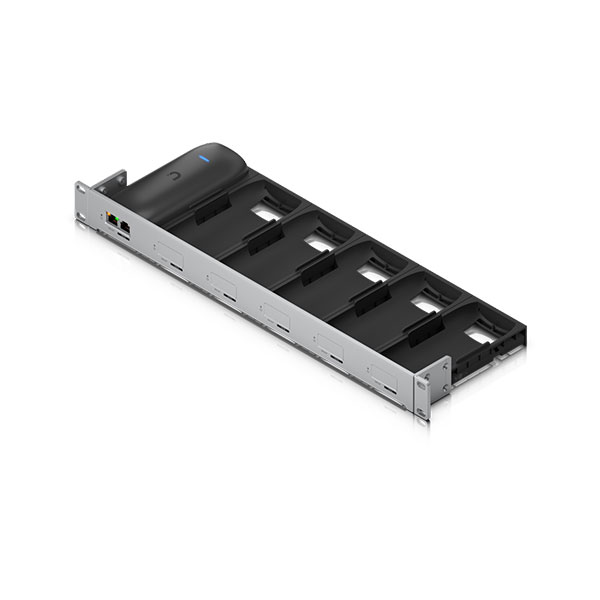

The AI-Port enhances UniFi Protect and selected third-party cameras with AI-powered detection, classification, and recognition. It supports one camera (multi-camera support planned in future firmware) that must be on the same LAN. It can be mounted on a wall, pole, or in a dedicated rackmount bracket (UACC-AI-Port-RM – sold separately). Power is delivered via PoE 802.3af/at/bt, with a PoE output of up to 25.5W depending on the PoE input type.
Key Features
- Third-party camera support in UniFi Protect
- Compatible with ONVIF third-party cameras
- Advanced AI: face and license plate recognition
- (1) PoE++ / PoE+ power input (802.3at/bt)
- (1) PoE+ / PoE power output (802.3af/at)
- Direct connection or pairing with a camera on the network

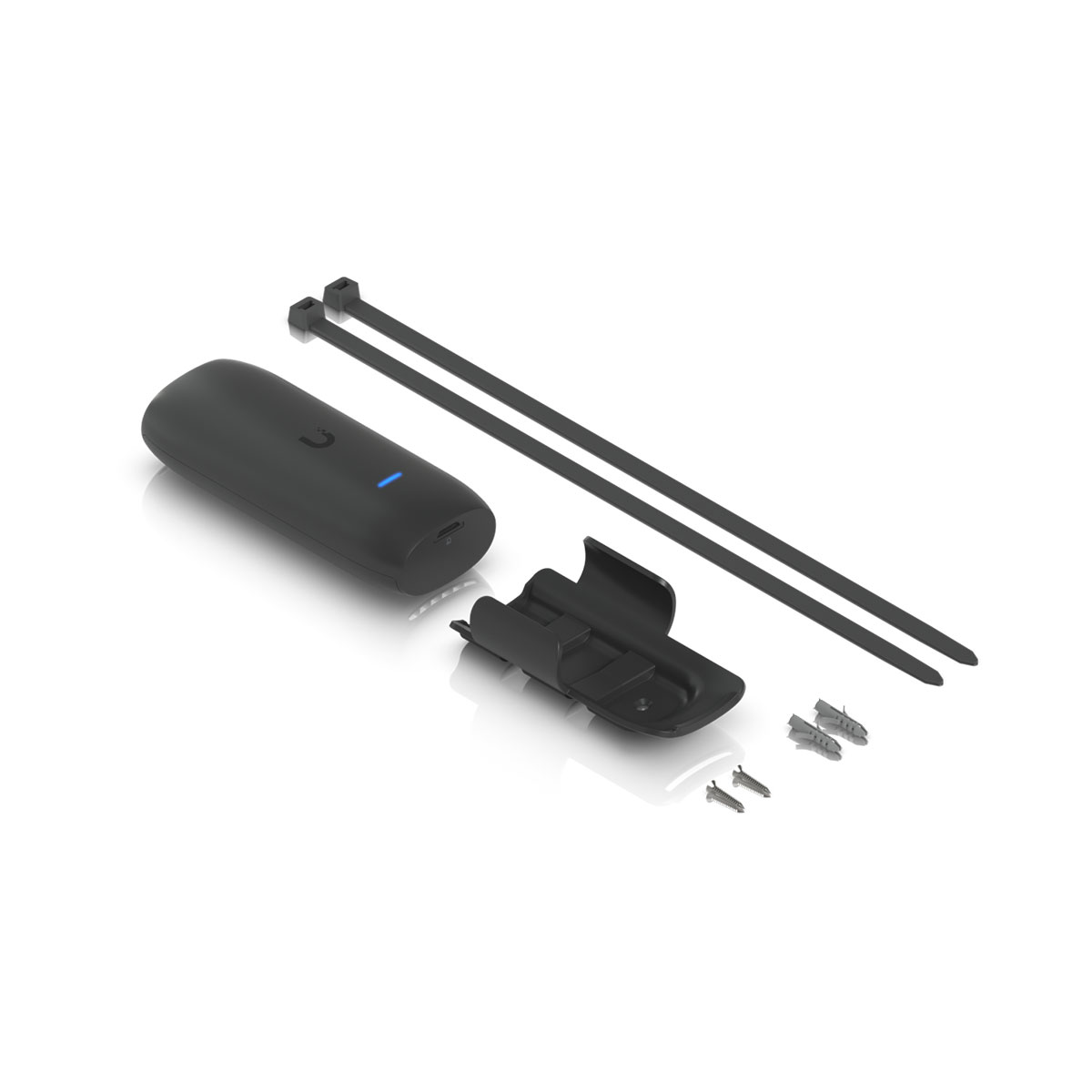

Package Contents
- Device
- Plastic wall/pole mount
- (2) Zip ties
- Screws and wall plugs
Characteristics
| Overview | |
| Mechanical | |

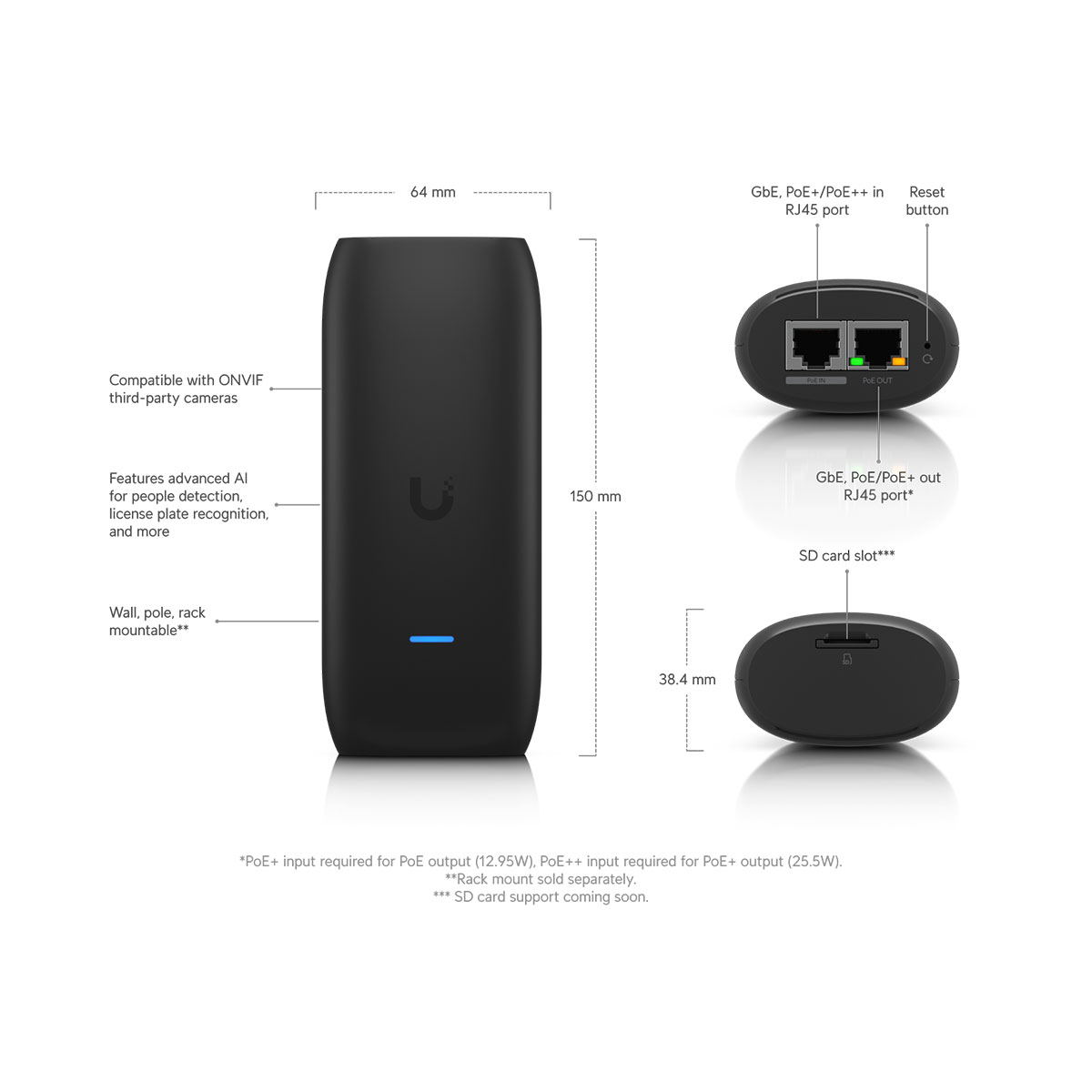

| Dimensions | Without mount: 150 x 64 x 38.4 mm With mount: 152.7 x 69 x 47.8 mm |
| Resolution | Max. camera resolution: Width: 3840 pixels Height: 2160 pixels |
| Networking Interface | (1) GbE RJ45 port |
| Hardware | |
| Power Method | PoE PoE+ input required for PoE output (12.95W) PoE++ input required for PoE+ output (25.5W) |
| Pole Mount Diameter | >45 mm (1.8") on pipe outer diameter |
| Weight | Without mount: 258.3 g With mount: 294 g |
| Enclosure Material | Polycarbonate |
| Button | (1) Factory reset |
| Ambient Operating Temperature | -20 to 40° C |
| Ambient Operating Humidity | 20 to 90% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | FCC, IC, CE |
| Software | |
| Application Requirements |
Web Application - Mobile App - |
