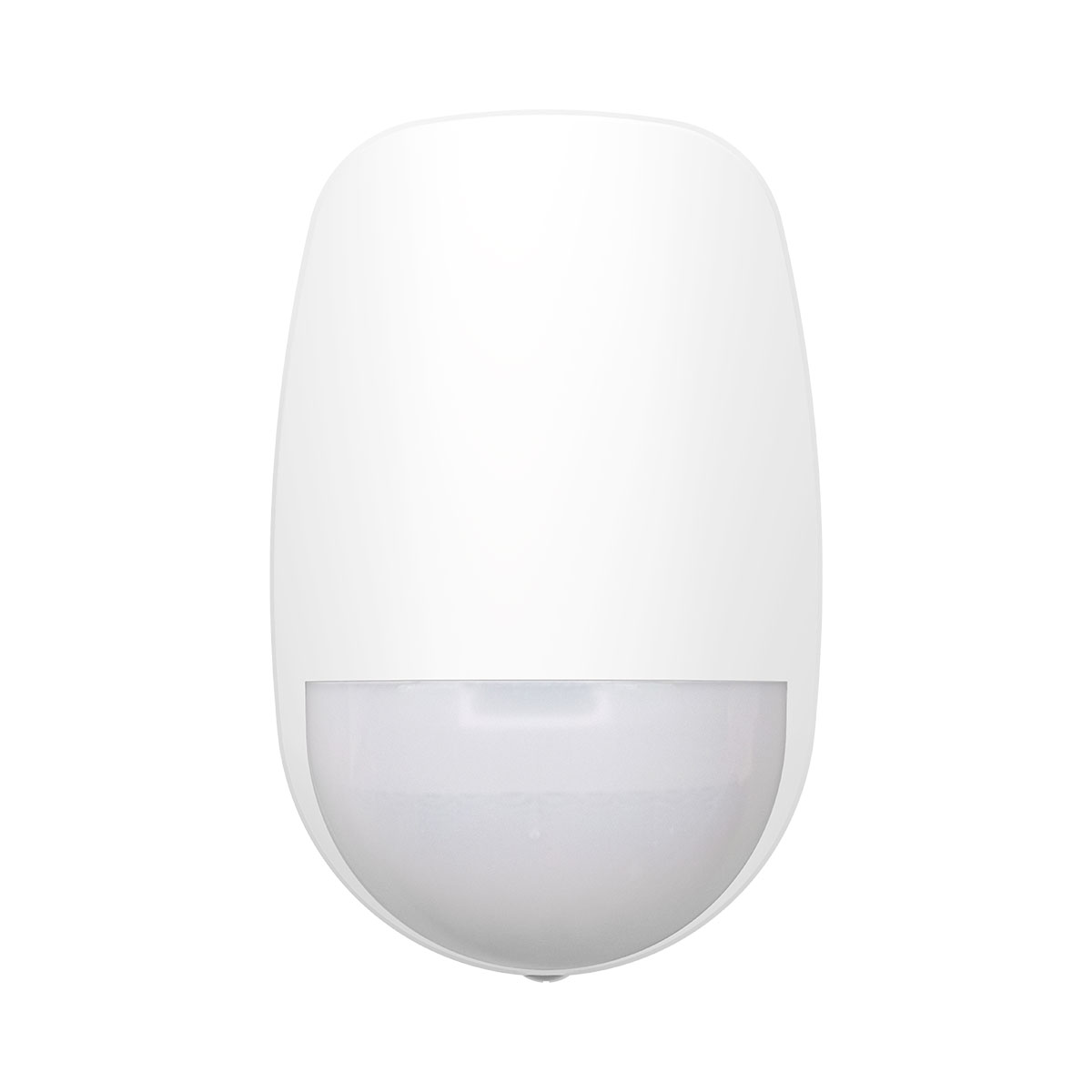

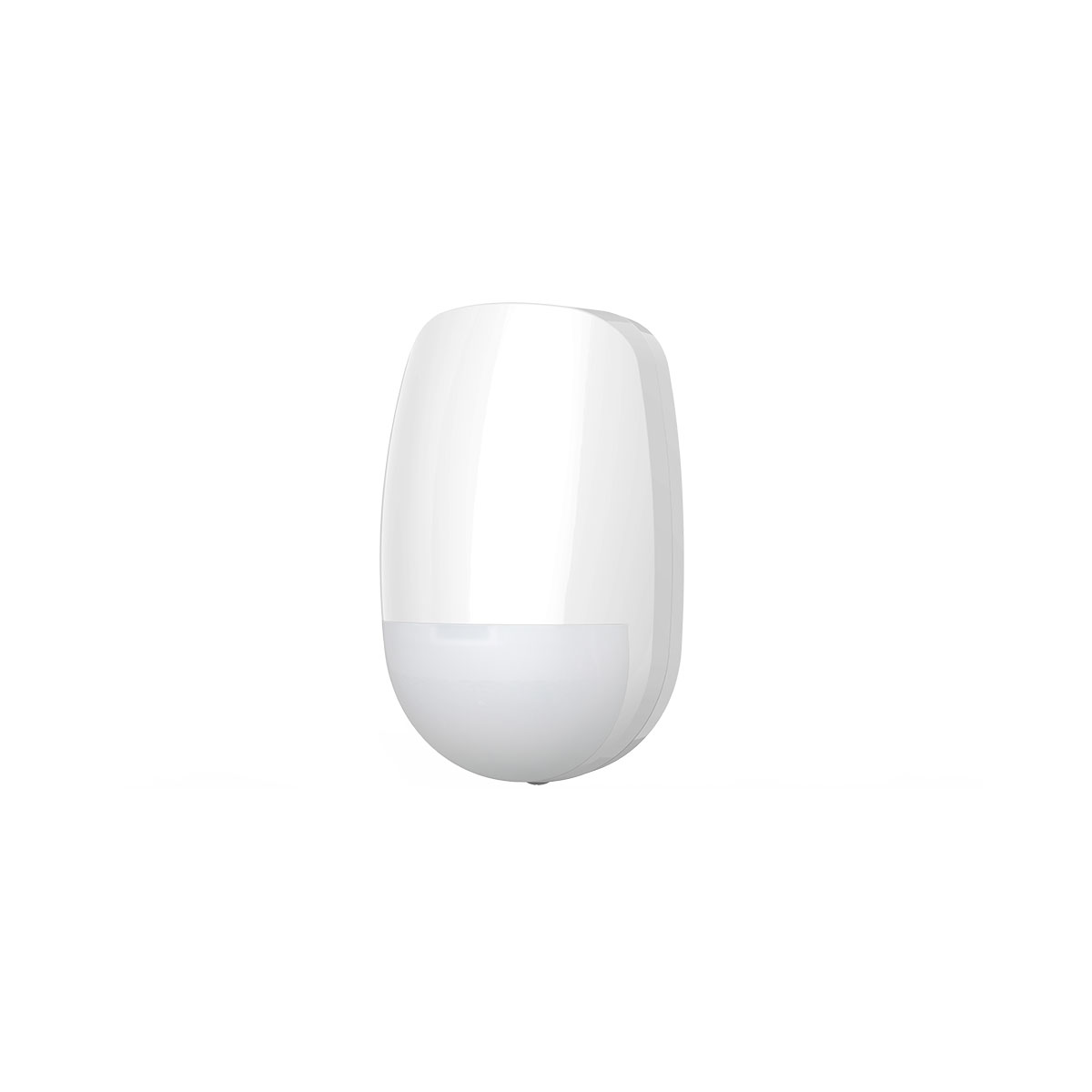

DS-PDP15P-EG2-WE is a fully supervised two-way wireless detector featuring motion detection, tamper protection, low battery and supervision. It can operate for up to 5 years from an in-built battery, and monitors the area within 15 m radius, ignores animals while recognizing human from the first step.
• Detection Range: 15 m/85.9°
• Up to 30 kg pet immunity
• SEC (Smart Environmental Control) - Advanced digital signal processing and 3D optics
• Fully remote configurable through APP
• Multiple enrollment method and easy installation design
• Easy replaceable battery with PCB protected
• Frequency hopping against jamming for reliable transmission
| Technical Specifications | |
| Detection Performance | |
| Detection Method | Passive Infrared |
| Detection Range | 15 m |
| Detection Angle | 90° |
| Detection Zones | 84 |
| Detectable Speed | 0.3 to 2 m/s |
| Sensitivity | Auto, High, Pet |
| Pet Immunity | 30 Kg |
| White Light Filter | 6500lux |
| Digital Temperature Compensation | Support |
| Creep Zone Protection | Support |
| Feature | |
| Digital Processing | Support |
| Sealed Optics | Support |
| Tamper Protection | Front,Rear |
| Environment Temperature Indicator | Support |
| Signal Strength Indicator | Support |
| Interface | |
| Power Switch | Power up enrolling |
| LED Indicator | Blue (alarm) |
| Transmission | |
| Transmission Technology | Tri-X Wireless |
| Transmission Method | Two-Way RF Wireless |
| Transmission Frequency | 868MHz |
| Transmission Security | AES-128 Encryption |
| Transmission Range(Free Space) | 1.6Km |
| Frequency Hopping |
Support
|
| Enrolling Method |
Power up,Remote ID,QR Code
|
|
Electrical Characteristics
|
|
| Standard Battery Life |
Up to 5 years (standby time)
|
| Power Supply |
Battery powered
|
| Battery Type |
CR123A x 1
|
| Typical Voltage |
3V
|
|
General
|
|
| Operation Temperature |
-10°C to 55°C
|
| Storage Temperature |
-20°C to 60°C
|
| Operation Humidity |
10% to 90%
|
| Dimension(WxHxD) |
65.5 mm × 103 mm × 48.5 mm
|
| Weight |
128 g
|
| Mounting Height |
1.8 m to 2.4 m
|
| Mounting Method |
Wall
|
| Bracket |
Optional Wall & Ceiling Accessory
|
| Application Scenario |
Indoor
|
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 863 – 870 MHz, provides for a maximum transmit power as described in the radio equipment interface requirement 105. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor and outdoor use.
