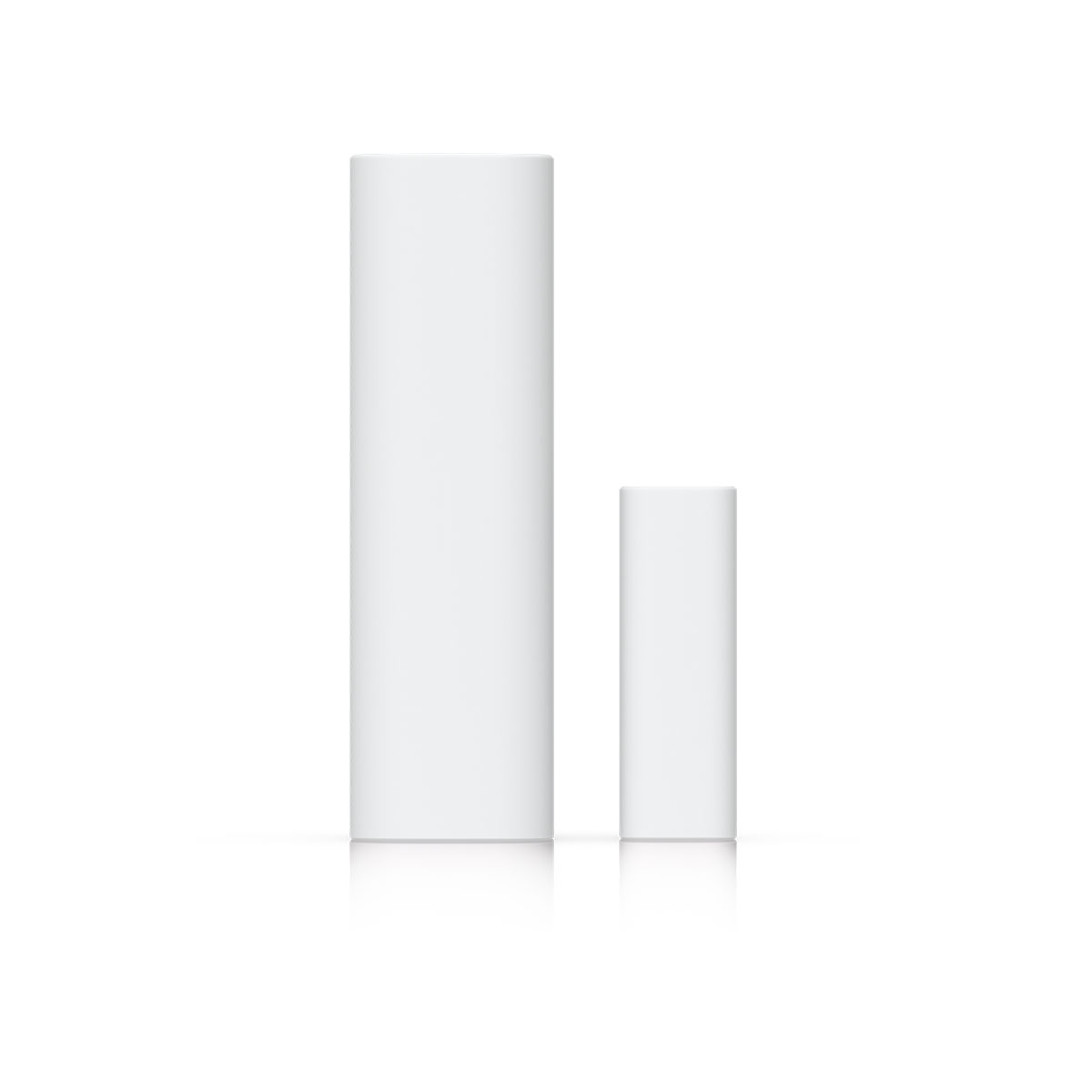

The wireless entry sensor with SuperLink technology is designed for precise monitoring of door or window openings and closings. Thanks to the advanced reed switch, it provides accurate detection of changes in the magnetic field and immediately sends alerts to the UniFi Protect system. Wireless SuperLink technology with a range of up to 2 km ensures exceptionally stable data transmission even in challenging conditions. The sensor communicates on frequencies of 865.1–869.5 MHz, allowing its deployment in various types of facilities — from homes to commercial spaces.
High durability and resistance for long-term operation
Thanks to energy-efficient operation and a quality CR123A lithium battery, the sensor provides a lifespan of up to 6 years without the need for replacement. Its compact construction made of durable polycarbonate withstands temperatures from 0 to 40 °C and humidity up to 90%, ensuring reliable operation throughout the year. Integrated LED indicators inform about signal strength and device status, while the tamper switch detects attempts at manipulation. FCC, IC, CE, and NDAA Compliant certifications allow deployment even in professional security systems.
Easy installation and full integration with UniFi Protect
The installation of the sensor is exceptionally easy — it attaches using double-sided tape or screws, with the magnet placed on the movable part of the door or window. After connecting to the UniFi Protect system, remote monitoring can be performed via the web and mobile application (iOS/Android). With a functional button, factory reset option, and detailed diagnostic functions, the device is ready for immediate deployment without complicated configuration.
Key features
- Monitoring of door or window openings and closings
- Wireless SuperLink technology with a range of up to 2 km
- Battery life of up to 6 years
- Accurate detection with a reed switch
- Compatibility with the UniFi Protect system (web and mobile app)
- Durable polycarbonate, operating temperature 0–40 °C, humidity up to 90%
- LED indicators for status and signal strength
- Easy mounting using adhesive or screws
| Overview | |

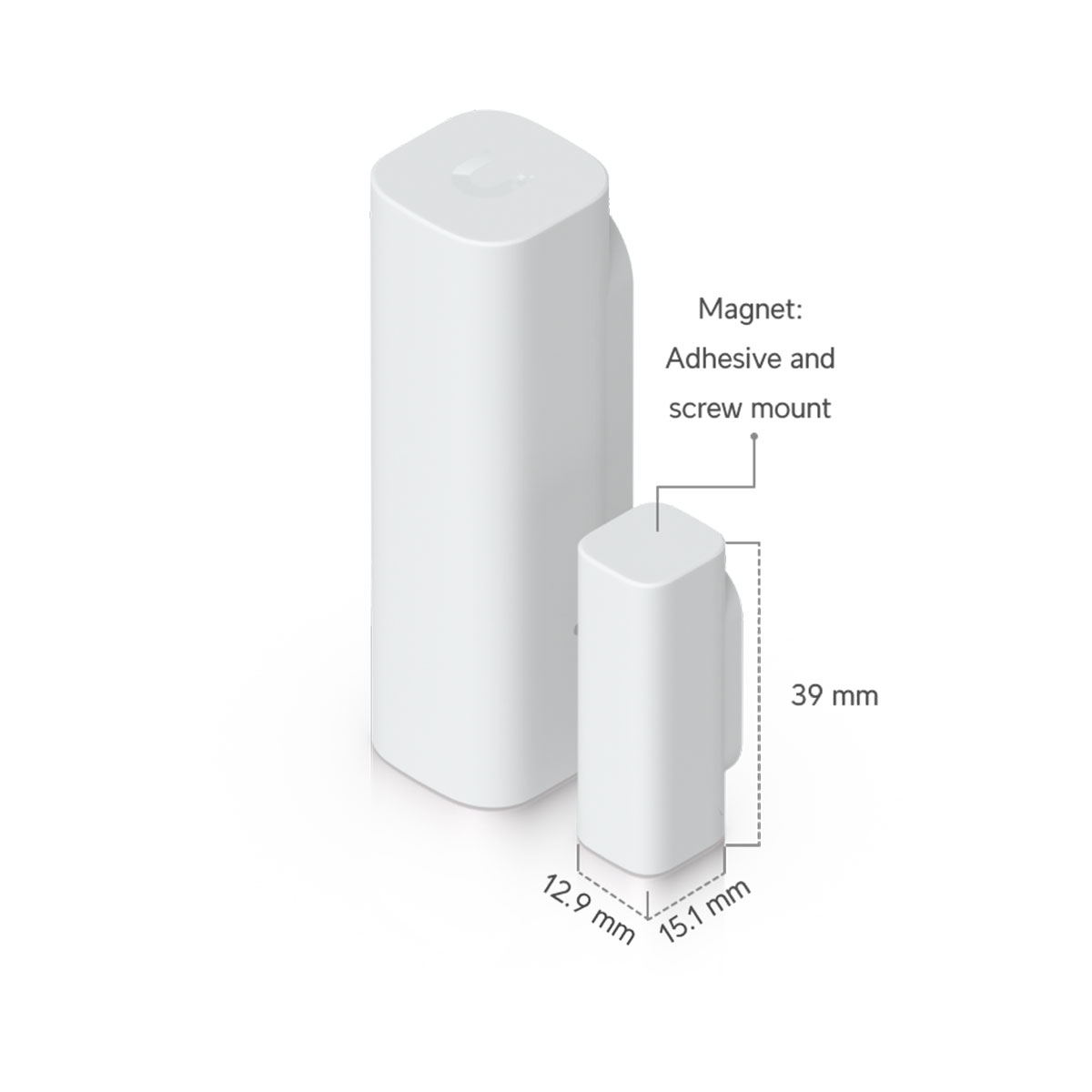

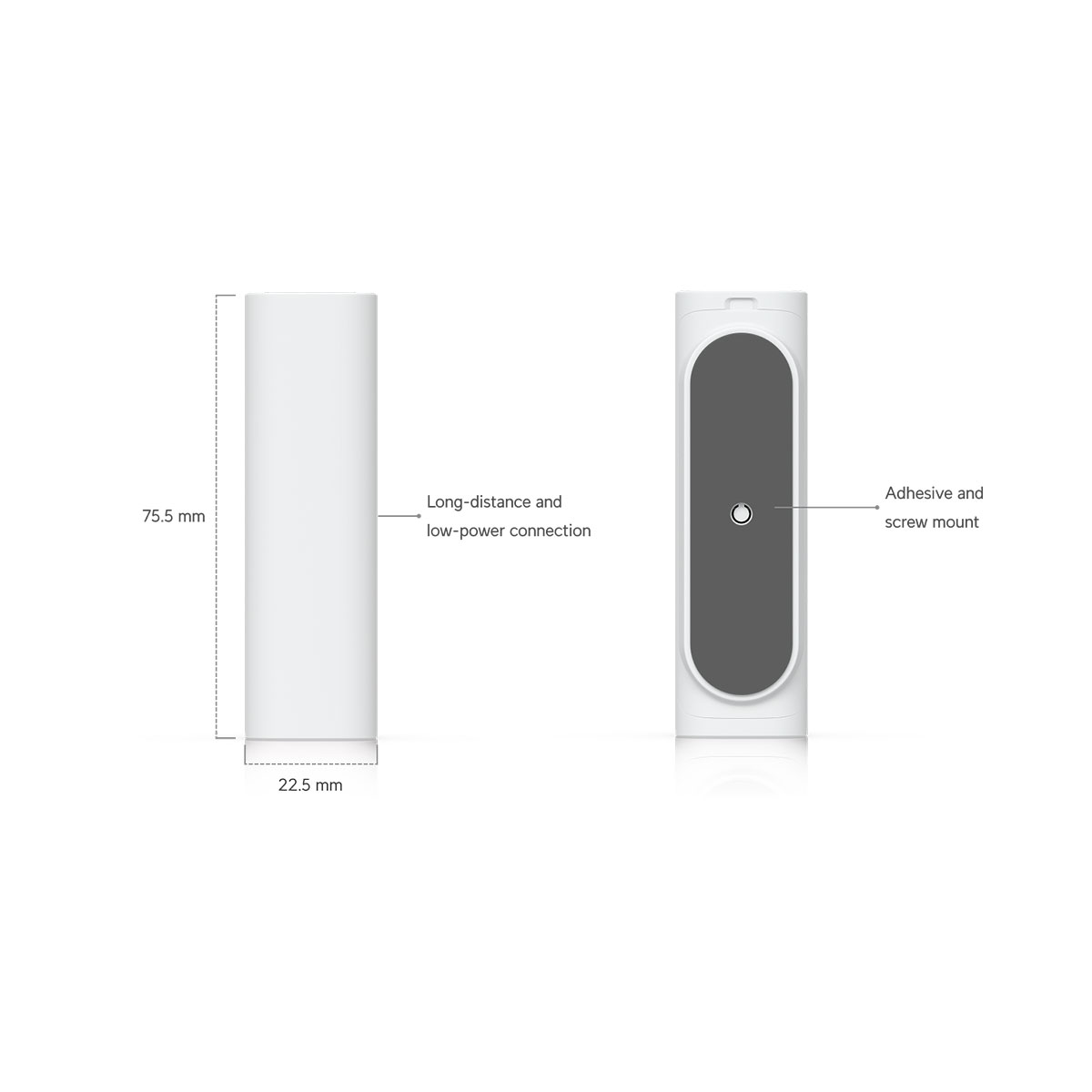

| Dimensions | Device: 75.5 x 23.5x 22.5 mm Magnet: 39 x 15.1 x 12.9 mm |
| Mounting | Adhesive, magnet and screw mount |
| UniFi Application Suite | Protect |
| Performance | |
| Connectivity | SuperLink (Proprietary) |
| Operating Frequency | 865.1–869.5 MHz |
| Antenna Gain | SuperLink - 0 dBi |
| Max. TX Power | SuperLink - 14 dBm |
| Max. Range | SuperLink - 2 km |
| Sensor Features | Reed Switch - ✓ |
| Hardware | |
| Max. Power Consumption | 27.7mW |
| Supported Voltage Range | 3V |
| Power Method | Lithium battery CR123A |
| Battery Life | Up to 6 years |
| Weight | Device: 41 g Magnet: 22 g |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |

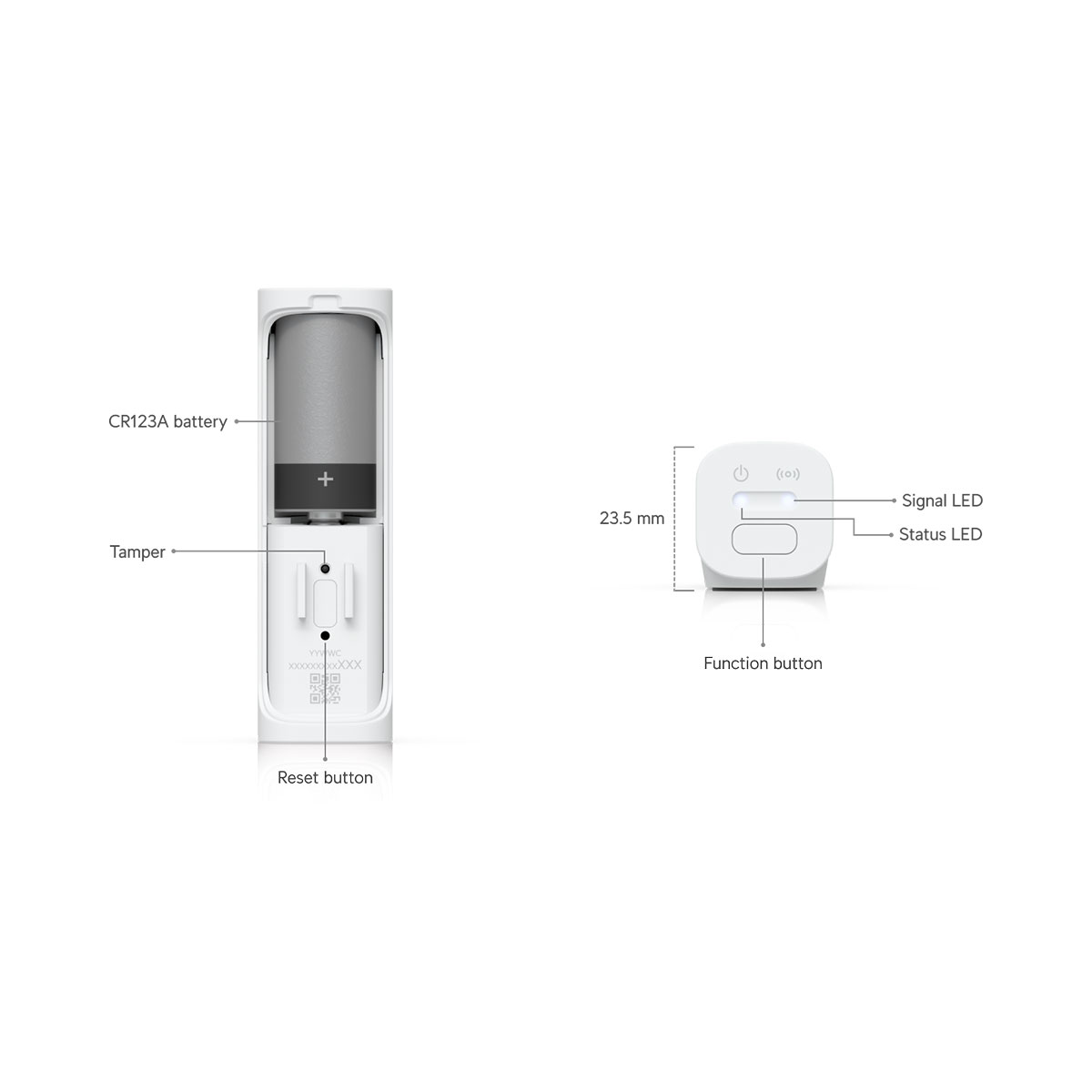

| Buttons | (1) Factory reset (1) Function button (1) Tamper switch |
| LEDs | (1) Status: R/B/W (1) Signal: B/R |
| Ambient Operating Temperature | 0 to 40° C |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| NDAA Compliant | ✓ |
| Software | |
| Application Requirements | Web Application - UniFi Protect Mobile App - UniFi Protect iOS™ and Android™ |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 863 – 870 MHz, provides for a maximum transmit power as described in the radio equipment interface requirement 105. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor and outdoor use.
