Ubiquiti USL-MOTION, Battery-Powered Superlink Motion Sensor Featuring Versatile Installation
The modern motion sensor expands the security of homes and business premises with precise and stable detection in the range of 865.1–869.5 MHz. Thanks to the combination of horizontal and vertical PIR sensors, it reliably covers a wide area and minimizes false alarms. Full integration into the UniFi Protect platform allows for instant overviews of events via the web interface and mobile app for iOS and Android, ensuring that you always have control at your fingertips—at home and on the go.
Durable construction and freedom of installation
Battery power and SuperLink technology with a range of up to 2 km provide maximum flexibility in placement even where cabling is not available. The lightweight construction weighs only 45 g and the option for mounting with adhesive or screws speeds up installation. The durable body made of polycarbonate and HDPE withstands daily operation and tougher conditions, while the very low power consumption extends battery life (up to 6 years). FCC, IC, and CE certifications along with NDAA compliance confirm the reliability of the solution for long-term and professional use.
Key features
• Frequency range 865.1–869.5 MHz
• Battery power with very low energy consumption (max. 22.6 mW)
• Horizontal and vertical PIR sensors for precise motion detection
• SuperLink technology with a communication range of up to 2 km
• Full integration into UniFi Protect (web, iOS, Android)
• Durable design made of polycarbonate and HDPE

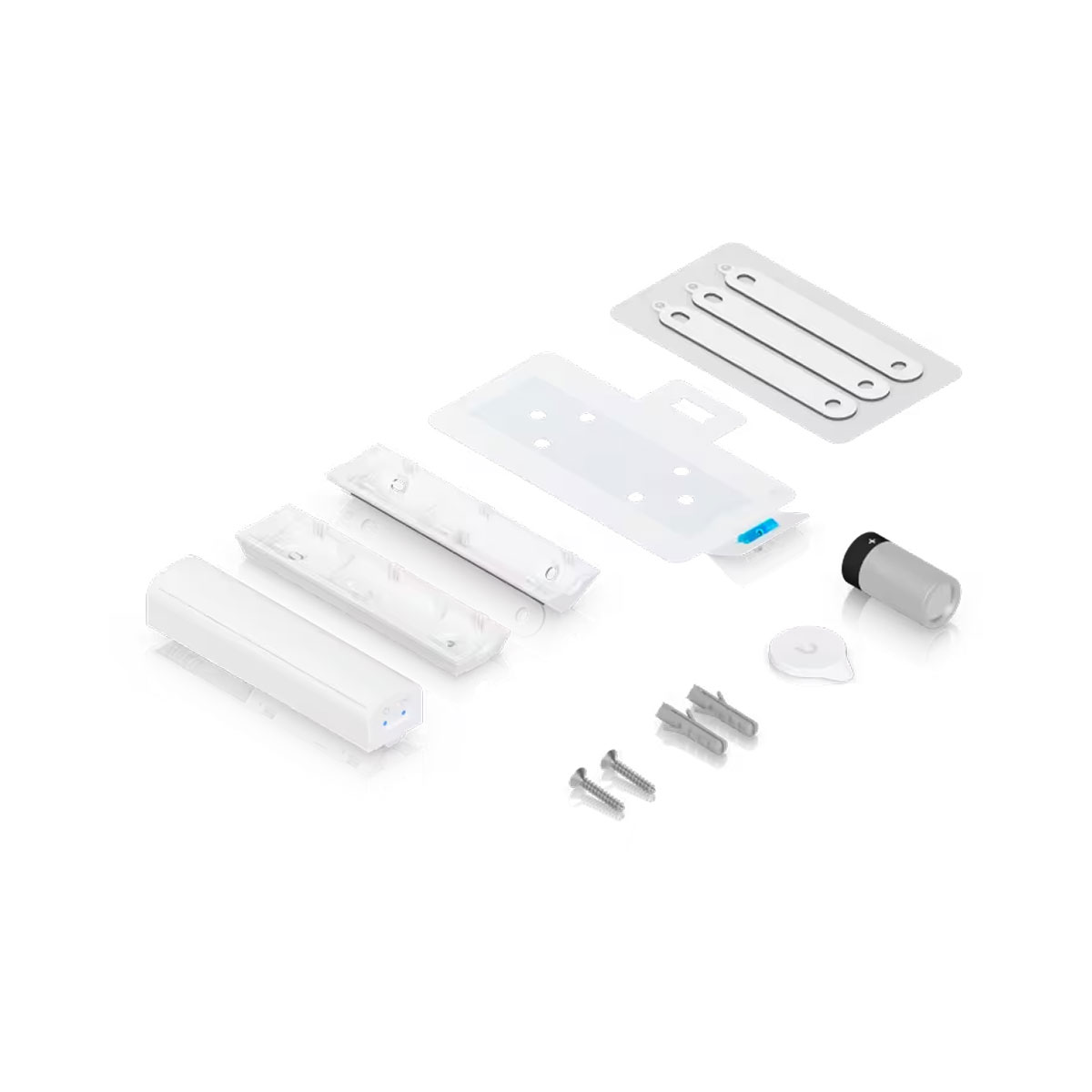

• Flexible installation using adhesive or screws
| Overview | |

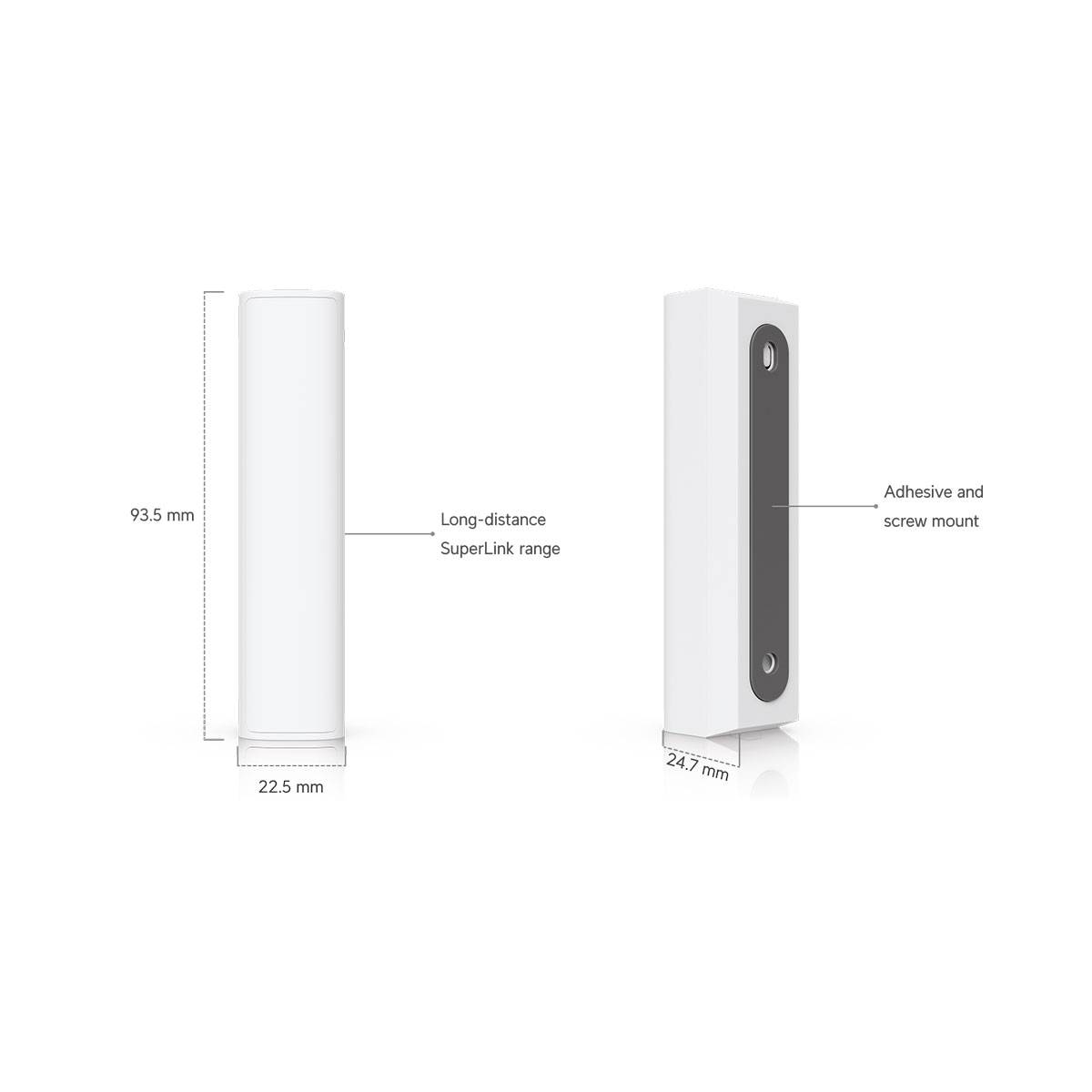

| Dimensions | Device with wall mount: 93.5 x 22.5 x 24.7 mm Device with corner mount: 93.5 x 22.5 x 27.9 mm |
| Mounting | Adhesive and screw mount |
| UniFi Application Suite | Protect |
| Performance | |
| Connectivity | SuperLink (Proprietary) |
| Operating Frequency | 865.1–869.5 MHz |
| Antenna Gain | SuperLink - 1 dBi |
| Max. TX Power | SuperLink - 14 dBm |
| Max. Range | SuperLink - 2 km 🛈 Line of Sight (LOS) |
| Sensor Features | Horizontal PIR Sensor - Detection range up to 1.5 m Vertical PIR Sensor - Detection range up to 6 m with pet immunity |
| Hardware | |
| Max. Power Consumption | 22.6mW |
| Supported Voltage Range | 3V |
| Power Method | Lithium battery CR123A |
| Battery Life | Up to 6 years |
| Weight | Device: 45 g |
| Enclosure Material | Polycarbonate, high-density polyethylene (HDPE) |
| Mount Material | Polycarbonate |

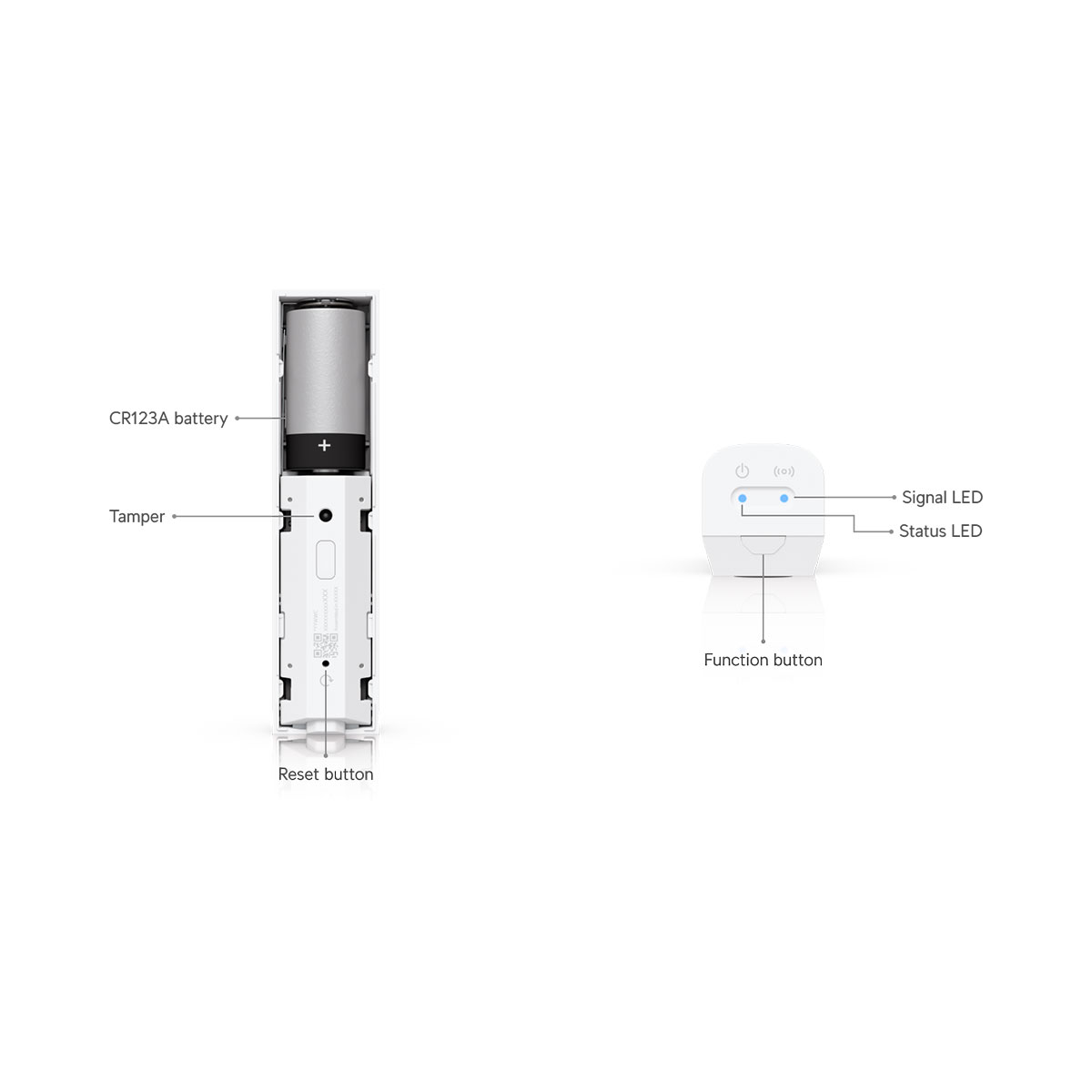

| Buttons | (1) Factory reset (1) Function button (1) Tamper switch |
| LEDs | (1) Status: R/B/W (1) Signal: B/R |
| Ambient Operating Temperature | 0 to 40° C |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| NDAA Compliant | ✓ |
| Software | |
| Application Requirements | Web Application UniFi Protect Mobile App UniFi Protect iOS™ and Android™ |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 863 – 870 MHz, provides for a maximum transmit power as described in the radio equipment interface requirement 105. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor and outdoor use.
