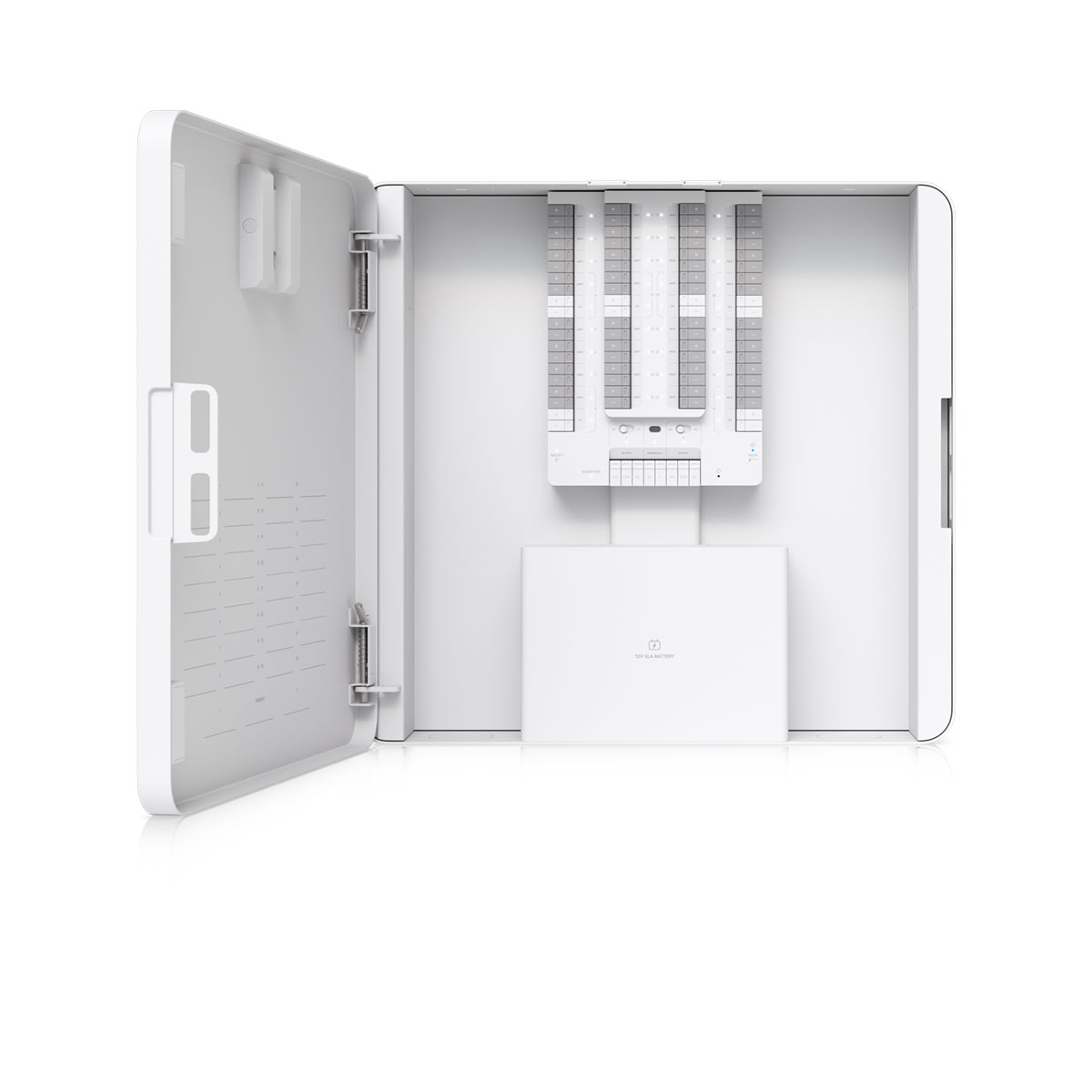

Ubiquiti UP-ALARMHUB-KIT, UniFi Protect, 32 Zone Wired Alarm Inputs, Alarm Hub Kit

Modern security requires reliability, flexibility, and easy management. The solution for UniFi Protect offers 32 inputs for connecting wired detectors, including magnetic contacts, motion sensors, smoke detectors, and other alarm devices. Support for EOL, SEOL, and DEOL resistors enables advanced wire management, detection of cable interruptions, and attempts at sabotage. It also includes detection of the opening of the control panel cover and a dedicated emergency input for crisis situations.

Easy integration and high availability
The device is ready for expansion with wireless elements through the SuperLink Gateway, which can be powered via PoE+ output with a power of up to 60 W. Powering through 802.3bt PoE+++ with backup battery support ensures continuous operation even during power outages. A pair of Wet/Dry relay outputs allows control of external devices, while the compact wall-mounted design is ideal for indoor installations in homes, offices, and commercial properties.

Key features

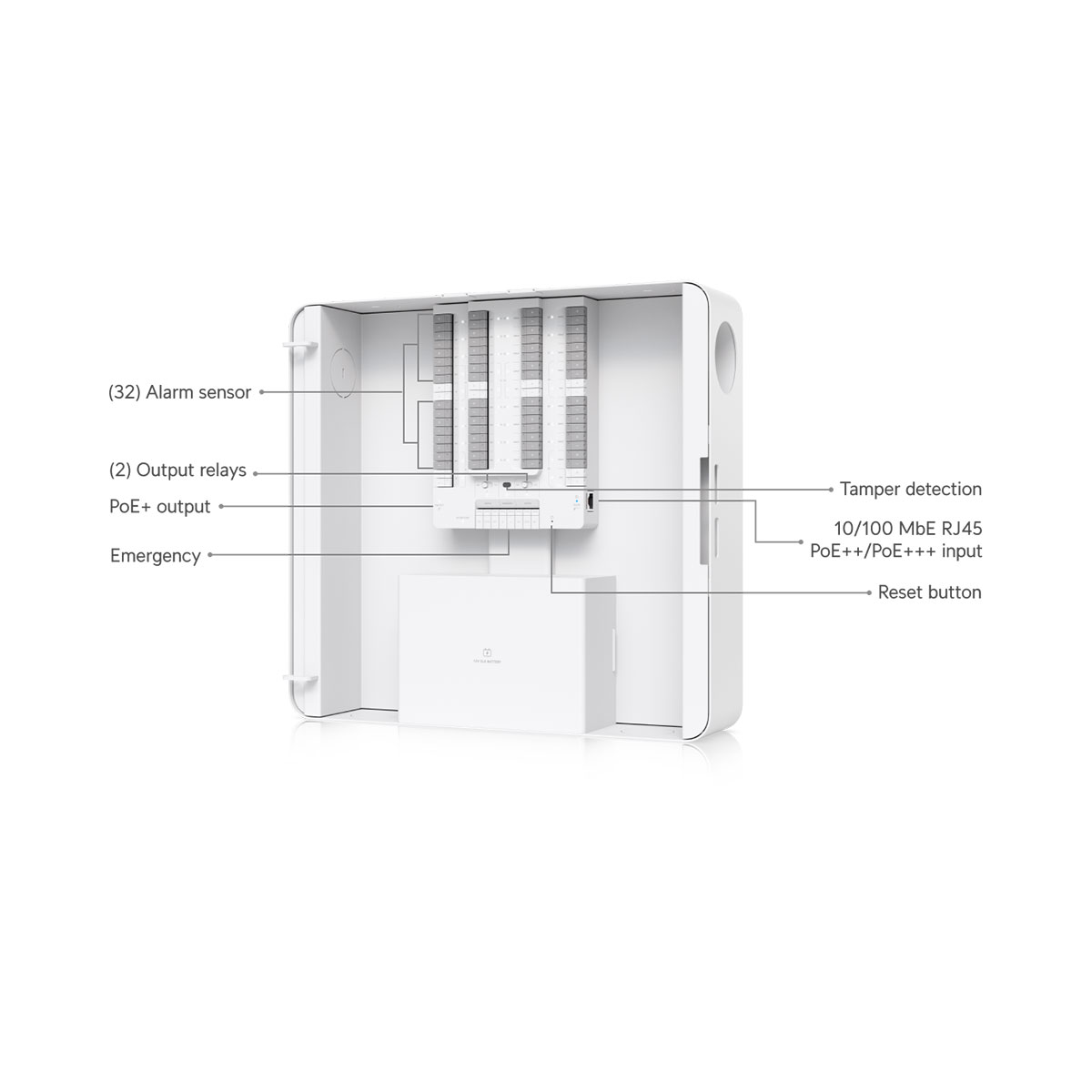

• 32 inputs for connecting wired detectors and alarm devices
• Emergency Input
• 2 relay outputs Wet (12 V DC / 1 A) / Dry (up to 30 V DC / 1 A)
• Option to connect SuperLink Gateway
• PoE+ output (802.3at) with a power of up to 60 W
• Backup battery support
• (2) 10/100 Mb/s network interface
• (1) RJ45 Ethernet port
• Maximum power consumption 90 W
• Designed for indoor use
• Operating temperature -10 to +40 °C

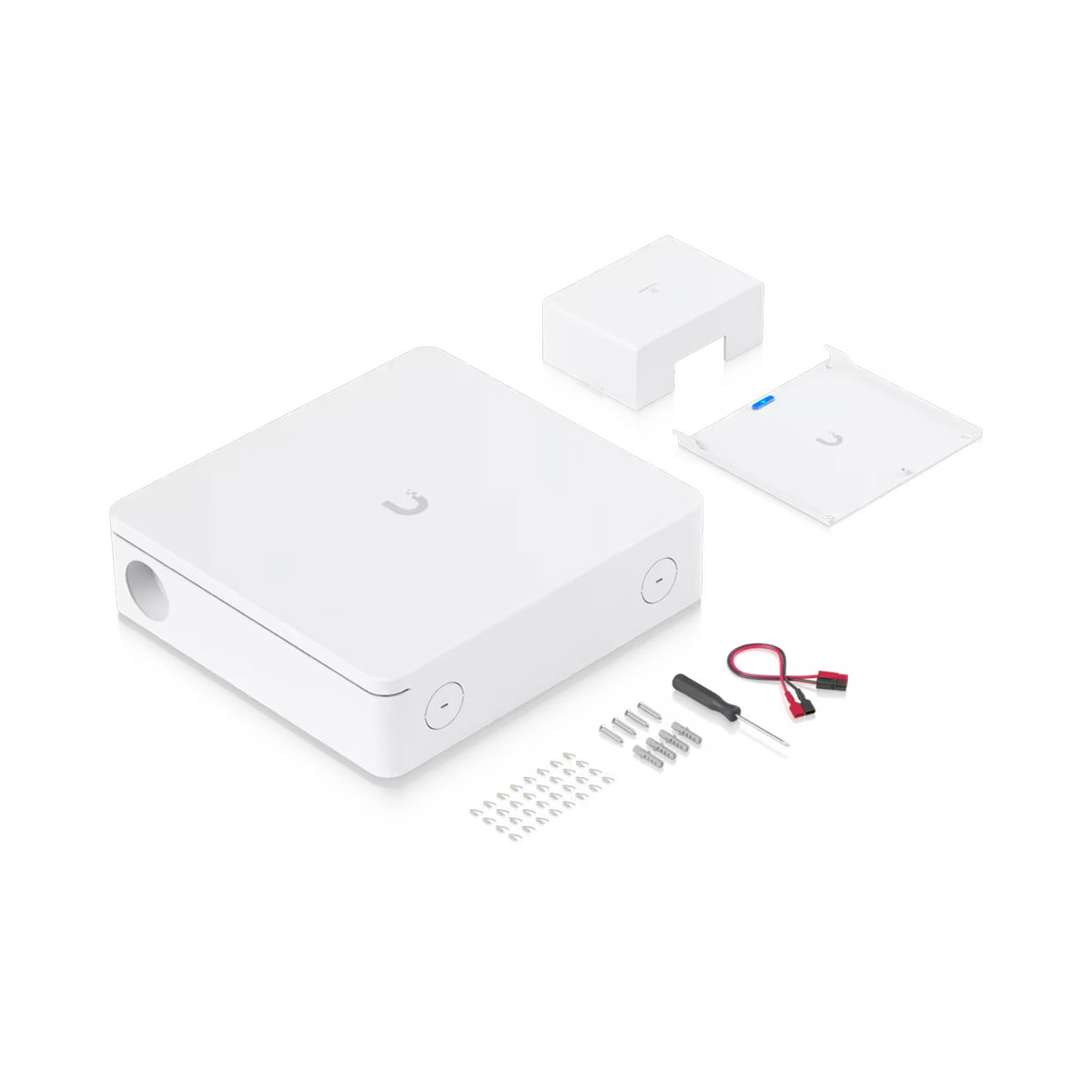

Package contents
• Device
• Metal wall mount
• EOL resistors
• Mounting kit (screws and anchors)
