Ubiquiti USW-Flex, UniFi Switch Flex

Product Code:
USW-Flex
130,00 €
(Includes VAT 24%)
Sales price without VAT:
104,84 €
Available
Next pickup date: 05/06/2025
Ubiquiti USW-Flex, UniFi Switch Flex, 5-Port Layer 2 Gigabit Switch with PoE Support
Shipping cost calculation:
Quantity
Add to Cart
Category:
Manufacturer:
Warranty:
24 Months
Description
Characteristics
Downloads
Description

Overview
Build and expand your network with the UniFi® Switch, model USW-Flex. The USW-Flex is a configurable Layer 2 Gigabit switch with auto-sensing 802.3af PoE. It offers five RJ45 Gigabit Ethernet ports, providing 1 PoE input and 4 PoE output links to your devices.

Switching Performance
The USW-Flex offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

PoE Flexibility

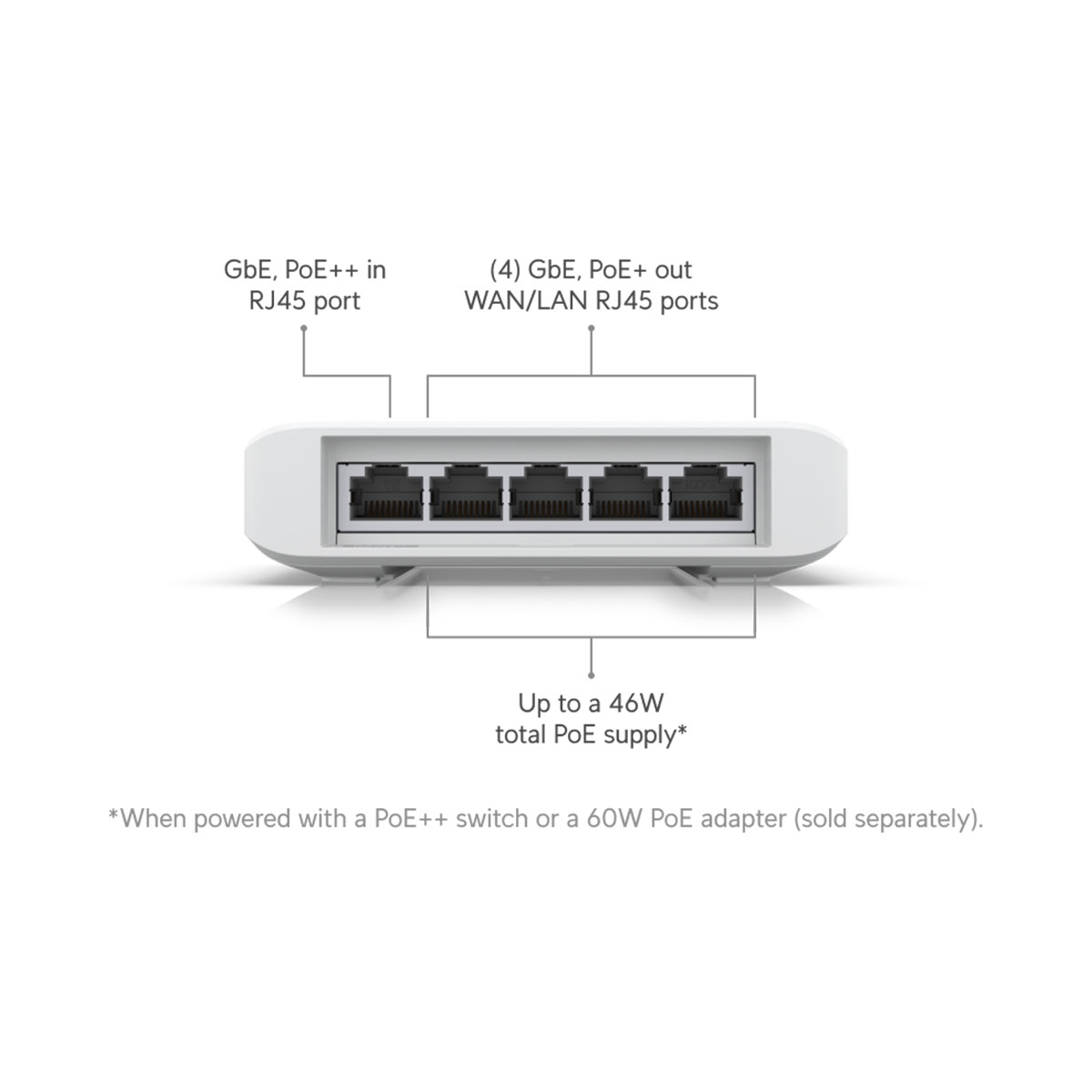

The USW-Flex features five Gigabit RJ45 ports to deliver robust performance and intelligent switching for your network.
Port 1 provides PoE Input while ports 2-4 offer 802.3af PoE and provide up to 15W of power for your PoE devices. Products requiring 802.3af, such as G3 Flex cameras, are also supported.

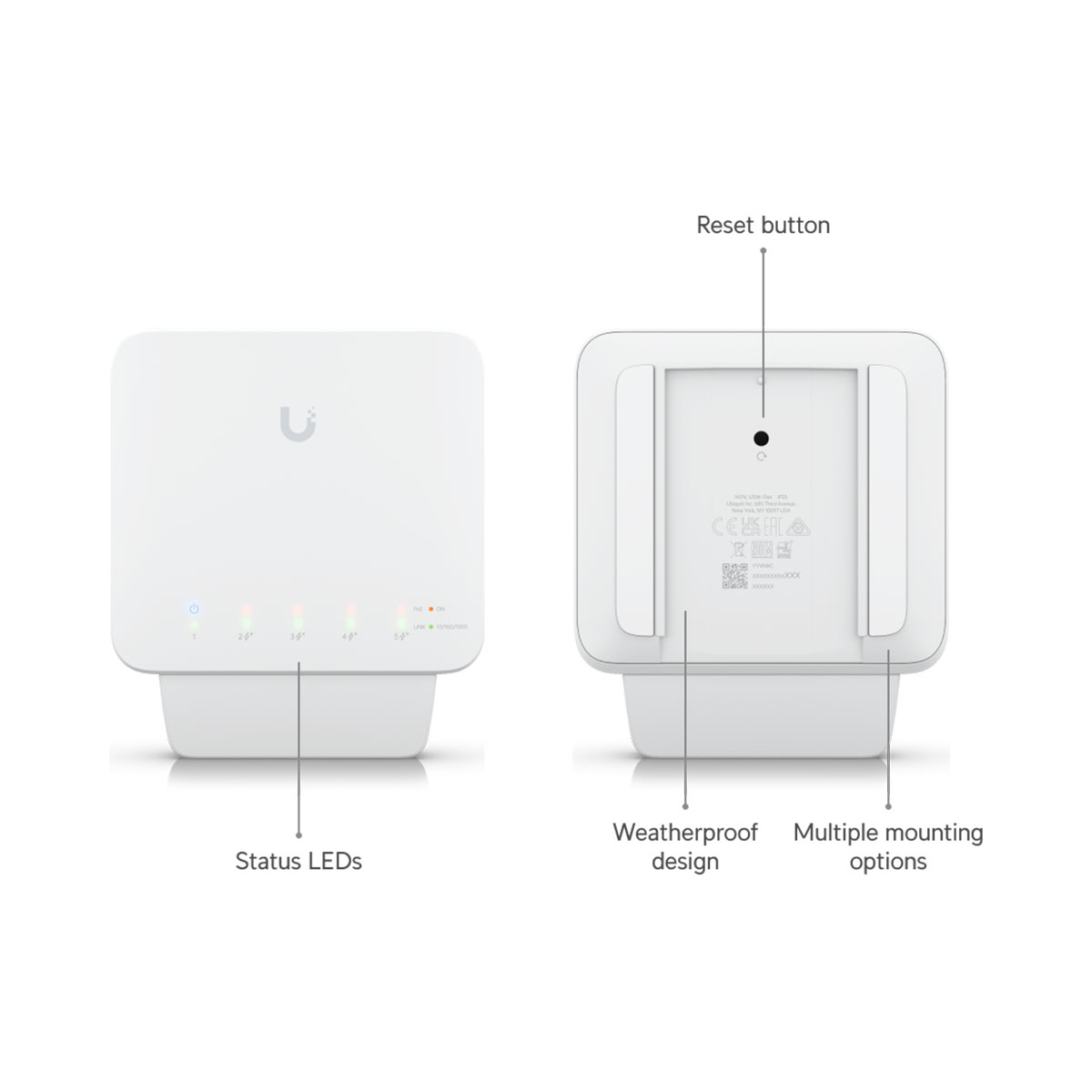

Indoor/Outdoor Design

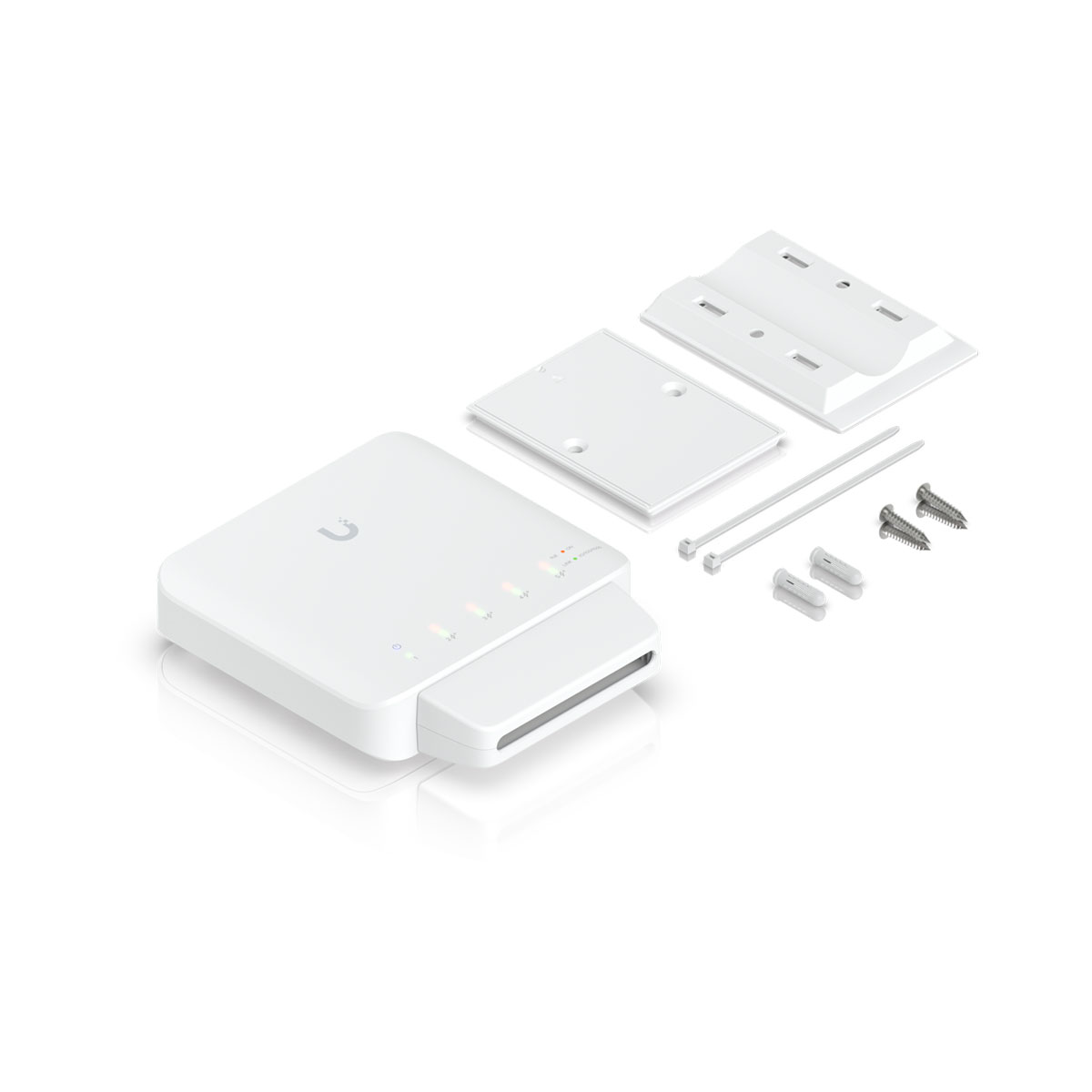

The USW-Flex can be installed horizontally or vertically and is designed for indoor and outdoor use, making it ideal for desktop, wall, and pole-mount installations.
With its weatherproof housing and versatile mounting options, the USW-Flex provides the flexibility and durability in environments with extreme temperature variations.

Scalable UniFi Network Controller
Management Capabilities
The UniFi Network Controller can provision UniFi devices, map out networks, and quickly manage system traffic. Important network details are logically organized for a simplified, yet powerful, interface.

Network Overview
From a single pane of glass, view network topology and configuration, real-time statistics, and debugging metrics. Monitor your network’s vitals and make on-the-fly adjustments as needed.

Deep Packet Inspection
Ubiquiti’s proprietary Deep Packet Inspection (DPI) engine includes the latest application identification signatures to track which applications (and IP addresses) are using the most bandwidth.

Detailed Analytics
The UniFi Network Controller provides configurable reporting and analytics to manage large user populations and expedite troubleshooting. Advanced search and sorting capabilities make network management more efficient.

Multi-Site Management
A single controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator accounts.

Switch Configuration
You can access any managed UniFi Switch through the UniFi Controller to configure a variety of features:
• Operation mode (switching or mirroring) per port
• Network/VLAN configuration
• Jumbo frame services
• Network settings
• Debug terminal option for command-line interface

Switch Port Status
You can also view status information for each port:
• Connection speed and duplex mode
• TX/RX data rates
• Network/VLAN setting

Software Features
The UniFi Network Controller software offers the following features:
• Centralized configuration management (including configuration cloning)
• Auto-MDIX automatically adjusts as needed for straight through or crossover cable



Characteristics
Specifications

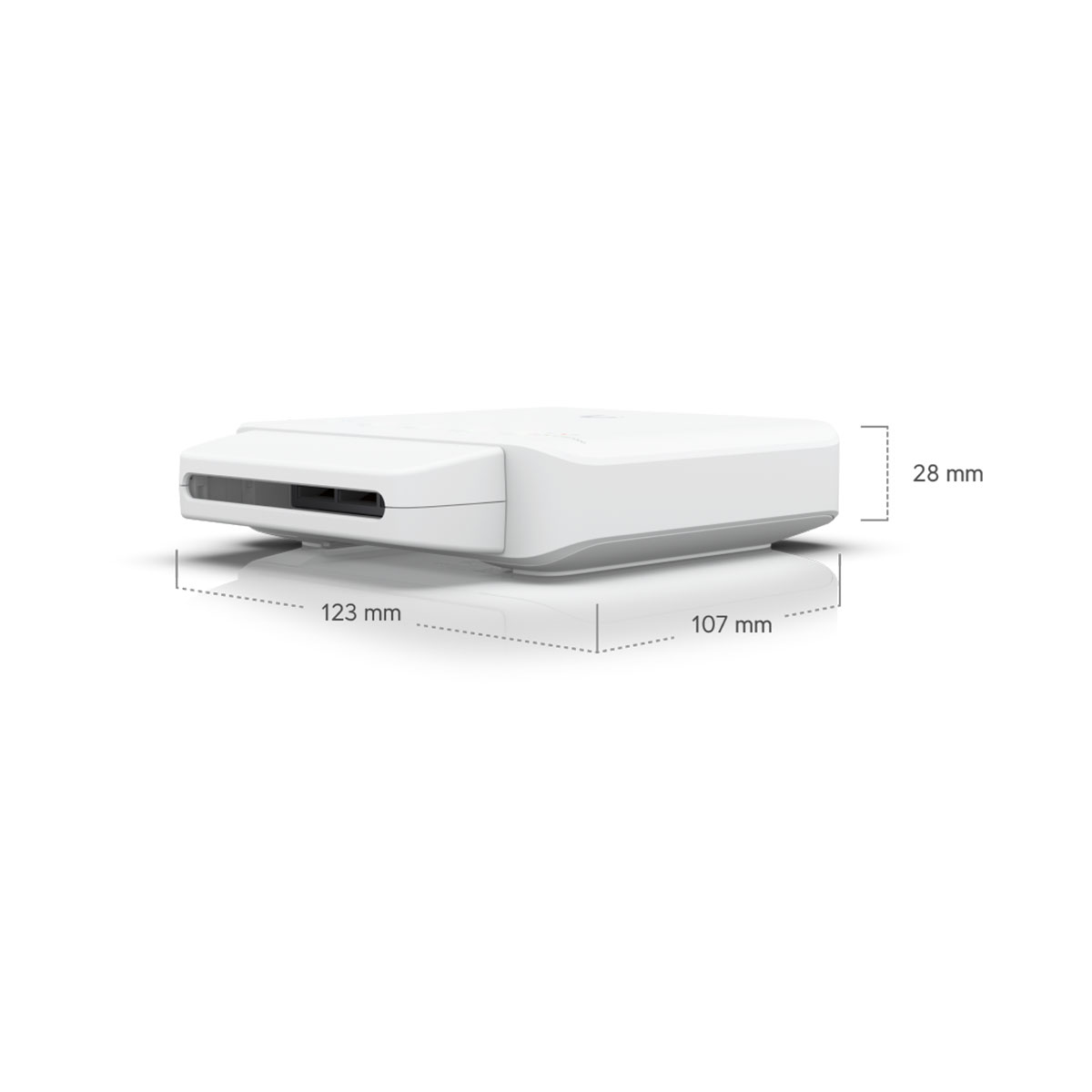

Dimensions 122.5 x 107.1 x 28.0 mm
Weight 230 g
Networking Interface (5) 10/100/1000 Mbps RJ45 Ports
Management Interface Ethernet In-Band
PoE Out (Ports 2-5) PoE Out (Ports 2-5)
Max Power Consumption (Excluding PoE Output) 5W
Total PoE Power Budget
Powered by 802.3af
Powered by 802.3at
Powered by 802.3bt
Powered by PoE Adapter
(Enabled in Controller)
8W
20W
46W
46W
Voltage Range
802.3af
802.3at/bt

44 - 57V
50 - 57V
LEDs
System
RJ45 Data Ports

Status
PoE; Link/Speed/Activity
ESD/EMP Protection ± 16kV Air, ± 16kV Contact
Operating Temperature
46W PoE Output
25W PoE Output

-40 to 55° C (-40 to 131° F)
-40 to 65° C (-40 to 149° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
Power Method (Port 1)
PoE Type
802.3af/at (Pins 1, 2+; 3, 6-)
802.3bt (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)
50V/60W PoE Adapter*
Recommended PoE Source
USW-24-PoE (sold separately)
USW-Pro-24-PoE (sold separately)
PoE Injector, POE-50-60W-WH or POE-50-60W (sold separately)

* To enable PoE output power, select Power Source > PoE Injector in UniFi Controller.
