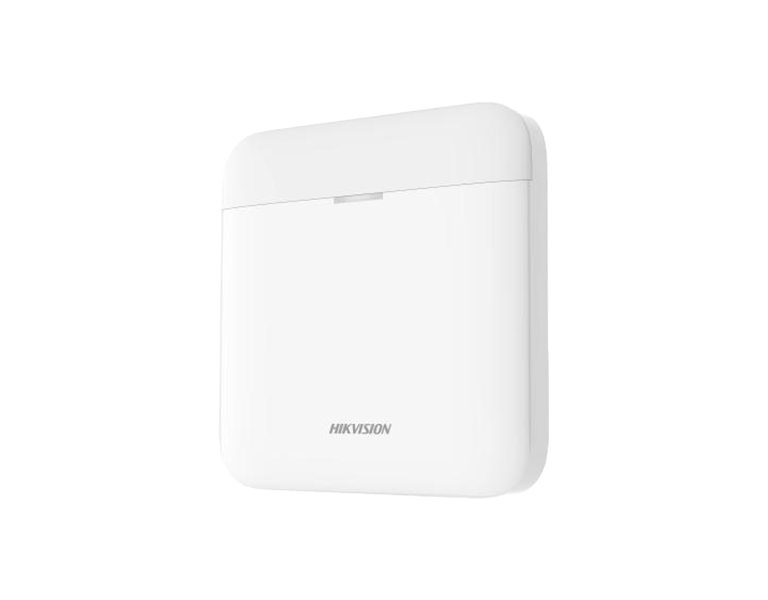

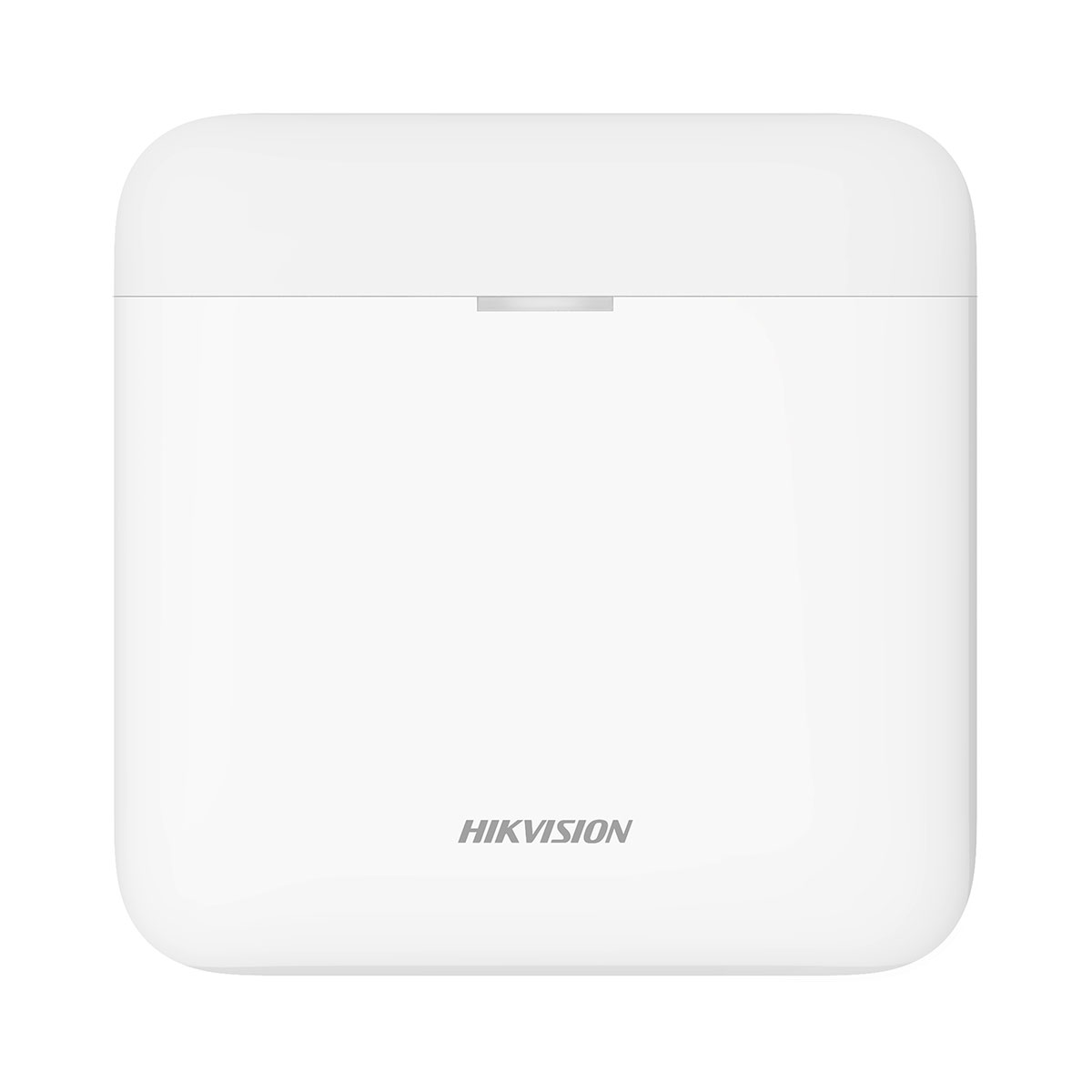

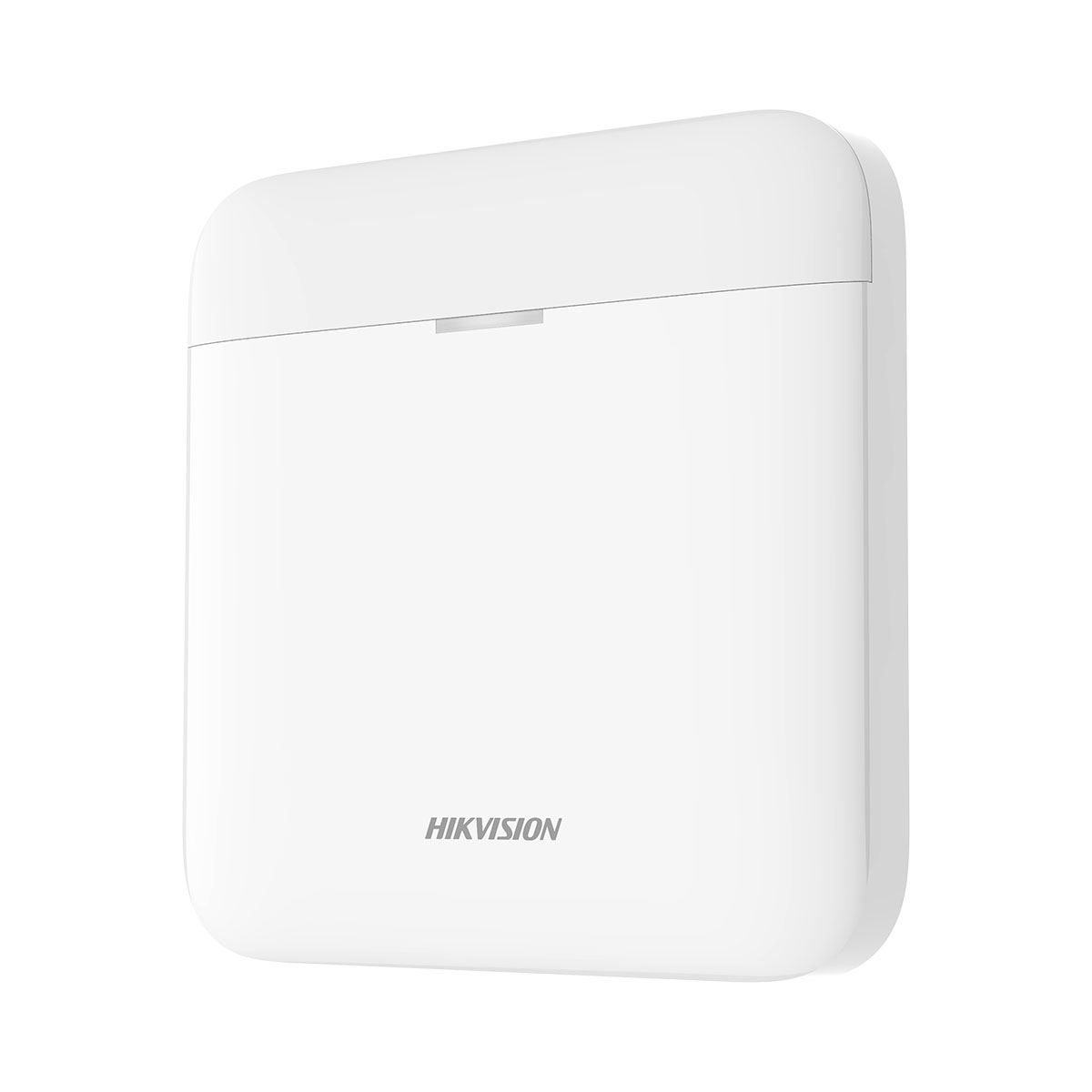

Hikvision DS-PR1-WE AX Pro Wireless Repeater
The wireless repeater, supporting 868 Mhz wireless communication, Tri-X and Cam-X wireless protocol, multiple enrollment methods, two-way wireless communication, and auto-pairing, is used for extending RF distance in alarm system.
• 868 MHz two-way wireless communication
• Two-way communication, stable and secure
• LED display, show the differernt feedbacks with easy understanding
• Up to 35 hrs battery backup after mains lost, no worry about communication
• Finding and connecting up to 8 PIRCAM or smoke detectors automatically, smart auto-pairing
• Easy installation with new designed structure
| Technical specifications | |
| Software features | |
| Auto paring | Supported |
| Hardware features | |
| Serial port | 2, for debug |
| Tamper-Proof | 1, front and back |
| Power switch | 1 |
| Electrical characteristics | |
| Battery type | Built in Battery Li |
| Power supply | 100 VAC to 240 VAC |
| Operation humidity | 10％ to 90％ |
| Operation temperature | -10°C to +55°C (The battery can not be charged at temperature lower than 10°C, please make sure the adapter is connected) |
| Battery life span | Up to 35 hours at normal temperature(The battery working time can be significantly reduced at low temperatures) |
| Wireless transmission | |
| RF frequency | 868 MHz |
| RF method | Two-way communication |
| RF modulation | 2GFSK |
| RF distance | 1600 m (open area) |
| Wireless security | AES-128 |
| Display | |
| LEDs status | 3, register/signal (green/red), power (green), fault (amber) |
| General | |
| Installation method | Wall mounting |
| Dimension(WxHxD) | 150 mm × 150 mm × 25 mm |
| Shell material | Plastic |
| Color | White |
| Weight | 372 g |
| Device management | |
| PIRCAM paring | Supported |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 863 – 870 MHz, provides for a maximum transmit power as described in the radio equipment interface requirement 105. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor and outdoor use.
