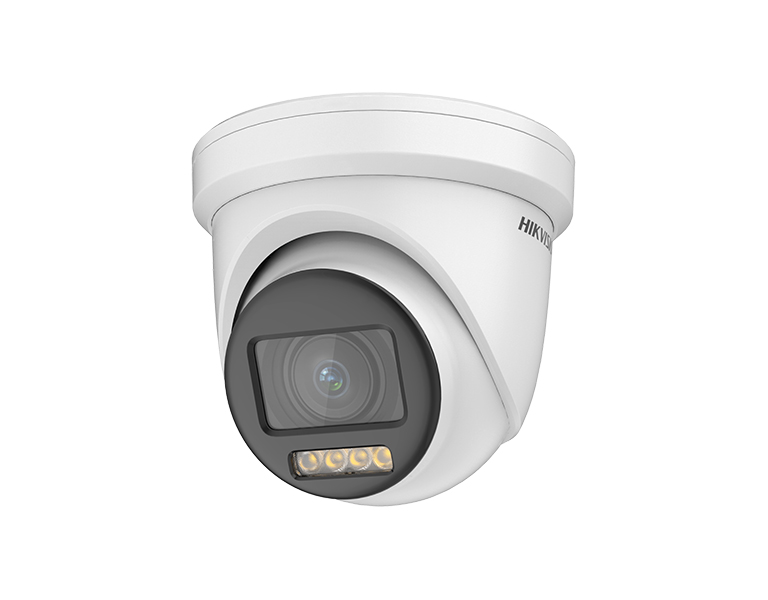

Hikvision DS-2CE79DF8T-AZE 2MP ColorVu PoC Motorized Varifocal Turret
Product Code:
DS-2CE79DF8T-AZE
2-3 Days
Hikvision DS-2CE79DF8T-AZE 2MP ColorVu PoC Motorized Varifocal Turret
Shipping cost calculation:
Call for pricing
Description
Characteristics
Downloads
Description
CAUTION!!! Package doesn't include power supply!!!
• High quality imaging with 2 MP, 1920 × 1080 resolution
• 24/7 color imaging
• Clear imaging against strong back light due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• 2.8 mm to 12 mm varifocal lens, auto focus
• Smart Light, up to 40 m white light distance
• Water and dust resistant (IP68)
Characteristics
| Specifications | |
| Camera | |
| Image Sensor | 1/1.8" 2 MP CMOS |
| Signal System | PAL/NTSC |
| Resolution | 1920 (H) × 1080 (V) |
| Frame Rate | TVI: 1080p @ 25 fps/30 fps |
| Min. Illumination | 0.0003 Lux @ (F1.0, AGC ON), 0 Lux with white Light |
| Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| Lens | 2.8 mm to 12 mm motorized, auto focus |
| Field of View | horizontal FOV: 92.3° to 34.2°, vertical FOV: 48.4° to 19°, diagonal FOV: 112.2° to 39.2° |
| Lens Mount | Φ 24 |
| Day & Night | Color |
| Angle Adjustment | Pan:0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
| WDR (Wide Dynamic Range) | ≥130 dB |
| Menu | |
| White Light | Auto/Off |
| AGC | yes |
| Image Mode | STD/HIGH-SAT/HIGHLIGHT |
| White Balance | Auto/Manual |
| AE (Auto Exposure) Mode | WDR, BLC, HLC, Global, HLS |
| Privacy Mask | 4 programmable privacy masks |
| Motion Detection | 4 programmable motion areas |
| Noise Reduction | 3D DNR/2D DNR |
| Language | English |
| Function | Brightness, Mirror, Sharpness, Anti-Banding, Smart Light |
| Interface | |
| Video Output | 1 HD analog output |
| General | |
| Operating Conditions | -40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing) |
| Power Supply | 12 VDC/24 VAC±20%/PoC.at |
| Power Consumption | Max. 12.2 W |
| Protection Level | IP68 |
| Material | Metal |
| IR Range | Up to 40 m |
| Communication | HIKVISION-C |
| Dimensions | Ø 141.4 mm x 134.7 mm |
| Weight | Approx. 840 g |
