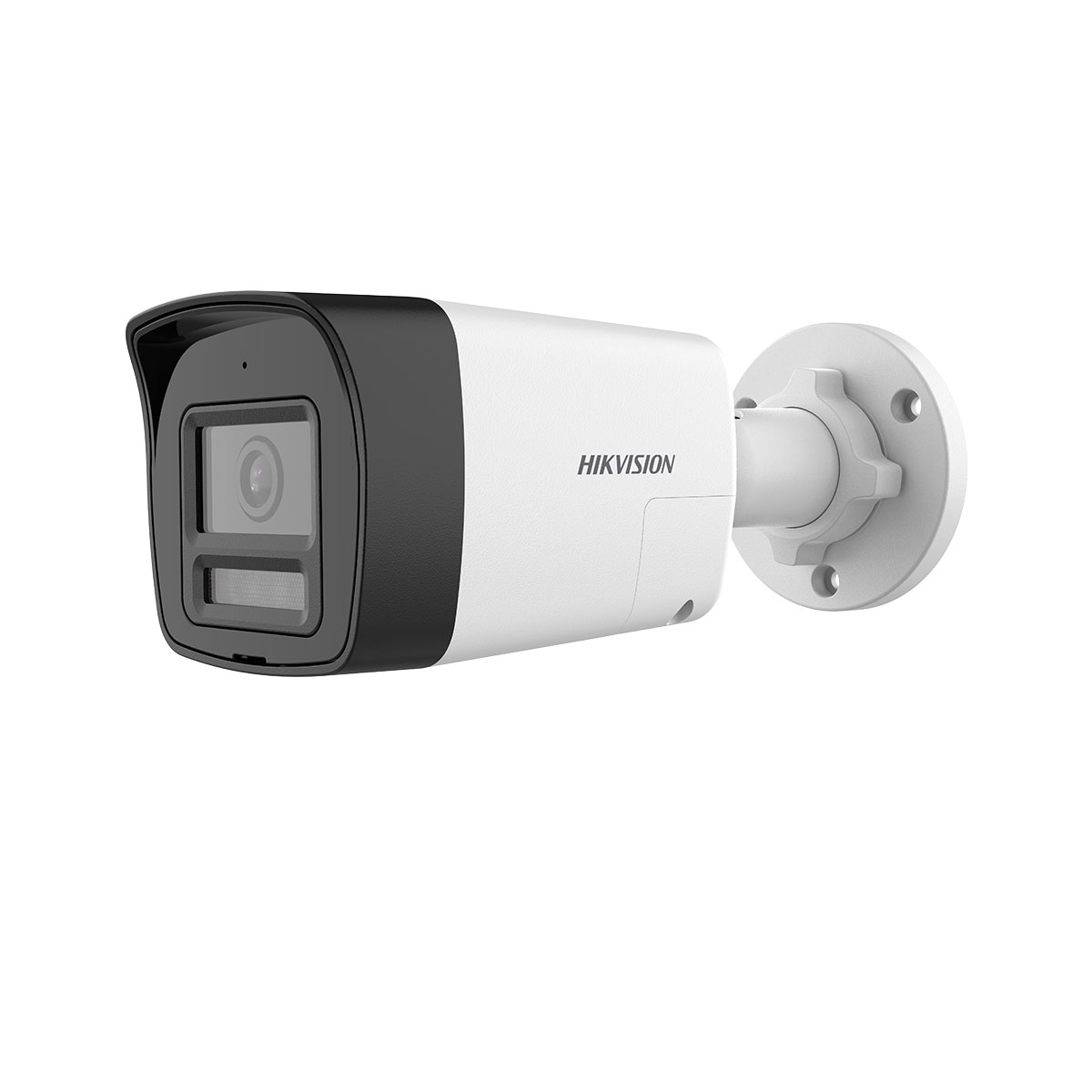

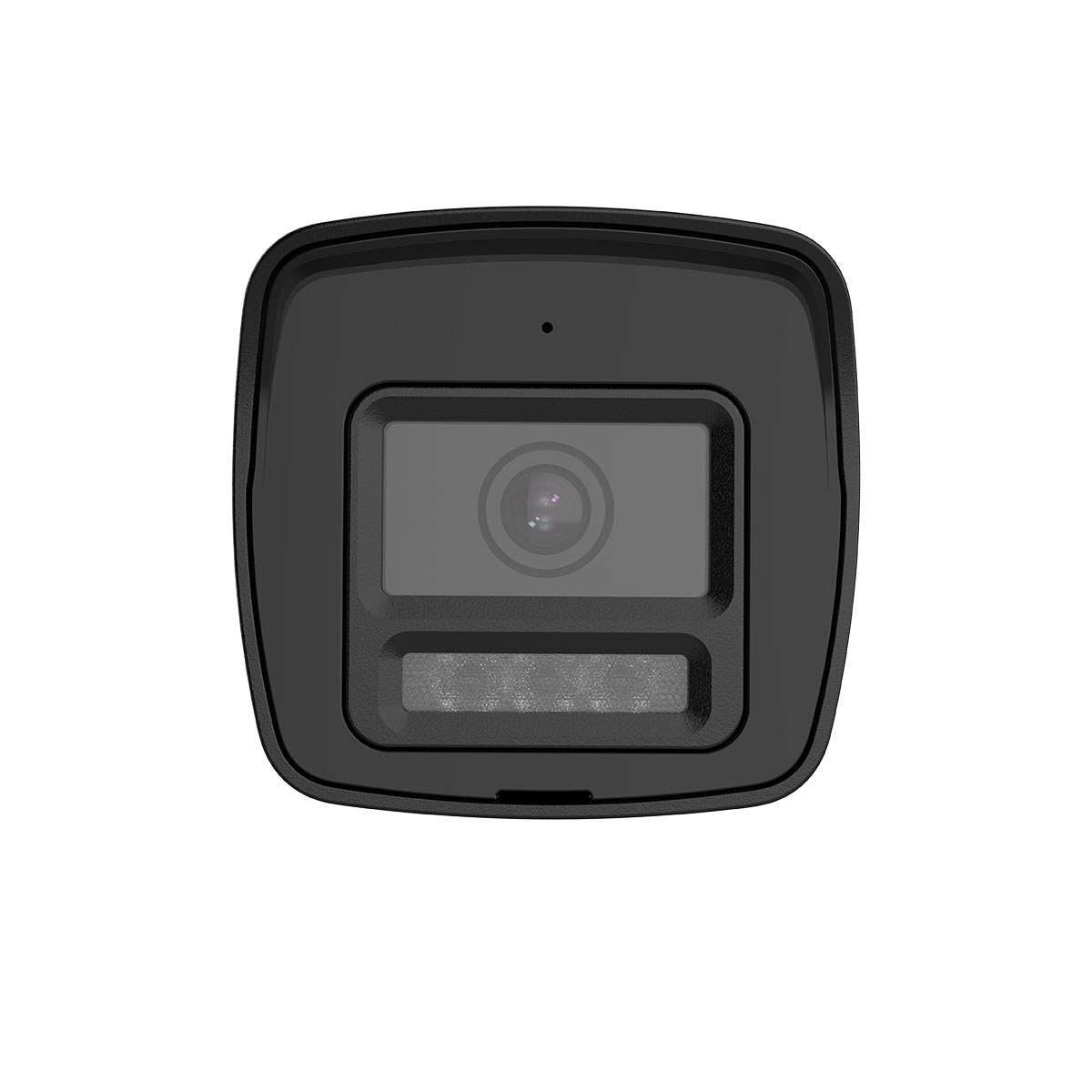

Hikvision DS-2CE16D0T-LTS-2.8 2MP Two-Way Audio Fixed Mini Bullet Camera (2.8mm)
Product Code:
DS-2CE16D0T-LTS-2.8
Available
Hikvision DS-2CE16D0T-LTS-2.8 2MP Two-Way Audio Fixed Mini Bullet Camera (2.8mm)
Shipping cost calculation:
Call for pricing
Description
Characteristics
Downloads
Description
CAUTION!!! Package doesn't include power supply!!!
To transmit audio signals from camera to speaker via coaxial cable, camera has to be connected with a XT series recorder.
• High quality imaging with 2 MP, 1920×1080 resolution
• 2.8 mm, 3.6 mm fixed focal lens
• Up to 30 m IR distance for bright night imaging
• Up to 20 m white light distance for bright night imaging
• High quality audio with audio over coaxial cable, built-in mic, and built-in speaker
• Provide real-time communication via built-in two-way audio
• Water and dust resistant (IP67)
• Smart-Hybrid light, optimize your security with flexible lighting options
Characteristics
| Specifications | |
| Camera | |
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Signal System | PAL/NTSC |
| Min. illumination | 0.01 Lux@(F1.6, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50, 000 s NTSC: 1/15 s to 1/50, 000 s |
| Day ＆ Night | ICR |
| Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 90°, Rotation 0 to 360° |
| Lens | |
| Lens Type | 2.8 mm fixed lens |
| Focal Length ＆ FOV | FOV: 105°, vertical FOV: 59°, diagonal FOV: 127° |
| Lens Mount | M12 |
| Microphone | |
| Pickup Distance | In a radius of up to 5 m |
| Amount | 1 |
| Speaker | |
| Rated Power | 2 W |
| Speaker Range | In a radius of up to 5 m |
| Illuminator | |
| Supplement Light Type | White Light,IR |
| Supplement Light Range | IR : Up to 30 m White Light : Up to 20 m |
| Image | |
| Image Settings | Anti-banding, Brightness, Sharpness, Smart IR |
| Frame Rate | TVI: 1080p @25 fps/30 fps |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | DWDR/BLC/HLC/Global/HLS |
| White Balance | Auto/Manual |
| Noise Reduction | 2D DNR |
| Audio | |
| Audio Function | Echo Cancellation, AI Noise Reduction, Automatic Gain Control |
| Interface | |
| Video Output | 1 HD analog output |
| General | |
| Material | Metal |
| Dimension | 179 mm × 66 mm × 69.1 mm |
| Weight | Approx. 245 g |
| Operating Condition | -40 °C to 60 °C , humidity: 90% or less (non-condensation) |
| Communication | HIKVISION-C |
| Language | English |
| Power | 12 VDC ± 25%, max.7 W |
| Approval | |
| Protection | IP67 |
