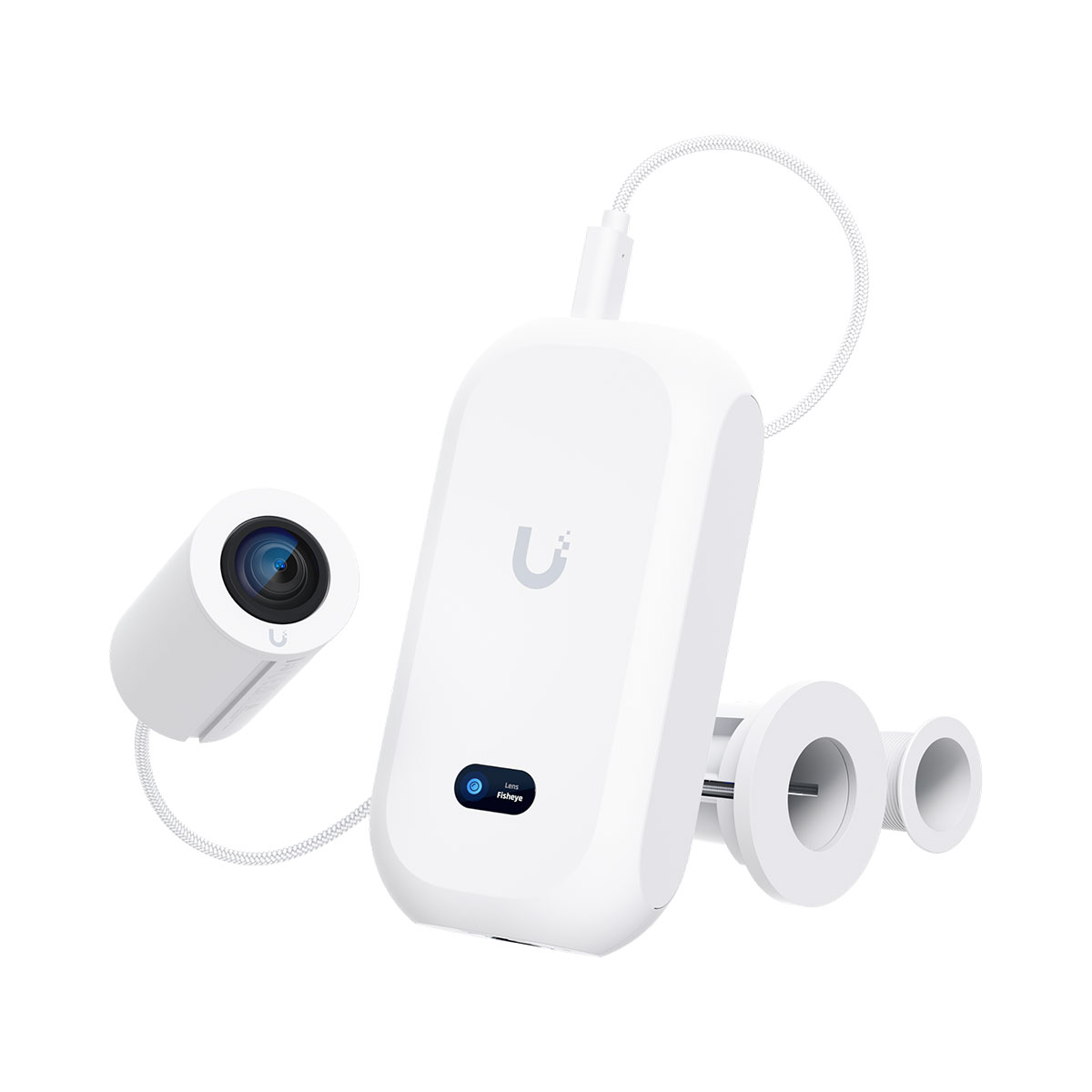

Ubiquiti UVC-AI-THETA-PRO - AI Theta Professional
UniFi AI Theta Pro brings an enhanced generation of the UVC-AI-Theta module with a new camera capable of seamless 4K and 180° resolution at 24 FPS, delivering detailed and smooth images. A 1 Gbps Ethernet port with PoE support (37-57V DC, maximum power consumption 12.5W) is used for connectivity. Designed for indoor use, the device supports H.264 compression and uses a powerful CPU for intelligent motion detection, person, vehicle and license plate recognition. All this in a small and compact design with an information display and two USB-C ports.
Features:
• 4K (8MP) resolution with ultra-wide 180° view
• Exceptional image quality with superb low-light performance and enhanced dynamic range
• Advanced AI: Detect people, read license plates, and more
• Minimal footprint with lens separated from the camera body
• Included Pro Flush Mount allows for mounting lens without access to the rear of a ceiling or wall
• Supports optional AI Theta Audio module for two-way audio
Package contents:
• AI Theta Hub
• 180° camera
• USB-C connection cable
• Screws + dowels
• Installation kit for attaching the camera to the ceiling
• Installation kit for attaching the camera to the wall
| Specifications | |

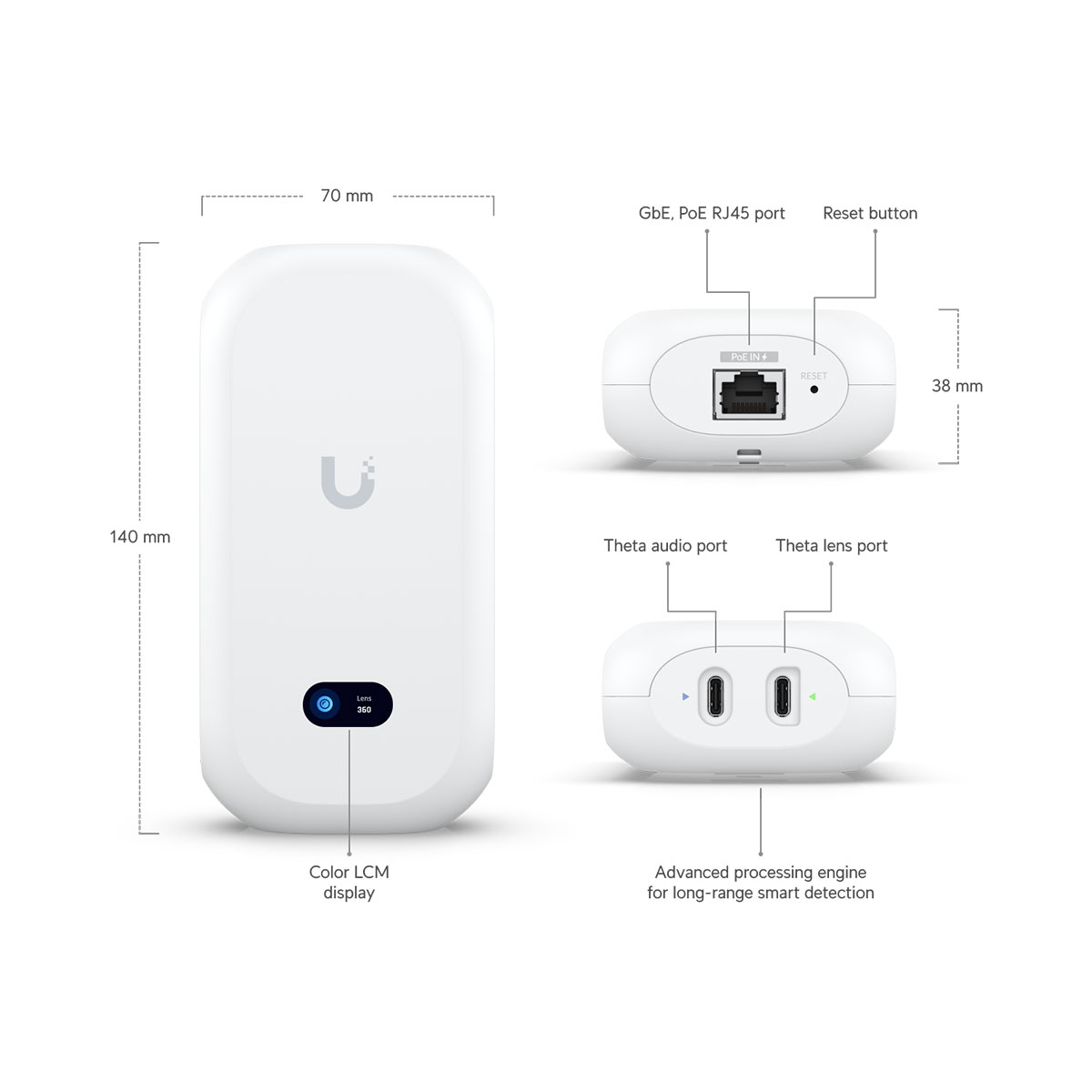

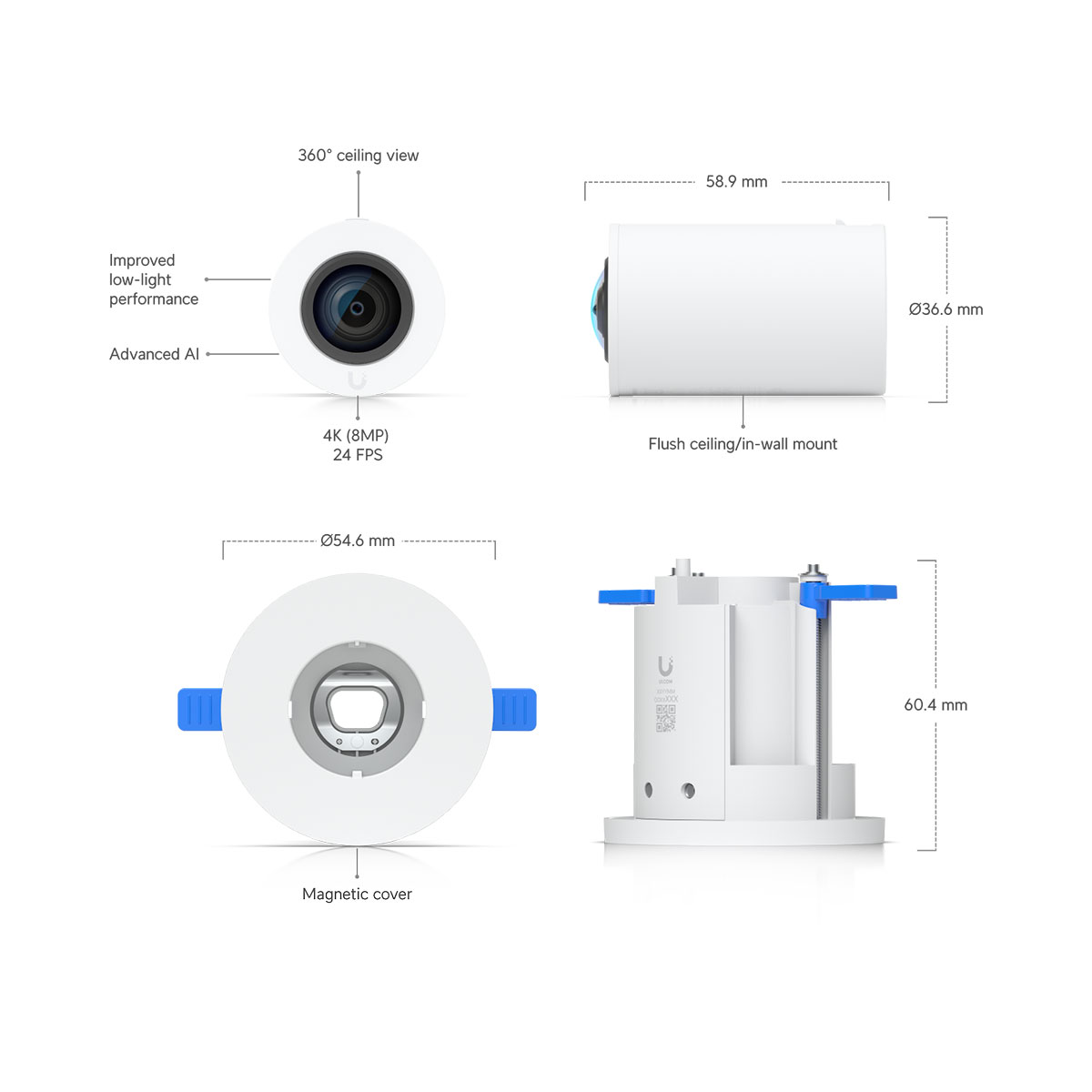

| Dimensions | UVC-AI-Theta-Hub: 140 x 70 x 38 mm UVC-AI-Theta-ProLens360: Ø36.6 x 58.9 mm UVC-AI-Theta-ProLens360 Flush Mount: Ø54.6 x 60.4 mm |
| Weight | UVC-AI-Theta-Hub: 330 g UVC-AI-Theta-Hub Mount: 35 g UVC-AI-Theta-Lens/360: 58 g UVC-AI-Theta-Lens/360 Flush Mount: 24 g |
| Enclosure Material | UVC-AI-Theta-Hub: aluminum alloy UVC-AI-Theta-Lens/360: aluminum alloy, polycarbonate |
| Mount materials | UVC-AI-Theta-Hub: aluminum alloy UVC-AI-Theta-Lens/360 Flush Mount: polycarbonate |
| Cable jacket enclosure dimensions | 28 x 13 x 7.5 mm |
| Cable jacket enclosure material | PVC |
| Cable length | 1 m |
| Cable diameter | 3.7 mm |
| Cable jacket material | Woven fabric |
| Cable weight | 18 g |
| Cable connector type | Theta proprietary |
| Optics | |
| Sensor | 8MP 1/1.8" CMOS |
| Lens | Fixed focal length |
| View angle | H: 180°, V: 180°, D: 180° |
| Video | |
| Power Supply | 5V DC, 0.5A |
| Resolution | 4MP 2160 x 2160 (1:1) |
| Maximum frame rate | 24 FPS |
| Image settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| System | |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Networking interface | GbE RJ45 port |
| Max. power consumption | 12.5W |
| Power method | PoE |
| Supported voltage range | 37—57V DC |
| Output power | 5V DC, 1A per port |
| Display | 0.96" color display |
| Button | Factory reset |
| Mounting | Wall, ceiling mount |
| Ambient operating temperature | -20 to 40° C |
| Operating humidity | 10 to 90% noncondensing |
| Certications | FCC, IC, CE |
| Audio | |
| Microphone | Supports optional AI Theta Audio module for two-way audio (sold separately) |
| Speaker | Supports optional AI Theta Audio module for two-way audio (Sold separately) |
| Software | |
| UniFi OS application | UniFi Protect |
| Mobile app | UniFi ProtectiOS and Android |
