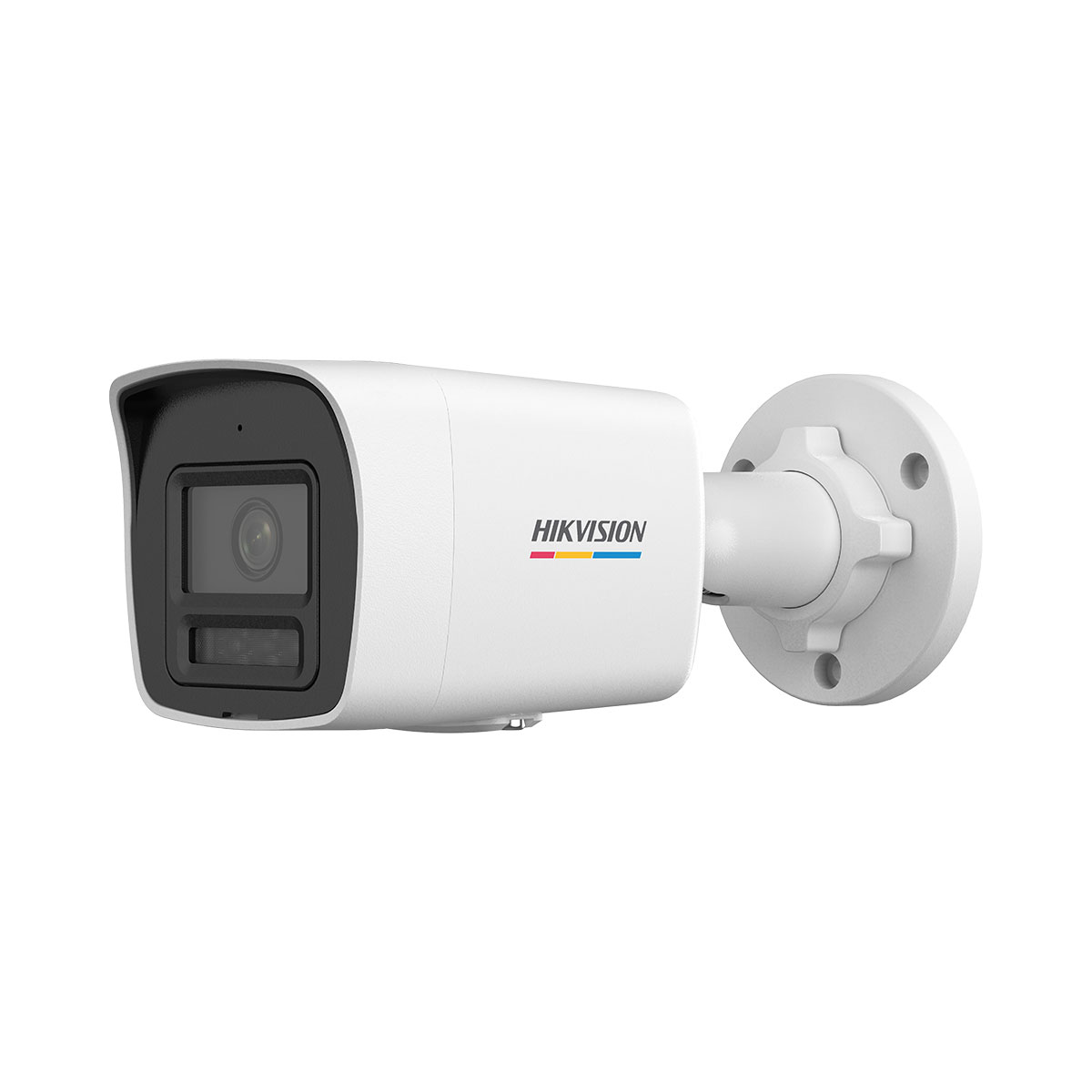

Hikvision DS-2CD1027G3-LIU-2.8 2 MP ColorVu 3.0 Fixed Bullet IP Camera (2.8mm)
Product Code:
DS-2CD1027G3-LIU-2.8
Available
Hikvision DS-2CD1027G3-LIU-2.8, 2 MP ColorVu 3.0 Fixed Bullet IP Camera (2.8mm)
Shipping cost calculation:
Call for pricing
Description
Characteristics
Downloads
Description
- High quality imaging with 2 MP resolution
- 24/7 colorful imaging
- Support Person and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range cover
- Efficient H.265+ compression technology
- Water and dust resistant (IP67)
Characteristics
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light |
| Max. Resolution | 1920 × 1080 |
| Shutter Speed | 1 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° |
| Lens | |
| Focal Length & FOV | Ηorizontal FOV 106°, vertical FOV 56°, diagonal FOV 129° |
| Lens Type | Fixed focal lens |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| Depth of Field | 1.2 m to ∞ |
| DORI | |
| DORI | D: 44 m, O: 17 m, R: 8 m, I: 4 m |
| Illuminator | |
| Smart Supplement Light | Yes |
| Supplement Light Range | Up to 30 m |
| Supplement Light Type | IR, White Light |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Audio | |
| Audio Type | Mono sound |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3 |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)/8 to 160 Kbps(MP3) |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK |
| User/Host | Up to 32 users. 3 levels: administrator, operator and user |
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Client | iVMS-4200, Hik-Connect |
| Web Browser |
Plug-in required live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
|
| Image | |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain,white balance, adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Privacy Mask | 4 programmable polygon privacy masks |
| Transducer | |
| Transducer Type | NA |
| Detection Angle | NA |
| Detection Range | NA |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Built-in Microphone | Yes, 1 built-in microphone |
| On-Board Storage | NA |
| Built-in Speaker | NA |
| Audio | NA |
| Alarm | NA |
| Reset Key | NA |
| Event | |
| Basic Event | Motion detection (support alarm triggering by specified target types (person and vehicle)), video tampering alarm, exception |
| Linkage | Upload to memory card/FTP,notify surveillance center,send email,trigger capture |
| General | |
| Power |
12 VDC ± 25%, 0.55 A, max. 6.6 W, Ø 5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 8.0 W |
| Material | Front cover: metal, body: plastic, bracket: plastic |
| Dimension | 69.1 mm × 66.9 mm × 172.9 mm |
| Package Dimension | 216 mm × 121 mm × 118 mm |
| Weight | Approx. 330 g |
| With Package Weight | Approx. 445 g |
| Storage Conditions | -30 °C to 60 °C Humidity: 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C Humidity: 95% or less (non-condensing) |
| Language | English, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish, German |
| General Function | Heartbeat,mirror,flash log,password reset via email,password protection,anti -banding |
| Approval | |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 |
| Safety | CB: IEC 62368-1: 2014+A11 |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
