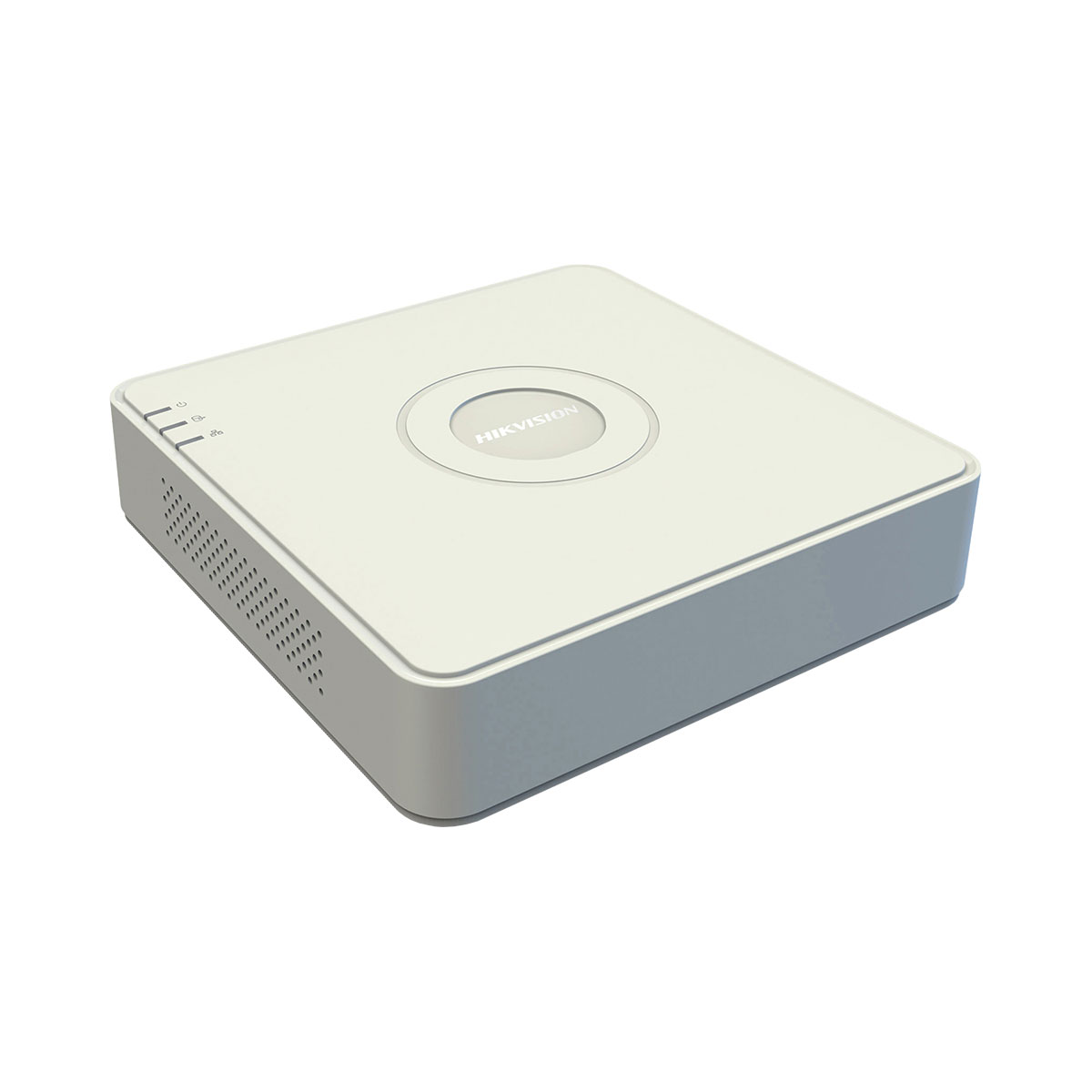

.jpg "Hikvision DS-7108NI-Q1(D) 8-ch Mini 1U NVR")
Description
Characteristics
Downloads
Description
Characteristics
| Specifications | |
| Video and Audio | |
| IP video input | 8-ch Up to 6 MP resolution |
| Incoming bandwidth | 60 Mbps |
| Outgoing bandwidth | 60 Mbps |
| HDMI output | 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| VGA output | 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| Video output mode | HDMI/VGA simultaneous output |
| Decoding | |
| Decoding format | H.265+/H.265/ H.264+/H.264 |
| Recording resolution | 6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Synchronous playback | 4-ch |
| Decoding Capability | 4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps) |
| Stream type | Video, Video & Audio |
| Network | |
| Remote connection | 16 |
| Network protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™ |
| Network interface | 1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
| Auxiliary interface | |
| SATA | 1 SATA interface |
| Capacity | Up to 6 TB capacity for each disk |
| USB interface | Rear panel: 2 x USB 2.0 |
| General | |
| Power supply | 12 VDC, 1.5 A |
| Consumption | ≤ 10 W |
| Working temperature | -10 °C to +55 °C |
| Working humidity | 10% to 90% |
| Dimension(WxDxH) | 200 × 200 × 48 mm |
| Weight | ≤ 1 kg |
| Certification | |
| CE | EN50130-4, EN 61000-3-2,EN 61000-3-3 |
