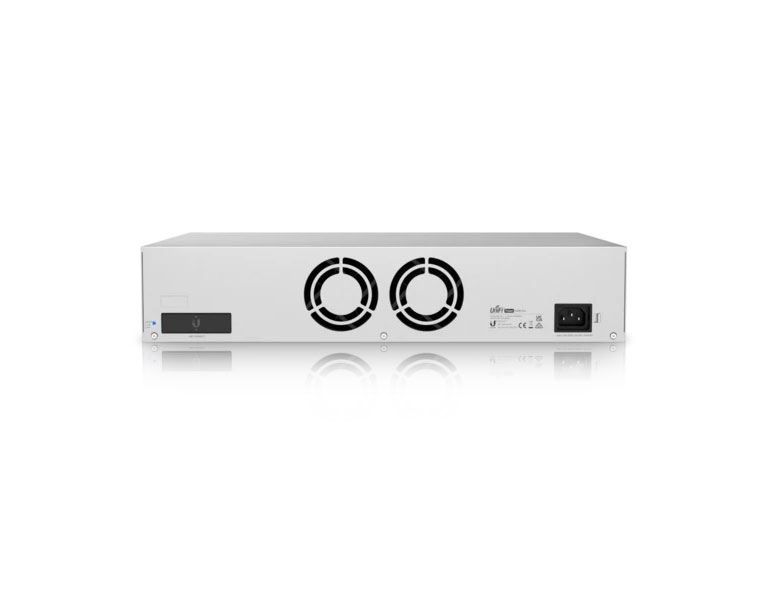

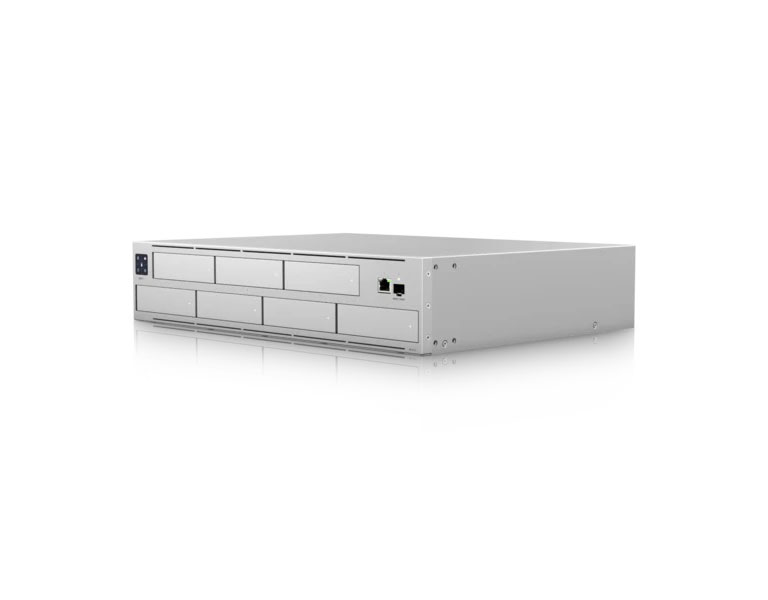

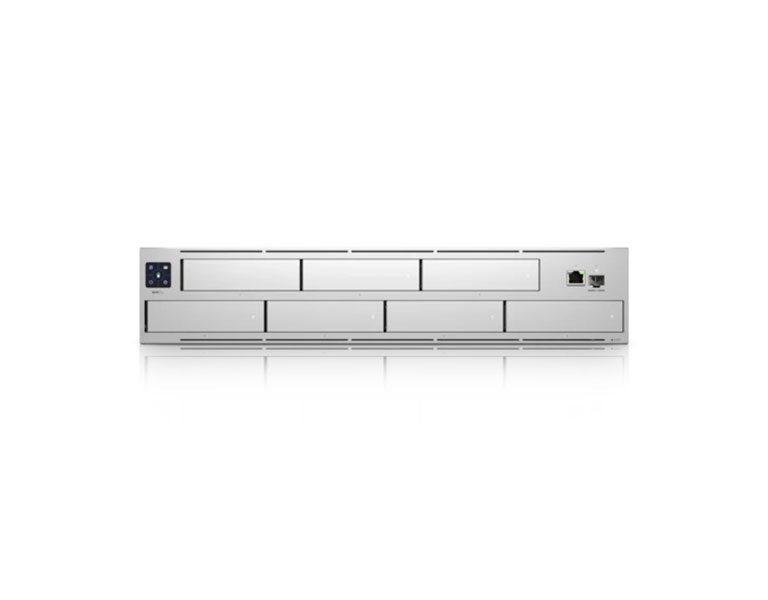

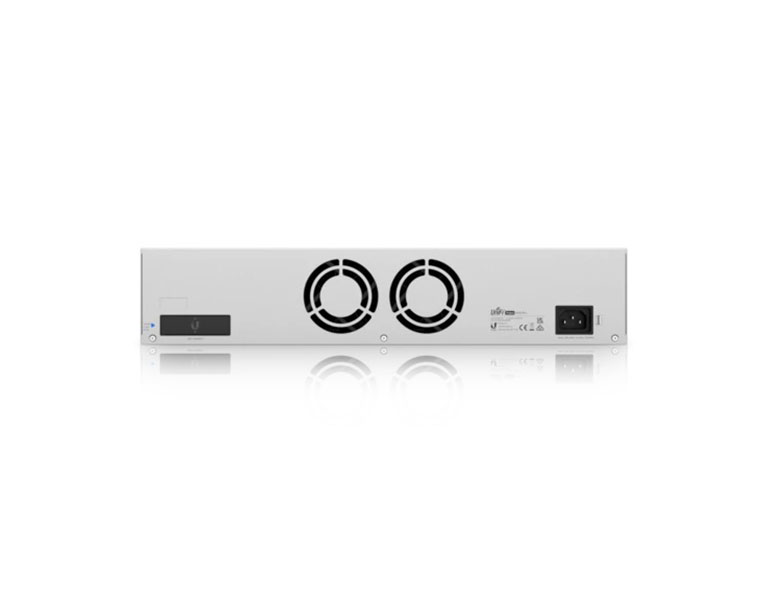

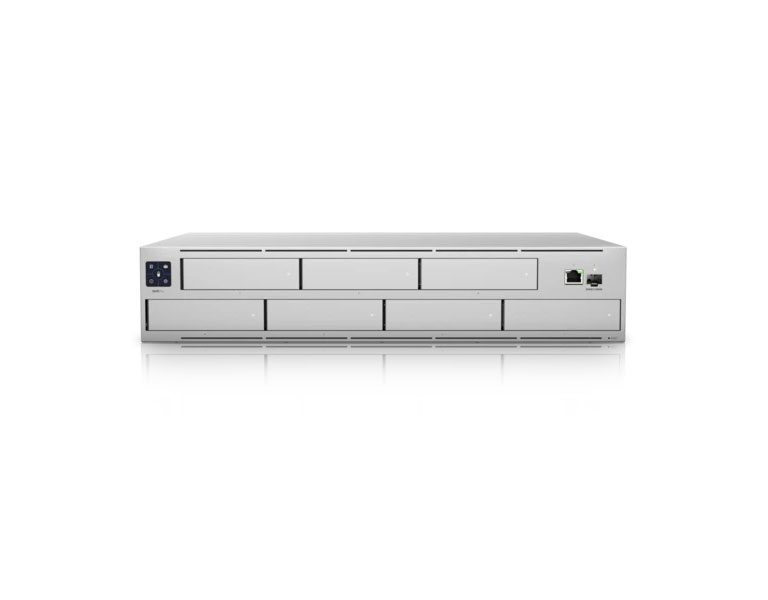

Ubiquiti UNVR-Pro Network Video Recorder Pro
The Network Video Recorder Pro (UNVR Pro) is a business-grade network video recorder that provides data redundancy and long-term storage capabilities (up to 60 days of storage for 20 4K cameras or 60 1080p cameras).
The UNVR Pro is a UniFi OS Console that runs the pre-installed UniFi Protect application and has a 7-drive hard disk drive (HDD) bay that offers the greatest storage capacity of any UniFi OS Console. The powerful, easy-to-use UNVR Pro can be deployed in minutes and support systems with up to 60 cameras. Combining the best features of Cloud and onsite surveillance systems, UniFi Protect gives you centralized, local, low-latency access to all of your live camera feeds and recordings, as well as remote access from anywhere in the world via unifi.ui.com and the Protect mobile app.
The UNVR Pro also offers expanded RAID configuration options for enhanced data protection, applying either RAID 1, 5, or 10 based on the number of HDDs installed. It's also equipped with a 1.3" touchscreen display for concise, convenient video event previewing.*
Features:
• (7) 2.5"/3.5" HDD bays
• (1) 10G SFP+ port
• (1) GbE RJ45 port
• 2U-sized, rack-mountable console (kit Included)
• 1.3" touchscreen with video event previewing*
• Pre-installed UniFi Protect application
• Simple, Bluetooth-powered setup via the UniFi Protect mobile app
• Automated RAID 1, 5, or 10 HDD configuration
• Can be connected to the USP RPS (sold separately) for enhanced power supply failover protection
Managed with the UniFi Protect application: Version 1.4.3 or later (iOS) or 1.3.9 or later (Android).
Note: Please ensure your HDDs meet Ubiquiti's general guidelines and aren't included in the list of incompatible models.
* Will be included in a future console update.
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 24 months |
| Specifications | |
| Dimensions | 442 x 325 x 87 mm |
| Weight | Without Rackmount Brackets: 9.2 kg With Rackmount Brackets: 9.45 kg |
| Enclosure Material | SGCC Steel |
| Mount Material | SGCC Steel |
| Max. Power Consumption | 160W |
| Max. Power Budget for Drives | 135W |
| Power Method | (1) Universal AC input, 100-240VAC, 3A Max, 50/60 Hz (1) USP-RPS DC input, 11.5VDC, 13.91A |
| Power Supply | AC/DC, Internal, 200W |
| Networking Interfaces | (1) 10/100/1000 Mbps RJ45 Ethernet (1) 1/10 Gbps SFP+ Ethernet |
| RF Interface | (1) Bluetooth v4.1 |
| LCM Display | (1) 1.3" Touchscreen Bootup Animation: Bootup in Progress Firmware Upgrade Icon: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted |
| Management Interface | Ethernet In-Band Management |
| ESD/EMP Protection | Air: ± 12kV, Contact: ± 8kV |
| Operating Temperature | -5 to 40° C |
| Operating Humidity | 5 - 95% Noncondensing |
| Certifications | FCC, CE, IC |
| LEDs Ethernet SFP+ HDD RPS |
White: 10/100/1000 Mbps White: 1/10 Gbps Amber: Disk Error, White: Disk Detected Blue: Ready |
