Ubiquiti UACC-OM-SM-10G-D-2 U Fiber, Single-Mode Module, 10G, 2-Pack
Product Code:
UACC-OM-SM-10G-D-2
120,00 €
(Includes VAT 24%)
Sales price without VAT:
96,77 €
Available
Ubiquiti UACC-OM-SM-10G-D-2 U Fiber, Single-Mode Module, 10G, 2-Pack
Shipping cost calculation:
Quantity
Description
Characteristics
Downloads
Description

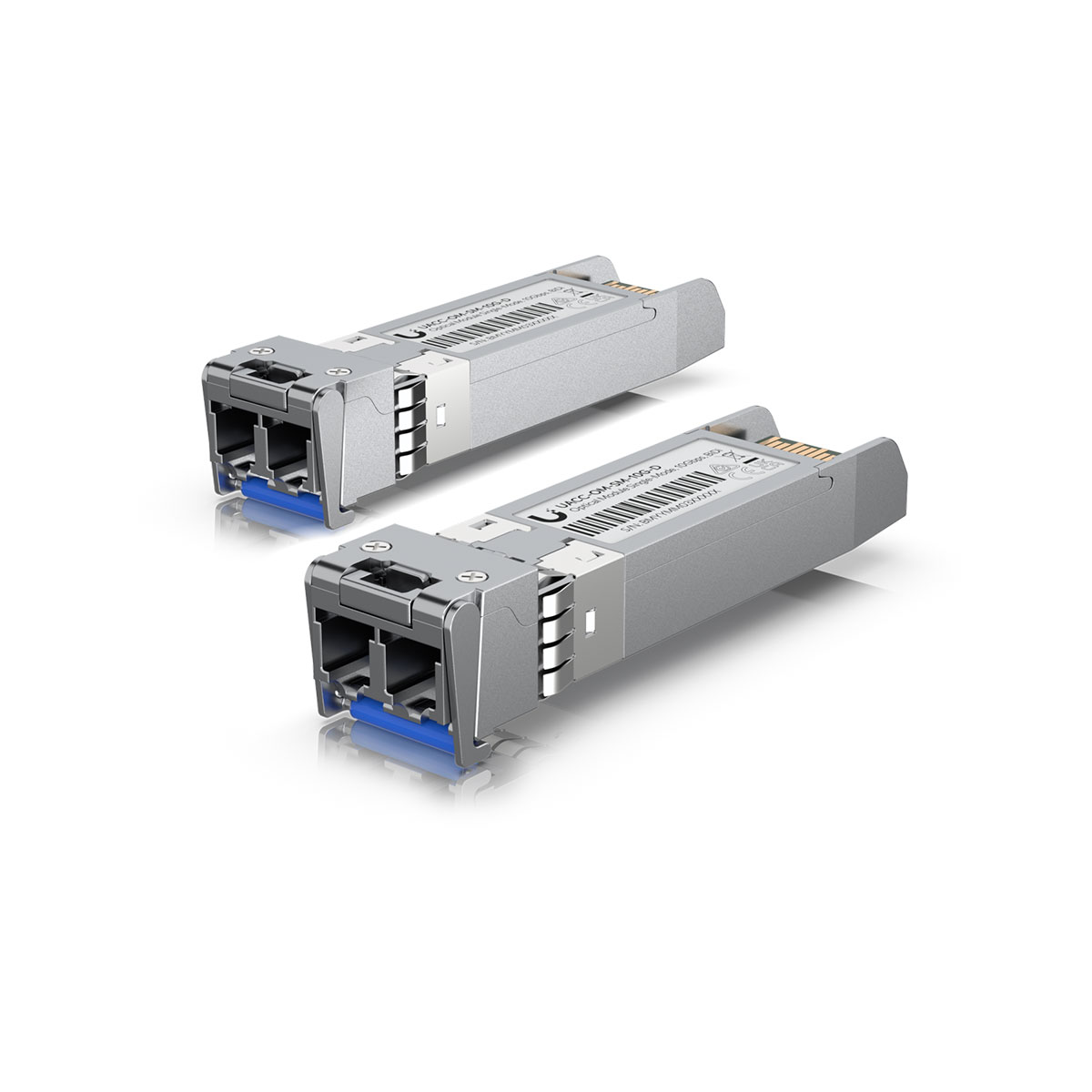

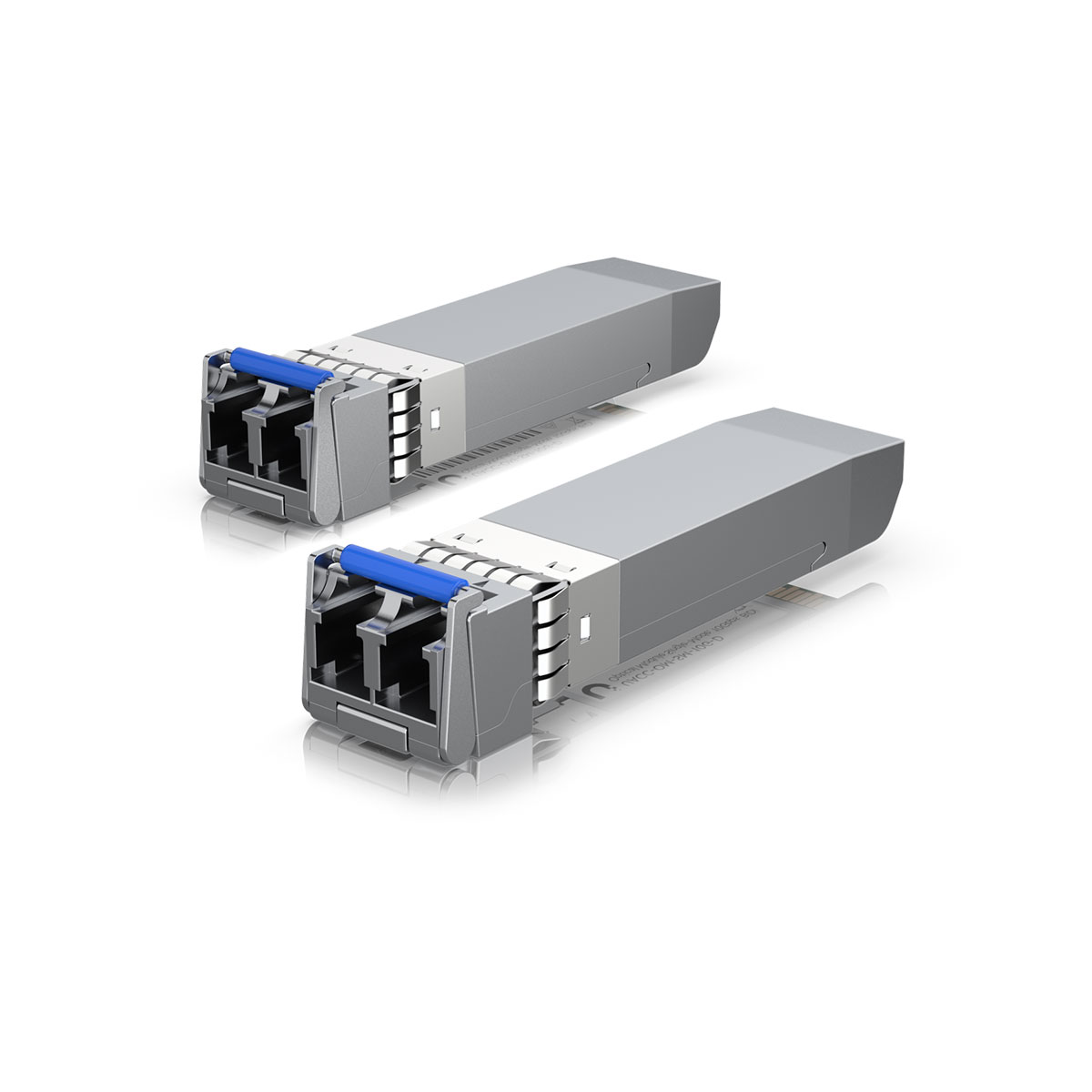

The 10 Gbps Single-mode Optical Module is a duplex transceiver that delivers up to 10 Gbps speed over distances up to 10 kilometers..
Feaures:
• 10 Gbps throughput
• Duplex LC connector
• Supports connections up to 10 km
• Supported media: SM Fiber (Fiber cable is not included)
Characteristics
| Specifications | |
| Supported Media | Single-Mode Fiber |
| Connector Type | (2) LC |
| TX Wavelength | 1310 nm |
| RX Wavelength | 1310 nm |
| Data Rate | 10 Gbps SFP+ |
| Cable Distance | 10 km |
| Transfer type | 2-fiber |
| Compatibility | Universal |
| Max. Power Consumption | 1W |
| Model Comparison | ||||||
| UF-MM-1G | UF-MM-10G | UF-SM-1G-S | UF-SM-10G | UF-SM-10G-S | UF-RJ45-1G | |
| Supported Media | Multi-Mode Fiber | Multi-Mode Fiber | Single-Mode Fiber S | Single-Mode Fiber | Single-Mode Fiber | Copper |
| Connector Type | (2) LC | (2) LC | (1) LC | (2) LC | (1) LC | RJ45 |
| BiDi | ✓ | ✓ | ||||
| TX Wavelength | 850 nm | 850 nm | Blue: 1310 nm Yellow: 1550 nm |
1310 nm | Blue: 1270 nm Red: 1330 nm |
|
| RX Wavelength | 850 nm | 850 nm | Blue: 1550 nm Yellow: 1310 nm |
1310 nm | Blue: 1330 nm Red: 1270 nm |
|
| Data Rate | 1.25 Gbps SFP | 10 Gbps SFP+ | 1.25 Gbps SFP | 10 Gbps SFP+ | 10 Gbps SFP+ | 10/100/1000 Mbps |
| Cable Distance | 550 m | 300 m | 3 km | 10 km | 10 km | 100 m |
