Description

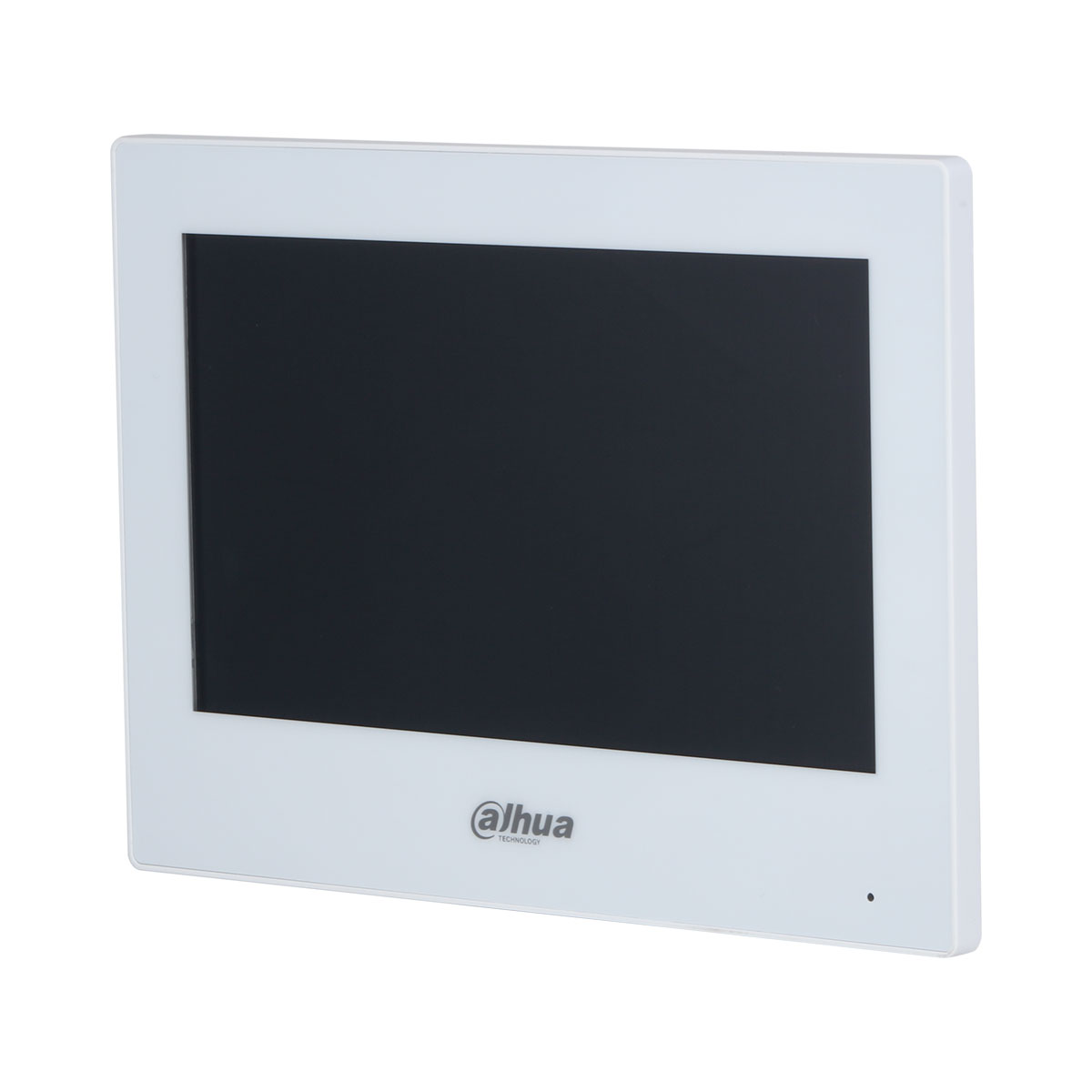

• 7" TFT capacitive touch screen
• 6-channel alarm input and 1-channel alarm output
• Wi-Fi
• Door station and IPC monitor
• H.265 and H.264 video decoding
• 2-wire digital communication
• High performance & cost-effective
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 36 months |
Characteristics
| System | |
| Main Processor | Embedded processor |
| Operating System | Embedded Linux operating system |
| Interoperability | ONVIF; SDK |
| Network Protocol | RTSP; RTP; SIP; DNS; SSH |
| ROM | 128 MB |
| RAM | 128 MB |
| CPU | Dual core 1.2 GHz |
| Basic | |
| Screen Type | Capacitive touchscreen |
| Display | 7" TFT |
| Screen Resolution | 1024 × 600 |
| Audio Compression | G.711a, G.711u, PCM |
| Audio Input | 1 |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression |
| Audio Bit Rate | 16 KHz, 16Bit |
| Function | |
| Communication Mode | Digital 2-wire |
| Information Release | Receive and view text information released by the management center |
| Leave Videos | Yes (SD card inserted in VTO is needed) |
| DND Mode | Do not disturb period can be set; Do not disturb mode |
| Number of Extension | Villa: 3 apartment: 2, Wi-Fi intercom: 1 main monitor, 2 extension monitors |
| Wi-Fi | Yes |
| Wireless Standard | IEEE802.11b/802.11g/802.11n |
| Wireless Frequency Range | 2,412–2,472 MHz |
| Wireless Security Encryption | WPA/WPA2; WPA-PSK/WPA2-PSK |
| Performance | |
| Casing | PC + ABS |
| Port | |
| Alarm Input | 6 |
| Alarm Output | 1 |
| Door Bell | Yes (use any alarm input port) |
| Network | One two-wire port and one 10Mbps/100Mbps Ethernet port (one of them can be selected) |
| Storage | Micro SD Card, Max 64 GB (reserved for software) |
| General | |
| Color | White |
| Power Supply | 48 VDC 1.25 A |
| Installation | Surface mount |
| Certifications | CE, FCC |
| Dimensions | 189.6 mm × 134.6 mm × 26.0 mm |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 10%–95% RH (non-condensing) |
| Operating Altitude | Beneath 3000 m |
| Power Consumption | Standby ≤ 2W, working ≤ 6W |
| Net Weight | 0.34 kg |
| Gross Weight | 0.58 kg |
