Description

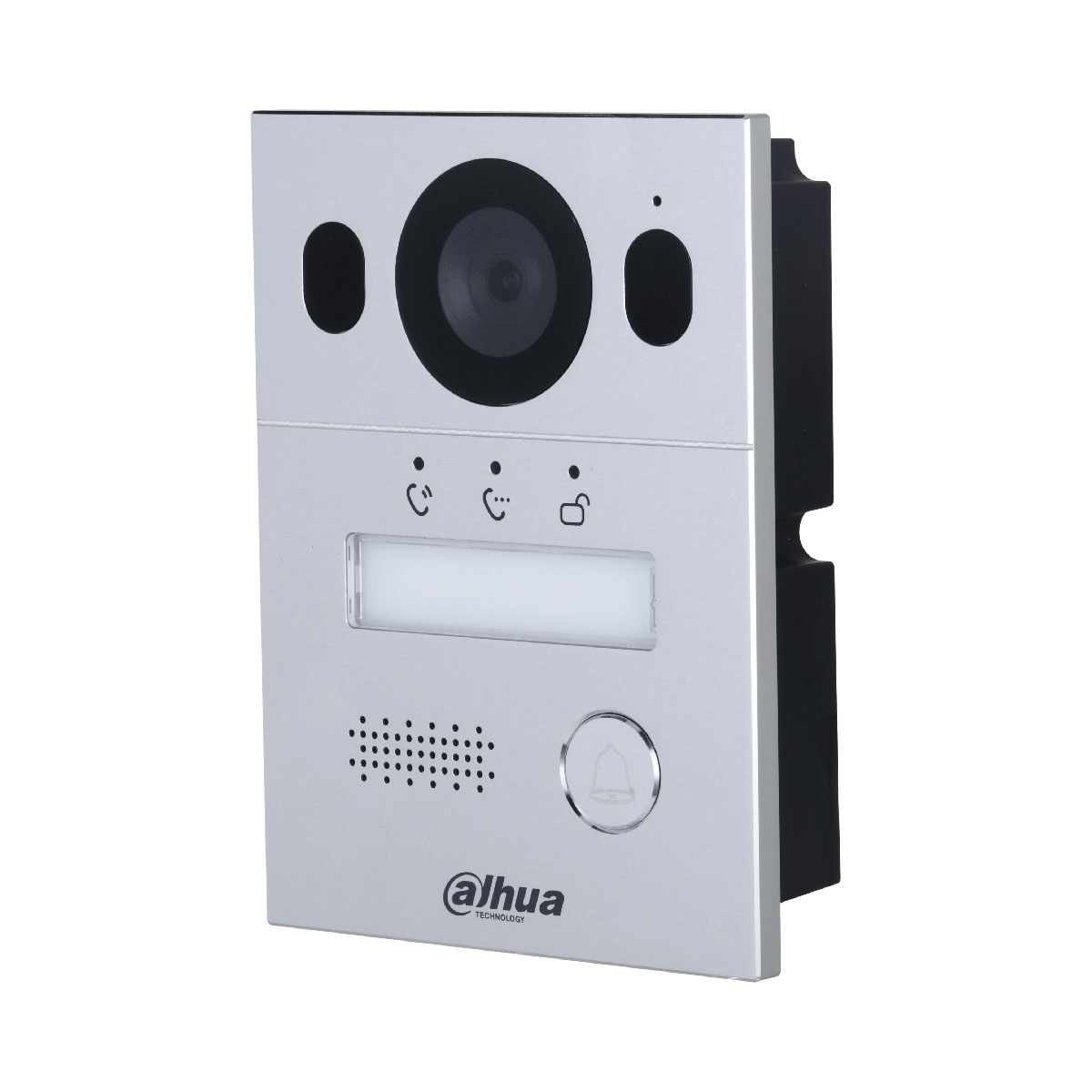

Features:
• Aluminum alloy front panel.
• Offers video intercom which communicates through half-duplex.
• Auto IR illumination.
• Video messages can be left for unanswered calls. (SD card is required for VTH.)
• Features nameplate and DWDR.
• Supports local lock and second lock.
• Offers anti-tampering alarm.
• IP65 and IK07 rated.
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 36 months |
Characteristics
| Specifications | |
| System parameters | |
| Main Processor | Embedded Processor |
| Button Type | Mechanical |
| Basic | |
| Camera | 1/2.8" 2 MP CMOS HDR Camera |
| Field of View | H: 110°; V: 60° |
| WDR | DWDR |
| Noise Reduction | 3D NR |
| Video Compression | Auto IR |
| Video Resolution | P: 960 (H) × 576 (V) N: 960 (H) × 480 (V) |
| Video Frame Rate | P: 25 fps N: 30 fps |
| Light Compensation | Auto IR |
| Day/Night | Auto(ICR)/Color/B/W |
| Audio Input | 1 |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way audio (half–duplex) |
| Function | |
| Unlock Mode | Remote unlock |
| Leave Videos | Yes (SD card inserted in VTH is needed) |
| Performance | |
| Casing Material | Aluminum Alloy |
| Port | |
| RS-485 | 1 |
| Alarm Output | 1 |
| Power Output | 1 port, 12 V/200 mA |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1 |
| Alarm | |
| Tamper Alarm | Yes |
| General | |
| Appearance Color | Silver |
| Power Supply | 2- wire controller |
| Power Adapter | Optional |
| Installation | Flush Mount; Surface Mount |
| Certifications | CE; FCC |
| Accessory | Sold separately: surface box, rain cover, flush box, 2-wire controller |
| Product Dimensions | 130 mm × 96 mm × 28.5 mm |
| Protection | IK07; IP65 |
| Operating Temperature | –40 °C to +60°C |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Operating Altitude | 0 m–3000 m |
| Power Consumption | ≤ 1.5 W (standby), ≤ 10 W (working) |
| Gross Weigh | 0.326 kg |
| Storage Temperature | –40 °C to +70 °C |
| Storage Humidity | 95% (RH), non-condensing |
