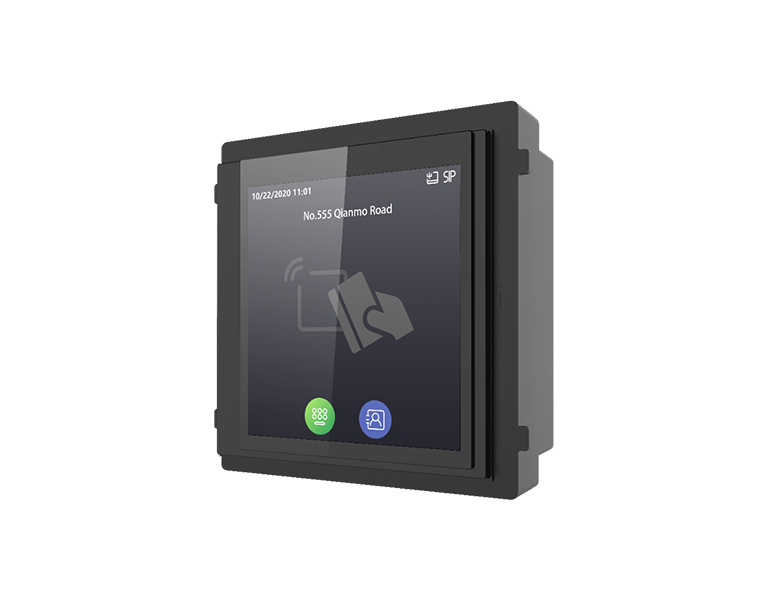

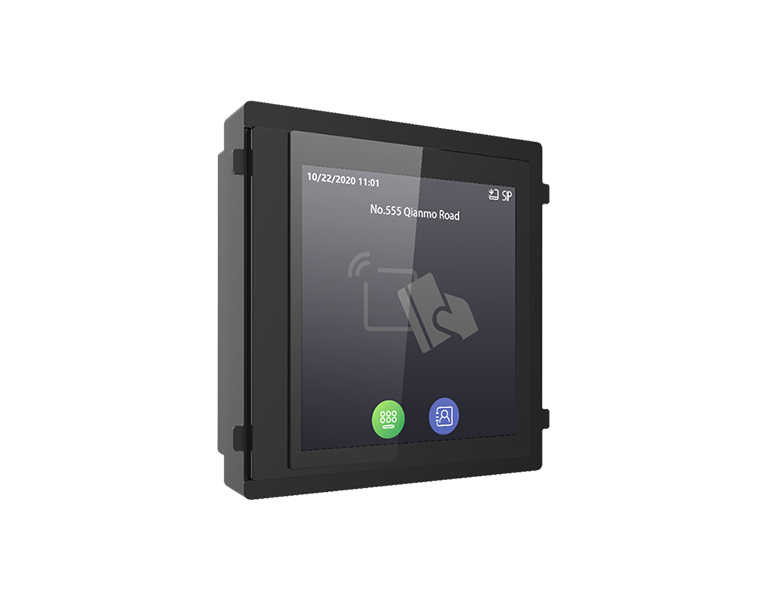

Hikvision DS-KD-TDM Touch Display Module with Mifare Card Reader
Product Code:
DS-KD-TDM
Available
Hikvision DS-KD-TDM Touch Display Module with Mifare Card Reader
Shipping cost calculation:
Call for pricing
Category:
Manufacturer:
Description
Characteristics
Downloads
Description
• Modular door station Touch&Display module, needs mouting bracket
• 4 inch touch screen, IP65，IK8
• Dial number display, pin code & card unlock, contact list & advertisement display
• Stores and searches contact list
• Multiple languages
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 36 months |
Characteristics
| Specifications | |
| Operating system | Linux |
| ROM | 32 MB |
| RAM | 128 MB |
| Screen size | 4-inch |
| Type | IPS touch screen |
| Resolution | 480 x 480 |
| Audio parameters | |
| Audio compression standard | / |
| Audio input | / |
| Audio output | Buzzer |
| Audio quality | / |
| Volume adjustment | / |
| Power output | / |
| Network parameters | |
| Wireless network | Only AP mode |
| Authentication | |
| Card reading frequency | 13.56 MHz |
| Card reading distance | 2 cm |
| Card type | Mifare card |
| Device interfaces | |
| TF card | Reserved |
| DIP switch | 8 bits |
| Cascade interface | 2 |
| General | |
| Installation | Surface, flush |
| Protective leve | IP65, IK8 |
| Working temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Working humidity | 10% to 95% (no-condensing) |
| Dimensions | 100 mm × 100 mm × 35 mm |
| Power supply | 12 VDC, supplied by the main module |
| Power consumption | ≤ 10 W |
| Language | English,French,Portuguese,Spanish,Russian, German,Italian,Polish,Turkish,Vietnamese,Arabic, Czech,Hungarian,Dutch,Romanian,Bulgarian, Ukrainian,Croatian,Serbian,Greek |
