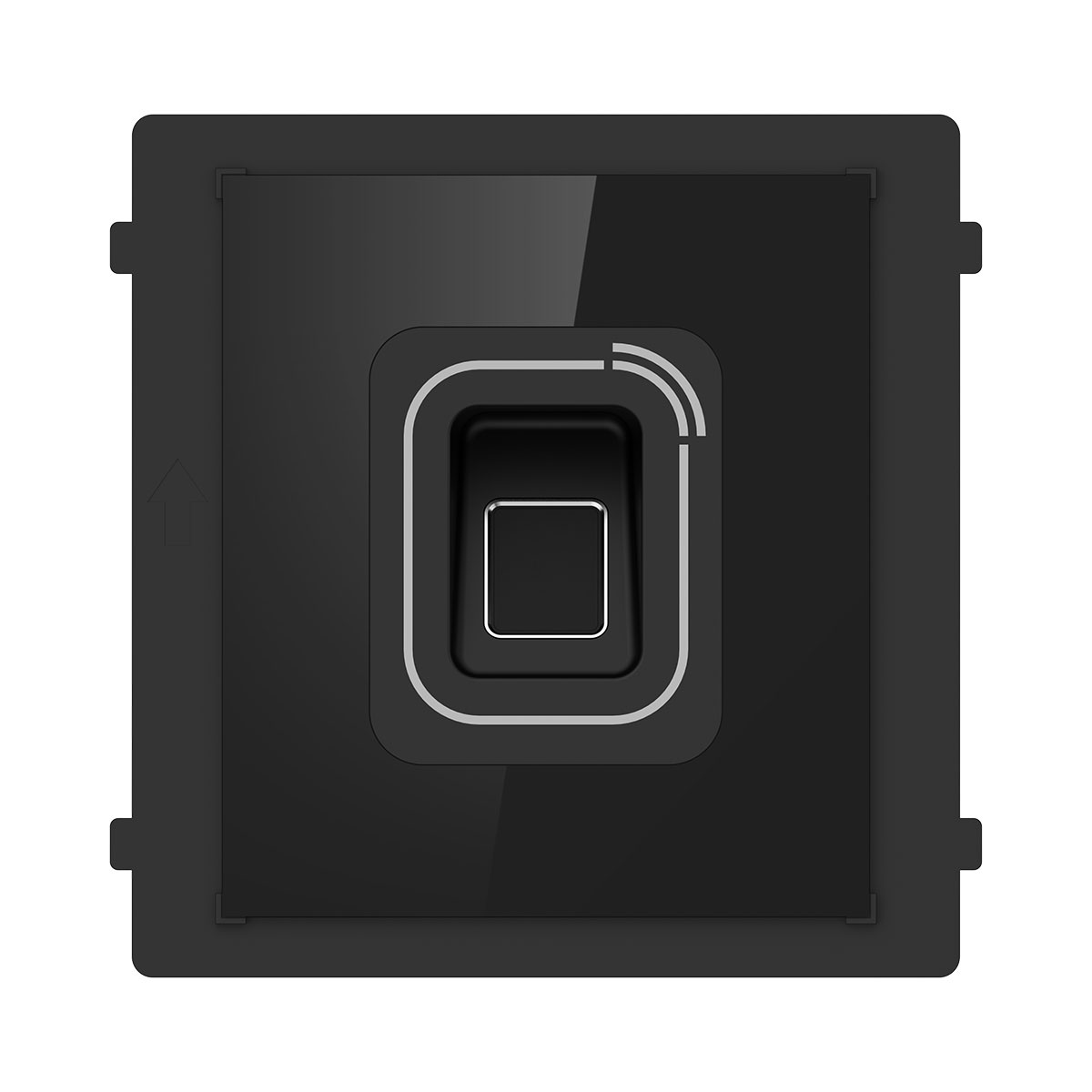

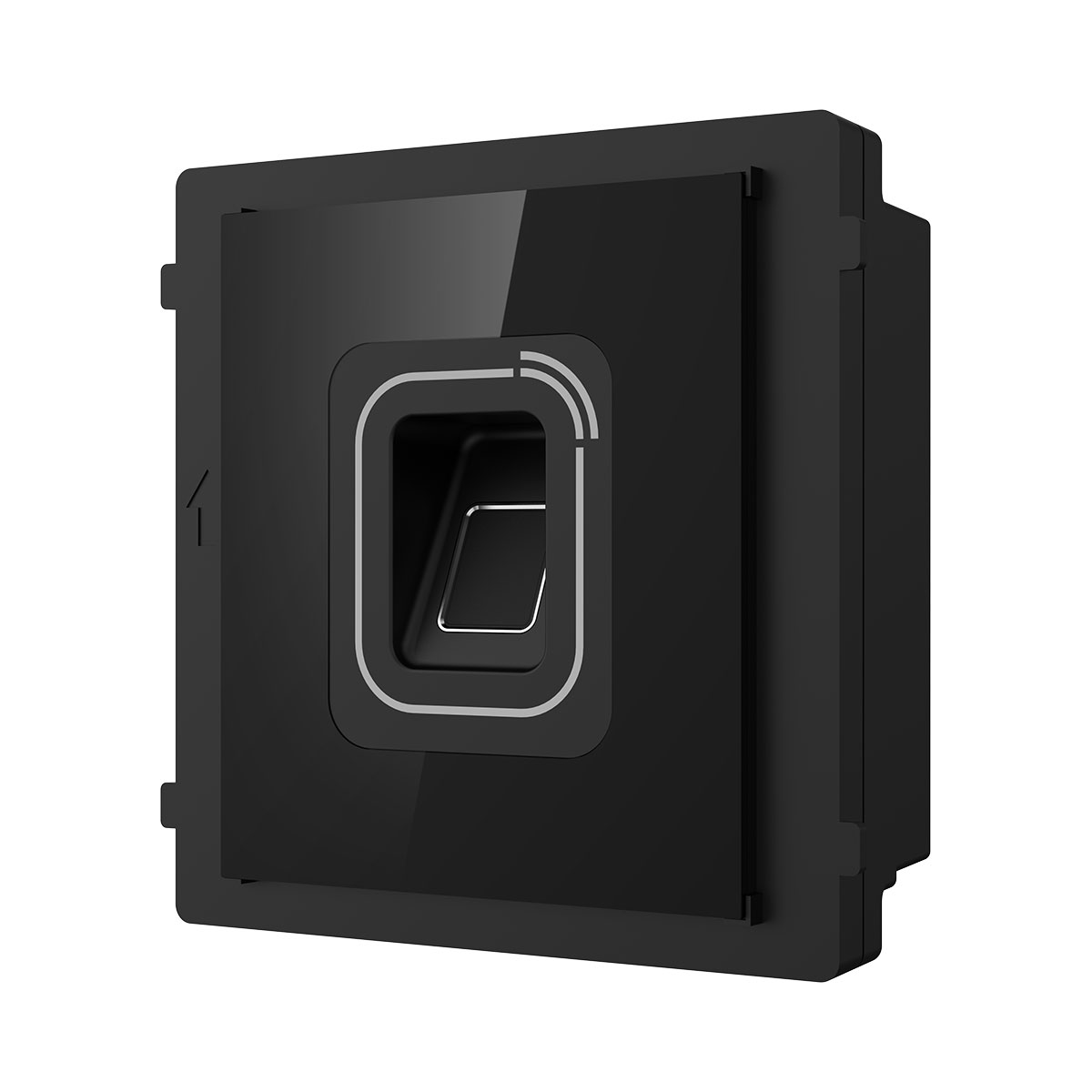

Hikvision DS-KD-MFB Fingerprint & Card Reader Module for Video Intercom

Product Code:
DS-KD-MFB
Available
Hikvision DS-KD-MFB Fingerprint & Card Reader Module for Video Intercom
Shipping cost calculation:
Call for pricing
Manufacturer:
Warranty:
36 Months
Description
Characteristics
Downloads
Description

• Fingerprint & card reader module of modular door station
• Integrate with M1/Desfire card reader
• IP65 protection level
• Easy to and extend
• Compatible with IP, 2-wire IP and 2-wire HD modular door station



Characteristics
Specification
Capacity
Fingerprint capacity 1000
Card capacity 6000
Authentication
Card reading frequency 13.56 MHz
Card reading distance 2 cm
Card type M1, Desfire card
Device interfaces
DIP switch 8 bits
RS-485 1
General
Installation Flush mounting, surface mounting
Protective level IP65
Working temperature -30 °C to 60 °C
Working humidity 10% to 90% (no-condensing)
Dimension (W × H × D) 100 mm × 100 mm × 35 mm
Power supply 12 VDC, supplied by the main module
Power consumption ≤ 4 W
Language English, Arabic, French, Russian, Spanish, Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
