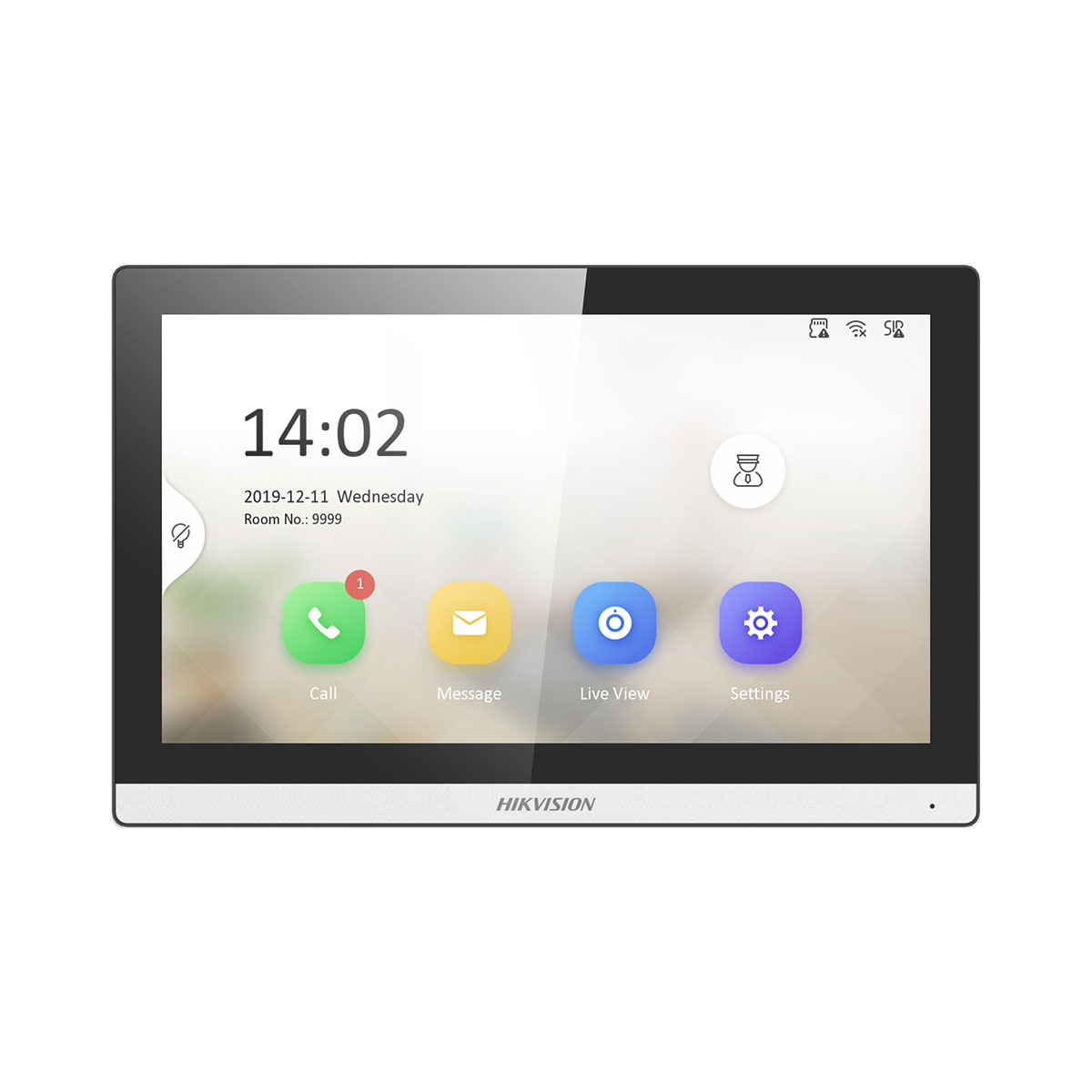

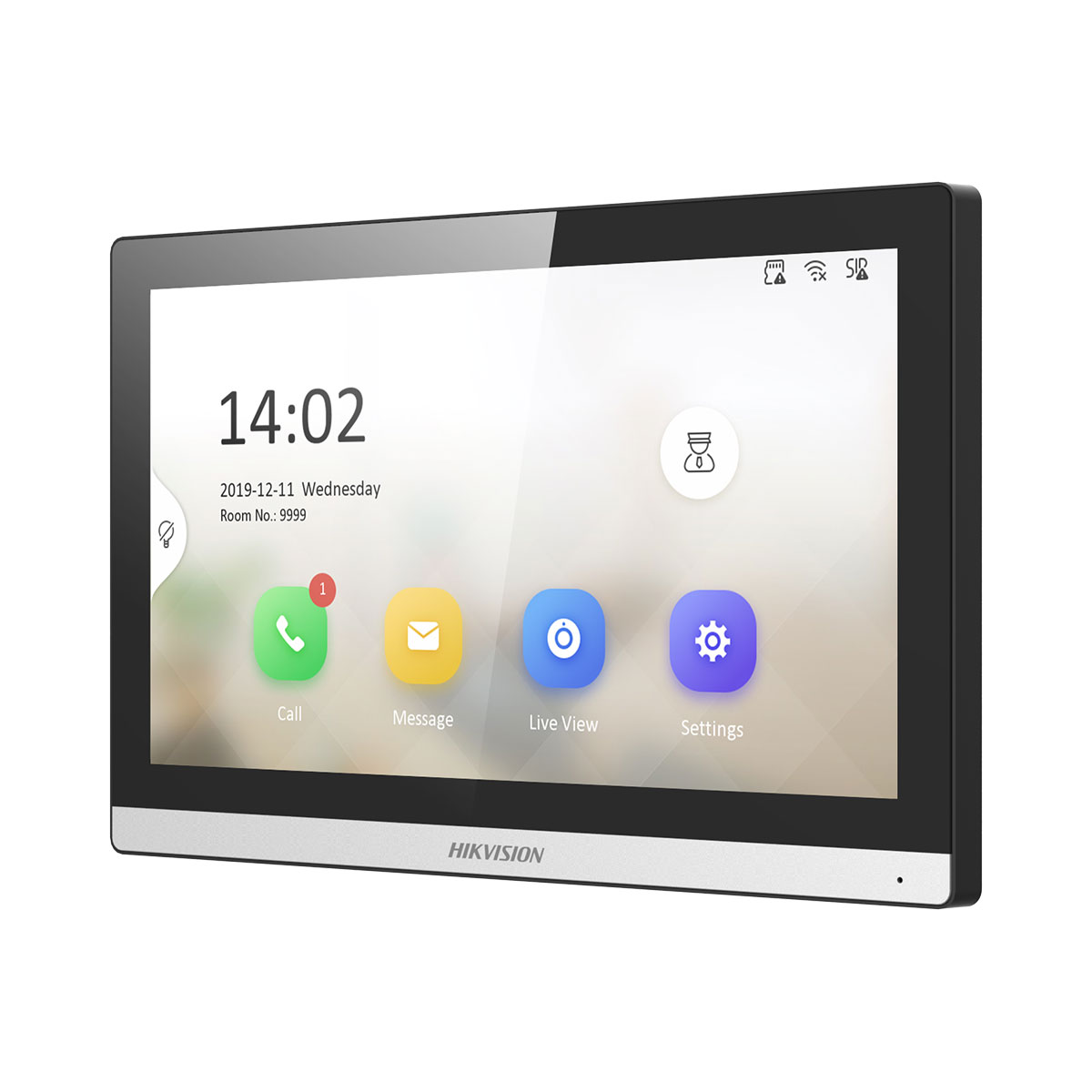

Hikvision DS-KH6350-WTE1 KH6 Series IP-Based Indoor Station
• New UI V2.0: User friendly design
• 7-inch colorful touch screen with resolution 1024 × 600
• Standard PoE
• Stores messages and capture pictures in the TF card
• Remote unlocking via the client software or the mobile client
• Views live videos of door stations and linked cameras
| System Parameters | |
| Operating System | Embedded Linux operation system |
| ROM | 32 MB |
| RAM | 128 MB |
| CPU | Embedded processor |
| Display Parameters | |
| Screen Size | 7-inch colorful TFT screen |
| Operation Method | Capacitive touch screen |
| Type | Colorful TFT screen |
| Resolution | 1024 × 600 |
| Audio Parameters | |
| Audio Compression Standard | G.711 U, G.711 A |
| Audio Input | Built-in omnidirectional microphone |
| Audio Output | Built-in loudspeaker |
| Audio Compression Bitrate | 64 Kbps |
| Audio Quality | Noise suppression and echo cancellation |
| Volume Adjustment | Adjustable |
| Capacity | |
| Event Capacity | 200 |
| Notice Capacity | 16 |
| Linked Indoor Extensions Capacity | 5 |
| Network Parameters | |
| Communication Protocol | TCP/IP, SIP, RTSP |
| Wired Network | 10/100 Mbps self-adaptive |
| Wi-Fi Standard | Wi-Fi 802.11 b/g/n |
| Device Interfaces | |
| Alarm Input | 8-ch alarm inputs |
| Network Interface | 1 RJ-45 10/100 Mbps self-adaptive |
| RS-485 | 1 |
| TF Card | Max to 128 G |
| Alarm Output | 2 |
| Power Interface | 1 |
| General | |
| Button | 0 |
| Installation | Wall mounting, table mounting |
| Indicator | 0 |
| Weight | With package: 683 g Without package: 355 g |
| Working Temperature | -10 °C to 50 °C |
| Working Humidity | 10% to 90% |
| Dimensions | 175 mm × 113.5 mm × 21 mm |
| Application Environment | Indoor |
| Power Consumption | ≤ 8 W |
| Language | English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Portuguese, Slovak |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
