Teltonika FMB920 Small and smart tracker with Bluetooth and internal backup battery
Product Code:
FMB920
38,90 €
(Includes VAT 24%)
Sales price without VAT:
31,37 €
14 Days
Teltonika FMB920 Small and smart tracker with Bluetooth and internal backup battery
Shipping cost calculation:
Quantity
Description
Characteristics
Downloads
Description

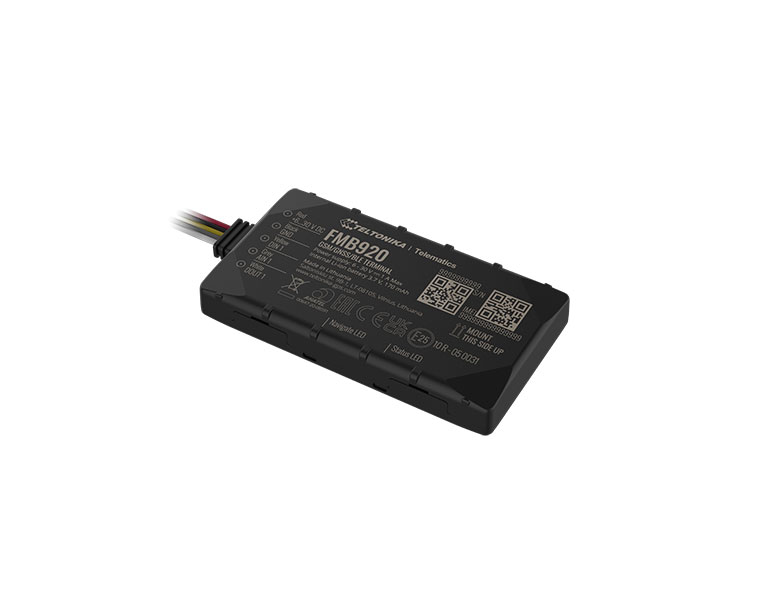

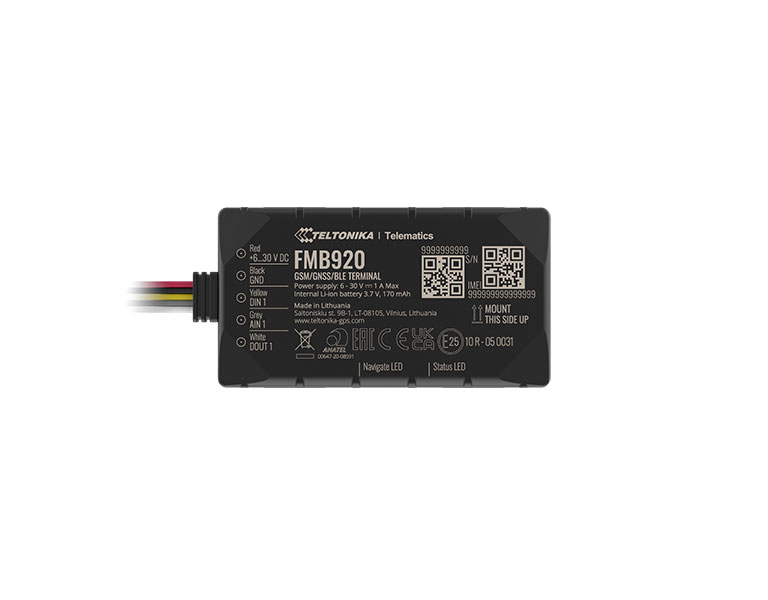

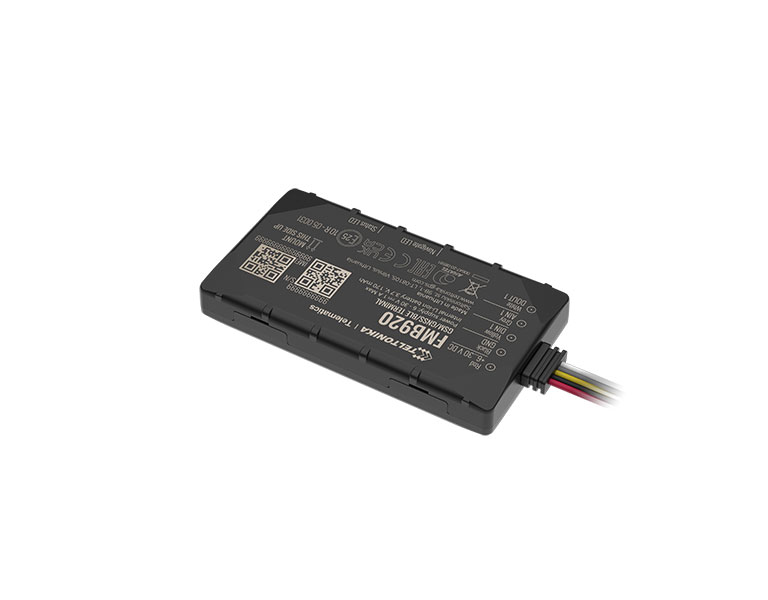

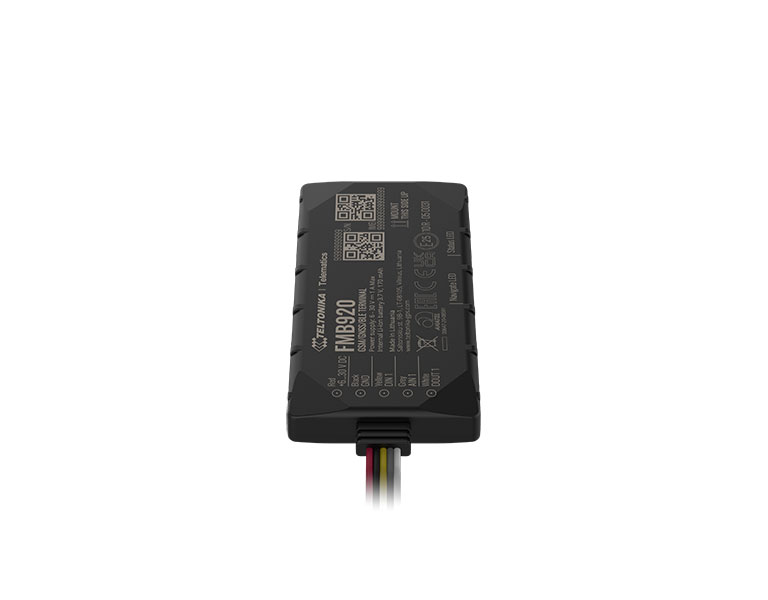

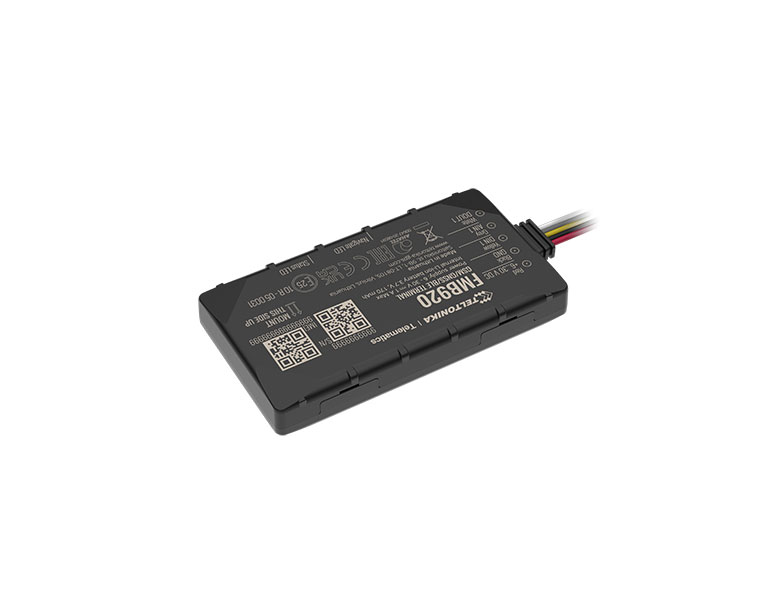

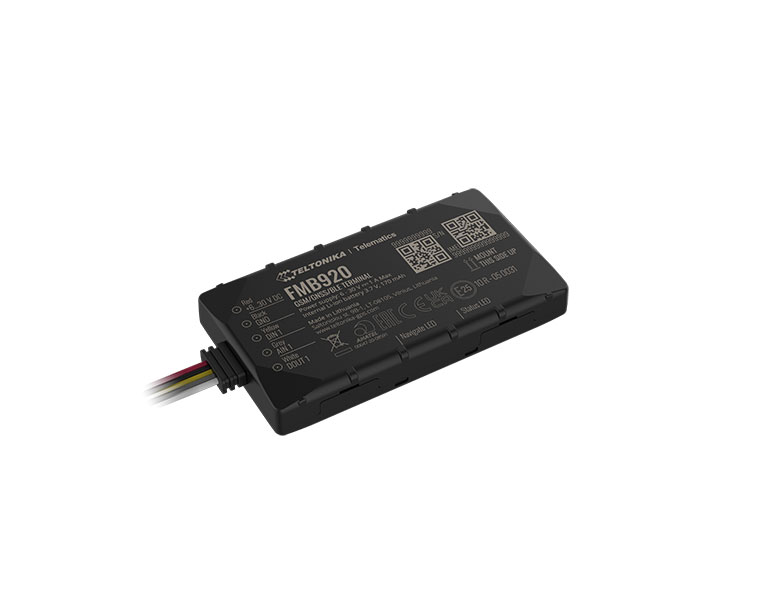

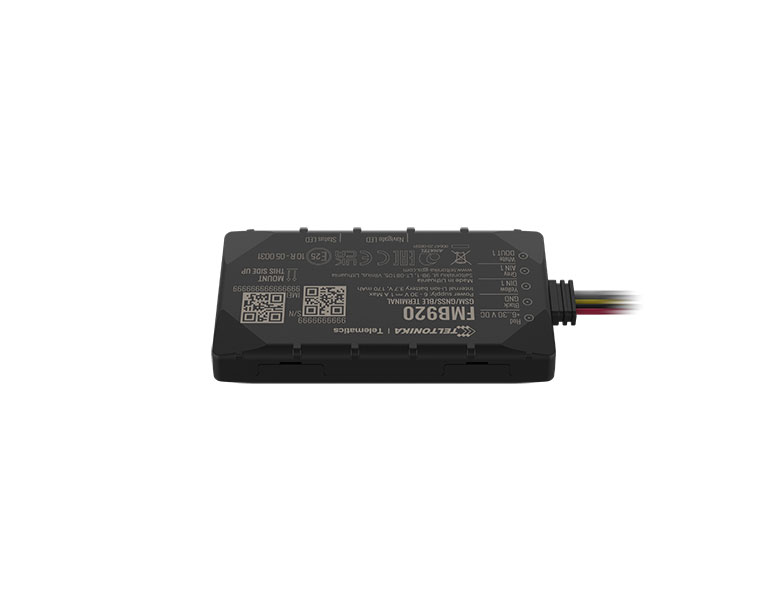

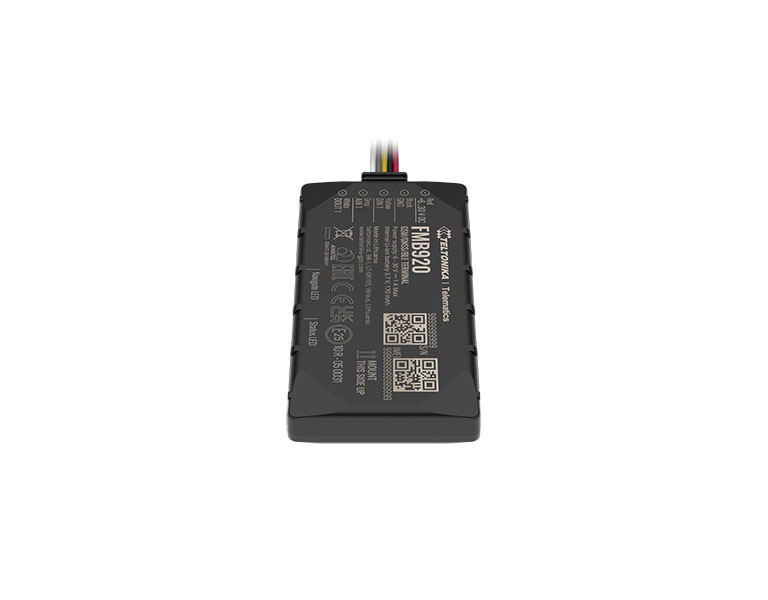

FMB920 is a slim design easily fitted tracker with GNSS/GPS internal antennas, flash memory, integrated backup battery, accelerometer, inputs/output and various BLE 4.0 connectivity sensors and beacons support. Thanks to a rich feature set, this EASY category tracker delivers unquestionable value for the GPS telematics service providers and end-users.
The model has been designed for light commercial vehicles and passenger cars tracking in insurance telematics, rental and cars sharing, recovery of stolen cars, public safety and courier delivery services, taxi, corporate fleets, etc. The true bestseller FMB920 is compact, reliable, accurate, and affordable.
Characteristics
| Specifications | |
| Module | |
| Name | Teltonika TM2500 |
| Technology | GSM/GPRS/GNSS/BLUETOOTH |
| GNSS | |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS |
| Receiver | 33 channel |
| Tracking sensitivity | -165 dBM |
| Position accuracy | < 2.5 CEP |
| Velocity accuracy | < 0.1m/s (within +/- 15% error) |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| Cellular | |
| Technology | GSM |
| 2G bands | Quad-band 850 / 900 / 1800 / 1900 MHz |
| Data transfer | GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B |
| Data support | SMS (text/data) |
| Power | |
| Input voltage range | 6 - 30 V DC with overvoltage protection |
| Back-up battery | 170 mAh Li-Ion battery (0.63 Wh) |
| Bluetooth | |
| Specification | 4.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support |
| Physical | |
| Dimensions(LxWxH) | 79 x 43 x 12 mm |
| Weight | 54 g |
| Interface | |
| Digital Inputs | 1 |
| Digital Outputs | 1 |
| Analog Inputs | 1 |
| GNSS antenna | Internal High Gain |
| Cellular antenna | Internal High Gain |
| USB | 2.0 Micro-USB |
| LED indication | 2 status LED lights |
| SIM | Micro-SIM |
| Memory | 128MB internal flash memory |
| Operating environment | |
| Operating temperature (without battery) | -40 °C to +85 °C |
| Storage temperature (without battery) | -40 °C to +85 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP54 |
| Battery charge temperature | 0 °C to +45 °C |
| Battery discharge temperature | -20 °C to +60 °C |
| Battery storage temperature | -20 °C to +35 °C for 1 month -20 °C to +30 °C for 6 months |
| Features | |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration) |
| SMS | Configuration, Events, DOUT control, Debug |
| GPRS commands | Configuration, DOUT control, Debug |
| Time Synchronization | GPS, NITZ, NTP |
| Fuel monitoring | LLS (Analog), OBDII dongle |
| Ignition detection | Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle) |
| Standard Package Contains | • FMB920 tracker • Input/Output power supply cable (0.7m) • Packaging box |
| Certification & Approvals | |
| Regulatory | CE/RED, E-Mark, EAC, RoHS, REACH |
