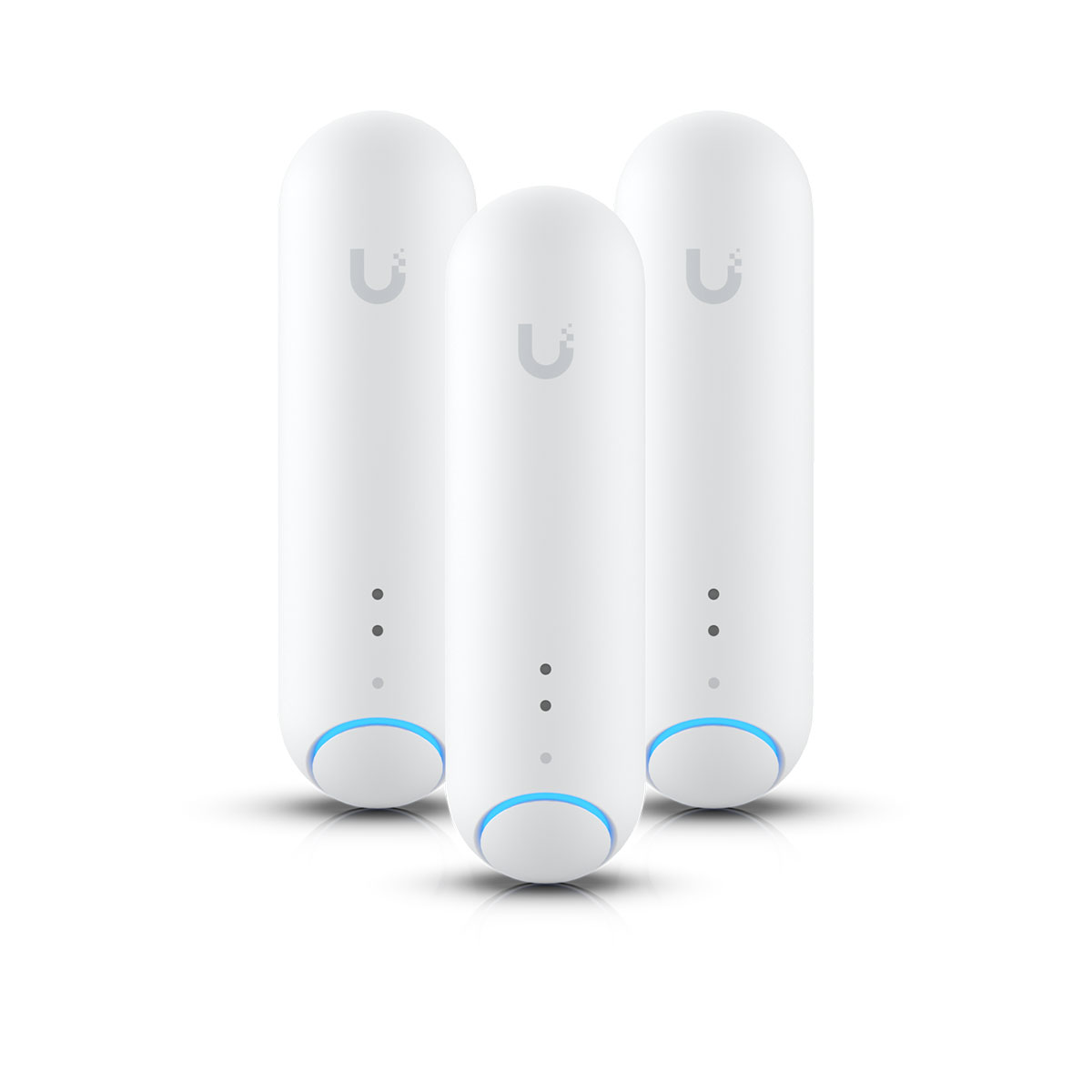

Ubiquiti UP-Sense-3 - UniFi Protect Smart Sensor, 3-pack
Overview
The UniFi Protect Smart Sensor is a battery-operated smart multi-sensor that detects motion and environmental conditions The Sensor transmits sensory data and alerts over Bluetooth to the UniFi Protect ecosystem.
Features
• Motion sensor (5 m / 16 ft maximum range)
• Magnetic entry sensor for door or window open/close
• Accelerometer for garage door open/close
• Temperature sensor
• Humidity sensor
• Ambient light sensor
• Alarm sound sensor (detects UL217 and UL2034 alarm patterns)
• Water sensor for detecting leaks and floods (requires water sensor adapter accessory, only available in 3-pack at general release)
• BLE connectivity from Access Point in indoor setting (recommended range 15 m / 49 ft, performance will vary based on environment)
| Mechanical | |

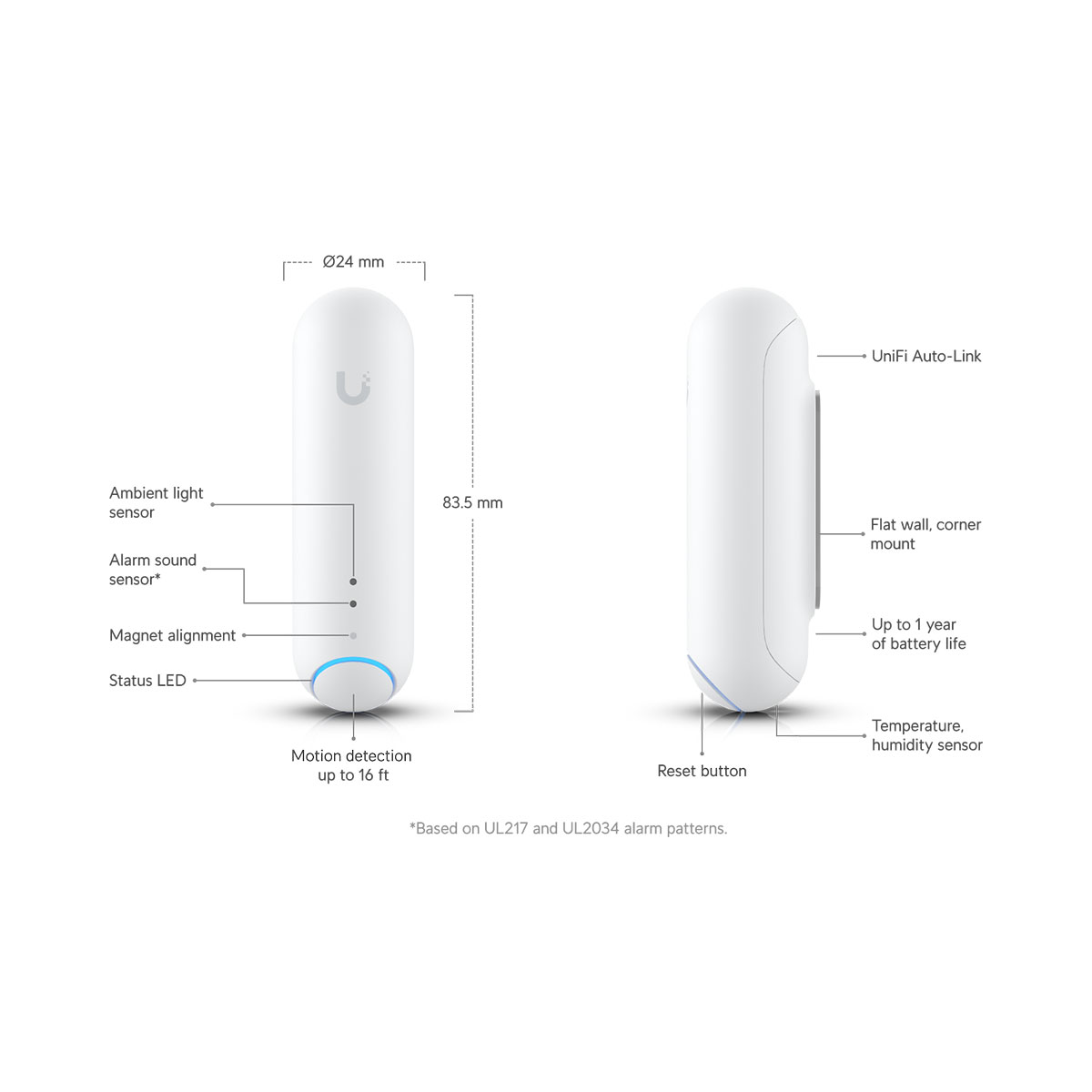

| Dimensions | Ø24 x 83.5 mm |
| Weight | 50.2 g |
| Enclosure Materials | Polycarbonate |
| Mount Materials | Flat Wall Mount: Polycarbonate, Adhesive Corner Mount: Polycarbonate, Adhesive |
| Additional Gear | Magnet Water Sensor Adapter (Only Available in the Three-Pack at General Release) |
| Hardware | |
| Processor | MCU Processor at 40 MHz |
| Management Interface | UniFi Protect |
| Networking Interface | Bluetooth 5.0, BLE |
| Antenna | 2.4 GHz |
| Antenna Gain | 0.5 dBi |
| Max. TX Power | 5 dBm |
| Max. Power Consumption | 77mW |
| Power Method | Lithium Battery CR123A |
| Sensor Features | Motion Sensor (5 m/16 ft Maximum Range) Magnetic Entry Sensor for Door or Window Open/Close Accelerometer for Garage Door Open/Close Temperature Sensor Humidity Sensor Ambient Light Sensor Alarm Sound Sensor Water Sensor for Detecting Leaks and Floods (Requires Water Sensor Adapter Accessory, Only Available in Three-Pack at General Release) BLE Connectivity from Access Pointin Indoor Setting (Recommended Range 15 m/49 ft, Performance Will Vary Based on Environment) |
| Button | Factory Reset |
| LEDs | R/B/W |
| Operating Temperature | 0 to 45° C |
| Operating Humidity | 10 to 90% Noncondensing |
| Certications | FCC, IC, CE |
Note: This sensor must be connected to an up-to-date Bluetooth-supported UniFi Access Point.
