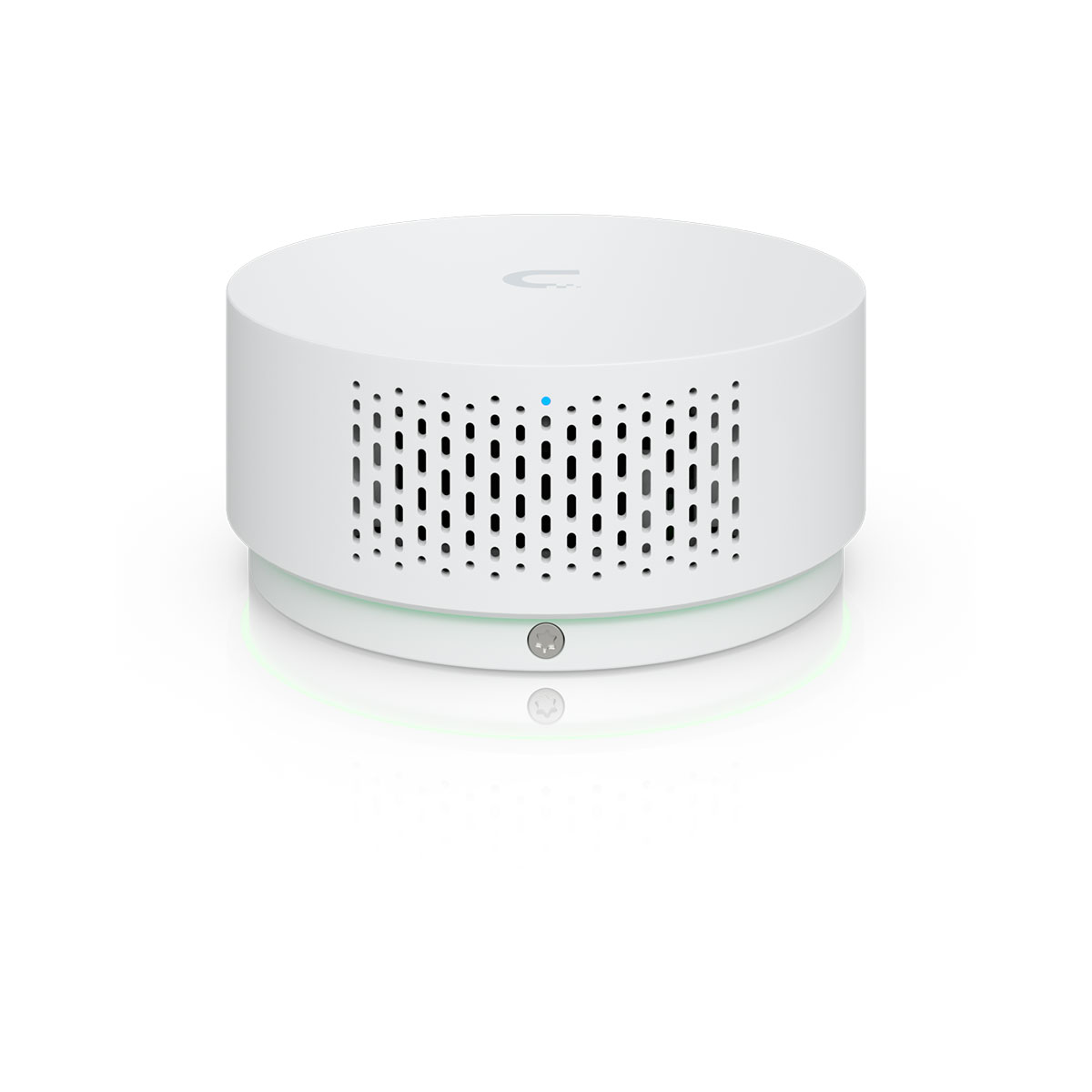

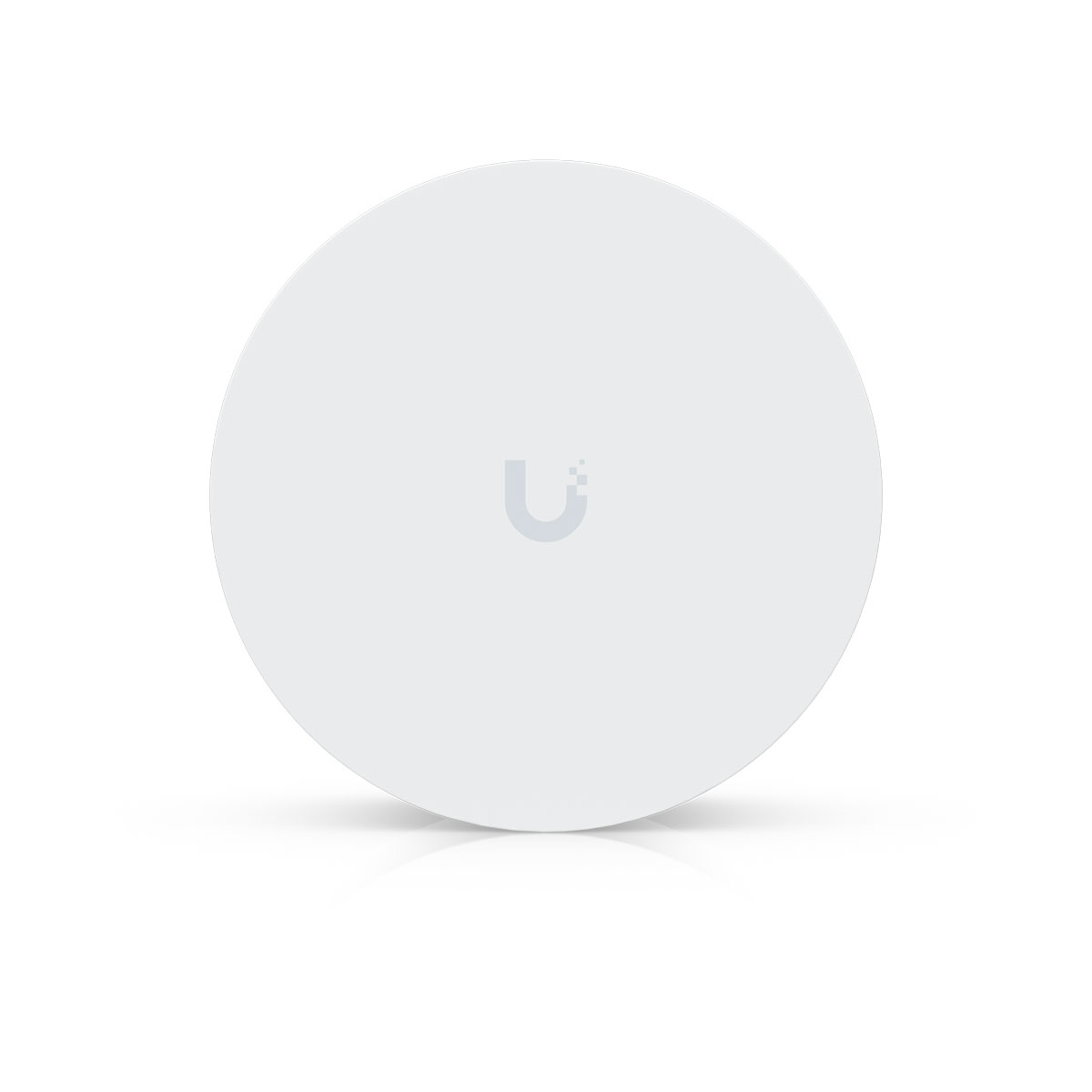

Ubiquiti UP-AIRQUALITY - Vape Detection & Air Quality Sensor
Ubiquiti UP-AIRQUALITY - Vape Detection & Air Quality Sensor
Monitor the environment in real-time and ensure healthier and safer spaces for employees, students, and visitors with the Ubiquiti sensor. The device offers measurement of CO2, VOC, NOx, and particulate matter PM1, PM2.5, PM4, and PM10, providing a detailed overview of air quality. It also includes monitoring of temperature, humidity, and calculation of the air quality index (AQI).
Main Features
• Detection of vaping (e-cigarettes)
• CO2 measurement
• Monitoring of PM1, PM2.5, PM4, and PM10 particles
• Monitoring of VOC and NOx
• Calculation of air quality index (AQI)
• Measurement of temperature and humidity
Smart Integration and Instant Notifications
Full integration into the UniFi Protect platform allows for convenient monitoring of measurement history, trend analysis, and automatic alarms. Key features include vaping detection and power and communication via PoE, which significantly simplifies installation. An ideal solution for schools, offices, hotels, and other commercial premises requiring continuous environmental monitoring.
Key Properties
• Instant notifications in UniFi Protect
• Measurement history and trend analysis
• Power over PoE

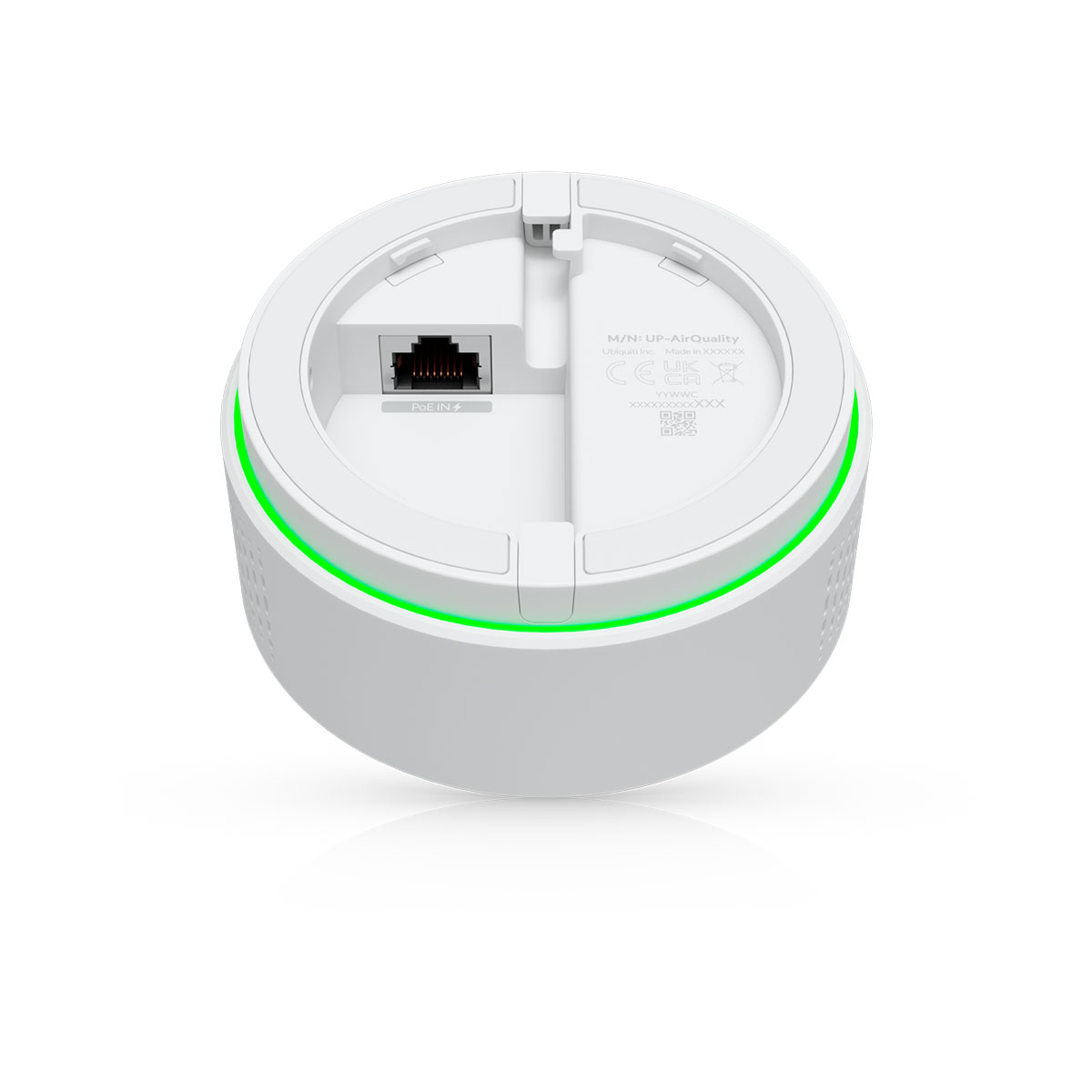

• Communication via Ethernet (RJ45 10/100 Mb/s)
• Maximum consumption 2.2 W

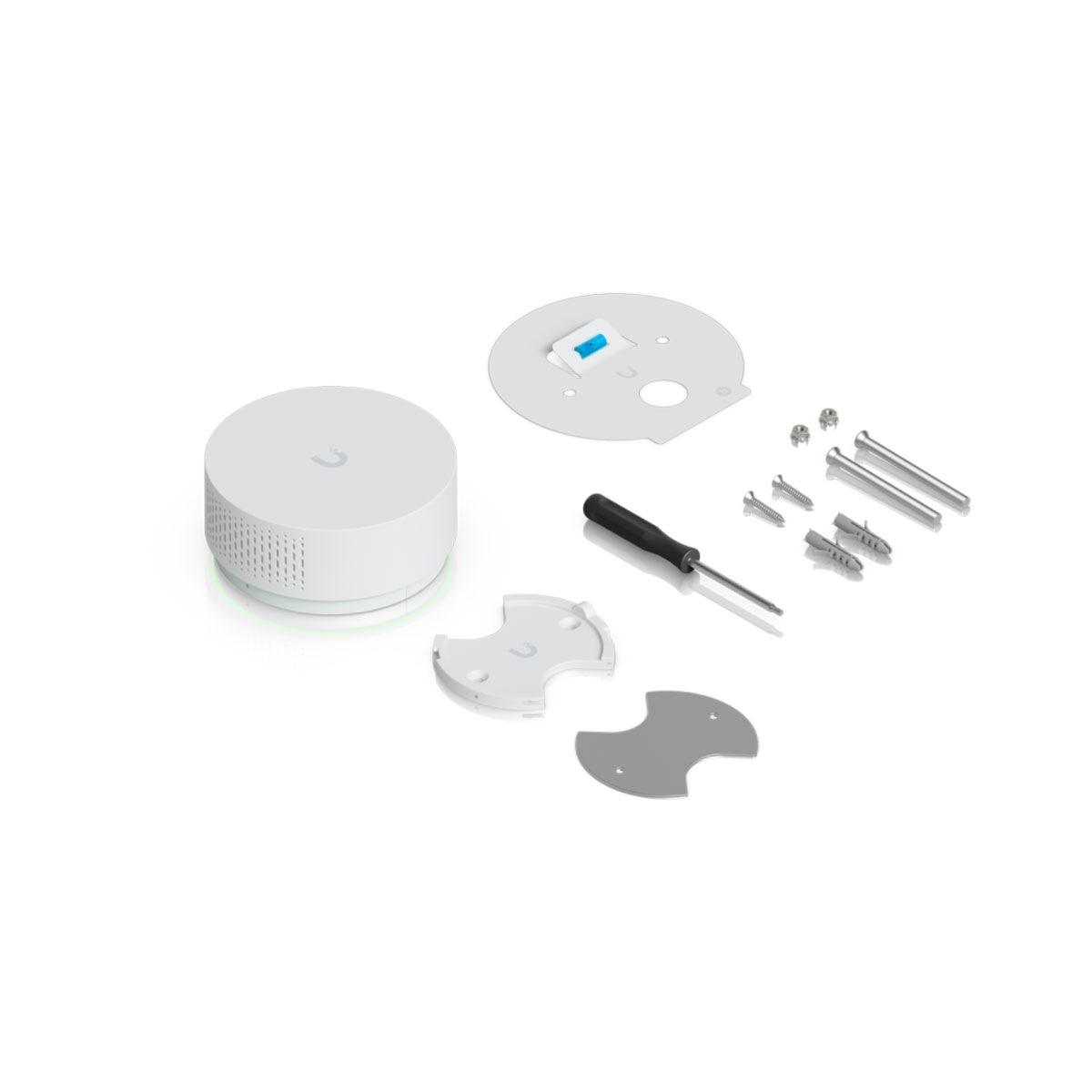

• Wall, ceiling, or table mountable
• Suitable for schools, offices, and commercial spaces
| Overview | |
| Dimensions | ⌀93 x 40.5 mm |
| Mounting | Wall, ceiling and table |
| UniFi Application Suite | Protect |
| Performance | |
| Networking Interface | (1) 10/100 MbE RJ45 port |
| Connectivity | Ethernet |
| Sensor Features | Temperature Sensor Humidity Sensor Air Quality: CO2, PM1, PM2.5, PM4, PM10, VOC, AQI, Vape Sampling Rate: 1 Hz |
| Sensitivity Range | Temperature Sensor 0–40° C Humidity Sensor 0–90% RH Air Quality 0–500 CO2 Sensor 0–40,000 ppm PM1/PM2.5/PM4/PM10 0–1000 μg/m³ VOC Index 1–500 Vape Index 0–100 NOx Index 1–500 |
| Accuracy | PM1/PM2.5: 0–100: ±(5 µg/m³ + 5% m.v.) 100–1000: ±10% m.v. PM4/PM10: 0–100: ±25 µg/m³ 100–1000: ±25% m.v. VOC: ±5% CO2: 400–2000: ±(50 ppm + 3% of reading) 2000–5000: ±(50 ppm + 5% of reading) Temperature: ±1° C Relative Humidity: ±8% RH |
| Hardware | |
| Max. Power Consumption | 2.2W |
| Supported Voltage Range | 37–57V |
| Power Method | PoE |
| Weight | 190 g |
| Enclosure Material | Polycarbonate |
| Mount Material | Aluminum alloy, stainless steel |
| LEDs | (1) Status: White/Blue (1) Air quality indicator: Red/Green/Yellow/Violet |
| Operating Environment | Indoor use only |
| Ambient Operating Temperature | Recommended 10 to 35° C |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
| Software | |
| Web application | UniFi Protect: Version 7.1 or later |
| Mobile app | UniFi Protect iOS™: Version 3.6.0 or later. Android™: Version 3.5.0 or later. |
