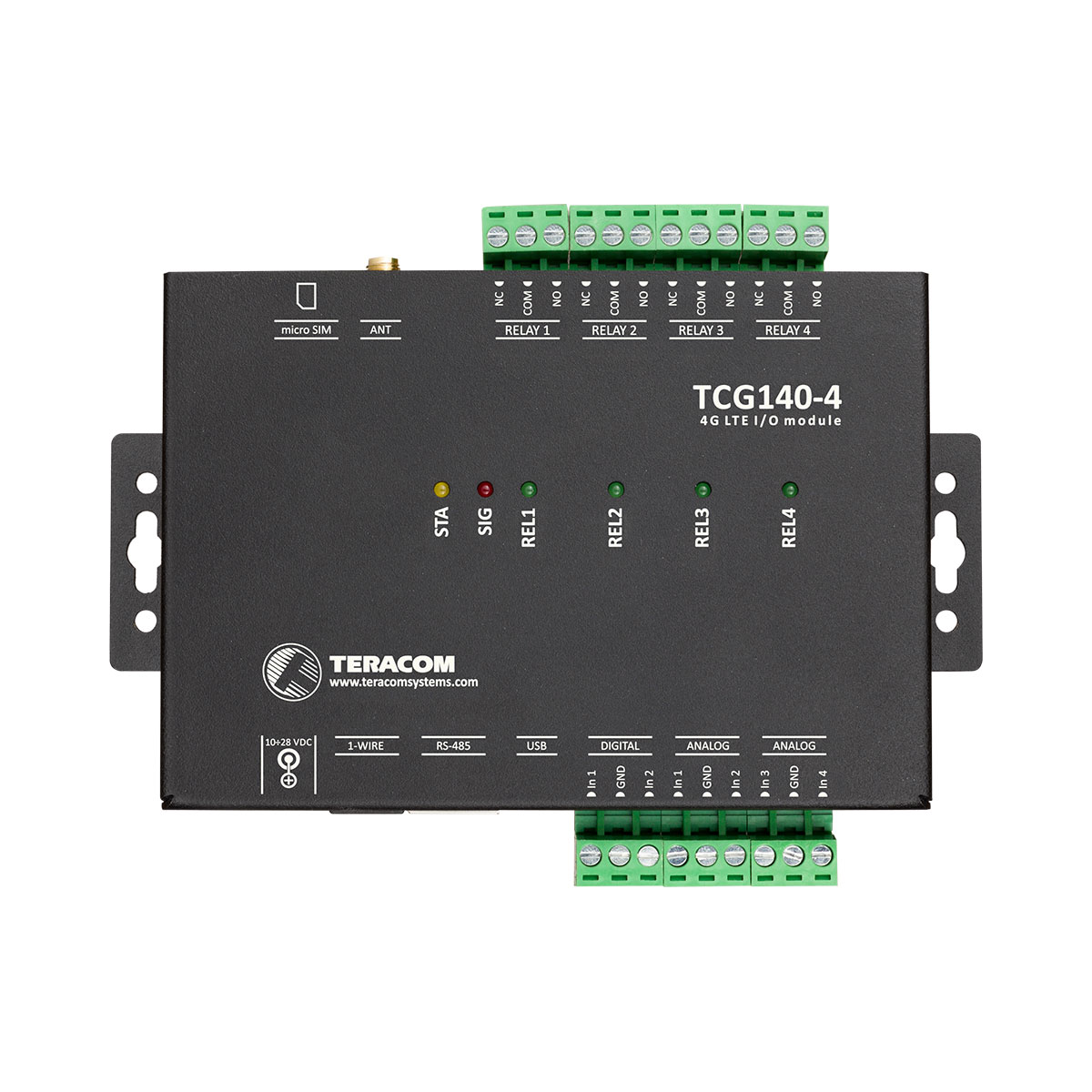

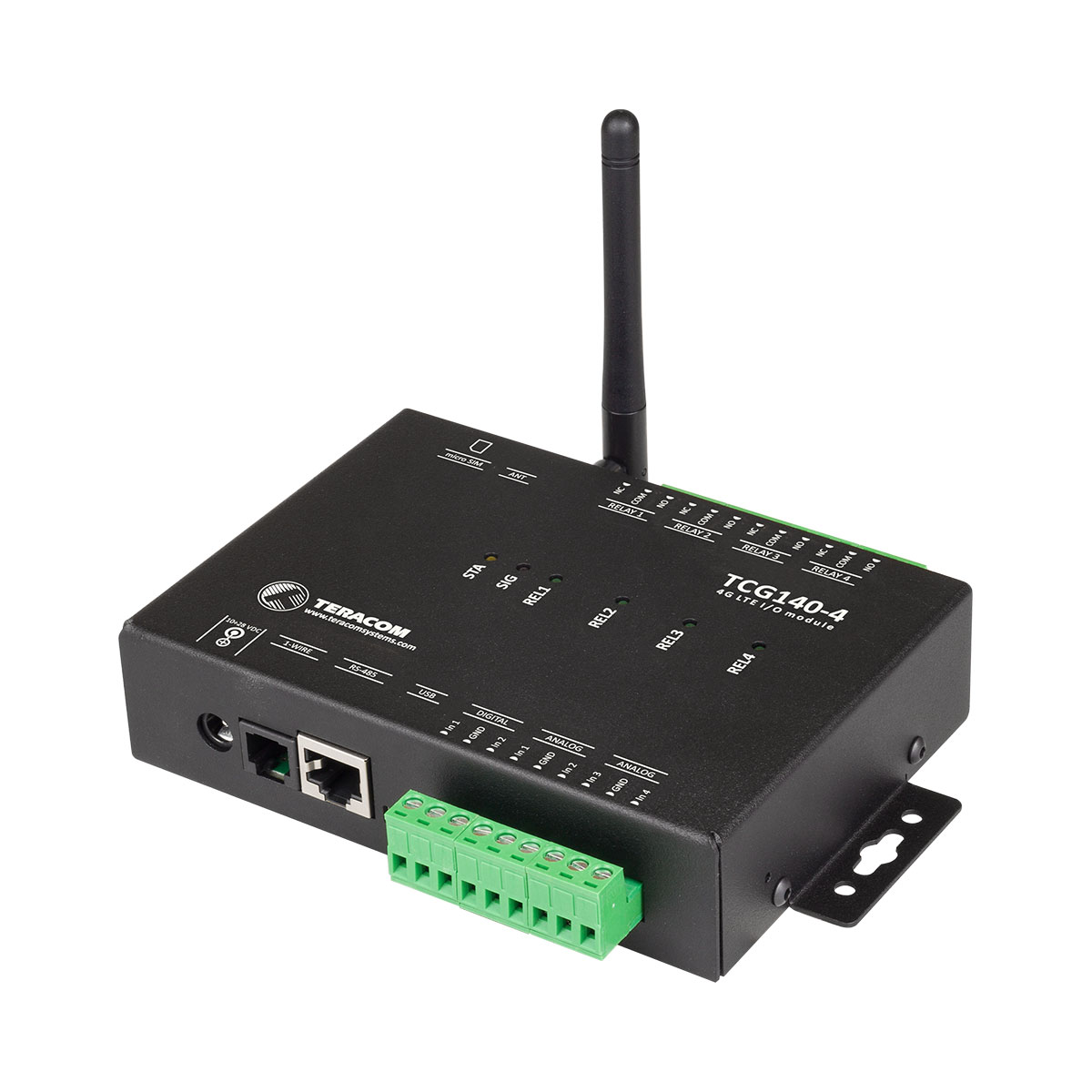

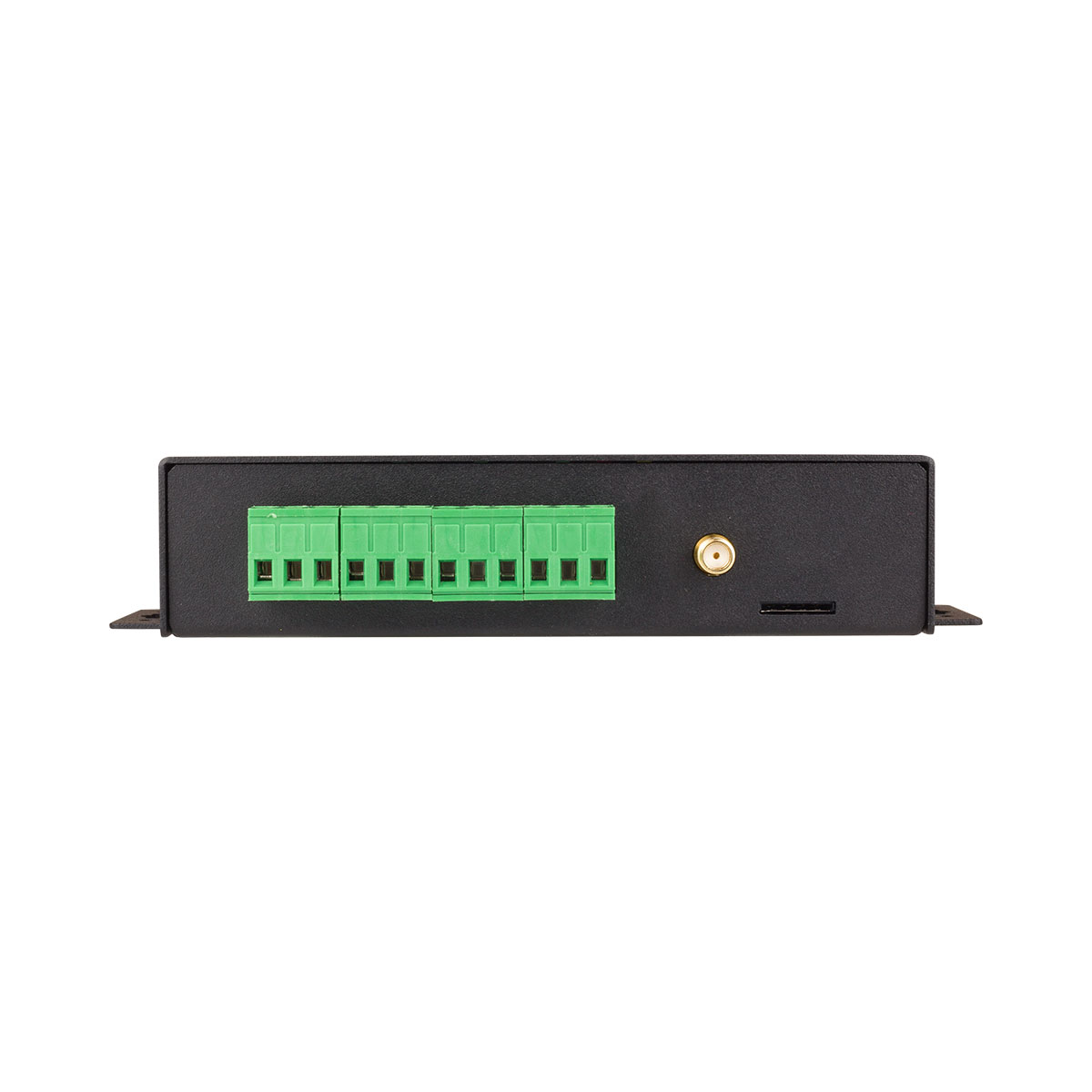

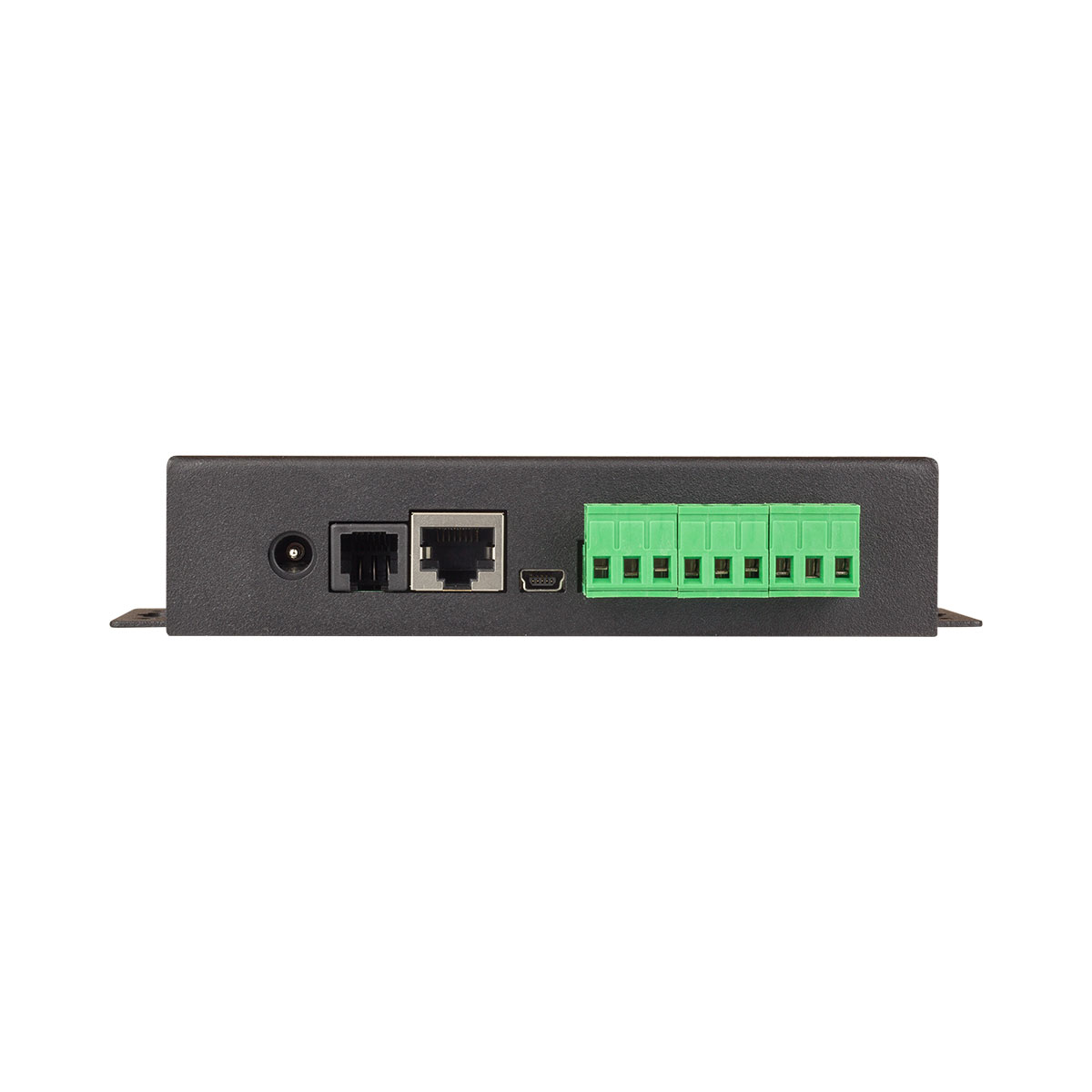

Teracom TCG140-4e 4G LTE universal IO module
TCG140-4 is a 4G LTE universal IO module. It covers LTE Cat.1 communication with up to 5 Mbit upload. The device supports also 3G and 2G wireless communication and provides data connectivity on LTE-FDD, DC-HSDPA, HSPA+, HSDPA, HSUPA, WCDMA, EDGE, and GPRS networks. This makes it usable practically anywhere in the world where is available some kind of cellular coverage.
4G LTE universal IO module can work autonomously but it is specially optimized for M2M and IoT applications. The main option for M2M communication is HTTP API. The device supports HTTP and HTTPS Post with XML or JSON file.
The module offers a large number of analog inputs with 0 to 10 volts and a current loop – 0 to 20mA inputs. In addition, the device supports the MODBUS RTU interface for all compatible industrial devices, including all Teracom sensors.
The analog inputs with their standard ranges together with the MODBUS RTU interface make the integration of the unit into industrial applications very easy.
TCG140-4 is the successor to the popular TCG140. The two modules differ only in technology and communication ranges. The entire input-output peripherals and digital interfaces are 100% identical. This makes it easy to migrate from the 2G device to the 4G LTE module in places where 2G services are to be shut down.
The initial setup of the device is made through the graphical interface using a standard browser. On the field, the device can be set up remotely either with SMS or HTTP API commands. The FW update of the unit is possible over the air too.
4G LTE universal IO module utilizes robust metal box with accessories for DIN-Rail mounting.
*Caution. Teracom's Ethernet Controllers do not include power supply in their packaging and in case of purchase, you will need to order a power supply separately if you do not already have a compatible power supply.
Features:
• Multi-band connectivity
• Setup via USB, SMS or HTTP(S) API
• 2 digital "dry contact" inputs
• Up to 8 Teracom 1-Wire sensors support
• Up to 8 MODBUS RTU sensors/devices support
• 4 relay outputs with NO and NC contacts
• Up to 4 analog inputs with 0 to 10VDC range
• Up to 2 current loop (0-20mA) inputs
• HTTP(S) API commands
• Periodical HTTP/HTTPS Post with current status in XML or JSON
• Data logger for up to 70000 records
• Periodical HTTP/HTTPS Post with logger data in CSV format
• SMS alarm alerts (up to 5 numbers)
• Email alarm alerts (up to 5 email recipients), SMTP with TLS support
• DIN-rail mount ready
• Firmware update over USB or Internet
Applications:
• Data logging for drug and foods facilities
• Remote environmental sensing
• Smart remote facility management
• Remote monitoring of industrial processes
• Remote control of irrigation systems
• Smart cities street lighting control systems
Supported devices:
• Humidity and temperature sensor with MODBS RTU interface TSH300
• MODBUS RTU S0 pulse counter TDI340
• Precision temperature sensor with MODBUS RTU interface TST300
• Third party MODBS RTU sensors
• 1-Wire Pt100 transmitter TST200
• 1-Wire galvanic isolated AC/DC current sensor TSC200
• Galvanic isolated voltage sensor with 1-Wire interface TSV200
• 1-Wire galvanic isolated 0/20mA current loop transmitter TSA200
• Humidity and temperature sensor with 1-Wire interface TSH206
• Temperature sensor with 1-Wire interface TST103
| Specifications | |
| Dimensions | 158 x 119 x 34 mm |
| Operating temperature | -20 to 55°C |
| Operating temperature for USB setup | 0 to 40°C |
| Storage temperature | -25 to 60°C |
| Ambient Relative Humidity | 5 to 85% (non-condensing) |
| Memory | Internal FLASH memory |
| Endurance | 100 000 cycles (any save command or full scroll (70000 records) of the logger) |
| Standards and Certifications | |
| Safety |
EN 62368-1:2014+EN 62368-1:2014/AC1-3:2015+EN 62368-1:2014/A11:2017 + EN 62368-1:2014/AC:2017-03:2017,EN 62311:2008 |
| EMC | EN 55032: 2015 + EN 55032: 2015/AC:2016-07 + EN 55032: 2015/A11:2020 EN 55024: 2010 + EN 55024: 2010/A1:2015 EN 61000-3-2: 2014 |
| RFU | EN 61000-3-3: 2013 + EN 61000-3-3: 2013/A1:2019 EN 301 489-19 V2.1.1, EN 301511 V12.5.1, EN 301 908-1 V11.1.1, EN 301 908-13 V11.1.2, EN 301 908-2 V11.1.2, EN 303 413 V1.1.1 |
| Green | RoHS |
| Power supply | |
| Operating voltage range (including -15/+20% according to IEC 62368-1) | 10 to 28 VDC |
| Current consumption | 0.37A @ 12VDC |
| Cellular interface | |
| Standards | LTE-FDD, DC-HSDPA, HSPA+, HSDPA, HSUPA, WCDMA, EDGE and GPRS |
| Bands | 4G LTE: B1/B3/B7/B8/B20/B28 3G: B1/B8 2G: 900/1800MHz |
| SIM card size | Micro |
| Antenna connector | SMA-F |
| Analog inputs | |
| Type | Single-ended |
| Resolution | 10 bits |
| Mode (Analog inputs 1 and 2) | Voltage |
| Mode (Analog inputs 3 and 4) | Voltage / Current (WEB interface selectable) |
| Input Range | 0 to 10 VDC, 0 to 20 mA |
| Accuracy | ±1% |
| Sampling Rate | 500ms per channel (averaged value of 250 samples) |
| Input Impedance | 1 mega-ohm (min.) |
| Built-in resistor for current mode | 410 ohmsc |
| Digital inputs | |
| Type | Dry contact and logic level |
| Sampling rate | 10ms |
| Digital filtering time period | 30ms |
| Relay outputs* | |
| Type | Form C (N.O. and N.C. contacts) |
| Contact current rating | 3 A @ 24 VDC, 30 VAC (resistive load) |
| Initial insulation resistance | 100 mega-ohms (min.) @ 500 VDC |
| Mechanical endurance | 10 000 000 operations |
| Electrical endurance | 100 000 operations @ 3 A resistive load |
| Contact resistance | 50 milli-ohms max. (initial value) |
| Minimum pulse output | 0.1 Hz at rated load |
| Digital sensor interfaces (1-Wire and RS-485) | |
| Output voltage | 5.0 ± 0.3 VDC |
| Maximum output current (for both interfaces) | 0.2 A |
| Endurance | |
| Lithium battery | |
| Type | CR1220 Caution! Risk of explosion if the battery is replaced by an incorrect type. |
* CAUTION: The device does not contain any internal overcurrent protection facilities on the relays’ contact lines. External fuses or short circuit current limiting circuit breakers, rated to 3 Amps, are to be used for overcurrent protection of the connecting lines.
