Teracom TSC200 1-Wire current sensor

Product Code:
TSC200
83,70 €
(Includes VAT 24%)
Sales price without VAT:
67,50 €
Available
Teracom TSC200 1-Wire current sensor
Shipping cost calculation:
Quantity
Add to Cart
Manufacturer:
Warranty:
36 Months
Description
Characteristics
Downloads
Description

TSC200-15 is a galvanic isolated 1-Wire current sensor. The sensor provides a low-cost option for AC or DC current monitoring.
The 1-Wire sensor is based on fully integrated Hall-effect current sensor IC. It provides high accuracy and galvanic isolation.
Embedded signal processing guarantees calibrated digital output.
The sensor can be used for power monitoring applications – current and power measurements for building’s management systems (BMS), monitoring and control of batteries, solar systems, etc.

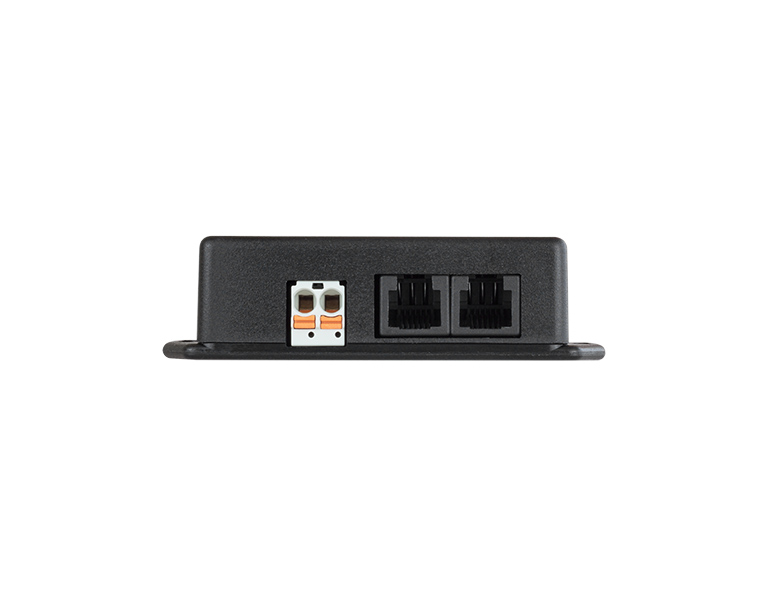

Each sensor has a unique 64-bit serial code, which allows a few sensors to be connected on the same 1-Wire bus. TSC200-15 has two RJ11 connectors, for easy daisy chain wiring.

Features:
• Excellent accuracy
• 10-bit resolution measurements
• AC or DC measurement with 0.3 to 15A working range
• On board, easy AC-DC mode change by a jumper
• Galvanic isolation between the current circuit and 1-Wire bus
• IP30 ingress protection
• Excellent long-term stability
• A unique 64-Bit serial number for multi-sensors support on 1-Wire bus

Applications:
• Power monitoring of solar power systems
• Energy meters in building management systems (BMS)
• Batteries charge/discharge process automation
• Current monitoring and logging in mobile network sites

The 1-Wire current sensor can be used with:
• Ethernet IO module TCW241
• Ethernet data logger TCW220



Characteristics
Specifications
Supply voltage range (1-Wire bus) 4 to 5.5 VDC
Maximum supply current (1-Wire bus) 15 mA
AC current range 0.3 to 15 A
DC current range ± (0.3 to 15 A)
Accuracy (-20 to +25°C) ± (2% + 0.2 A)
Accuracy (+25 to +70°C) ± (2% + 0.1 A)
Resolution 0.1 A
Dimensions 85 x 35.1 x 23.5 mm
Operating temperature range 0 to +40°C
Operating humidity range 0 to 70 %RH
Isolation voltage 3000 Vrms
AC frequency 48 to 65 Hz
Downloads
