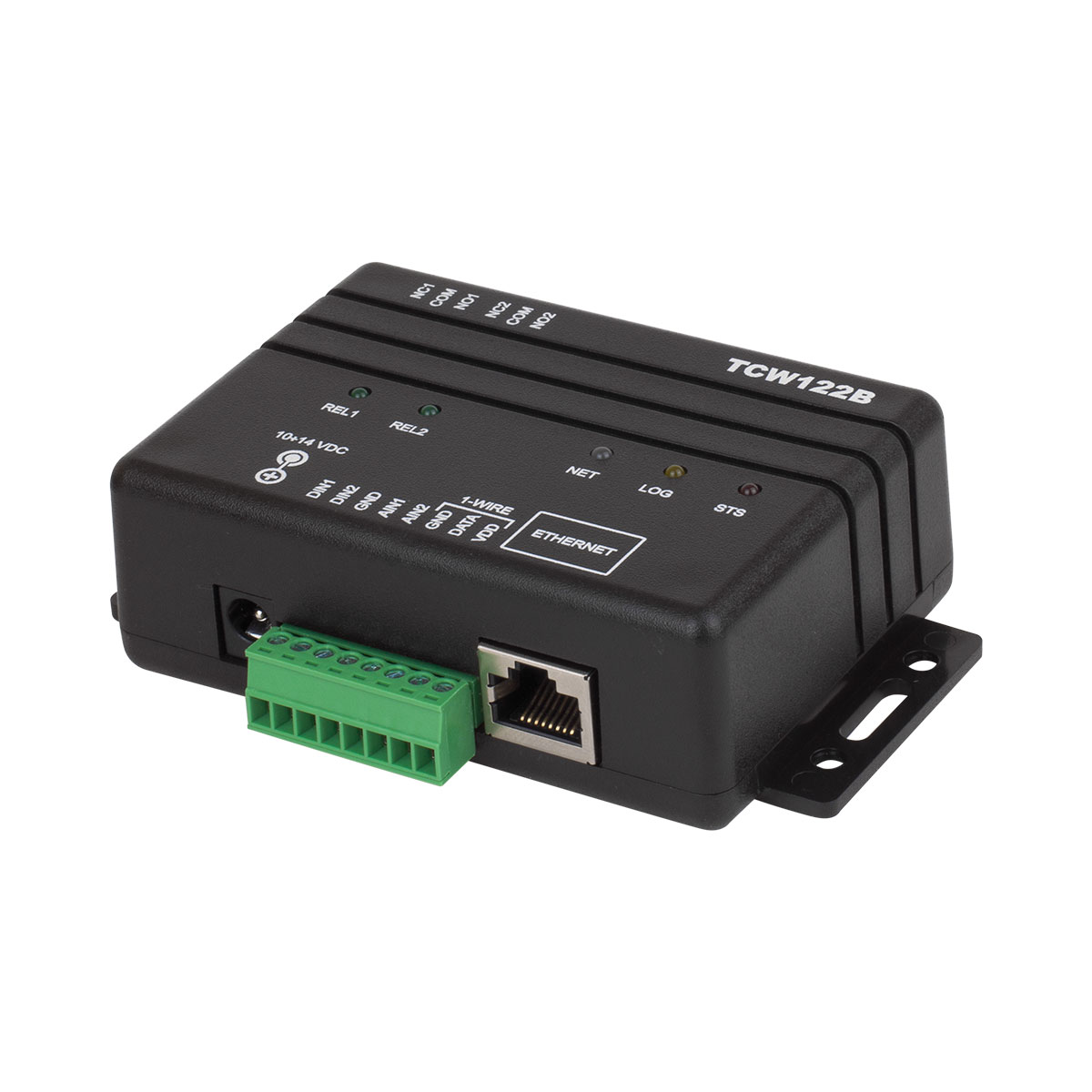

Teracom TCW122B-WD - IP watchdog

Product Code:
TCW122B-WD
109,00 €
(Includes VAT 24%)
Sales price without VAT:
87,90 €
Available
Teracom TCW122B-WD - IP watchdog monitoring
Shipping cost calculation:
Quantity
Add to Cart
Manufacturer:
Warranty:
36 Months
Description
Downloads
Description

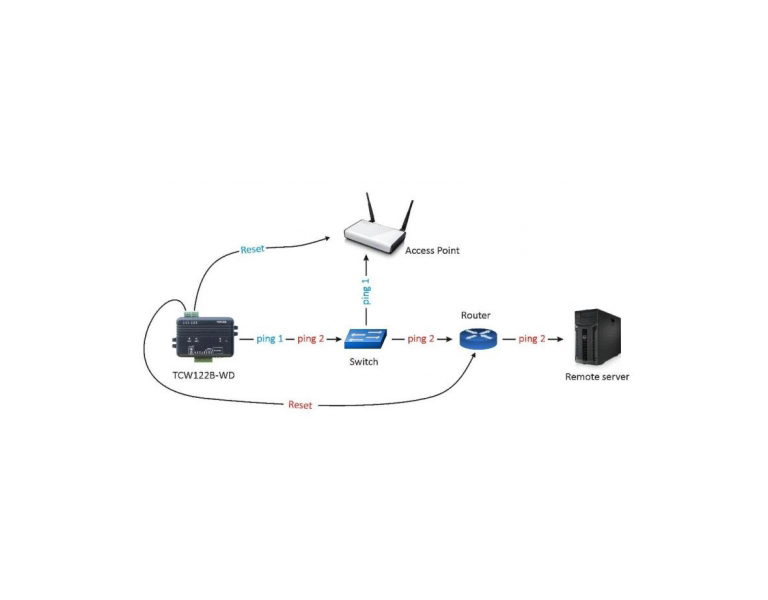

TCW122B-WD is an Ethernet controller, specially designed for IP watchdog monitoring. It controls the functionality of a device or a network by transmitting or receiving respectively ICMP echo request or ICMP echo reply. If there is no ICMP echo (ping) for certain time, the appropriate relay is activated and this can restart the monitored device or network switch.
TCW122B-WD has 2 digital and 2 analog inputs, 2 relay outputs and 1-Wire interface and it also can be used for general monitoring and control of environmental monitoring of server rooms. For every of monitored parameters – temperature, humidity, analog voltage and status of digital input, SNMP trap can be sent, if it goes outside of previously set-up range. The relays can be activated remotely (WEB and/or SNMP) or automatically from presence/absence of ping (ICMP echo request or echo replay).

*Caution. Teracom's Ethernet Controllers do not include power supply in their packaging and in case of purchase, you will need to order a power supply separately if you do not already have a compatible power supply.

Features:
• Password protected web based configuration and control
• 1-Wire interface for up to 2 sensors
• 2 relay outputs with normally open and normally closed contacts
• 2 analog inputs with 0 to 60VDC range
• 2 digital inputs with “dry contact” or “logic level” mode
• Reliable IP watchdog monitoring
• SNMP v.1 support
• SNMP trap messages sending under certain conditions
• VLAN and MAC address filtering
• Remote FTP firmware update

Applications:
• Watchdog monitoring of small and medium networks
• Monitoring of temperature and humidity in server rooms
• Control and management of ISP networks
• Remote control of electric devices

Supported sensors:
• 1-Wire temperature sensor TST100
• 1-Wire temperature sensor TST103
• AC voltage detector TSV100
• Smoke detector TSS8830R
• 1-Wire humidity and temperature sensor TSH202
• 1-Wire humidity and temperature sensor TSH206
• Magnetic door sensor TSD800
