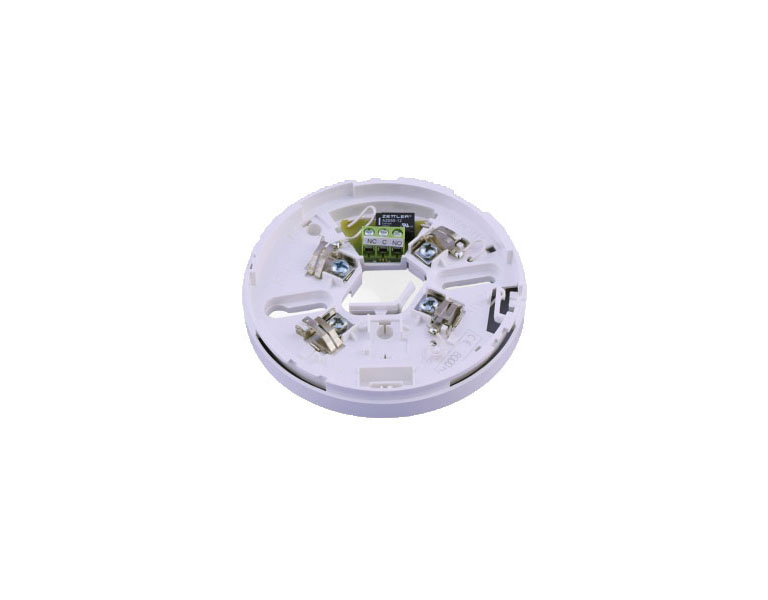

Teracom TSS8030R - smoke detector
TSS8030R is a smoke detector, designed for early warning of a fire condition. It responds to fixed threshold smoke concentration detected in the protected rooms. The principle of functioning of the detector is based on infrared rays distraction caused by smoke particles entering the optic chamber. The smoke sensitivity is factory preset.
The fire detector is controlled by a microprocessor, operating on the basis of improved algorithm for self-compensation of the chamber contamination.
Features:
• Smoke sensitivity complies with EN 54-7:2000+ A1:2002
• Digital signal processing
• Very low current consumption
• IP30 ingress protection
• Excellent long-term stability
• LED indicators for status information
Applications:
• Server rooms smoke detection
• Fire conditions notification
• Building Management System (BMS)
• Mobile operator facilities smoke detection monitoring
The detector can be used with:
• Ethernet IO module TCW241
• Ethernet data logger TCW220
• Remote IO module TCW122B-CM
• GSM-GPRS remote monitoring controller TCG120
• Ethernet digital IO module TCW181B-CM
• IP watchdog monitoring module TCW122B-WD
• Remote environmental monitoring module TCW112-CM
• IP watchdog relay board TCW112-WD
| Specifications | |
| Supply voltage range | 10 to 30 VDC |
| Maximum supply current at 30VDC | 55 mA |
| Protected area | circle with diameter 15 m |
| Height of mounting | up to 11 m |
| Operating temperature range | -10 to +55 °C |
| Operating humidity resistance at 40°C | 93±3 % |
| Dimensions | Ø100 mm, h 47mm |
