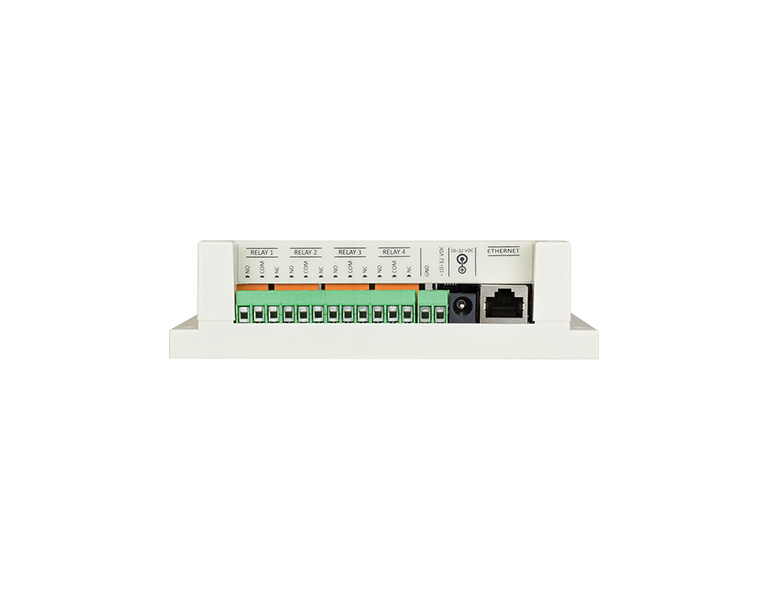

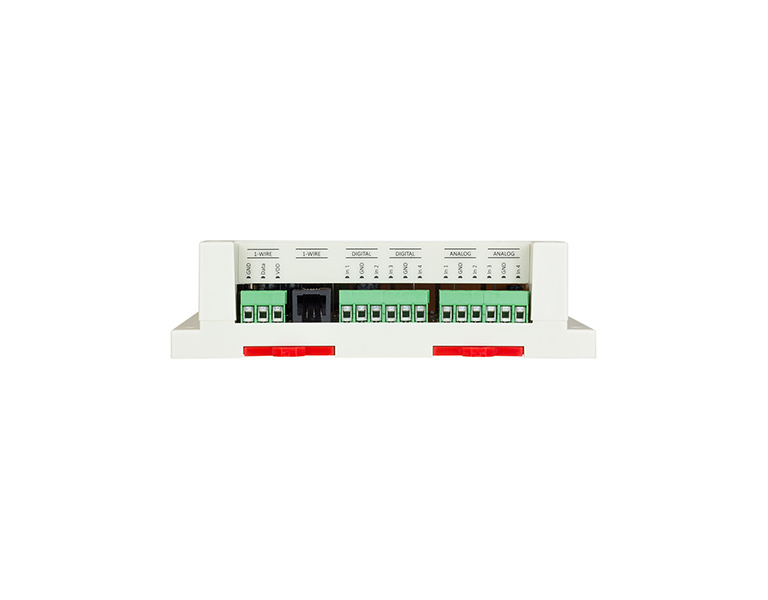

Teracom TCW241 - Ethernet I/O module
TCW241 is an Ethernet I/O module. It provides four digital inputs and four analog inputs. Its 1-Wire interface supports up to eight sensors like temperature, humidity, CO2, AC/DC current, 4/20mA etc.
The Ethernet I/O module has a real-time clock (RTC) with time server synchronization (NTP) for advanced relay schedule. It can be used for one-time or repetitive (weekly) tasks to turn on/off relays at previous set times.

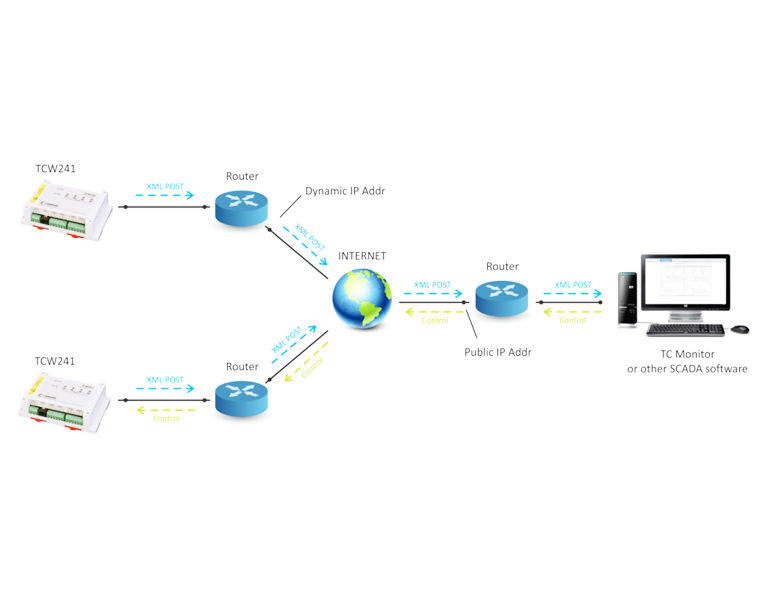

TCW241 can initiate a connection (HTTP Post) to remote dedicated servers. The payload of this post is XML or JSON file, with current values of monitoring parameters. HTTP post can be sent periodically or on previous set alarm conditions.
The relays of the Ethernet I/O module can be activated either remotely or locally. So-called remote activation includes friendly WEB interface or M2M protocols – MODBUS TCP/IP, SNMP, and HTTP API.
The local activation is possible from scheduler, status of single parameter or by custom made functions. They can include up to four parameters.
*Caution. Teracom's Ethernet Controllers do not include power supply in their packaging and in case of purchase, you will need to order a power supply separately if you do not already have a compatible power supply.
Features:
• Friendly WEB interface for simple configuration and control
• 4 digital “dry contact” inputs for direct monitoring of relay outputs
• 4 analog inputs with 0 to 60VDC range for telco battery monitoring
• Multiplier and offset for analog inputs and some sensors
• 1-Wire interface for up to 8 sensors (up to 16 parameters)
• 4 high current relays with normally open and normally closed contacts
• MODBUS TCP/IP support
• SNMP v2 support with trap alerts to up to 5 recipients
• 4 schedules for real-time control of relay outputs
• Custom made logical functions for flexible activation of relay outputs
• Secured email transfer with TLS 1.0, TLS 1.1 and TLS 1.2 support
• XML/JSON and HTTP API commands for client-server systems
• Dynamic DNS support for DynDNS, No-IP and DNS-O-Matic providers
• Network time protocol (NTP) support for time synchronization
• Remote firmware update via standard browser
• Rugged DIN-Rail/wall-mountable enclosure
Applications:
• Industrial monitoring and control using MODBUS TCP/IP protocol
• Scheduled control of mobile operators base stations
• Multi-parameters industrial control
• Mushroom plant environmental monitoring
• Scheduled control of industrial processes
• Heaters or coolers control
• Industrial process automation
• Data center environmental monitoring
Supported sensors:

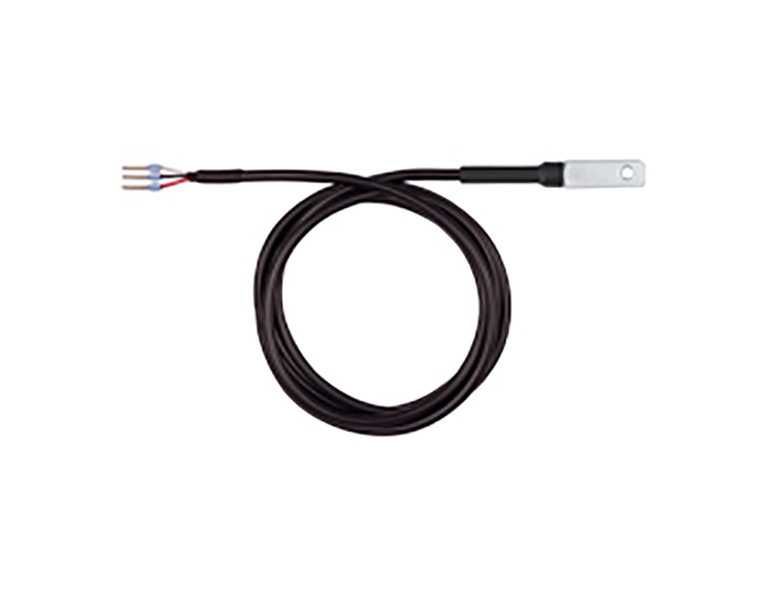

• 1-Wire temperature sensor TST100

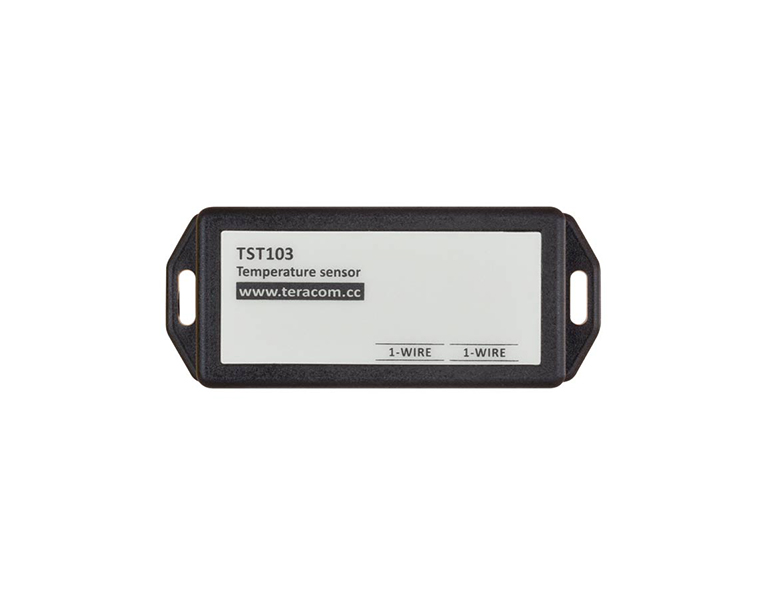

• Digital temperature sensor TST103
• 1-Wire humidity and temperature sensor TSH202
• Digital humidity and temperature sensor TSH206
• 1-Wire galvanic isolated AC/DC current sensor TSC200
• Carbon dioxide sensor with 1-Wire interfaceTSG200
• 1-Wire galvanic isolated voltage sensor TSV200
• 0/20mA-4/20mA current loop transmitter with 1-Wire interface TSA200
| Specifications | |
| Supply voltage | 10 - 32 VDC |
| Maximum current (with all relays ON) | 350mA@12VDC |
| Weight | 230 g |
| Dimensions | 145 mm x 90 mm x 40 mm |
| Operating temperature range | -20 to +55 °C |
| Operating relative humidity range | 5 to 85 %RH (non-condensing) |
| Supply voltage for 1-Wire bus (VDD) | 5.0 ± 0.3 A |
| Maximum output current for 1-Wire bus (VDD) | 0 to 60 VDC |
| Analog inputs range | 0.01 VDC |
| Analog inputs resolution | ± 1 % |
| Analog inputs accuracy | 3 A |
| Maximum switchable relay current | 30/24 VAC/VDC |
