Ubiquiti UACC-OFC-M2-LULU-15M, OM4 Duplex LC UPC Fiber Patch Cable, 15M
Product Code:
UACC-OFC-M2-LULU-15M
27,00 €
(Includes VAT 24%)
Sales price without VAT:
21,77 €
Available
Ubiquiti UACC-OFC-M2-LULU-15M, OM4 Duplex LC UPC Fiber Patch Cable, 15M
Shipping cost calculation:
Quantity
Description
Characteristics
Downloads
Description

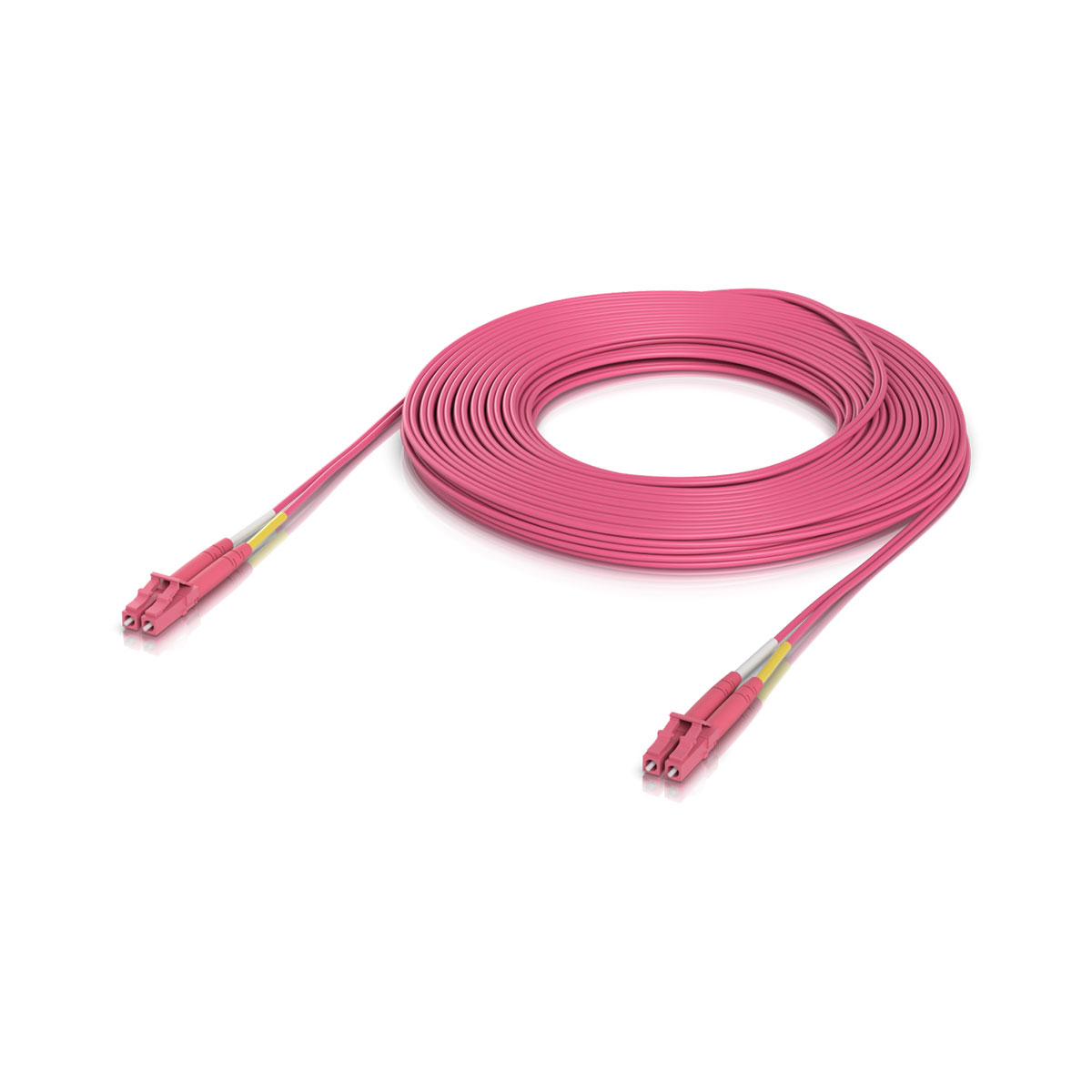

The Ubiquiti optical patch cord with a length of 15 meters is suitable for connecting active devices to passive ones (e.g., an optical distribution frame or optical enclosure) or for interconnecting active or passive devices. It features Multi Mode OM4 fiber terminated on both ends with 2x LC connectors with UPC polishing. The jacket is made of LSZH (Low Smoke Zero Halogen) material.
Characteristics
| Specifications | |
| Connector | (2) Duplex LC UPC |
| Operating Environment | Indoor |
| Fiber Mode | OM4 |
| Jacket Diameter | 2.0 mm |
| Jacket Material | Low smoke zero halogen (LSZH) |
| Jacket Color | Rose |
| Wavelength | 850/1300 nm |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 35 dB |
| Repeatability | ≤ 0.1 dB |
| Durability | ≤ 0.2 dB (1,000 times mating) |
| Ambient Operating Temperature | -40 to 75 °C |
