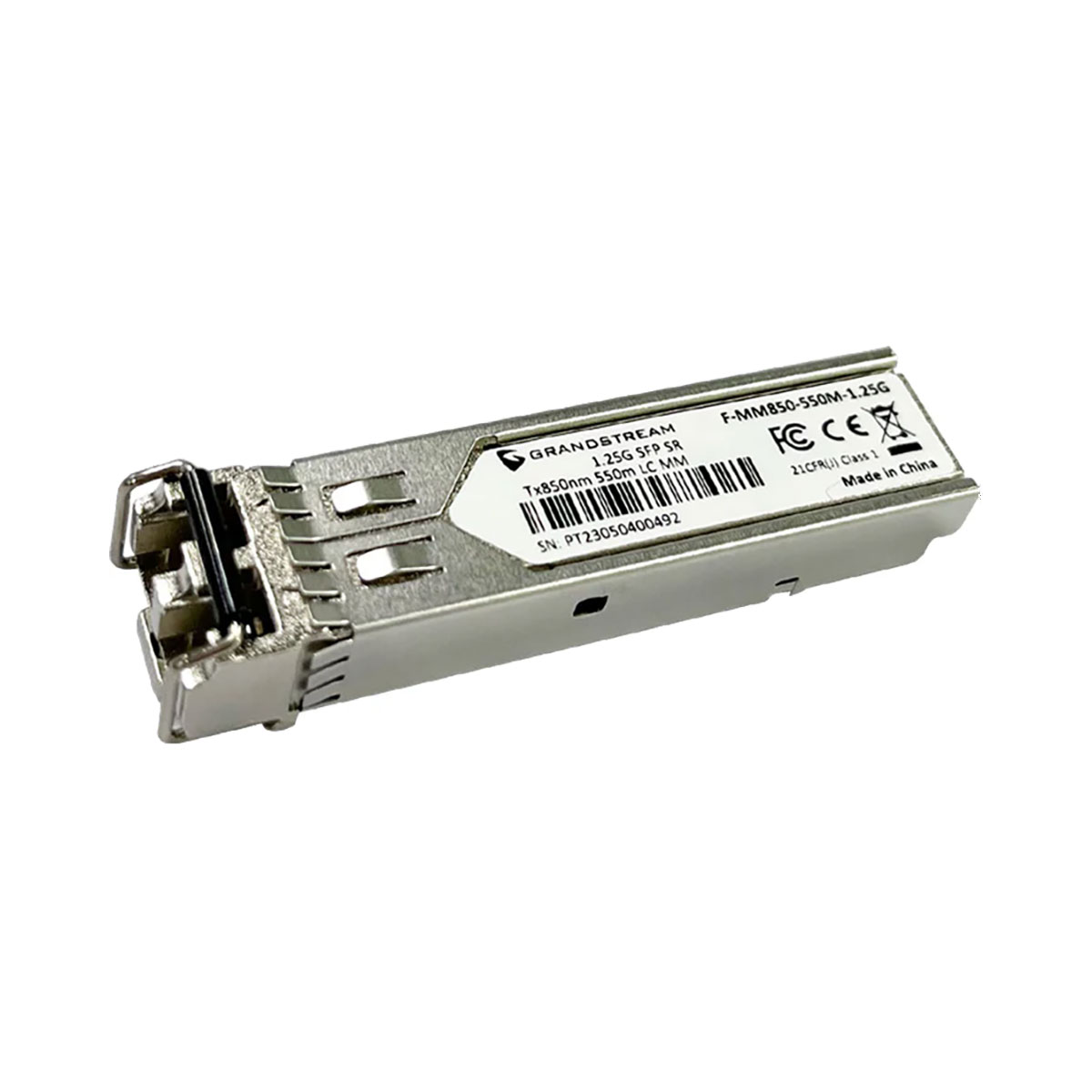

Grandstream F-MM850-550M-1.25G SFP Fiber Module
Grandstream F-MM850-550M-1.25G SFP Fiber Module
Grandstream Network offers a wide variety of fiber modules. All of them are hot-pluggable small-form factor transceiver modules integrated with the high sensitivity PIN receiver and signal conditioner for 1.25/10 Gigabit Ethernet applications. SFP modules support very low EMI and excellent ESD protection. Featuring low power consumption, these fiber modules are ideal for enterprise LAN networks and other optical links.
Notes:
• Please select the fiber cable according to the module type. The multi-mode module corresponds to the multi-mode fiber, and the single-mode module corresponds to the single-mode fiber.
• Please select the same wavelength fiber cable for connection.
• Please select an appropriate fiber module according to the actual networking situation to meet different transmission distance requirements.
• The laser of the Class 1 Laser Product is harmful to eyes. Do not look directly at the fiber connectors.
Specifications | |
Fiber Mode | Multi-Mode Fiber |
Connector Type | Duplex LC |
DDM | Yes, I2C for integrated Digital Diagnostic Monitoring |
Nominal Wavelength | 850nm |
Data Rate | 1.25Gbps SFP |
Max Power Consumption |
0.8W |
Transfer Distance | 50/125µm(OM2): 0.55km 62.5/125µm(OM1): 0.3km |
TX Power | -10 to -3dBm, ±3dB |
RX Power | -18 to -3dBm, ±3dB |
Operation Voltage | 3.3V±0.3V |
Environmental | Operation: 0℃ to 70℃, humidity: 5% to 85% Storage: -40℃ to 85℃ |
Unit Weight | 15.80g |
Standards | SFF-8472, SFP MSA, IEEE 802.3z, RoHS-6 |
Compliance | FCC, CE, FDA |
