Ubiquiti WM-W - WiFiMan Wizard spectrum analyzer

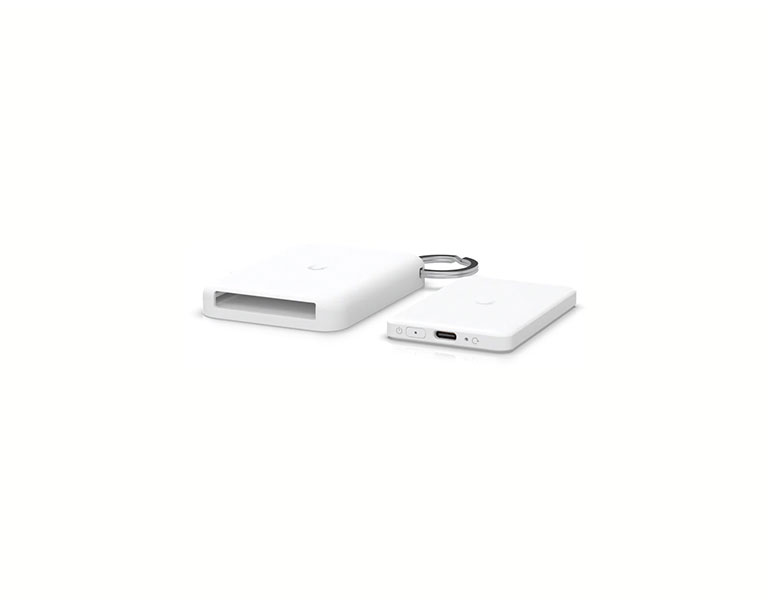

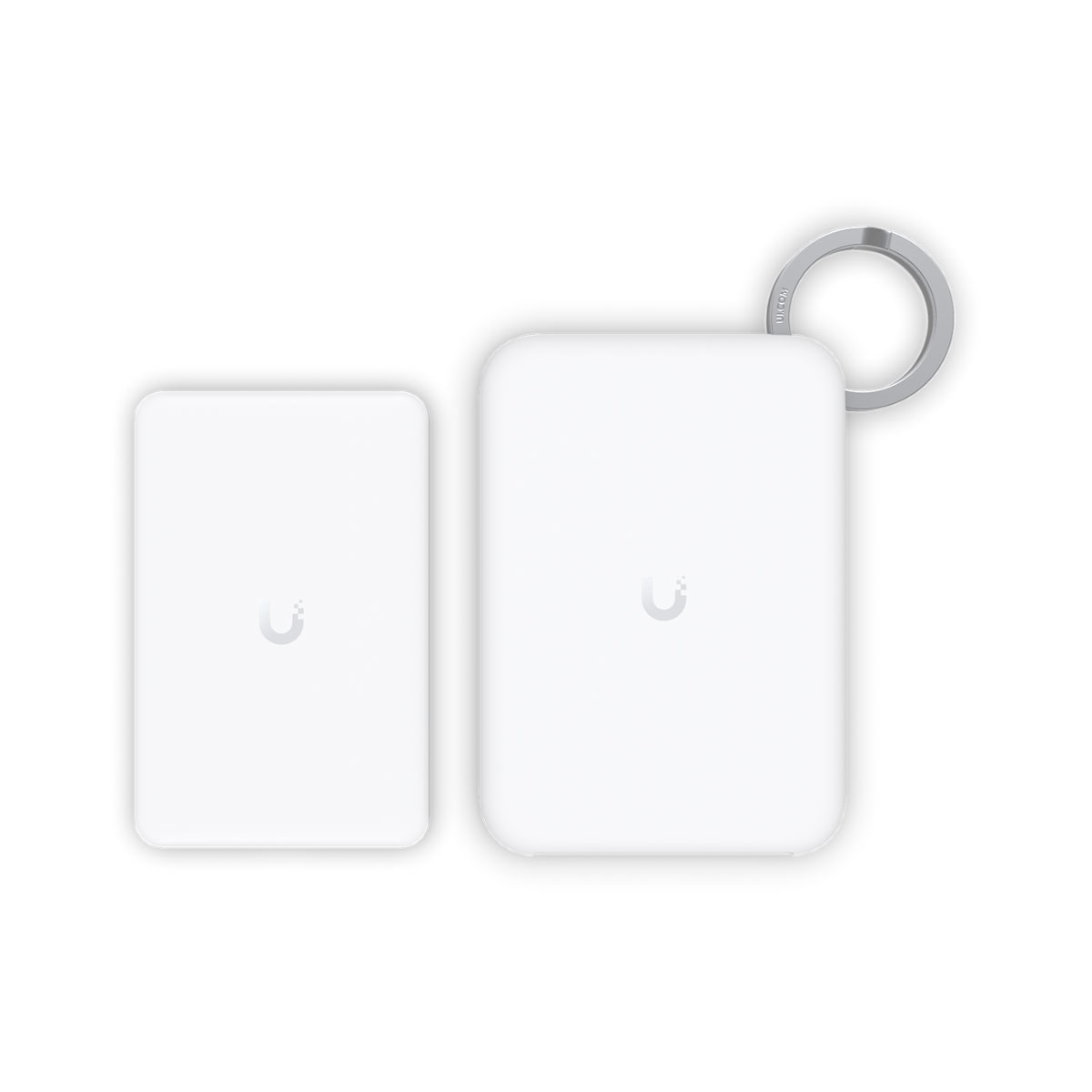

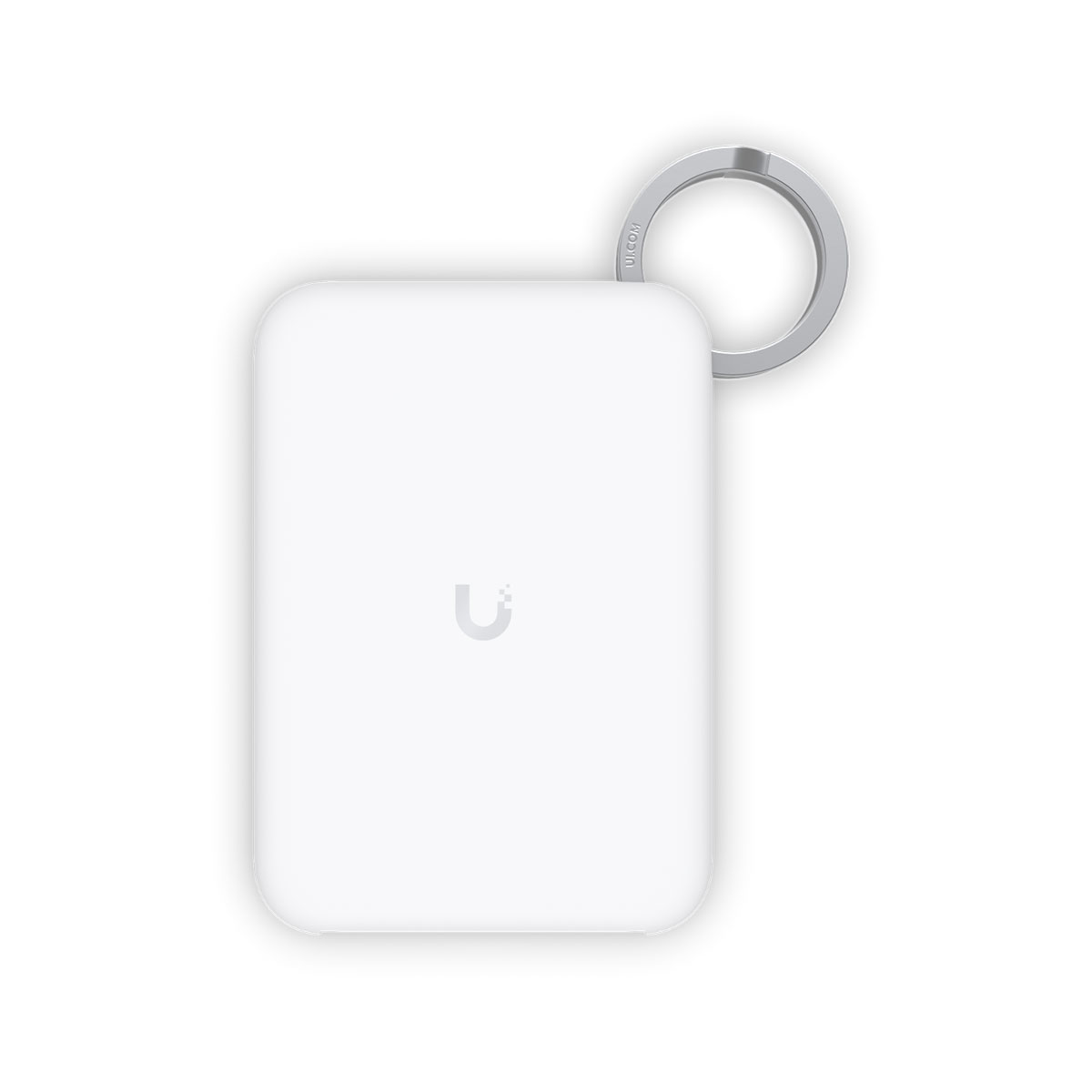

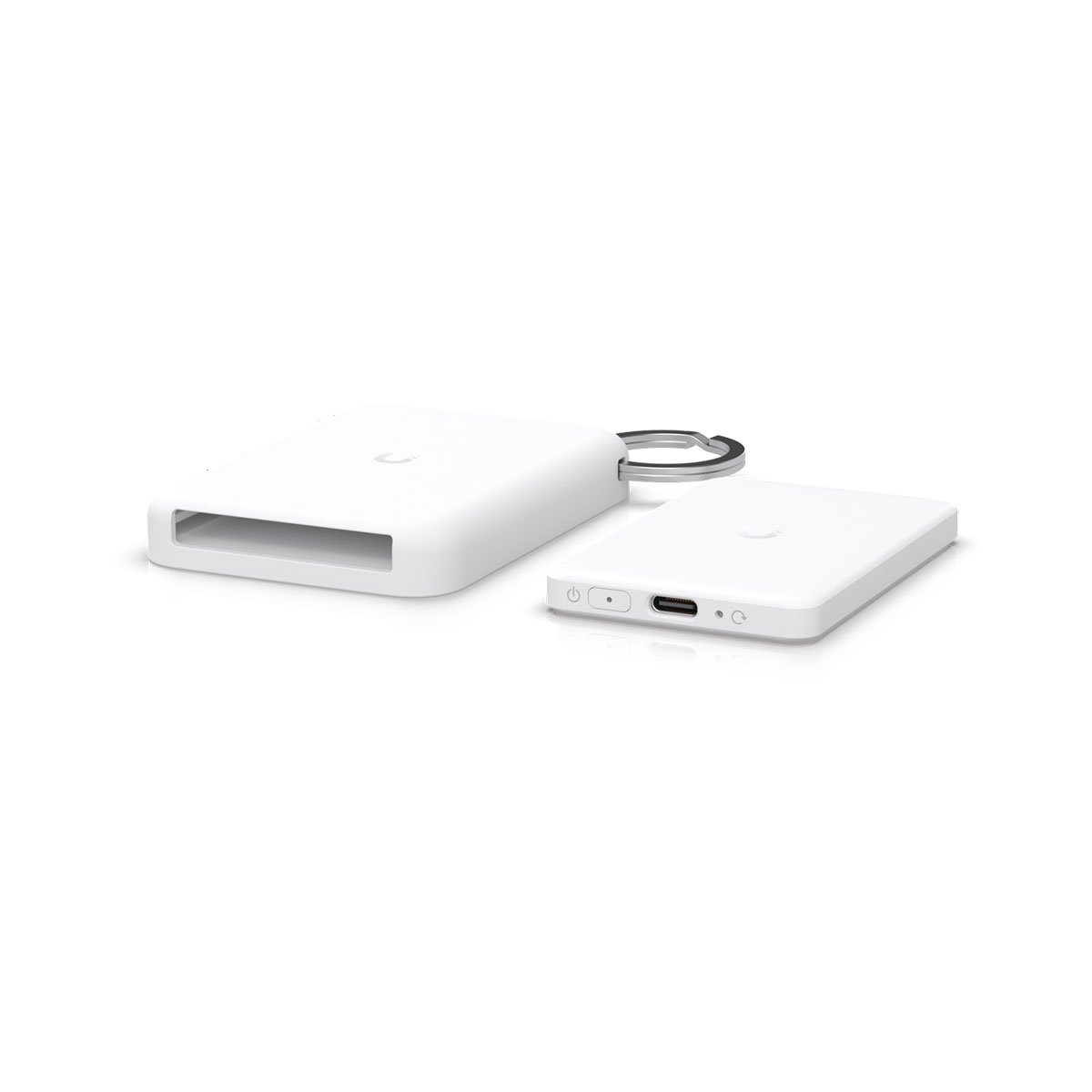

WiFiMan Wizard is a portable spectral analyzer designed for the WiFiMan iOS and Android mobile application with which it communicates wirelessly via Bluetooth. Together with a Lidar-equipped smartphone, it is able to project the WiFi scan on a map created by the Lidar and your movement/field walk around the building. The spectrum analyzer works in the license-free bands 2.4 - 2.5 GHz and 5.15 - 5.85 GHz with a sensitivity of up to -96 dBm. The device itself has an integrated battery with a capacity of 300mAh, a maximum duration of 240 minutes for continuous scanning and a USB-C connector for recharging.
Specifications:
• 2.4 GHz and 5 GHz unlicensed band scanning
• 240 minutes continuous scanning battery life

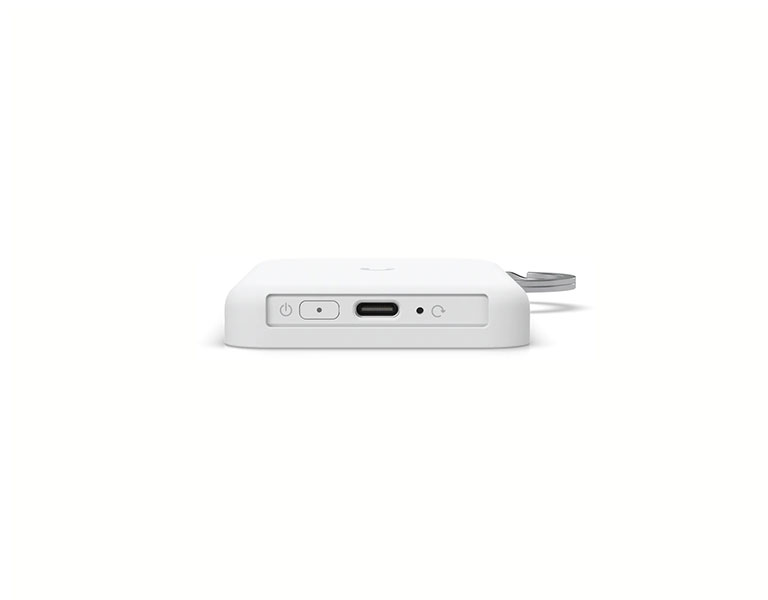

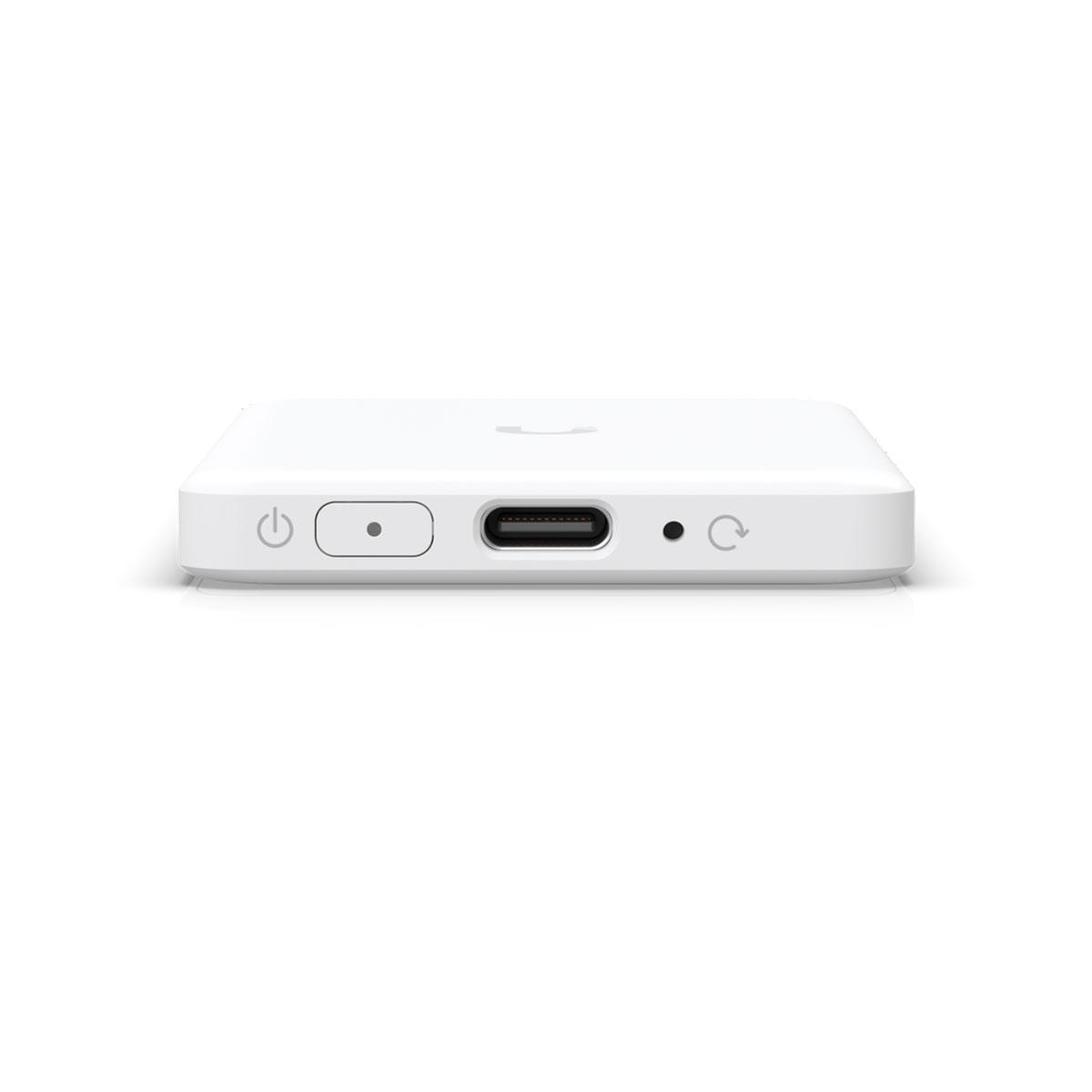

• BLE smartphone pairing with USB-C charging port
• Support iPhone Mag-safe with Mag-safe cover
• Works with UniFi WiFiman iOS: Version 0.18.0 and later and UniFi WiFiman Android: Version 1.15.0 and later
• Spectral analyzer, scheduler and frequency mapping inside the building using Lidar technology
| Specifications | |
| Wireless features | Bluetooth, 2.4 GHz, 5 GHz |
| Power | |
| Power type | USB-C |
| Power via connector/terminal | 5V / 1A |
| Physical characteristics | |
| Protection class | IP55 |
| Material | Plastic |
| Operating temperature | 0°C up to 40°C |
| Weight | 32g |
| Width | 51mm |
| Height | 79mm |
| Depth | 8mm |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
