Ubiquiti UACC-OM-SM-10G-S-2 U Fiber, Single-Mode Module, 10G, BiDi, 2-Pack
Product Code:
UACC-OM-SM-10G-S-2
214,00 €
(Includes VAT 24%)
Sales price without VAT:
172,58 €
Available
Ubiquiti UACC-OM-SM-10G-S-2 U Fiber, Single-Mode Module, 10G, BiDi, 2-Pack
Shipping cost calculation:
Quantity
Description
Characteristics
Downloads
Description

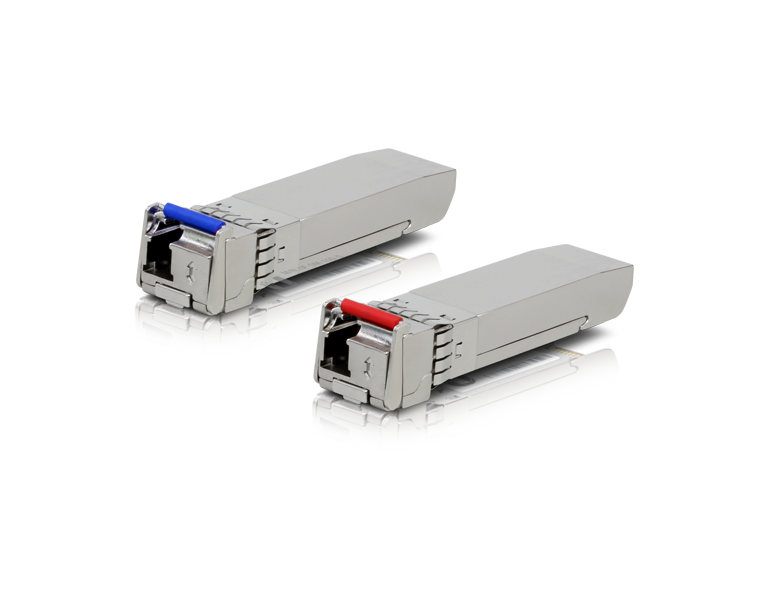

The 10 Gbps Bidirectional Single-mode Optical Module is a simplex transceiver that delivers up to 10 Gbps speed over distances up to 10 kilometers.
UF-SM-10G-S is set of singlemode 10G SFP+ WDM modules with 1 LC connector. Wave length is 1270/1330nm, this modules are suitable for distance up to 10km. Modules are compatible with all UBNT devices which contain SFP+ ports. Package contains 2 pieces - 1 function pair.
Characteristics
| Specifications | |
| Supported Media | Single-Mode Fiber |
| Connector Type | (1) LC |
| BiDi | ✓ |
| TX Wavelength | Blue: 1270 nm Red: 1330 nm |
| RX Wavelength | Blue: 1330 nm Red: 1270 nm |
| Data Rate | 10 Gbps SFP+ |
| Cable Distance | 10 km |
| Max. Power Consumption | 1W |
| Operating Temperature | 0 to 70° C |
| Transfer type | WDM |
| Compatibility | Universal |
| Model Comparison | ||||||
| UF-MM-1G | UF-MM-10G | UF-SM-1G-S | UF-SM-10G | UF-SM-10G-S | UF-RJ45-1G | |
| Supported Media | Multi-Mode Fiber | Multi-Mode Fiber | Single-Mode Fiber S | Single-Mode Fiber | Single-Mode Fiber | Copper |
| Connector Type | (2) LC | (2) LC | (1) LC | (2) LC | (1) LC | RJ45 |
| BiDi | ✓ | ✓ | ||||
| TX Wavelength | 850 nm | 850 nm | Blue: 1310 nm Yellow: 1550 nm |
1310 nm | Blue: 1270 nm Red: 1330 nm |
|
| RX Wavelength | 850 nm | 850 nm | Blue: 1550 nm Yellow: 1310 nm |
1310 nm | Blue: 1330 nm Red: 1270 nm |
|
| Data Rate | 1.25 Gbps SFP | 10 Gbps SFP+ | 1.25 Gbps SFP | 10 Gbps SFP+ | 10 Gbps SFP+ | 10/100/1000 Mbps |
| Cable Distance | 550 m | 300 m | 3 km | 10 km | 10 km | 100 m |
