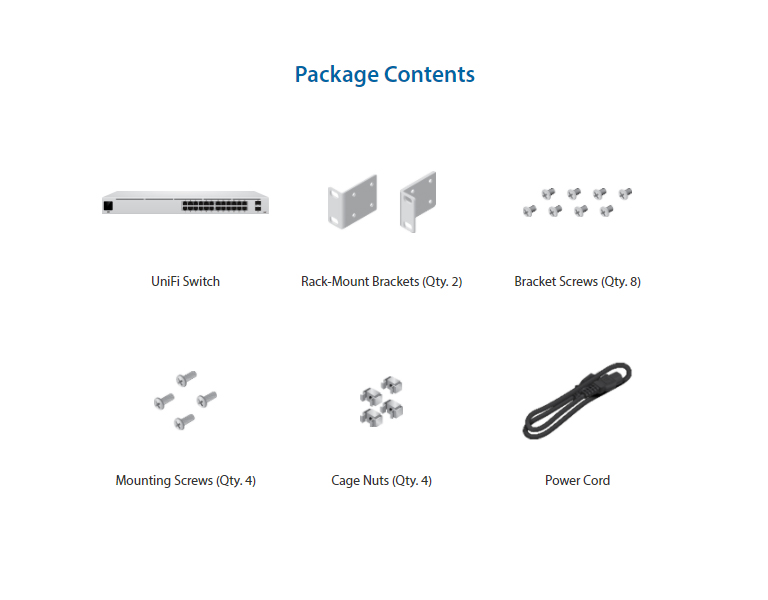

| • (24) Gigabit Ethernet Ports • (2) Gigabit SFP Ports • 1.3" color touchscreen for status information • Managed by UniFi Network Controller • 1U rackmountable (kit included) |

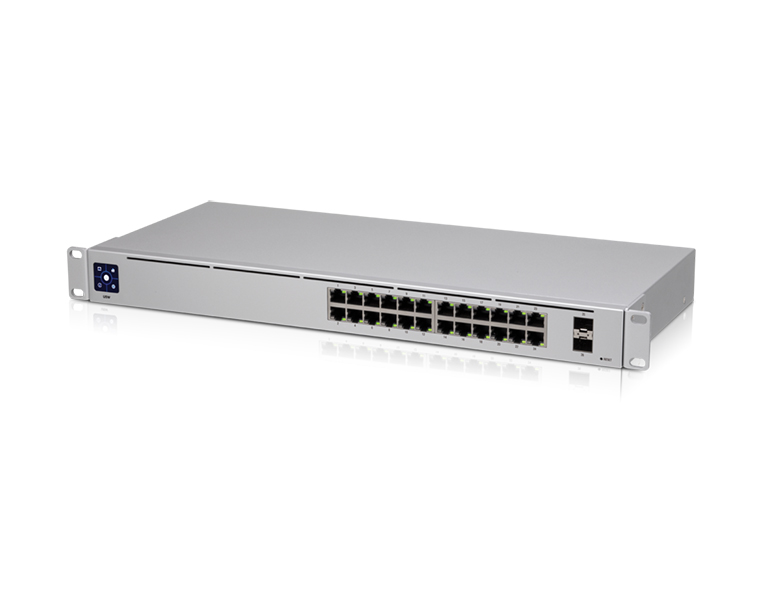

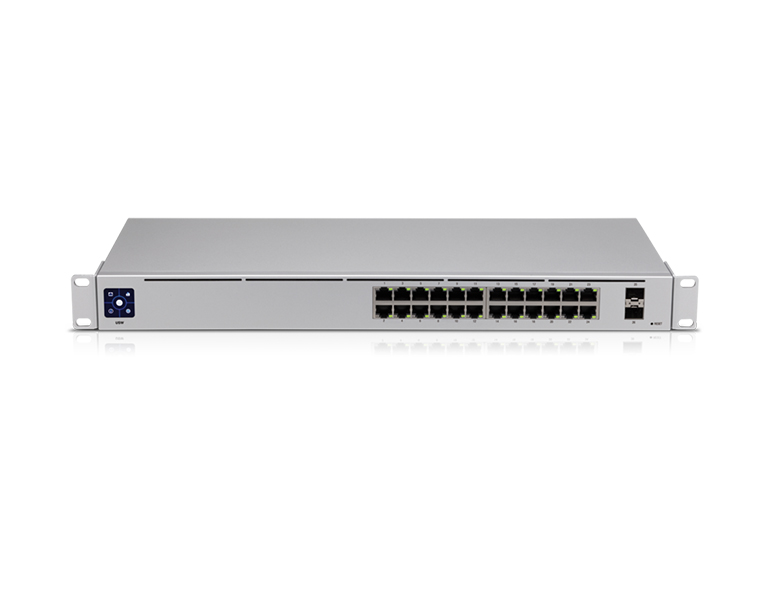

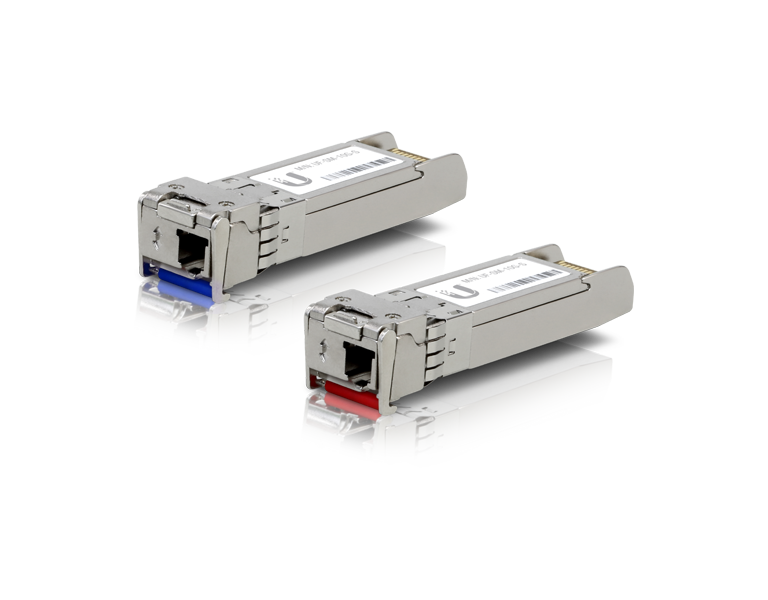

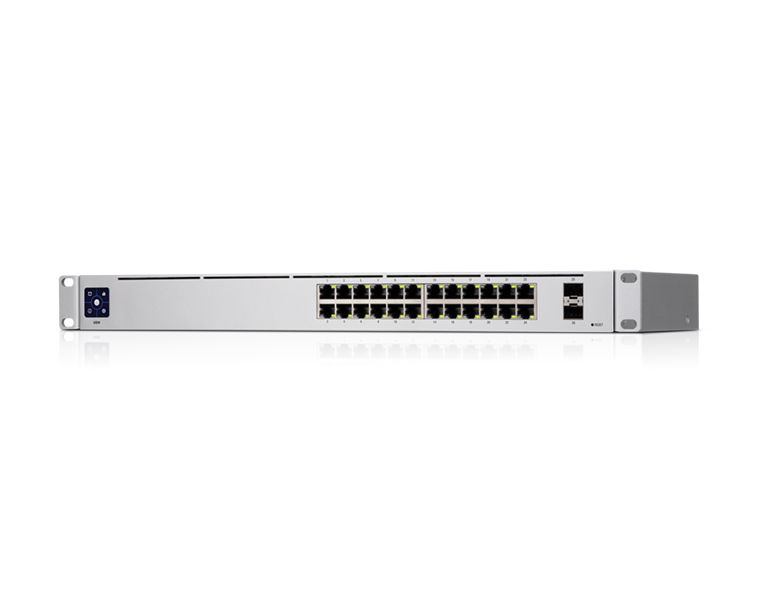

The USW-24 is a configurable Layer 2 switch with 24 Gigabit Ethernet ports and 2 SFP ports. The SFP ports provide 1 Gbps fiber uplink options to your enterprise network. The USW-24 features a 1.3" touchscreen, compact size, and fanless design. The touchscreen displays the current switch state and information for quick diagnosis. Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-24 switch offers an extensive suite of advanced Layer 2 switching protocols and features, including operating mode (switching, mirroring, or aggregate) per port.
Managed by UniFi Network Controller version: 5.12.32 or higher.
Works with UniFi Network Controller
• Manage Your Networks from a Single Control Plane
• Intuitive and Robust Configuration, Control and Monitoring
• Remote Firmware Upgrade
• Users and Guests
• Guest Portal/Hotspot Support
| Specifications | |
| Dimensions | 442.4 x 200 x 43.7 mm |
| Weight With Brackets |
2.70 kg 2.79 kg |
| Interfaces Networking Management |
(24) 10/100/1000 RJ45 Ports (2) 1G SFP Ethernet Ports Ethernet In-Band |
| Power Method | 100-240VAC, 50/60 Hz, Universal Input |
| Power Supply | AC/DC, Internal, 36W |
| Voltage Range | 100 to 240VAC |
| Max Power Consumption | 25W |
| LEDs RJ45 Data Ports SFP Data Ports |
Speed/Link/Activity Link/Activity |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 45° C |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
