TP-LINK TL-SM5310-T V2 10G BASE-T RJ45 SFP+ Module
|
• Support 10GBASE-T, 5GBASE-T, 2.5GBASE-T, and 1000BASE-T* |
What This Product Does

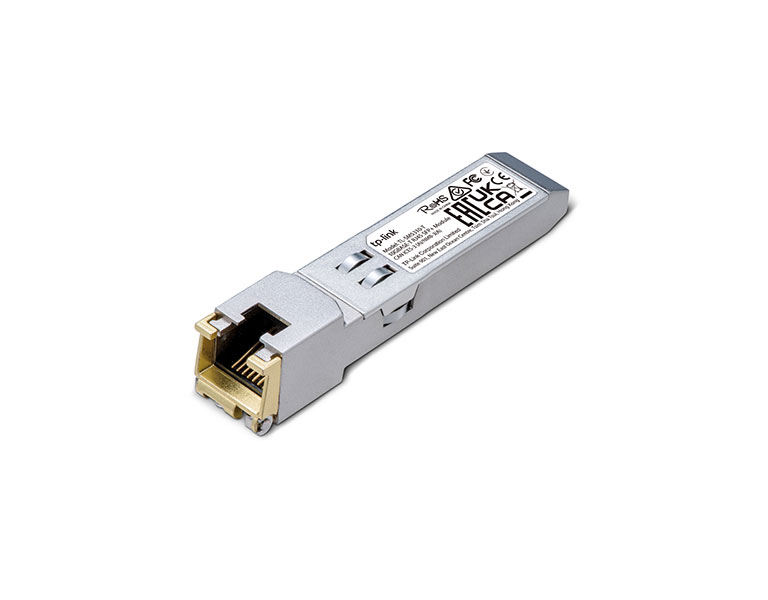

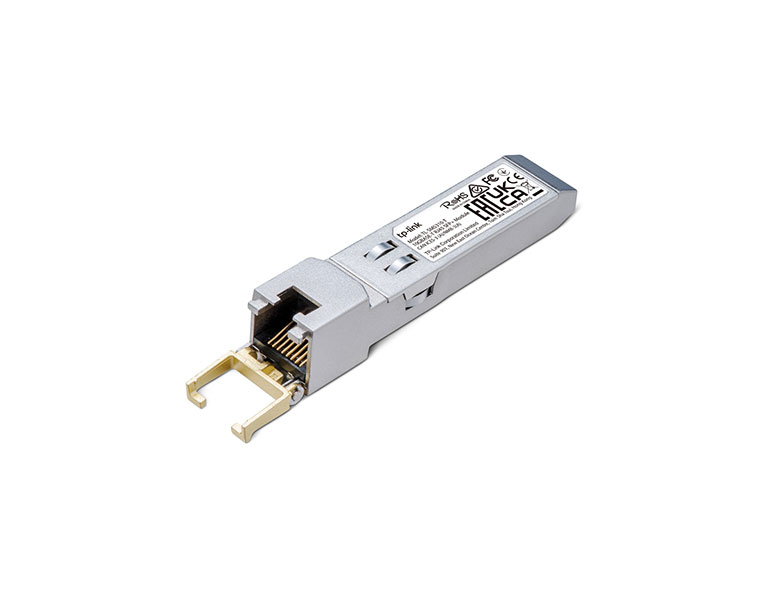

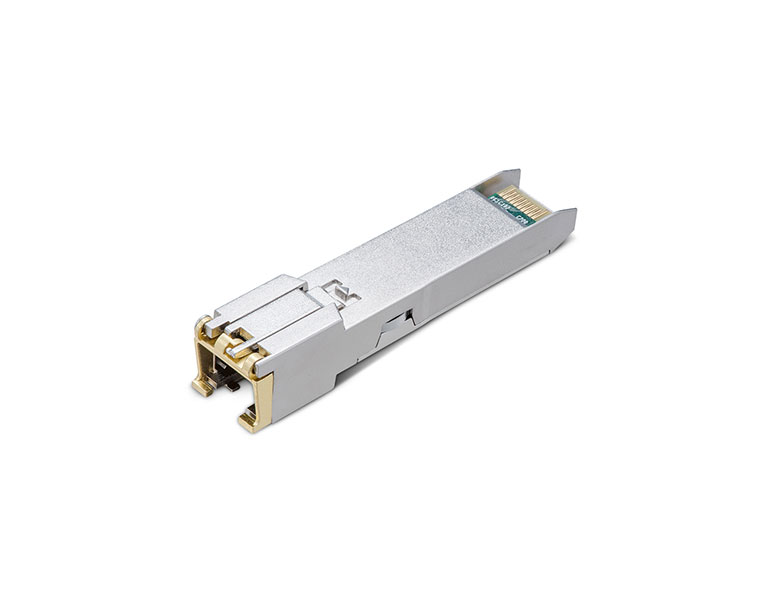

TP-Link’s SM5310-T is a high-speed SFP+ module that converts SFP+ ports to RJ45 ports, supporting multi-rate Ethernet speeds up to 10 Gbps over distances of up to 30 meters with UTP Cat6a or higher cables. Compliant with SFP+ MSA standards, it ensures broad compatibility with a wide range of network devices.
Featuring Digital Diagnostic Monitoring (DDM) as per the SFF-8472 standard, this module enables real-time monitoring of key parameters, enhancing network reliability and performance. Ideal for diverse business networking scenarios, SM5310-T is a top choice for high-speed data transmission in switches, routers, and other SFP+ port-equipped network equipment.
*When a 10G RJ45 SFP+ module is used at 1 Gbps, extra configuration for port data rate may be required. And when it is inserted into a 10 Gbps SFP+ slot and the maximum rate of the peer connection port is 5 Gbps or 2.5 Gbps, the flow control for the 10 Gbps SFP+ slot needs to be manually enabled.
**Data measured in a laboratory environment under specific conditions. The actual transmission distance may vary due to transmission speed or the cable quality and type.
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 24 months |
| SPECIFICATIONS | |
| Package Contents | 10G BASE-T RJ45 SFP+ Module TL-SM5310-T Installation Guide |
| HARDWARE FEATURES | |
| Hot Swappable | Yes |
| MEDIA CONVERTER & MODULE | |
| Dimensions (W*D*H) | 67.4 x .75 x 13.8 mm |
| TRANSCEIVER | |
| Standards and Protocols | IEEE Std 802.3, 802.3ab, 802.3bz, 82.3an |
| Power Supply | 3.3V |
| Max. Cable Length | • 1000BASE-T/2.5GBASE-T/5GBASE-T: UTP cat.5e or above (max. 100m) • 10GBASE-T: UTP cat.6a or above (max. 30m) |
| Data Rate | 10.3 Gbps |
| Port Type | 1× 10G RJ45 Port |
| Safety & Emission | FCC, CE, RoHS |
| Environment | Operating Temperature: 0–70 ℃ Storage Temperature: -40–85 ℃ |
