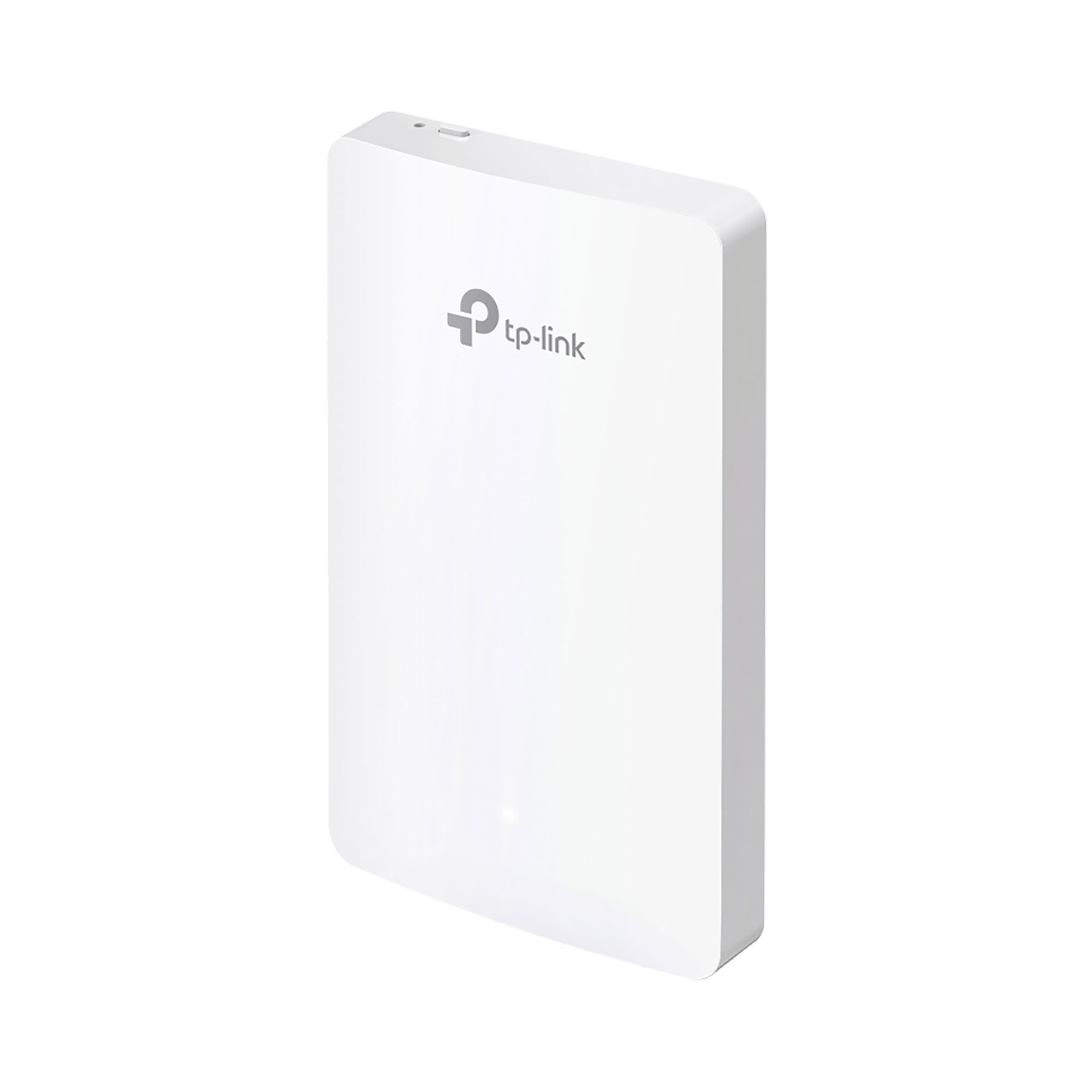

TP-LINK EAP615-Wall V1.2 AX1800 Wall Plate WiFi 6 Access Point
CAUTION! Package does not include power supply!
| • Superior WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.** • High-Performance Connectivity: Guarantee higher network efficiency and lower latency. • Four Gigabit Ports: 4 Gigabit Ethernet ports (1x uplink + 3x downlink), with one downlink port supporting PoE pass-through to provide power for wired device.‡ • Centralized Management: Integrates into Omada SDN for cloud access and remote management. • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/Voucher, etc.) and abundant wireless security technologies.† • Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support. |
Superior WiFi 6 Speeds
Meet the demands for smoother online activities and more device connections. The latest 802.11ax technologies* such as 1024 QAM and Long OFDM Symbol allows the EAP to boost overall speeds up to 1775 Mbps**.
High-Performance Connectivity for Better User Experience
The latest WiFi 6 features and advanced wireless techniques guarantee higher network efficiency and lower latency*.
Seamless Integrated into Omada SDN Platform
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.
More than Speed, Security Matters
Safeguard your network and data against brute force attack and snooping with WPA3 enterprise-grade security protection, portal authentication, and segregated guest networks.
Secure Guest Network with Up to 16 SSIDs Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.
Guest Network with Facebook Wi-Fi and SMS Login Captive portal (including SMS, Facebook Wi-Fi, Voucher)† and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.
WPA3 for Worry-Free Open Public Networks With advanced enterprise security, WPA3 provides strengthened data security for previously unsecured and open WiFi hotspots.
Effortless Deployment with PoE Powered
With 802.3af/802.3at Power over Ethernet supported, there’s no need to install additional wiring in the building. Plug the existing Ethernet cables in, and you’re ready to go.

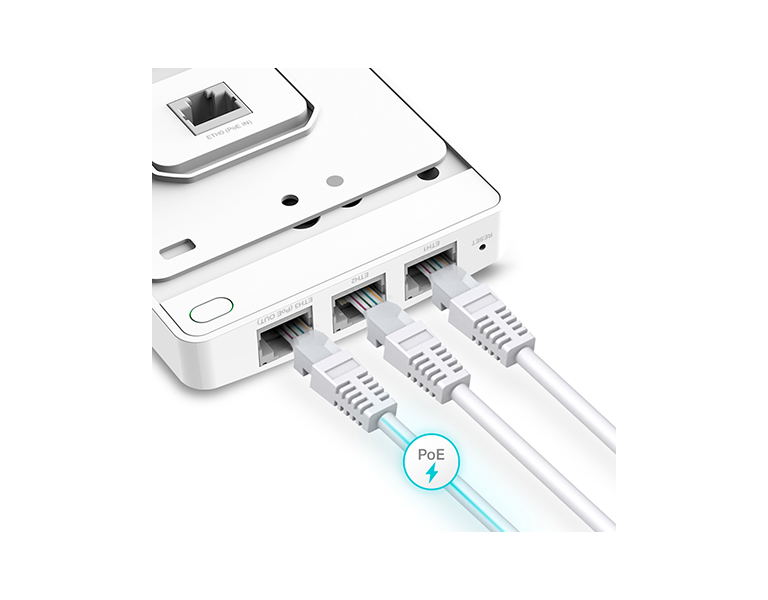

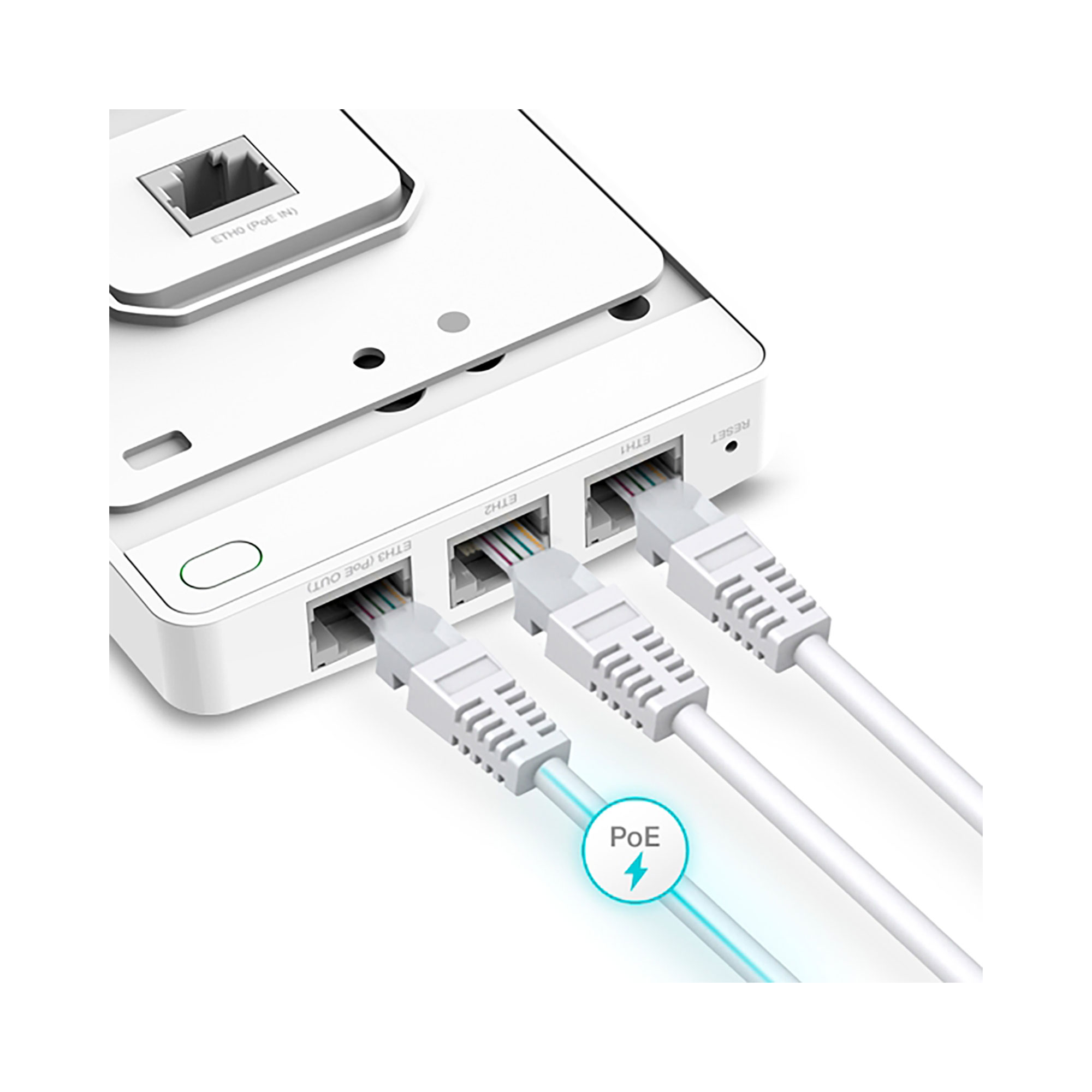

Full Gigabit Ports to Bridge Network
Wired devices like VoIP phones can be powered with no need for extra electrical cables. The four data ports (1 uplink + 3 downlinks) transfer data at multiple Gigabits, allowing you to connect several devices to your gigabit network. One of the downlink ports offers PoE pass-through‡ to eliminate the need for that extra power port.
Quick, Simplified Installation
With an easy-to-install design, there is no need to spend time and money bringing someone in to install the EAP.
*Fits three kinds of wall junctions.
Easy Management with the Omada App
Follow the configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
*Use of WiFi 6 (802.11ax) and features including OFDMA and MU-MIMO requires client devices to support the corresponding features.
**Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed. They will vary due to factors including network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
†Seamless roaming may require upgrading the firmware. The use of Omada Mesh and Seamless Roaming, and Captive Portal require Omada SDN controllers. Please refer to the User Guides of Omada SDN controllers for configuration methods.
‡PoE pass-through is only available when 802.3at powers the device. The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing. Actual power delivered to the device may vary.
| HARDWARE FEATURES | |
| Interface | • Uplink: 1× 10/100/1000 Mbps Ethernet Port Port(RJ45); POE In • Downlink: 3× 10/100/1000 Mbps Ethernet Ports (RJ45); (One port supports PoE OUT) |
| Memory | Flash: 128Mbit DRAM: 1024Mbit |
| Button | 1 × Reset button: Press the button for longer than 5 seconds to make the device restore to factory settings 1 × LED Button |
| Power Consumption | 802.3af/at POE: 11.5w (PoE out not included), 2.4GHz radio 2×2, 5GHz radio 2×2. Idlemode: 4.16W(PoE |
| Power Supply |
Input - 820865 hours at the operating temperature of 25°C Output - Passive POE:41.5V-55V/0.32A |
| Surge/Lightning Protection | Ethernet Ports: ±2 k |
| ESD/EMP Protection | •Air discharge: ±8 kV •Contact discharge: ±4 kV *Note: ESD/EMP Protection means Electrostatic Discharge/Electromagnetic Pulse Protection independently. |
| Maximum transmit power |
CE (ERIP)
|
| Minimum transmit power |
CE (ERIP) FCC (Conducted Power) |
| Adjustable power increment |
1 dBm |
| Environment |
Temperature - Humidity - Altitude - |
| Unit |
Dimensions (W×D×H) - Weight - Mounting - |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
