TP-LINK TL-POE160S V3 PoE+ Injector
Product Code:
TL-POE160S
22,50 €
(Includes VAT 24%)
Sales price without VAT:
18,15 €
Available
Next pickup date: 12/06/2025
TP-LINK TL-POE160S V3 PoE+ Injector
Shipping cost calculation:
Quantity
Description
Characteristics
Downloads
Description
| • 2 Gigabit ports ensure faster transmission • Complies with IEEE802.3af/at standards, supplies up to 30 W • Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable • Automatically determines and supplies the exact power to meet the device's need • Wall-mounting and desktop design accommodates most installation scenarios • Plug & Play installation, requires no configuration • Integrated power supply |
What This Product Does

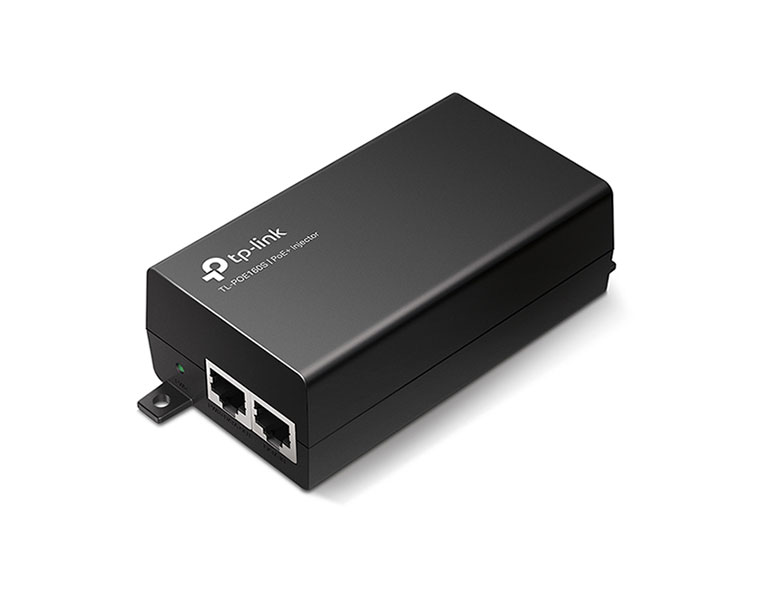

The PoE+ Injector TL-POE160S fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-Link's TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
Characteristics
| HARDWARE FEATURES | |
| Standards | IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at |
| Ports | 1 10/100/1000Mbps RJ45 data-in port 1 10/100/1000Mbps RJ45 power+data-out port 1 AC socket |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m) |
| Basic Function | Auto-Sensing Algorithm enables providing power with 802.3af/at PD Auto-determine the necessary power requirements Wall-mounting and desktop installation supported Plug-and-Play |
| Power | Input: 100-240 V, 50/60 Hz Output: Auto-determine the necessary power requirements (max. 30 W) |
| LED Indicator | Power / PoE |
| Dimensions(WxDxH) | 125 x 59.4 x 36.8 mm |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Environment | Operating Temperature: 0°C~40°C Storage Temperature: -40°C~70°C Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
