TP-LINK EAP115-Wall V1.2 300Mbps Wireless N Wall-Plate Access Point
CAUTION! Package does not include power supply!
| • Easy-mount construction allows installation into any standard EU-type data wall-box • Compact, low-profile design fits discreetly with any existing interior style • Free Auranet Controller Software enables administrators to easily manage hundreds of EAPs • Support Power over Ethernet (802.3af) for convenient and affordable installation • Enterprise class Wi-Fi security helps to decrease network security threats • Captive portal provides one convenient method of authentication for Wi-Fi guests • Supports management vlan for an enhanced network management |
Installation Made Easy
1.Detach the faceplate of the junction box* with a screwdriver.
2.Remove the faceplate of the EAP.

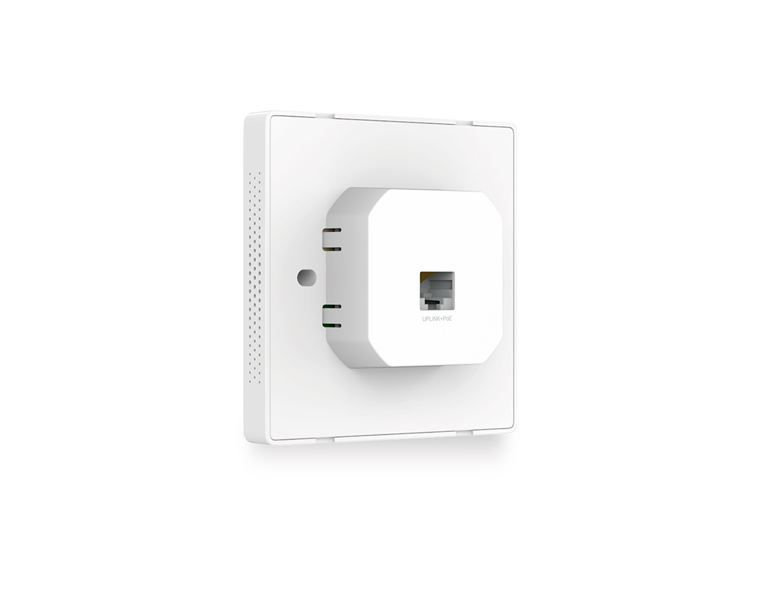

3.Connect an in-wall Ethernet cable to the Uplink+POE port.
4.Secure the access point to the wall using the nails provided.
5.Press the faceplate back into position.
*Fit for flowing two kinds of wall junction box
Perfectly Formed
The EAP115-Wall would blend seamlessly into any business setting with a refined, minimalist appearance. A slimline design includes casing that’s just 11 mm in thickness.
Effortless Deployment
With 802.3af Power over Ethernet supported there’s no need for additional wiring. Simply plug in existing Ethernet cables and you’re ready to go.
Complete Wireless Coverage
An EAP in each room guarantees a strong wireless signal and allows guests to enjoy their own private Wi-Fi network.
Centralized Management
Manage and monitor hundreds of EAPs with ease, all from a single location. TP-Link’s free Auranet Controller Software provides an intuitive management interface with no special training required. Wi-Fi management has never been so simple or cost-effective.
Customized Guest
Authentication with Captive Portal Captive portal provides a convenient method of authentication for Wi-Fi guests. Choose from a range of authentication options and create a unique authentication page to advertise your business to users.
Features
• Easy-mount construction enables easy installation into any standard EU-type data wall-box
• Sleek, compact design blends perfectly with the existing interior style
• Free Auranet Controller Software enables administrators to easily manage hundreds of EAPs
• Support Power over Ethernet(802.3af) for convenient and affordable installation
• 300Mbps wireless data rate for uninterrupted wireless connection
• Captive portal provides one convenient method of authentication for Wi-Fi guests
• Access Control restricts or allows the client to access the specified network segment
• Reboot Schedule enables all the APs to be rebooted automatically within a specified time
• WPA/WPA2-enterprise, 802.1X with RADIUS secure authentication and rogue access point detection ensure the security of WLAN
• Compatible with 802.11 b/g/n products
• QoS function prioritizes data, voice, and video applications to ensure time-sensitive traffic takes priority over all other traffic
• Multiple operating modes satisfy different application conditions including managed AP and standalone AP modes
• Load balance ensures large numbers of users have smooth network experiences in large business networks
• Multi-SSID divides multiple wireless network for different users
• Rate limit on per SSID to restrict the bandwidth of each client
| HARDWARE FEATURES | |
| Interface | 2x 10/100Mbps Ethernet (RJ-45) Port |
| Button | LED/Wi-Fi Button, RESET |
| Power Supply | PoE(IEEE 802.3af) |
| Power Consumption | 2.8 W |
| Dimensions (W x D x H) | 86.8 x 86.8 x 30.2 mm |
| Antenna Type | Internal 2x 1.8dBi Omni |
| Mounting | Wall Plate Mounting |
| Physical Security Lock | - |
| Watch Dog | Yes |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11n/g/b |
| Frequency | 2.4GHz |
| Signal Rate | 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
| Wireless Functions | Multiple SSIDs(Up to 8 SSIDs) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| Transmit Power | CE： <15dBm(2.4GHz) |
| MANAGEMENT | |
| EAP Controller Software | Yes |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1,v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| Telnet | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| OTHERS | |
| Certification | CE, RoHS |
| Package Contents | 300Mbps Wireless N Wall-Plate Access Point EAP115-Wall Installation Guide Mounting Screw |
| System Requirements | Microsoft Windows XP, Vista, 7, 8, 10 |
| Environment | Operating Temperature: 0°C~40°C Storage Temperature: -40°C~70°C Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
**Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
