Ubiquiti UACC-POE+-USBC, PoE Integrated AC Adapter
Product Code:
UACC-PoE+-USBC
60,00 €
(Includes VAT 24%)
Sales price without VAT:
48,39 €
Available

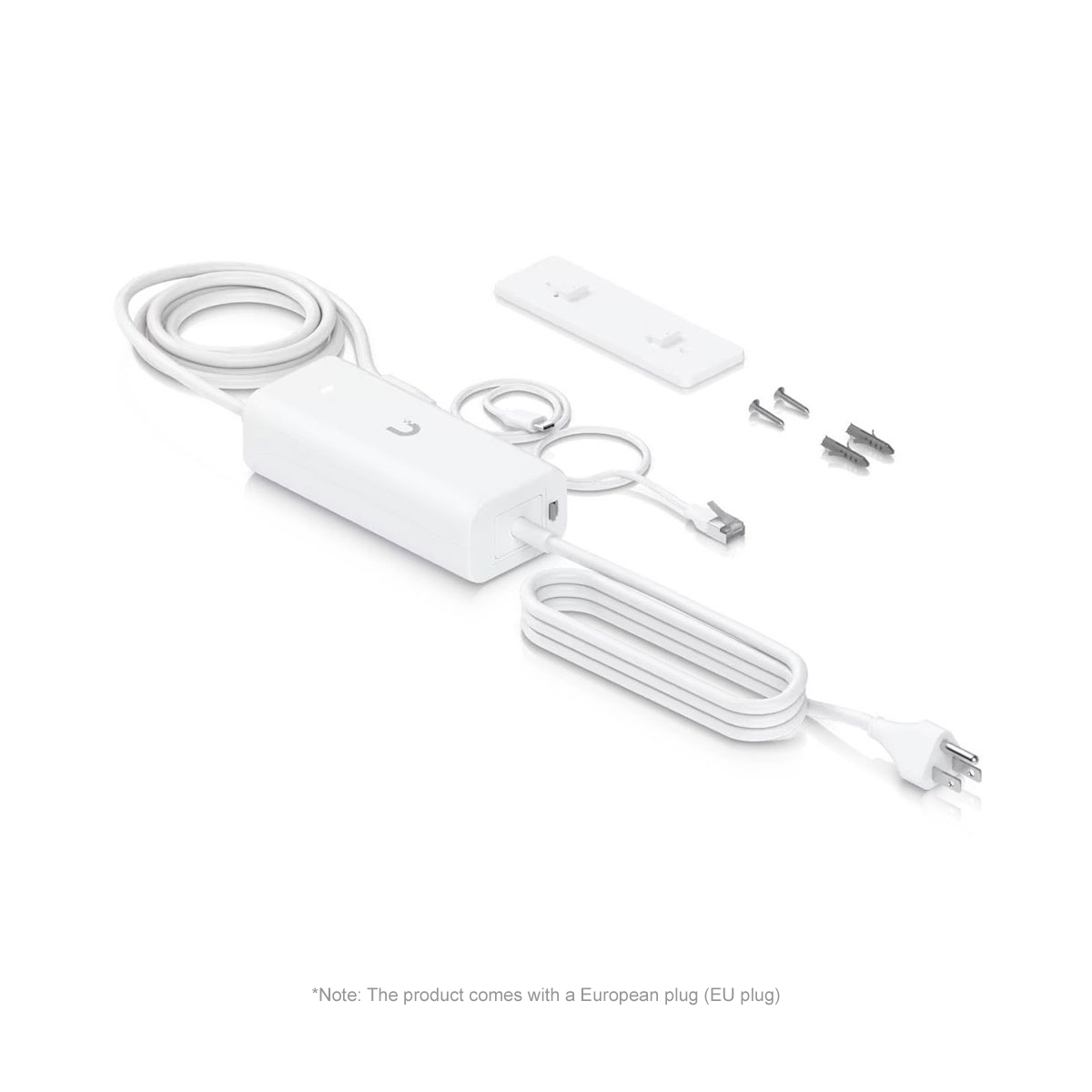

Ubiquiti UACC-POE+-USBC, PoE Integrated AC Adapter
Shipping cost calculation:
Quantity
Description
Characteristics
Downloads
Description
An AC adapter with integrated PoE, enabling the UniFi Cloud Gateway device to support PoE output on a single port. Adapter is equiped with USB-C 5V/5A output and integrated PoE 48V/0.65A. PoE power is supplied on all pins: 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-). The adapter supports LAN speeds of up to 10Gb. The USB-C/Ethernet cable is 150 cm long, while the power cable is 180 cm long. With this adapter, you can connect your home router with USB-C power and an antenna or LTE for internet access using a single power outlet.
Compatible with:
- UCG-Ultra
- UCG-Max
- UXG-Lite
- UXG-Max
- UX
Characteristics
| Overview | |
| Dimensions | 46 x 62 x 42 mm |
| Weight | 358 g |
| Length | Cable: 150 cm total, including 30 cm split Type-C/Ethernet ends Power cord: 180 cm |
| Output Voltage | Type-C: 5V@ 5A PoE+: 48V@ 0.65A |
| Rated Voltage | 100—240V AC @ 50/60Hz |
| Gigabit LAN Port | Yes |
| 4-pair Powering | Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |
| Clamping Protection | 11V data, 60V power |
| Data In / PoE | RJ45 shielded socket |
| Input Current | 1.5A max. |
| Inrush Current | 120A |
| Efficiency | 82% |
| Switching Frequency | 65 kHz |
| Output Ripple | 1% max. |
| Line Regulation | ≤ 5% |
| Load Regulation | ≤ 5% |
| Max. Surge Discharge | 1500A (8/20 μs) power |
| Peak Pulse Current | 36A (10/1000 μs) data |
| Response Time | <1 ns |
| Shunt Capacitance | <5 pF data |
| Surge Protection | Difference and common mode |
| Ambient Storage Temperature | -30 to 70°C |
| Ambient Operating Temperature | 0 to 40° C |
| Ambient Operating Humidity | 10 to 95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, UL, UKCA, CCC, KC, RoHS |
